15. k8s 内部署Jenkins
  1. 下载Jenkins镜像
docker pull jenkins/jenkins:2.190.3
docker tag 22b8b9a84dbe harbor.od.com/public/jenkins:v2.190.3
docker push harbor.od.com/public/jenkins:v2.190.3

2.生公钥

~]# ssh-keygen -t rsa -b 2048 -C "xxx@xx.xxx" -N "" -f /root/.ssh/id_rsa

3.build Jenkins镜像

mkdir /data/dockerfile/jenkins/
cd /data/dockerfile/jenkins/

vim Dockerfile

FROM harbor.od.com/public/jenkins:v2.190.3
USER root
RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&\
    echo 'Asia/Shanghai' >/etc/timezone
ADD id_rsa /root/.ssh/id_rsa
ADD config.json /root/.docker/config.json
ADD get-docker.sh /get-docker.sh
RUN echo "    StrictHostKeyChecking no" >> /etc/ssh/ssh_config &&\
    /get-docker.sh

cp /root/.ssh/id_rsa .
cp /root/.docker/config.json .

5.准备docker文件

cat get-docker.sh

#!/bin/sh
set -e
# Docker CE for Linux installation script
#
# See https://docs.docker.com/install/ for the installation steps.
#
# This script is meant for quick & easy install via:
#   $ curl -fsSL https://get.docker.com -o get-docker.sh
#   $ sh get-docker.sh
#
# For test builds (ie. release candidates):
#   $ curl -fsSL https://test.docker.com -o test-docker.sh
#   $ sh test-docker.sh
#
# NOTE: Make sure to verify the contents of the script
#       you downloaded matches the contents of install.sh
#       located at https://github.com/docker/docker-install
#       before executing.
#
# Git commit from https://github.com/docker/docker-install when
# the script was uploaded (Should only be modified by upload job):
SCRIPT_COMMIT_SHA="3d8fe77c2c46c5b7571f94b42793905e5b3e42e4"


# The channel to install from:
#   * nightly
#   * test
#   * stable
#   * edge (deprecated)
DEFAULT_CHANNEL_VALUE="stable"
if [ -z "$CHANNEL" ]; then
	CHANNEL=$DEFAULT_CHANNEL_VALUE
fi

DEFAULT_DOWNLOAD_URL="https://download.docker.com"
if [ -z "$DOWNLOAD_URL" ]; then
	DOWNLOAD_URL=$DEFAULT_DOWNLOAD_URL
fi

DEFAULT_REPO_FILE="docker-ce.repo"
if [ -z "$REPO_FILE" ]; then
	REPO_FILE="$DEFAULT_REPO_FILE"
fi

mirror=''
DRY_RUN=${DRY_RUN:-}
while [ $# -gt 0 ]; do
	case "$1" in
		--mirror)
			mirror="$2"
			shift
			;;
		--dry-run)
			DRY_RUN=1
			;;
		--*)
			echo "Illegal option $1"
			;;
	esac
	shift $(( $# > 0 ? 1 : 0 ))
done

case "$mirror" in
	Aliyun)
		DOWNLOAD_URL="https://mirrors.aliyun.com/docker-ce"
		;;
	AzureChinaCloud)
		DOWNLOAD_URL="https://mirror.azure.cn/docker-ce"
		;;
esac

command_exists() {
	command -v "$@" > /dev/null 2>&1
}

is_dry_run() {
	if [ -z "$DRY_RUN" ]; then
		return 1
	else
		return 0
	fi
}

is_wsl() {
	case "$(uname -r)" in
	*microsoft* ) true ;; # WSL 2
	*Microsoft* ) true ;; # WSL 1
	* ) false;;
	esac
}

is_darwin() {
	case "$(uname -s)" in
	*darwin* ) true ;;
	*Darwin* ) true ;;
	* ) false;;
	esac
}

deprecation_notice() {
	distro=$1
	date=$2
	echo
	echo "DEPRECATION WARNING:"
	echo "    The distribution, $distro, will no longer be supported in this script as of $date."
	echo "    If you feel this is a mistake please submit an issue at https://github.com/docker/docker-install/issues/new"
	echo
	sleep 10
}

get_distribution() {
	lsb_dist=""
	# Every system that we officially support has /etc/os-release
	if [ -r /etc/os-release ]; then
		lsb_dist="$(. /etc/os-release && echo "$ID")"
	fi
	# Returning an empty string here should be alright since the
	# case statements don't act unless you provide an actual value
	echo "$lsb_dist"
}

add_debian_backport_repo() {
	debian_version="$1"
	backports="deb http://ftp.debian.org/debian $debian_version-backports main"
	if ! grep -Fxq "$backports" /etc/apt/sources.list; then
		(set -x; $sh_c "echo \"$backports\" >> /etc/apt/sources.list")
	fi
}

echo_docker_as_nonroot() {
	if is_dry_run; then
		return
	fi
	if command_exists docker && [ -e /var/run/docker.sock ]; then
		(
			set -x
			$sh_c 'docker version'
		) || true
	fi
	your_user=your-user
	[ "$user" != 'root' ] && your_user="$user"
	# intentionally mixed spaces and tabs here -- tabs are stripped by "<<-EOF", spaces are kept in the output
	echo "If you would like to use Docker as a non-root user, you should now consider"
	echo "adding your user to the \"docker\" group with something like:"
	echo
	echo "  sudo usermod -aG docker $your_user"
	echo
	echo "Remember that you will have to log out and back in for this to take effect!"
	echo
	echo "WARNING: Adding a user to the \"docker\" group will grant the ability to run"
	echo "         containers which can be used to obtain root privileges on the"
	echo "         docker host."
	echo "         Refer to https://docs.docker.com/engine/security/security/#docker-daemon-attack-surface"
	echo "         for more information."

}

# Check if this is a forked Linux distro
check_forked() {

	# Check for lsb_release command existence, it usually exists in forked distros
	if command_exists lsb_release; then
		# Check if the `-u` option is supported
		set +e
		lsb_release -a -u > /dev/null 2>&1
		lsb_release_exit_code=$?
		set -e

		# Check if the command has exited successfully, it means we're in a forked distro
		if [ "$lsb_release_exit_code" = "0" ]; then
			# Print info about current distro
			cat <<-EOF
			You're using '$lsb_dist' version '$dist_version'.
			EOF

			# Get the upstream release info
			lsb_dist=$(lsb_release -a -u 2>&1 | tr '[:upper:]' '[:lower:]' | grep -E 'id' | cut -d ':' -f 2 | tr -d '[:space:]')
			dist_version=$(lsb_release -a -u 2>&1 | tr '[:upper:]' '[:lower:]' | grep -E 'codename' | cut -d ':' -f 2 | tr -d '[:space:]')

			# Print info about upstream distro
			cat <<-EOF
			Upstream release is '$lsb_dist' version '$dist_version'.
			EOF
		else
			if [ -r /etc/debian_version ] && [ "$lsb_dist" != "ubuntu" ] && [ "$lsb_dist" != "raspbian" ]; then
				if [ "$lsb_dist" = "osmc" ]; then
					# OSMC runs Raspbian
					lsb_dist=raspbian
				else
					# We're Debian and don't even know it!
					lsb_dist=debian
				fi
				dist_version="$(sed 's/\/.*//' /etc/debian_version | sed 's/\..*//')"
				case "$dist_version" in
					10)
						dist_version="buster"
					;;
					9)
						dist_version="stretch"
					;;
					8|'Kali Linux 2')
						dist_version="jessie"
					;;
				esac
			fi
		fi
	fi
}

semverParse() {
	major="${1%%.*}"
	minor="${1#$major.}"
	minor="${minor%%.*}"
	patch="${1#$major.$minor.}"
	patch="${patch%%[-.]*}"
}

do_install() {
	echo "# Executing docker install script, commit: $SCRIPT_COMMIT_SHA"

	if command_exists docker; then
		docker_version="$(docker -v | cut -d ' ' -f3 | cut -d ',' -f1)"
		MAJOR_W=1
		MINOR_W=10

		semverParse "$docker_version"

		shouldWarn=0
		if [ "$major" -lt "$MAJOR_W" ]; then
			shouldWarn=1
		fi

		if [ "$major" -le "$MAJOR_W" ] && [ "$minor" -lt "$MINOR_W" ]; then
			shouldWarn=1
		fi

		cat >&2 <<-'EOF'
			Warning: the "docker" command appears to already exist on this system.

			If you already have Docker installed, this script can cause trouble, which is
			why we're displaying this warning and provide the opportunity to cancel the
			installation.

			If you installed the current Docker package using this script and are using it
		EOF

		if [ $shouldWarn -eq 1 ]; then
			cat >&2 <<-'EOF'
			again to update Docker, we urge you to migrate your image store before upgrading
			to v1.10+.

			You can find instructions for this here:
			https://github.com/docker/docker/wiki/Engine-v1.10.0-content-addressability-migration
			EOF
		else
			cat >&2 <<-'EOF'
			again to update Docker, you can safely ignore this message.
			EOF
		fi

		cat >&2 <<-'EOF'

			You may press Ctrl+C now to abort this script.
		EOF
		( set -x; sleep 20 )
	fi

	user="$(id -un 2>/dev/null || true)"

	sh_c='sh -c'
	if [ "$user" != 'root' ]; then
		if command_exists sudo; then
			sh_c='sudo -E sh -c'
		elif command_exists su; then
			sh_c='su -c'
		else
			cat >&2 <<-'EOF'
			Error: this installer needs the ability to run commands as root.
			We are unable to find either "sudo" or "su" available to make this happen.
			EOF
			exit 1
		fi
	fi

	if is_dry_run; then
		sh_c="echo"
	fi

	# perform some very rudimentary platform detection
	lsb_dist=$( get_distribution )
	lsb_dist="$(echo "$lsb_dist" | tr '[:upper:]' '[:lower:]')"

	if is_wsl; then
		echo
		echo "WSL DETECTED: We recommend using Docker Desktop for Windows."
		echo "Please get Docker Desktop from https://www.docker.com/products/docker-desktop"
		echo
		cat >&2 <<-'EOF'

			You may press Ctrl+C now to abort this script.
		EOF
		( set -x; sleep 20 )
	fi

	case "$lsb_dist" in

		ubuntu)
			if command_exists lsb_release; then
				dist_version="$(lsb_release --codename | cut -f2)"
			fi
			if [ -z "$dist_version" ] && [ -r /etc/lsb-release ]; then
				dist_version="$(. /etc/lsb-release && echo "$DISTRIB_CODENAME")"
			fi
		;;

		debian|raspbian)
			dist_version="$(sed 's/\/.*//' /etc/debian_version | sed 's/\..*//')"
			case "$dist_version" in
				10)
					dist_version="buster"
				;;
				9)
					dist_version="stretch"
				;;
				8)
					dist_version="jessie"
				;;
			esac
		;;

		centos|rhel)
			if [ -z "$dist_version" ] && [ -r /etc/os-release ]; then
				dist_version="$(. /etc/os-release && echo "$VERSION_ID")"
			fi
		;;

		*)
			if command_exists lsb_release; then
				dist_version="$(lsb_release --release | cut -f2)"
			fi
			if [ -z "$dist_version" ] && [ -r /etc/os-release ]; then
				dist_version="$(. /etc/os-release && echo "$VERSION_ID")"
			fi
		;;

	esac

	# Check if this is a forked Linux distro
	check_forked

	# Run setup for each distro accordingly
	case "$lsb_dist" in
		ubuntu|debian|raspbian)
			pre_reqs="apt-transport-https ca-certificates curl"
			if [ "$lsb_dist" = "debian" ]; then
				# libseccomp2 does not exist for debian jessie main repos for aarch64
				if [ "$(uname -m)" = "aarch64" ] && [ "$dist_version" = "jessie" ]; then
					add_debian_backport_repo "$st_version"
				fi
			fi

			if ! command -v gpg > /dev/null; then
				pre_reqs="$pre_reqs gnupg"
			fi
			apt_repo="deb [arch=$(dpkg --print-architecture)] $DOWNLOAD_URL/linux/$lsb_dist $dist_version $CHANNEL"
			(
				if ! is_dry_run; then
					set -x
				fi
				$sh_c 'apt-get update -qq >/dev/null'
				$sh_c "DEBIAN_FRONTEND=noninteractive apt-get install -y -qq $pre_reqs >/dev/null"
				$sh_c "curl -fsSL \"$DOWNLOAD_URL/linux/$lsb_dist/gpg\" | apt-key add -qq - >/dev/null"
				$sh_c "echo \"$apt_repo\" > /etc/apt/sources.list.d/docker.list"
				$sh_c 'apt-get update -qq >/dev/null'
			)
			pkg_version=""
			if [ -n "$VERSION" ]; then
				if is_dry_run; then
					echo "# WARNING: VERSION pinning is not supported in DRY_RUN"
				else
					# Will work for incomplete versions IE (17.12), but may not actually grab the "latest" if in the test channel
					pkg_pattern="$(echo "$VERSION" | sed "s/-ce-/~ce~.*/g" | sed "s/-/.*/g").*-0~$lsb_dist"
					search_command="apt-cache madison 'docker-ce' | grep '$pkg_pattern' | head -1 | awk '{\$1=\$1};1' | cut -d' ' -f 3"
					pkg_version="$($sh_c "$search_command")"
					echo "INFO: Searching repository for VERSION '$VERSION'"
					echo "INFO: $search_command"
					if [ -z "$pkg_version" ]; then
						echo
						echo "ERROR: '$VERSION' not found amongst apt-cache madison results"
						echo
						exit 1
					fi
					search_command="apt-cache madison 'docker-ce-cli' | grep '$pkg_pattern' | head -1 | awk '{\$1=\$1};1' | cut -d' ' -f 3"
					# Don't insert an = for cli_pkg_version, we'll just include it later
					cli_pkg_version="$($sh_c "$search_command")"
					pkg_version="=$pkg_version"
				fi
			fi
			(
				if ! is_dry_run; then
					set -x
				fi
				if [ -n "$cli_pkg_version" ]; then
					$sh_c "apt-get install -y -qq --no-install-recommends docker-ce-cli=$cli_pkg_version >/dev/null"
				fi
				$sh_c "apt-get install -y -qq --no-install-recommends docker-ce$pkg_version >/dev/null"
			)
			echo_docker_as_nonroot
			exit 0
			;;
		centos|fedora|rhel)
			yum_repo="$DOWNLOAD_URL/linux/$lsb_dist/$REPO_FILE"
			if ! curl -Ifs "$yum_repo" > /dev/null; then
				echo "Error: Unable to curl repository file $yum_repo, is it valid?"
				exit 1
			fi
			if [ "$lsb_dist" = "fedora" ]; then
				pkg_manager="dnf"
				config_manager="dnf config-manager"
				enable_channel_flag="--set-enabled"
				disable_channel_flag="--set-disabled"
				pre_reqs="dnf-plugins-core"
				pkg_suffix="fc$dist_version"
			else
				pkg_manager="yum"
				config_manager="yum-config-manager"
				enable_channel_flag="--enable"
				disable_channel_flag="--disable"
				pre_reqs="yum-utils"
				pkg_suffix="el"
			fi
			(
				if ! is_dry_run; then
					set -x
				fi
				$sh_c "$pkg_manager install -y -q $pre_reqs"
				$sh_c "$config_manager --add-repo $yum_repo"

				if [ "$CHANNEL" != "stable" ]; then
					$sh_c "$config_manager $disable_channel_flag docker-ce-*"
					$sh_c "$config_manager $enable_channel_flag docker-ce-$CHANNEL"
				fi
				$sh_c "$pkg_manager makecache"
			)
			pkg_version=""
			if [ -n "$VERSION" ]; then
				if is_dry_run; then
					echo "# WARNING: VERSION pinning is not supported in DRY_RUN"
				else
					pkg_pattern="$(echo "$VERSION" | sed "s/-ce-/\\\\.ce.*/g" | sed "s/-/.*/g").*$pkg_suffix"
					search_command="$pkg_manager list --showduplicates 'docker-ce' | grep '$pkg_pattern' | tail -1 | awk '{print \$2}'"
					pkg_version="$($sh_c "$search_command")"
					echo "INFO: Searching repository for VERSION '$VERSION'"
					echo "INFO: $search_command"
					if [ -z "$pkg_version" ]; then
						echo
						echo "ERROR: '$VERSION' not found amongst $pkg_manager list results"
						echo
						exit 1
					fi
					search_command="$pkg_manager list --showduplicates 'docker-ce-cli' | grep '$pkg_pattern' | tail -1 | awk '{print \$2}'"
					# It's okay for cli_pkg_version to be blank, since older versions don't support a cli package
					cli_pkg_version="$($sh_c "$search_command" | cut -d':' -f 2)"
					# Cut out the epoch and prefix with a '-'
					pkg_version="-$(echo "$pkg_version" | cut -d':' -f 2)"
				fi
			fi
			(
				if ! is_dry_run; then
					set -x
				fi
				# install the correct cli version first
				if [ -n "$cli_pkg_version" ]; then
					$sh_c "$pkg_manager install -y -q docker-ce-cli-$cli_pkg_version"
				fi
				$sh_c "$pkg_manager install -y -q docker-ce$pkg_version"
			)
			echo_docker_as_nonroot
			exit 0
			;;
		*)
			if [ -z "$lsb_dist" ]; then
				if is_darwin; then
					echo
					echo "ERROR: Unsupported operating system 'macOS'"
					echo "Please get Docker Desktop from https://www.docker.com/products/docker-desktop"
					echo
					exit 1
				fi
			fi
			echo
			echo "ERROR: Unsupported distribution '$lsb_dist'"
			echo
			exit 1
			;;
	esac
	exit 1
}

# wrapped up in a function so that we have some protection against only getting
# half the file during "curl | sh"
do_install

6.授权

chmod u+x get-docker.sh

7.构建镜像

docker build . -t harbor.od.com/infra/jenkins:v2.190.3
docker push  harbor.od.com/infra/jenkins:v2.190.3

8.部署nfs

yum install nfs-utils -y
vim /etc/exports
/data/nfs-volume 10.4.7.0/24(rw,no_root_squash)

systemctl start nfs
systemctl enable nfs

PS:挂载的主机上也需要安装nfs服务，不然会报错

9.Jenkins yaml

kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: jenkins
  namespace: infra
  labels:
    name: jenkins
spec:
  replicas: 1
  selector:
    matchLabels:
      name: jenkins
  template:
    metadata:
      labels:
        app: jenkins
        name: jenkins
    spec:
      volumes:
      - name: data
        nfs:
          server: hdss7-200
          path: /data/nfs-volume/jenkins_home
      - name: docker
        hostPath:
          path: /run/docker.sock
          type: ''
      containers:
      - name: jenkins
        image: harbor.od.com/infra/jenkins:v2.190.3
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
          protocol: TCP
        env:
        - name: JAVA_OPTS
          value: -Xmx512m -Xms512m
        volumeMounts:
        - name: data
          mountPath: /var/jenkins_home
        - name: docker
          mountPath: /run/docker.sock
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600

---
kind: Service
apiVersion: v1
metadata:
  name: jenkins
  namespace: infra
spec:
  ports:
  - protocol: TCP
    port: 80
    targetPort: 8080
  selector:
    app: jenkins

---
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: jenkins
  namespace: infra
spec:
  rules:
  - host: jenkins.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: jenkins
          servicePort: 80

10.部署

kubectl apply -f http://k8s-yaml.od.com/jenkins/jenkins.yaml

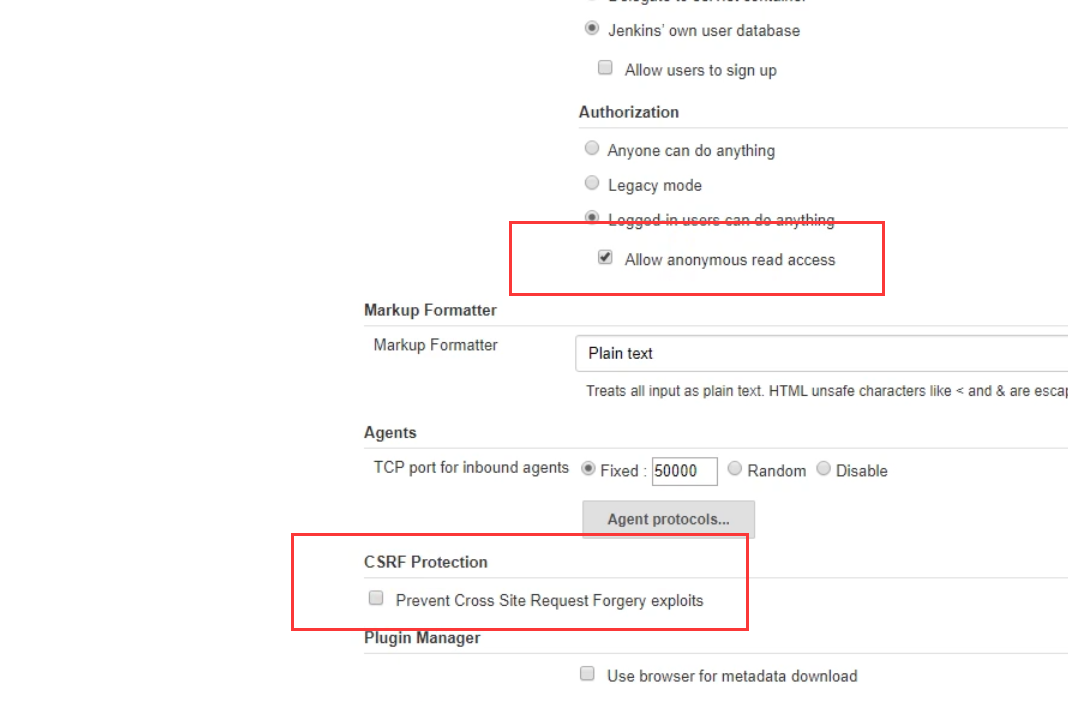

11.配置Jenkins

安装blue

posted on   杨港澳  阅读(279)  评论(0)  编辑  收藏  举报
相关博文：
·  12.dashboard 部署
·  10. 部署corndsn
·  Jenkins - 安装并启动Jenkins
·  二进制部署k8s集群v1.23.9版本-16-安装jenkins
·  Docker搭建持续集成平台Jenkins----使用docker来安装Jenkins服务
阅读排行：
· TypeScript + Deepseek 打造卜卦网站：技术与玄学的结合
· 阿里巴巴 QwQ-32B真的超越了 DeepSeek R-1吗？
· 【译】Visual Studio 中新的强大生产力特性
· 10年+ .NET Coder 心语 ── 封装的思维：从隐藏、稳定开始理解其本质意义
· 【设计模式】告别冗长if-else语句：使用策略模式优化代码结构

< 2025年3月 >
日 一 二 三 四 五 六
23 24 25 26 27 28 1
2 3 4 5 6 7 8
9 10 11 12 13 14 15
16 17 18 19 20 21 22
23 24 25 26 27 28 29
30 31 1 2 3 4 5
Copyright © 2025 杨港澳
Powered by .NET 9.0 on Kubernetes Powered By博客园
点击右上角即可分享
微信分享提示
AI IDE Trae
