分布式架构


2. MyCAT基础架构准备
2.1 环境准备：
两台虚拟机 db01 db02
每台创建四个mysql实例：3307 3308 3309 3310
2.2 删除历史环境：
pkill mysqld
rm -rf /data/330*
mv /etc/my.cnf /etc/my.cnf.bak
2.3 创建相关目录初始化数据
mkdir /data/33{07..10}/data -p
mysqld --initialize-insecure --user=mysql --datadir=/data/3307/data --basedir=/usr/local/mysql57
mysqld --initialize-insecure --user=mysql --datadir=/data/3308/data --basedir=/usr/local/mysql57
mysqld --initialize-insecure --user=mysql --datadir=/data/3309/data --basedir=/usr/local/mysql57
mysqld --initialize-insecure --user=mysql --datadir=/data/3310/data --basedir=/usr/local/mysql57
2.4 准备配置文件和启动脚本
db01======
cat >/data/3307/my.cnf<<EOF
[mysqld]
basedir=/usr/local/mysql57
datadir=/data/3307/data
socket=/data/3307/mysql.sock
port=3307
log-error=/data/3307/mysql.log
log_bin=/data/3307/mysql-bin
binlog_format=row
skip-name-resolve
server-id=7
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/data/3308/my.cnf<<EOF
[mysqld]
basedir=/usr/local/mysql57
datadir=/data/3308/data
port=3308
socket=/data/3308/mysql.sock
log-error=/data/3308/mysql.log
log_bin=/data/3308/mysql-bin
binlog_format=row
skip-name-resolve
server-id=8
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/data/3309/my.cnf<<EOF
[mysqld]
basedir=/usr/local/mysql57
datadir=/data/3309/data
socket=/data/3309/mysql.sock
port=3309
log-error=/data/3309/mysql.log
log_bin=/data/3309/mysql-bin
binlog_format=row
skip-name-resolve
server-id=9
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF
cat >/data/3310/my.cnf<<EOF
[mysqld]
basedir=/usr/local/mysql57
datadir=/data/3310/data
socket=/data/3310/mysql.sock
port=3310
log-error=/data/3310/mysql.log
log_bin=/data/3310/mysql-bin
binlog_format=row
skip-name-resolve
server-id=10
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/etc/systemd/system/mysqld3307.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/usr/local/mysql57/bin/mysqld --defaults-file=/data/3307/my.cnf
LimitNOFILE = 5000
EOF

cat >/etc/systemd/system/mysqld3308.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/usr/local/mysql57/bin/mysqld --defaults-file=/data/3308/my.cnf
LimitNOFILE = 5000
EOF

cat >/etc/systemd/system/mysqld3309.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/usr/local/mysql57/bin/mysqld --defaults-file=/data/3309/my.cnf
LimitNOFILE = 5000
EOF
cat >/etc/systemd/system/mysqld3310.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target

[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/usr/local/mysql57/bin/mysqld --defaults-file=/data/3310/my.cnf
LimitNOFILE = 5000
EOF
db02=======
cat >/data/3307/my.cnf<<EOF
[mysqld]
basedir=/usr/local/mysql57
datadir=/data/3307/data
socket=/data/3307/mysql.sock
port=3307
log-error=/data/3307/mysql.log
log_bin=/data/3307/mysql-bin
binlog_format=row
skip-name-resolve
server-id=17
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF
cat >/data/3308/my.cnf<<EOF
[mysqld]
basedir=/usr/local/mysql57
datadir=/data/3308/data
port=3308
socket=/data/3308/mysql.sock
log-error=/data/3308/mysql.log
log_bin=/data/3308/mysql-bin
binlog_format=row
skip-name-resolve
server-id=18
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF
cat >/data/3309/my.cnf<<EOF
[mysqld]
basedir=/usr/local/mysql57
datadir=/data/3309/data
socket=/data/3309/mysql.sock
port=3309
log-error=/data/3309/mysql.log
log_bin=/data/3309/mysql-bin
binlog_format=row
skip-name-resolve
server-id=19
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/data/3310/my.cnf<<EOF
[mysqld]
basedir=/usr/local/mysql57
datadir=/data/3310/data
socket=/data/3310/mysql.sock
port=3310
log-error=/data/3310/mysql.log
log_bin=/data/3310/mysql-bin
binlog_format=row
skip-name-resolve
server-id=20
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/etc/systemd/system/mysqld3307.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/usr/local/mysql57/bin/mysqld --defaults-file=/data/3307/my.cnf
LimitNOFILE = 5000
EOF

cat >/etc/systemd/system/mysqld3308.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/usr/local/mysql57/bin/mysqld --defaults-file=/data/3308/my.cnf
LimitNOFILE = 5000
EOF

cat >/etc/systemd/system/mysqld3309.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/usr/local/mysql57/bin/mysqld --defaults-file=/data/3309/my.cnf
LimitNOFILE = 5000
EOF
cat >/etc/systemd/system/mysqld3310.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/usr/local/mysql57/bin/mysqld --defaults-file=/data/3310/my.cnf
LimitNOFILE = 5000
EOF
2.5 修改权限，启动多实例
chown -R mysql.mysql /data/*
systemctl start mysqld3307
systemctl start mysqld3308
systemctl start mysqld3309
systemctl start mysqld3310

mysql -S /data/3307/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3308/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3309/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3310/mysql.sock -e "show variables like 'server_id'"

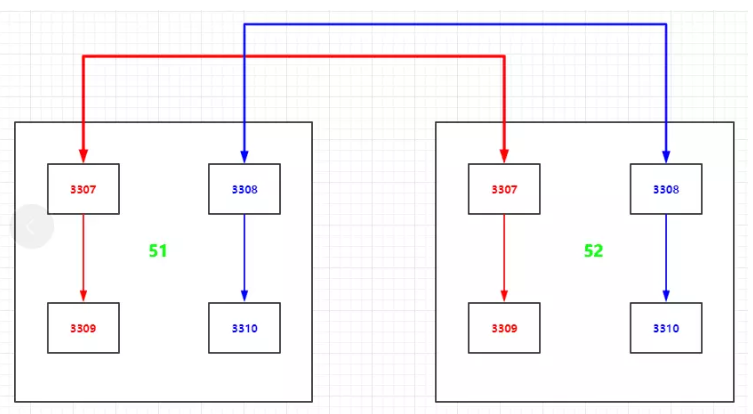

2.6 节点主从规划
箭头指向谁是主库
10.0.0.51:3307 <-----> 10.0.0.52:3307
10.0.0.51:3309 ------> 10.0.0.51:3307
10.0.0.52:3309 ------> 10.0.0.52:3307

10.0.0.52:3308  <----->    10.0.0.51:3308
10.0.0.52:3310  ----->     10.0.0.52:3308
10.0.0.51:3310  ----->     10.0.0.51:3308

2.7 分片规划
shard1：
Master：10.0.0.51:3307
slave1：10.0.0.51:3309
Standby Master：10.0.0.52:3307
slave2：10.0.0.52:3309
shard2：
Master：10.0.0.52:3308
slave1：10.0.0.52:3310
Standby Master：10.0.0.51:3308
slave2：10.0.0.51:3310
2.8 开始配置
shard1
10.0.0.51:3307 <-----> 10.0.0.52:3307
db02
mysql -S /data/3307/mysql.sock -e "grant replication slave on . to repl@'10.0.0.%' identified by '123';"
mysql -S /data/3307/mysql.sock -e "grant all on . to root@'10.0.0.%' identified by '123' with grant option;"
db01
mysql -S /data/3307/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3307, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql -S /data/3307/mysql.sock -e "start slave;"
mysql -S /data/3307/mysql.sock -e "show slave status\G"
db02
mysql -S /data/3307/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.51', MASTER_PORT=3307, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql -S /data/3307/mysql.sock -e "start slave;"
mysql -S /data/3307/mysql.sock -e "show slave status\G"
10.0.0.51:3309 ------> 10.0.0.51:3307
db01
mysql -S /data/3309/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.51', MASTER_PORT=3307, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql -S /data/3309/mysql.sock -e "start slave;"
mysql -S /data/3309/mysql.sock -e "show slave status\G"
10.0.0.52:3309 ------> 10.0.0.52:3307
db02
mysql -S /data/3309/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3307, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql -S /data/3309/mysql.sock -e "start slave;"
mysql -S /data/3309/mysql.sock -e "show slave status\G"
shard2
10.0.0.52:3308 <-----> 10.0.0.51:3308
db01
mysql -S /data/3308/mysql.sock -e "grant replication slave on . to repl@'10.0.0.%' identified by '123';"
mysql -S /data/3308/mysql.sock -e "grant all on . to root@'10.0.0.%' identified by '123' with grant option;"
db02
mysql -S /data/3308/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.51', MASTER_PORT=3308, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql -S /data/3308/mysql.sock -e "start slave;"
mysql -S /data/3308/mysql.sock -e "show slave status\G"
db01
mysql -S /data/3308/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3308, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql -S /data/3308/mysql.sock -e "start slave;"
mysql -S /data/3308/mysql.sock -e "show slave status\G"
10.0.0.52:3310 -----> 10.0.0.52:3308
db02
mysql -S /data/3310/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3308, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql -S /data/3310/mysql.sock -e "start slave;"
mysql -S /data/3310/mysql.sock -e "show slave status\G"
10.0.0.51:3310 -----> 10.0.0.51:3308
db01
mysql -S /data/3310/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.51', MASTER_PORT=3308, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql -S /data/3310/mysql.sock -e "start slave;"
mysql -S /data/3310/mysql.sock -e "show slave status\G"
2.9 检测主从状态
mysql -S /data/3307/mysql.sock -e "show slave status\G"|grep Yes
mysql -S /data/3308/mysql.sock -e "show slave status\G"|grep Yes
mysql -S /data/3309/mysql.sock -e "show slave status\G"|grep Yes
mysql -S /data/3310/mysql.sock -e "show slave status\G"|grep Yes

注：如果中间出现错误，在每个节点进行执行以下命令
mysql -S /data/3307/mysql.sock -e "stop slave; reset slave all;"
mysql -S /data/3308/mysql.sock -e "stop slave; reset slave all;"
mysql -S /data/3309/mysql.sock -e "stop slave; reset slave all;"
mysql -S /data/3310/mysql.sock -e "stop slave; reset slave all;"
