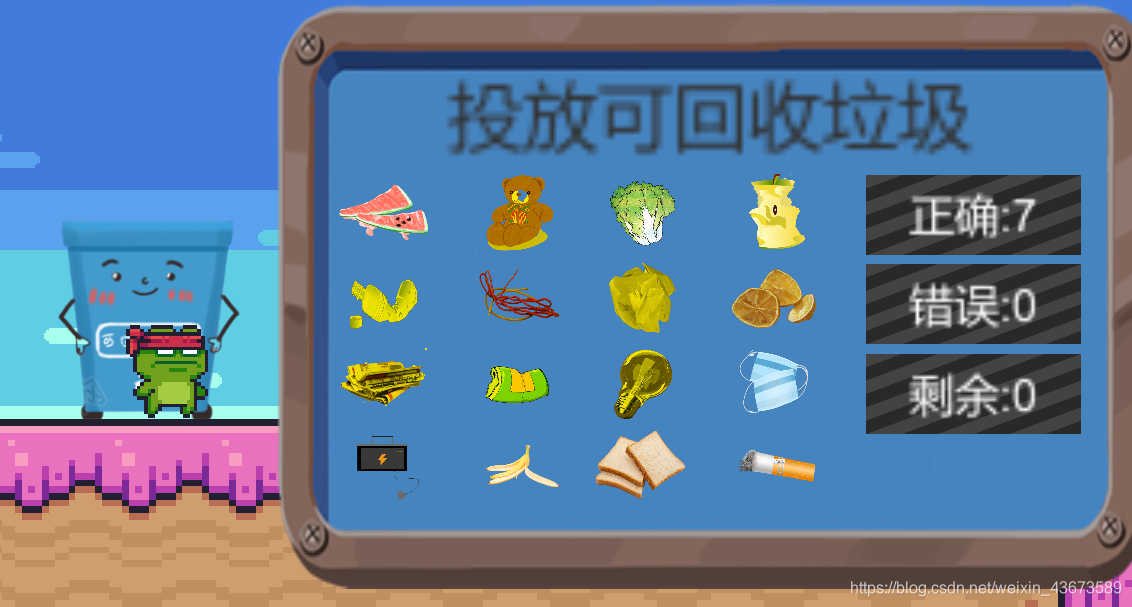

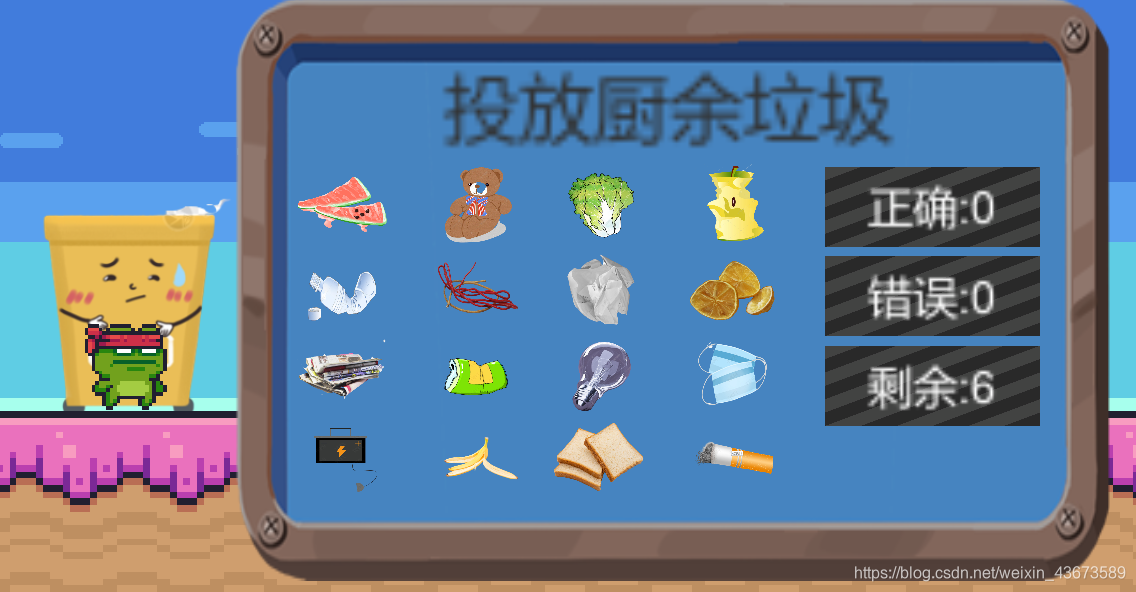

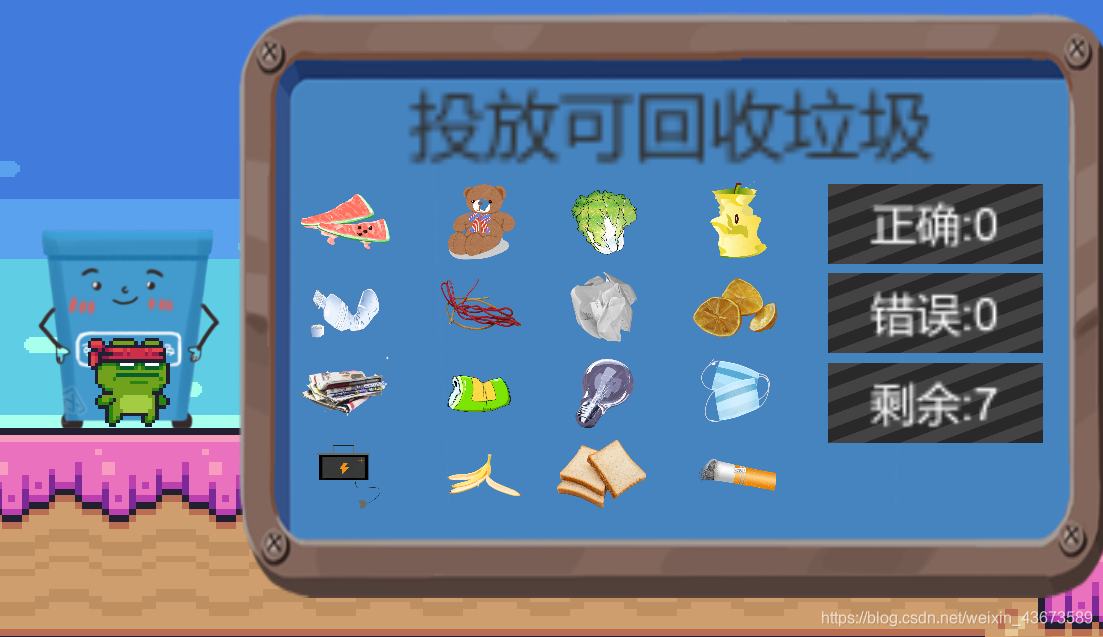

投放垃圾
走近垃圾桶时,会弹出对话框
进行垃圾分类,选择该垃圾桶应该投放的垃圾
离开垃圾桶时,对话框消失,并重置
Garbage.cs里有四个函数分别对应四种垃圾,预先给垃圾设定对应的函数用于计数。
难点分析:
一、获取当前按下的按钮并改变它的颜色
using UnityEngine.EventSystems;//使用事件系统,获取当前选择对象(按钮) //通过EventSystem.current.currentSelectedGameObject.name获取当前选择对象的名字,再通过查找该对象对其操作 GameObject.Find(EventSystem.current.currentSelectedGameObject.name).GetComponent<Button>().colors = cb;
二、计数系统
主要使用了两个数组,注意这里数组的形式,为了便于其他脚本修改要加public static
//垃圾总数据 int[] Grouptotal = { 0, 6, 7, 2, 1 }; //初始数据 public static int [] Group = { 0, 0, 0, 0, 0 };
数据的计算方式
//当前所需要分类的垃圾组别 public static int curGroup=1; //实时刷新垃圾数据 right = Group[curGroup]; wrong = Group[1] + Group[2] + Group[3] + Group[4] - right; left = Grouptotal[curGroup] - right;
三、对话框的恢复
按了按钮过后,按钮会处于阴影+不激活的状态
在对话框关闭之前,应当使按钮恢复无阴影+激活的状态,以便下次使用
由于按钮的名字不能相同(相同将无法按下,不能正常工作),尝试使用转义字符批量处理按钮,但是无效
只能用最原始的办法一个一个的修改
UIManager代码(这里命名为Garbage)
挂载在一个空对象上,从而给垃圾对应的按钮添加点击函数
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using UnityEngine.EventSystems;//获取当前选择对象(按钮)
public class Garbage : MonoBehaviour
{
//当前所需要分类的垃圾组别
public static int curGroup=1;
//四个垃圾桶依次为厨余垃圾、可回收物、有害垃圾、其他垃圾
//垃圾总数据
int[] Grouptotal = { 0, 6, 7, 2, 1 };
//初始数据
public static int [] Group = { 0, 0, 0, 0, 0 };
//提示所需变量
int right;
int wrong;
int left;
//提示文本
public Text righttext;//正确
public Text wrongtext;//错误
public Text lefttext;//剩余
// Start is called before the first frame update
void Start()
{
}
// Update is called once per frame
void Update()
{
//实时刷新垃圾数据
right = Group[curGroup];
wrong = Group[1] + Group[2] + Group[3] + Group[4] - right;
righttext.text = "正确:" + right;
wrongtext.text = "错误:" + wrong;
left = Grouptotal[curGroup] - right;
lefttext.text="剩余:"+left;
}
public void ChangeButtonColor()
{
//更改按钮颜色
ColorBlock cb = new ColorBlock();
cb.normalColor = Color.gray;
cb.highlightedColor = Color.yellow;
cb.pressedColor = Color.yellow;
cb.disabledColor = Color.yellow;
cb.colorMultiplier = 1;
//对当前按下按钮进行操作
GameObject.Find(EventSystem.current.currentSelectedGameObject.name).GetComponent<Button>().colors = cb;
}
public void CloseButton()//使按钮不能交互
{
GameObject.Find(EventSystem.current.currentSelectedGameObject.name).GetComponent<Button>().interactable = false;
}
public void GroupOne()//选定第一组垃圾(厨余垃圾)触发的函数
{
Group[1]++;//为第一组垃圾计数
ChangeButtonColor();//按了之后改变颜色
CloseButton();//按了一次后按钮失效
}
public void GroupTwo()//选定第二组垃圾(可回收垃圾)触发的函数
{
Group[2]++;
ChangeButtonColor();
CloseButton();
}
public void GroupThree()//选定第三组垃圾(有害垃圾)触发的函数
{
Group[3]++;
ChangeButtonColor();
CloseButton();
}
public void GroupFour()//选定第四组垃圾(其他垃圾)触发的函数
{
Group[4]++;
ChangeButtonColor();
CloseButton();
}
public static void Refrash()//刷新阴影
{
//恢复按钮颜色
ColorBlock cb = new ColorBlock();
cb.normalColor = Color.white;
cb.highlightedColor = Color.white;
cb.pressedColor = Color.white;
cb.disabledColor = Color.white;
cb.colorMultiplier = 1;
//消除阴影
GameObject.Find("Player/Canvas/garbage1").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage2").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage3").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage4").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage5").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage6").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage7").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage8").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage9").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage10").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage11").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage12").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage13").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage14").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage15").GetComponent<Button>().colors = cb;
GameObject.Find("Player/Canvas/garbage16").GetComponent<Button>().colors = cb;
//激活按钮交互
GameObject.Find("Player/Canvas/garbage1").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage2").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage3").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage4").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage5").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage6").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage7").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage8").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage9").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage10").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage11").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage12").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage13").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage14").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage15").GetComponent<Button>().interactable = true;
GameObject.Find("Player/Canvas/garbage16").GetComponent<Button>().interactable = true;
/*这个方法行不通,只能用笨办法
for (int i=5;i<=16;i++)
{
string way = "\"Player/Canvas/garbage"+i+"\"";
Debug.Log(way);
GameObject.Find(way).GetComponent<Button>().colors = cb;
}*/
}
}
玩家代码
using System.Collections;
using System.Collections.Generic;
using System.ComponentModel;
using UnityEngine;
using UnityEngine.UI;
public class FPlayreControl : MonoBehaviour
{
public Rigidbody2D rb;//rbody
public Animator anim;
public float speed;
public float jump;
public LayerMask ground;
public Collider2D coll;
private bool isGround;//判断是否在地面
public Text GroupText;
public GameObject Frame;
// Start is called before the first frame update
void Start()
{
}
// Update is called once per frame
void FixedUpdate()
{
Movement();
Switchanim();
}
void Movement()
{
float hormove;
hormove = Input.GetAxis("Horizontal");
float facedirection = 1;//Input.GetAxisRaw("Horizontal");
//角色移动
if (hormove != 0)
{
rb.velocity = new Vector2(hormove * speed * Time.deltaTime, rb.velocity.y);
anim.SetFloat("running", Mathf.Abs(facedirection));
}
if (facedirection != 0)
{
transform.localScale = new Vector3(facedirection, 1, 1);
}
//角色跳跃
if (Input.GetButtonDown("Jump") && isGround)
{
rb.velocity = new Vector2(rb.velocity.x, jump * Time.deltaTime);
isGround = false;//离地
//anim.SetBool("Jumping", true);
}
}
void Switchanim()
{
anim.SetBool("idle", false);
if (anim.GetBool("Jumping"))
{
if (rb.velocity.y < 0)
{
anim.SetBool("Jumping", false);
}
}
else if (coll.IsTouchingLayers(ground))
{
anim.SetBool("idle", true);
}
}
private void OnTriggerEnter2D(Collider2D collision)
{
Debug.Log("人物靠近垃圾桶");
if (collision.tag == "collection")
{
Destroy(collision.gameObject);
}
if(collision.tag=="Group1")
{
Frame.SetActive(true);
FGarbage.curGroup=1;
GroupText.text = "投放厨余垃圾";
}
if (collision.tag == "Group2")
{
Frame.SetActive(true);
FGarbage.curGroup = 2;
GroupText.text = "投放可回收垃圾";
}
if (collision.tag == "Group3")
{
Frame.SetActive(true);
FGarbage.curGroup = 3;
GroupText.text = "投放有害垃圾";
}
if (collision.tag == "Group4")
{
Frame.SetActive(true);
FGarbage.curGroup = 4;
GroupText.text = "投放其他垃圾";
}
}
private void OnTriggerExit2D(Collider2D collision)
{
FGarbage.Refrash();//刷新阴影,要在对话框失效前执行
Debug.Log("刷新");
Frame.SetActive(false);
FGarbage.Group[1] = 0;
FGarbage.Group[2] = 0;
FGarbage.Group[3] = 0;
FGarbage.Group[4] = 0;
}
//F:脚下踩了东西,进入触发
private void OnCollisionStay2D(Collision2D collision)
{
//如果踩的是地面
if (collision.collider.tag == "Ground")
{
isGround = true;//触地
}
}
}
原博地址
https://blog.csdn.net/weixin_43673589
