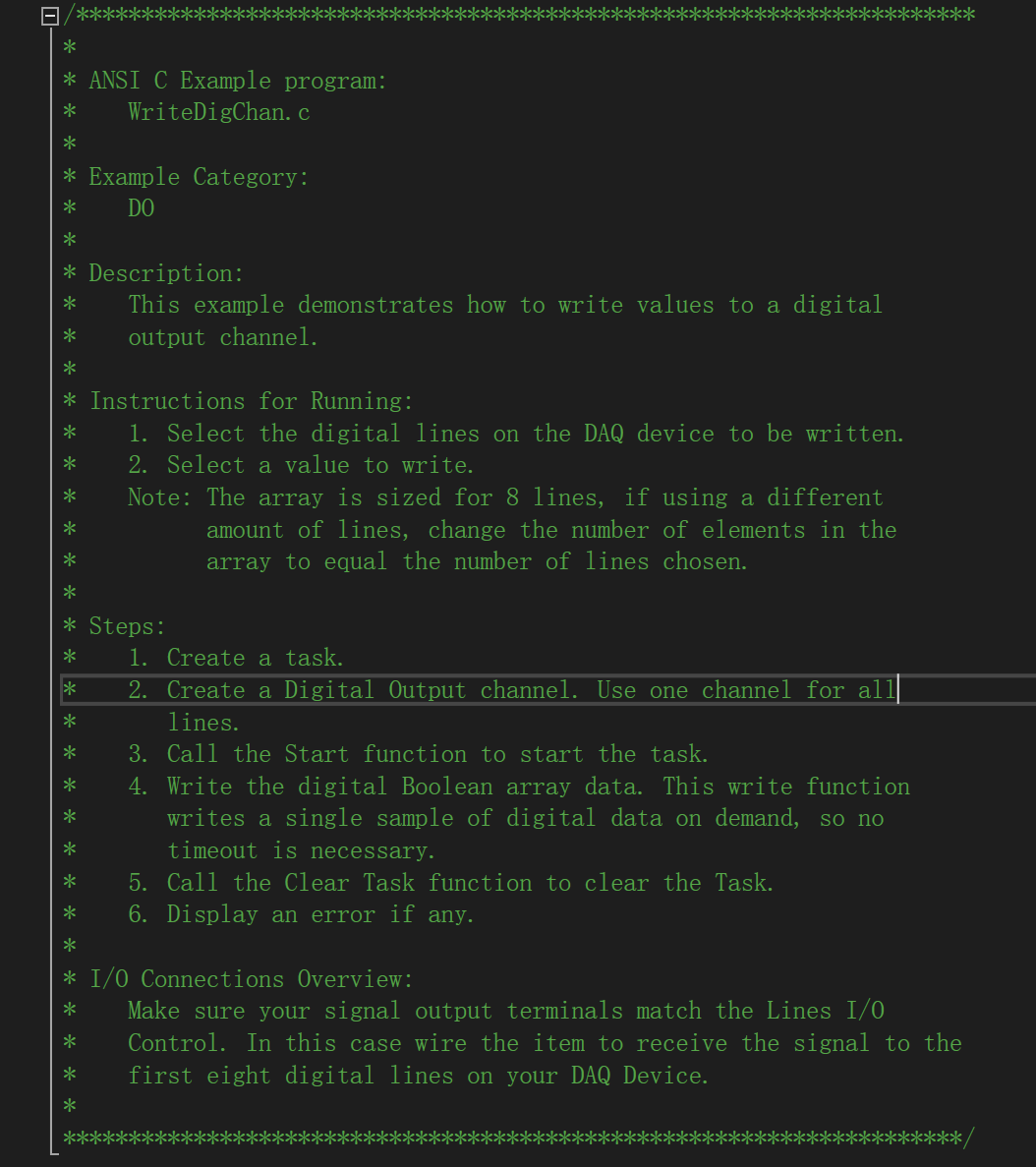

NI采集卡DO例程1 -- WriteDigChan



#include <stdio.h>
#include <NIDAQmx.h>

#define DAQmxErrChk(functionCall) if( DAQmxFailed(error=(functionCall)) ) goto Error; else

int main(void)
{
    int32       error=0;
    TaskHandle  taskHandle=0;
    uInt8       data[8]={0,1,0,1,1,1,1,1};
    char        errBuff[2048]={'\0'};

    /*********************************************/
    // DAQmx Configure Code
    /*********************************************/
    DAQmxErrChk (DAQmxCreateTask("",&taskHandle));
    DAQmxErrChk (DAQmxCreateDOChan(taskHandle,"Dev1/port0/line0:7","",DAQmx_Val_ChanForAllLines));

    /*********************************************/
    // DAQmx Start Code
    /*********************************************/
    DAQmxErrChk (DAQmxStartTask(taskHandle));

    /*********************************************/
    // DAQmx Write Code
    /*********************************************/
    DAQmxErrChk (DAQmxWriteDigitalLines(taskHandle,1,1,10.0,DAQmx_Val_GroupByChannel,data,NULL,NULL));

Error:
    if( DAQmxFailed(error) )
        DAQmxGetExtendedErrorInfo(errBuff,2048);
    if( taskHandle!=0 ) {
        /*********************************************/
        // DAQmx Stop Code
        /*********************************************/
        DAQmxStopTask(taskHandle);
        DAQmxClearTask(taskHandle);
    }
    if( DAQmxFailed(error) )
        printf("DAQmx Error: %s\n",errBuff);
    printf("End of program, press Enter key to quit\n");
    getchar();
    return 0;
}
