ActiveMq C#客户端 消息队列的使用（存和取）

1、准备工具



2、开始项目


VS2013新建一个C#控制台应用程序，项目中添加两个dll引用，一个是D:\Apache.NMS.ActiveMQ-1.7.2-bin\lib\Apache.NMS\net-4.0目录下的Apache.NMS.dll，另一个是D:\Apache.NMS.ActiveMQ-1.7.2-bin\build\net-4.0\debug目录下的Apache.NMS.ActiveMQ.dll。
新建一个类，MyActiveMq.cs，用于对activemq消息队列接口的封装，实现如下：
[csharp] view plain copy

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. using Apache.NMS;
  8. using Apache.NMS.ActiveMQ;
  9.
  10. namespace NmsProducerClasses
  11. {
  12.     public class MyActiveMq
  13.     {
  14.         private IConnectionFactory factory;
  15.         private IConnection connection;
  16.         private ISession session;
  17.         private IMessageProducer prod;
  18.         private IMessageConsumer consumer;
  19.         private ITextMessage msg;
  20.
  21.         private bool isTopic = false;
  22.         private bool hasSelector = false;
  23.         private const string ClientID = "clientid";
  24.         private const string Selector = "filter='demo'";
  25.         private bool sendSuccess = true;
  26.         private bool receiveSuccess = true;
  27.
  28.         public MyActiveMq(bool isLocalMachine, string remoteAddress)
  29.         {
  30.             try
  31.             {
  32.                 //初始化工厂
  33.                 if (isLocalMachine)
  34.                 {
  35.                     factory = new ConnectionFactory("tcp://localhost:61616/");
  36.                 }
  37.                 else
  38.                 {
  39.                     factory = new ConnectionFactory("tcp://" + remoteAddress + ":61616/"); //写tcp://192.168.1.111:61616的形式连接其他服务器上的ActiveMQ服务器
  40.                 }
  41.                 //通过工厂建立连接
  42.                 connection = factory.CreateConnection();
  43.                 connection.ClientId = ClientID;
  44.                 connection.Start();
  45.                 //通过连接创建Session会话
  46.                 session = connection.CreateSession();
  47.             }
  48.             catch (System.Exception e)
  49.             {
  50.                 sendSuccess = false;
  51.                 receiveSuccess = false;
  52.                 Console.WriteLine("Exception:{0}", e.Message);
  53.                 Console.ReadLine();
  54.                 throw e;
  55.             }
  56.             Console.WriteLine("Begin connection...");
  57.         }
  58.
  59.
  60.         ~MyActiveMq()
  61.         {
  62.             //this.ShutDown();
  63.         }
  64.
  65.         /// <summary>
  66.         /// 初始化
  67.         /// </summary>
  68.         /// <param name="topic">选择是否是Topic</param>
  69.         /// <param name="name">队列名</param>
  70.         /// <param name="selector">是否设置过滤</param>
  71.         public bool InitQueueOrTopic(bool topic, string name, bool selector = false)
  72.         {
  73.             try
  74.             {
  75.                 //通过会话创建生产者、消费者
  76.                 if (topic)
  77.                 {
  78.                     prod = session.CreateProducer(new Apache.NMS.ActiveMQ.Commands.ActiveMQTopic(name));
  79.                     if (selector)
  80.                     {
  81.                         consumer = session.CreateDurableConsumer(new Apache.NMS.ActiveMQ.Commands.ActiveMQTopic(name), ClientID, Selector, false);
  82.                         hasSelector = true;
  83.                     }
  84.                     else
  85.                     {
  86.                         consumer = session.CreateDurableConsumer(new Apache.NMS.ActiveMQ.Commands.ActiveMQTopic(name), ClientID, null, false);
  87.                         hasSelector = false;
  88.                     }
  89.                     isTopic = true;
  90.                 }
  91.                 else
  92.                 {
  93.                     prod = session.CreateProducer(new Apache.NMS.ActiveMQ.Commands.ActiveMQQueue(name));
  94.                     if (selector)
  95.                     {
  96.                         consumer = session.CreateConsumer(new Apache.NMS.ActiveMQ.Commands.ActiveMQQueue(name), Selector);
  97.                         hasSelector = true;
  98.                     }
  99.                     else
  100.                     {
  101.                         consumer = session.CreateConsumer(new Apache.NMS.ActiveMQ.Commands.ActiveMQQueue(name));
  102.                         hasSelector = false;
  103.                     }
  104.                     isTopic = false;
  105.                 }
  106.                 //创建一个发送的消息对象
  107.                 msg = prod.CreateTextMessage();
  108.             }
  109.             catch (System.Exception e)
  110.             {
  111.                 sendSuccess = false;
  112.                 receiveSuccess = false;
  113.                 Console.WriteLine("Exception:{0}", e.Message);
  114.                 Console.ReadLine();
  115.                 throw e;
  116.             }
  117.
  118.             return sendSuccess;
  119.         }
  120.
  121.
  122.         public bool SendMessage(string message, string msgId = "defult", MsgPriority priority = MsgPriority.Normal)
  123.         {
  124.             if (prod == null)
  125.             {
  126.                 sendSuccess = false;
  127.                 Console.WriteLine("call InitQueueOrTopic() first!!");
  128.                 return false;
  129.             }
  130.
  131.             Console.WriteLine("Begin send messages...");
  132.
  133.             //给这个对象赋实际的消息
  134.             msg.NMSCorrelationID = msgId;
  135.             msg.Properties["MyID"] = msgId;
  136.             msg.NMSMessageId = msgId;
  137.             msg.Text = message;
  138.             Console.WriteLine(message);
  139.
  140.             if (isTopic)
  141.             {
  142.                 sendSuccess = ProducerSubcriber(message, priority);
  143.             }
  144.             else
  145.             {
  146.                 sendSuccess = P2P(message, priority);
  147.             }
  148.
  149.             return sendSuccess;
  150.         }
  151.
  152.
  153.         public string GetMessage()
  154.         {
  155.             if (prod == null)
  156.             {
  157.                 Console.WriteLine("call InitQueueOrTopic() first!!");
  158.                 return null;
  159.             }
  160.
  161.             Console.WriteLine("Begin receive messages...");
  162.             ITextMessage revMessage = null;
  163.             try
  164.             {
  165.                 //同步阻塞10ms,没消息就直接返回null,注意此处时间不能设太短，否则还没取到消息就直接返回null了！！！
  166.                 revMessage = consumer.Receive(new TimeSpan(TimeSpan.TicksPerMillisecond *10)) as ITextMessage;
  167.             }
  168.             catch (System.Exception e)
  169.             {
  170.                 receiveSuccess = false;
  171.                 Console.WriteLine("Exception:{0}", e.Message);
  172.                 Console.ReadLine();
  173.                 throw e;
  174.             }
  175.
  176.             if (revMessage == null)
  177.             {
  178.                 Console.WriteLine("No message received!");
  179.                 return null;
  180.             }
  181.             else
  182.             {
  183.                 Console.WriteLine("Received message with Correlation ID: " + revMessage.NMSCorrelationID);
  184.                 //Console.WriteLine("Received message with Properties'ID: " + revMessage.Properties["MyID"]);
  185.                 Console.WriteLine("Received message with text: " + revMessage.Text);
  186.             }
  187.
  188.             return revMessage.Text;
  189.         }
  190.
  191.         //P2P模式，一个生产者对应一个消费者
  192.         private bool P2P(string message, MsgPriority priority)
  193.         {
  194.             try
  195.             {
  196.                 if (hasSelector)
  197.                 {
  198.                     //设置消息对象的属性，这个很重要，是Queue的过滤条件，也是P2P消息的唯一指定属性
  199.                     msg.Properties.SetString("filter", "demo");  //P2P模式
  200.                 }
  201.                 prod.Priority = priority;
  202.                 //设置持久化
  203.                 prod.DeliveryMode = MsgDeliveryMode.Persistent;
  204.                 //生产者把消息发送出去，几个枚举参数MsgDeliveryMode是否持久化，MsgPriority消息优先级别，存活时间，当然还有其他重载
  205.                 prod.Send(msg, MsgDeliveryMode.Persistent, priority, TimeSpan.MinValue);
  206.             }
  207.             catch (System.Exception e)
  208.             {
  209.                 sendSuccess = false;
  210.                 Console.WriteLine("Exception:{0}", e.Message);
  211.                 Console.ReadLine();
  212.                 throw e;
  213.             }
  214.
  215.             return sendSuccess;
  216.         }
  217.
  218.
  219.         //发布订阅模式，一个生产者多个消费者
  220.         private bool ProducerSubcriber(string message, MsgPriority priority)
  221.         {
  222.             try
  223.             {
  224.                 prod.Priority = priority;
  225.                 //设置持久化,如果DeliveryMode没有设置或者设置为NON_PERSISTENT，那么重启MQ之后消息就会丢失
  226.                 prod.DeliveryMode = MsgDeliveryMode.Persistent;
  227.                 prod.Send(msg, Apache.NMS.MsgDeliveryMode.Persistent, priority, TimeSpan.MinValue);
  228.                 //System.Threading.Thread.Sleep(1000);
  229.             }
  230.             catch (System.Exception e)
  231.             {
  232.                 sendSuccess = false;
  233.                 Console.WriteLine("Exception:{0}", e.Message);
  234.                 Console.ReadLine();
  235.                 throw e;
  236.             }
  237.
  238.             return sendSuccess;
  239.         }
  240.
  241.
  242.         public void ShutDown()
  243.         {
  244.             Console.WriteLine("Close connection and session...");
  245.             session.Close();
  246.             connection.Close();
  247.         }
  248.     }
  249. }


Program.cs代码如下：

[csharp] view plain copy

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using System.IO;
  7. using System.Threading;
  8.
  9. namespace NmsProducerClasses
  10. {
  11.     class Program
  12.     {
  13.         static void Main(string[] args)
  14.         {
  15.             MyActiveMq mymq = new MyActiveMq(isLocalMachine: true, remoteAddress: "");
  16.
  17.             mymq.InitQueueOrTopic(topic: false, name: "myqueue", selector: false);
  18.             //mymq.InitQueueOrTopic(topic: false, name: "seletorqueue", selector: true);
  19.             //mymq.InitQueueOrTopic(topic: true, name: "noselectortopic", selector: false);
  20.             //mymq.InitQueueOrTopic(topic: true, name: "selectortopic", selector: true);
  21.
  22.             //The full range of priority values (0-9) are supported by the JDBC message store. For KahaDB three priority categories are supported, Low (< 4), Default (= 4) and High (> 4).
  23.             User myuser0 = new User("0000", "Lowest", "img/p.jpg");
  24.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser0), "newid", priority: Apache.NMS.MsgPriority.Lowest);
  25.             User myuser1 = new User("1111", "AboveLow", "img/p.jpg");
  26.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser1), "newid", priority: Apache.NMS.MsgPriority.AboveLow);
  27.             User myuser2 = new User("2222", "AboveNormal", "img/p.jpg");
  28.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser2), "newid", priority: Apache.NMS.MsgPriority.AboveNormal);
  29.             User myuser3 = new User("0000", "BelowNormal", "img/p.jpg");
  30.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser3), "newid", priority: Apache.NMS.MsgPriority.BelowNormal);
  31.             User myuser4 = new User("1111", "High", "img/p.jpg");
  32.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser4), "newid", priority: Apache.NMS.MsgPriority.High);
  33.             User myuser5 = new User("2222", "Highest", "img/p.jpg");
  34.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser5), "newid", priority: Apache.NMS.MsgPriority.Highest);
  35.             User myuser6 = new User("0000", "Low", "img/p.jpg");
  36.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser6), "newid", priority: Apache.NMS.MsgPriority.Low);
  37.             User myuser7 = new User("1111", "Normal", "img/p.jpg");
  38.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser7), "newid", priority: Apache.NMS.MsgPriority.Normal);
  39.             User myuser8 = new User("2222", "VeryHigh", "img/p.jpg");
  40.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser8), "newid", priority: Apache.NMS.MsgPriority.VeryHigh);
  41.             User myuser9 = new User("2222", "VeryLow", "img/p.jpg");
  42.             mymq.SendMessage(JsonUtil.ObjectToJson(myuser8), "newid", priority: Apache.NMS.MsgPriority.VeryLow);
  43.
  44.             int num = 20;
  45.             while (num-- > 0)
  46.             {
  47.                 mymq.GetMessage();
  48.                 //Thread.Sleep(1000);
  49.             }
  50.             mymq.ShutDown();
  51.
  52.
  53.             //XML测试
  54.             //string xml = XmlTest.ObjToXml();
  55.             //Console.WriteLine("ObjToXml: {0}", xml);
  56.
  57.             //Json测试
  58.             //User u = new User() { Id="88", Imgurl="img/88.jpg", Name="haha88"};
  59.             //string jsonstr = JsonUtil.ObjectToJson(u);
  60.             //Console.WriteLine(jsonstr);
  61.
  62.         }
  63.
  64.     }

3、测试

首先，需要启动消息队列，具体启动及测试消息队列步骤可见这边：点击打开链接

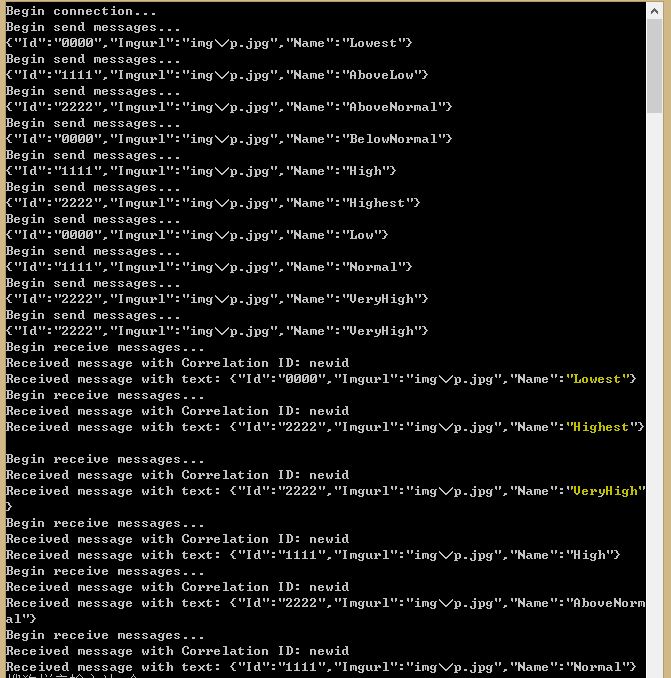

然后，运行项目，运行结果如下：





4、优先级

priority并不能决定消息传送的严格消息，具体原因可见

优先级设置：

在D:\apache-activemq-5.14.0\conf目录的activemq.xml配置文件中，找到<destinationPolicy>标签，在其中的<policyEntries>标签下添加
[html] view plain copy

  1. <policyEntry queue=">"  producerFlowControl="false" prioritizedMessages="true" useCache="false" expireMessagesPeriod="0" queuePrefetch="1" />
  2. <policyEntry queue=">" strictOrderDispatch="false" />
  3. <policyEntry queue=">" >
  4.               <pendingMessageLimitStrategy>
  5.                   <constantPendingMessageLimitStrategy limit="0"/>
  6.               </pendingMessageLimitStrategy>
  7.               <messageEvictionStrategy>
  8.                   <oldestMessageWithLowestPriorityEvictionStrategy/>
  9.               </messageEvictionStrategy>
  10. </policyEntry>

配置完成后，需要重启activemq



5、远程登录监控

要实现远程监控服务器消息队列，需要先进行配置。

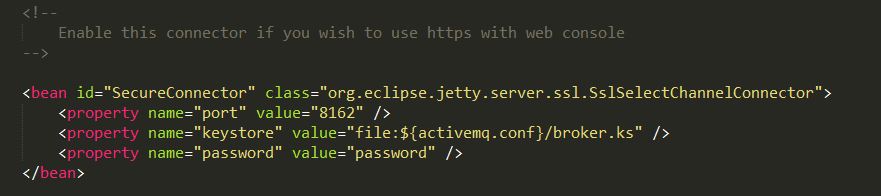

配置方法：在D:\apache-activemq-5.14.0\conf目录的jetty.xml配置文件中，把133开始的那段注释去掉即可。

posted @ 2018-03-13 16:50  从未被超越  阅读(2200)  评论(0)  编辑  收藏  举报
