[C# 项目实战]: 制作一个备忘录(经典)

—

概述

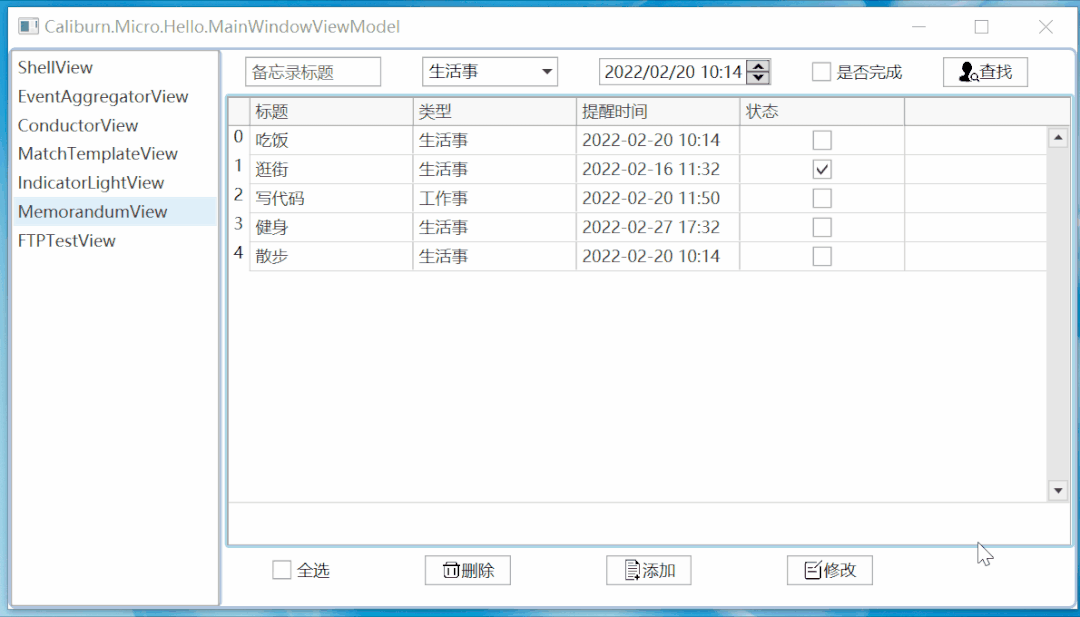

前几天群里有人问如何制作备忘录，感觉这样一个小实例挺适合新手们入门学习使用，所以就抽空做了出来。界面如下图

这个备忘录主要包括了如下功能：

① 备忘录信息的增、删、改、查；

② 备忘录时间到了以后进行语音播报。

功能很简单，但是要实现这么一个功能，也涉及众多的知识点，接下来详细进行分解。

—

内容详述

①界面button的图标

图标图片可以上网上下载，下载好以后放到项目目录中，然后在项目中找到你的图片——>右键包括在项目中——>再右键，点击属性：

复制到输出目录，更改为始终复制。

生成操作，更改为内容。

前台XMAL操作：

<Button Margin="15,5" MinWidth="60" cal:Message.Attach="[Event Click] = [Action SearchClick]" >
               <WrapPanel >
                   <Image Source="/Images/search.png" Width="15" Height="15" />
                   <TextBlock Text="查找" VerticalAlignment="Center" />
               </WrapPanel>
           </Button>

　　② 数据源：这里我采用从xml读取并绑定到界面，界面如果有修改，在页面退出时进行数据保存，当然你也可以使用数据库去操作

XML文件位置：根目录的RawData

XML文件数据内容如下：

MemorandumModel数据模型定义：

public class MemorandumModel
    {
        public string Title { get; set; }
        public EvenType EvenType { get; set; }
        public DateTime DateTime { get; set; }
        public bool IsComplete { get; set; }
    }

　　③XML文件的读取和保存：MemorandumRealList是我们所有数据的集合，为了方便界面查询，界面绑定了MemorandumShowList 这个集合

xml读取：

public void XmlDocReader()
       {
           //XmlDocument读取xml文件
           XmlDocument xmlDoc = new XmlDocument();
           xmlDoc.Load(XmlDocPath);
           //获取xml根节点
           XmlNode xmlRoot = xmlDoc.DocumentElement;
           if (xmlRoot == null)
               return;

           //读取所有的节点
           foreach (XmlNode node in xmlRoot.SelectNodes("MemorandumModel"))
           {
               MemorandumRealList.Add(new MemorandumModel()
               {
                   Title = node.SelectSingleNode("Title").InnerText,
                   EvenType = (EvenType)Enum.Parse(typeof(EvenType), node.SelectSingleNode("EvenType").InnerText),
                   DateTime = Convert.ToDateTime(node.SelectSingleNode("DateTime").InnerText),
                   IsComplete = Convert.ToBoolean(node.SelectSingleNode("IsComplete").InnerText)
               });
           }
           MemorandumShowList = new  ObservableCollection<MemorandumModel>(MemorandumRealList);
       }

　　xml文件保存：

public void SaveXmlDoc()
        {
            //获取根节点对象
            XDocument document = new XDocument();
            XElement xmlRoot = new XElement("MemorandumModels");
​
            XElement memorandumModel;
            foreach (var memorandumReal in MemorandumRealList)
            {
                memorandumModel = new XElement($"MemorandumModel");
                memorandumModel.SetElementValue("Title", memorandumReal.Title);
                memorandumModel.SetElementValue("EvenType", memorandumReal.EvenType);
                memorandumModel.SetElementValue("DateTime", memorandumReal.DateTime);
                memorandumModel.SetElementValue("IsComplete", memorandumReal.IsComplete);
                xmlRoot.Add(memorandumModel);
            }
            xmlRoot.Save(XmlDocPath);
        }

　　④查询：如果全选选中，则显示全部内容，未勾选，则采用link去匹配选中信息去筛选，我这里是所有信息去匹配的，你也可以自己修改下，去只匹配某一项或几项内容

public void SearchClick()
       {
           SaveXmlDoc();
           if (SelectAll)
           {
               MemorandumShowList = new ObservableCollection<MemorandumModel>(MemorandumRealList);
               return;
           }
           MemorandumShowList = new ObservableCollection<MemorandumModel>(
               MemorandumRealList.Where(
                   t => t.EvenType == EvenTypeList[SelectedIndex]
                   ).Where(s => s.IsComplete == IsCompleteStatus
                   ).Where(p => p.Title == TitleText
                    ).Where(x => x.DateTime == DateTime.Parse(DataTimeContext)
                   ) .ToList() );
       }

　　⑤标题栏未输入内容时显示灰色提示字体，有输入时输入内容显示黑色字体：

这里采用事件处理：获取到光标时

public void LostFocus()
       {
           if (string.IsNullOrEmpty(TitleText))
           {
               TitleText = "备忘录标题";
               TitleColor = Color.DimGray;
           }
       }

　　光标离开时：

public void GotFocus()
       {
           TitleText = "";
           TitleColor = Color.Black;
       }

　　⑥选中行删除：

public void DeleteClick()
        {
            MemorandumRealList.Remove(SelectedItem);
            MemorandumShowList.Remove(SelectedItem);
        }

　　⑦行号获取：在行选择改变事件中去做

public void GridControl_SelectedItemChanged(object sender, SelectedItemChangedEventArgs e)
        {
            GridControl gd = sender as GridControl;
            SelectRow = gd.GetSelectedRowHandles()[0];//选中行的行号
        }

　　⑧添加信息：

public void Add()
       {
           MemorandumRealList.Add(new MemorandumModel()
           {
               Title = titleText,
               DateTime =DateTime.Parse(DataTimeContext),
               EvenType = EvenTypeList[SelectedIndex],
               IsComplete = IsCompleteStatus
           });
           MemorandumShowList.Add(new MemorandumModel()
           {
               Title = titleText,
               DateTime = DateTime.Parse(DataTimeContext),
               EvenType = EvenTypeList[SelectedIndex],
               IsComplete = IsCompleteStatus
           });
       }

　　⑨修改信息：

public void Modify()
      {
          MemorandumRealList[SelectRow] = new MemorandumModel()
          {
              Title = titleText,
              DateTime = DateTime.Parse(DataTimeContext),
              EvenType = EvenTypeList[SelectedIndex],
              IsComplete = IsCompleteStatus
          };
          MemorandumShowList[SelectRow] = new MemorandumModel()
          {
              Title = titleText,
              DateTime = DateTime.Parse(DataTimeContext),
              EvenType = EvenTypeList[SelectedIndex],
              IsComplete = IsCompleteStatus
          };
      }

　　⑩定时器查询：采用using System.Threading.Tasks;下的单线程定时器DispatcherTimer，

定义和初始化：

private DispatcherTimer timer;

            timer = new DispatcherTimer();
           timer.Interval = TimeSpan.FromMinutes(1);
           timer.Tick += timer1_Tick;
           timer.Start();

　　定时器事件：我这里每隔一分钟查询一次，查询到当前事件到了提醒时间就进行一次语音播报：

private void timer1_Tick(object sender, EventArgs e)
       {
           foreach (var memorandum in MemorandumRealList)
           {
               if(DateTime.Now >= memorandum.DateTime)
               {
                   SpeakAsync(memorandum.Title);
               }
           }
       }

　　⑩①：语音播报：这里开了task线程执行

/// <summary>
        /// 微软语音识别
        /// </summary>
        /// <param name="content">提示内容</param>
        public static void SpeakAsync(string content)
        {
            try
            {
                Task.Run(() =>
                {
                    SpVoice voice = new SpVoice();
                    voice.Rate = 1;//速率[-10,10]
                    voice.Volume = 10;//音量[0,100]
                    voice.Voice = voice.GetVoices().Item(0);//语音库
                    voice.Speak(content);
                });
​
            }
            catch (Exception ex)
            {
                throw ex;
            }
        }

　　⑩② 界面时间处理：

界面的表格采用的dev控件gridcontrol，默认情况下，时间只显示年月日，如果需要显示时分，需要设定：EditSettings如下

<dxg:GridColumn  Header="提醒时间" FieldName="DateTime" MinWidth="120" >
                    <dxg:GridColumn.EditSettings>
                        <!--<xctk:DateEditSettings DisplayFormat="dd-MM-yyyy HH:mm:ss.fff"/>-->
                        <xctk:DateEditSettings DisplayFormat="yyyy-MM-dd HH:mm"/>
                    </dxg:GridColumn.EditSettings>
                </dxg:GridColumn>

　　如果使用的是wpf 自带的表格控件datagrid，相对好处理

?
1
<DataGridTextColumn Header="提醒时间" Binding="{Binding Path=DateTime,StringFormat='yyyy年MM月dd日 HH:mm:ss'}" MinWidth="300" />

　　界面顶端的时间控件采用：toolkit下的xctk1:DateTimeUpDown这个控件

她绑定的是一个字符串类型的数据，所以添加时候，需要将他转换为datetime类型， DateTime.Parse(DataTimeContext)，或者

DateTime = Convert.ToDateTime(DataTimeContext)

<xctk1:DateTimeUpDown x:Name="_minimum"  Format="Custom" FormatString="yyyy/MM/dd HH:mm"
                                Text="{Binding DataTimeContext}"
                                 HorizontalAlignment="Left" VerticalAlignment="Center"
                                Value="2016/01/01T12:00"  Margin="15,5"/>

　　⑩③combobox枚举内容绑定：

 public ObservableCollection<EvenType> EvenTypeList { get; set; } = new ObservableCollection<EvenType>();

?
1
2
3
4
foreach (EvenType evenType in Enum.GetValues(typeof(EvenType)))
       {
           EvenTypeList.Add(evenType);
       }

　　⑩④关于gridcontrol TableView 的常用属性介绍

TableView 的常用属性：
​
AllowPerPixelScrolling //逐像素滚动；
AllowScrollAnimation //滚动动画，当下拉滚动条时有动画效果
NavigationStyle //选中方式是一行还是单元格
ShowIndicator //是否在每一行之前显示小方块
UseEvenRowBackground //隔行其背景颜色会有所区分
AllowScrollToFocusedRow //允许滚动到选中行
AllowResizing //允许调整尺寸
AllowSorting //允许排序
AutoWidth //允许自动调整列宽
AllowMoveColumnToDropArea //允许将一列拖到空白处进行分组
AllowGrouping //允许分组
AllowFilterEditor //允许显示过滤盘
AllowEditing //允许编辑
ShowGroupPanel//显示分组panel
ShowHorizontalLines   ShowVerticalLines //显示表格中每行每列垂直和水平线
IsColumnMenuEnabled //是否关闭右键列菜单

—

前台代码

直接上代码，比较简单，不展开讲解了：

100

101

102

103

<UserControl
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:Caliburn.Micro.Hello"
              xmlns:cal="http://www.caliburnproject.org"
              xmlns:sys="clr-namespace:System;assembly=mscorlib"
             xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid" xmlns:xctk="http://schemas.devexpress.com/winfx/2008/xaml/editors" xmlns:xctk1="http://schemas.xceed.com/wpf/xaml/toolkit" x:Class="Caliburn.Micro.Hello.MemorandumView"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800" >
    <UserControl.Resources>
        <local:FontColorConverter x:Key="FontColorConverter" />
        <Style TargetType="{x:Type TextBox}">
            <Setter Property="HorizontalContentAlignment" Value="Left"/>
            <Setter Property="VerticalContentAlignment" Value="Center"/>
            <Setter Property="Width" Value="100"/>
</Style>
        <Style TargetType="{x:Type CheckBox}">
            <Setter Property="HorizontalAlignment" Value="Center"/>
            <Setter Property="VerticalAlignment" Value="Center"/>
            <Setter Property="Foreground" Value="Black"/>
</Style>
        <Style TargetType="Button">
            <Setter Property="Foreground" Value="Black"/>
</Style>
        <DataTemplate x:Key="rowIndicatorContentTemplate">
            <StackPanel VerticalAlignment="Stretch"
                        HorizontalAlignment="Stretch">
                <TextBlock Text="{Binding RowHandle.Value}"
                           TextAlignment="Center"
                           Foreground="Black"/>
            </StackPanel>
        </DataTemplate>
    </UserControl.Resources>
    <StackPanel Orientation="Vertical">
        <StackPanel Orientation="Horizontal">
            <TextBox Text="{Binding TitleText}"  Margin="15,5"
                     cal:Message.Attach="[Event GotFocus] = [Action GotFocus];[Event LostFocus] = [Action LostFocus]"
                     Foreground="{Binding TitleColor, Converter={StaticResource FontColorConverter}}"/>
            <ComboBox ItemsSource="{Binding EvenTypeList}" Margin="15,5"  SelectedIndex="{Binding SelectedIndex}" MinWidth="100" Foreground="Black"/>
            <!--<DatePicker Text="{Binding DataTimeContext,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
                        SelectedDate="{x:Static sys:DateTime.Now}"
                        HorizontalAlignment="Left" VerticalAlignment="Center" Margin="15,5"  />-->
            <xctk1:DateTimeUpDown x:Name="_minimum"  Format="Custom" FormatString="yyyy/MM/dd HH:mm"
                                  Text="{Binding DataTimeContext}"
                                   HorizontalAlignment="Left" VerticalAlignment="Center"
                                  Value="2016/01/01T12:00"  Margin="15,5"/>
​
            <CheckBox IsChecked="{Binding IsCompleteStatus}" Margin="15,5" Content="是否完成" Foreground="Black"/>
            <Button Margin="15,5" MinWidth="60" cal:Message.Attach="[Event Click] = [Action SearchClick]" >
                <WrapPanel >
                    <Image Source="/Images/search.png" Width="15" Height="15" />
                    <TextBlock Text="查找" VerticalAlignment="Center" />
                </WrapPanel>
            </Button>
        </StackPanel>
        <Border BorderBrush="LightBlue" CornerRadius="2" BorderThickness="2" >
        <dxg:GridControl AutoGenerateColumns="AddNew" EnableSmartColumnsGeneration="True"  AllowLiveDataShaping="True"
                         cal:Message.Attach="[Event SelectedItemChanged] = [Action GridControl_SelectedItemChanged($source,$event)];"
                         ItemsSource="{Binding MemorandumShowList}" SelectedItem="{Binding SelectedItem}"
                         Height="330" Foreground="Black">
            <dxg:GridControl.View>
                <dxg:TableView ShowTotalSummary="True" AllowMoveColumnToDropArea="False"
                               AllowGrouping="False" AutoExpandOnDrag="False"
                               ShowDragDropHint="False" ShowGroupPanel="False"
                               AllowColumnMoving="False" AllowResizing="False" Foreground="Black"
                               RowIndicatorContentTemplate="{StaticResource rowIndicatorContentTemplate}" />
            </dxg:GridControl.View>
                <dxg:GridColumn  Header="标题" FieldName="Title"   MinWidth="100"/>
                <dxg:GridColumn  Header="类型" FieldName="EvenType"  MinWidth="100"/>
                <dxg:GridColumn  Header="提醒时间" FieldName="DateTime" MinWidth="120" >
                    <dxg:GridColumn.EditSettings>
                        <!--<xctk:DateEditSettings DisplayFormat="dd-MM-yyyy HH:mm:ss.fff"/>-->
                        <xctk:DateEditSettings DisplayFormat="yyyy-MM-dd HH:mm"/>
                    </dxg:GridColumn.EditSettings>
                </dxg:GridColumn>
                <dxg:GridColumn  Header="状态" FieldName="IsComplete"  MinWidth="100"/>
        </dxg:GridControl>
        </Border>
        <StackPanel Orientation="Horizontal">
            <CheckBox IsChecked="{Binding SelectAll}" Margin="35,5" Content="全选"/>
            <Button Margin="35,5" MinWidth="60" cal:Message.Attach="[Event Click] = [Action DeleteClick]" >
                <WrapPanel >
                    <Image Source="/Images/delete.png" Width="15" Height="15" />
                    <TextBlock Text="删除" VerticalAlignment="Center" />
                </WrapPanel>
            </Button>
            <Button Margin="35,5" MinWidth="60" Name="Add">
                <WrapPanel >
                    <Image Source="/Images/add.png" Width="15" Height="15" />
                    <TextBlock Text="添加" VerticalAlignment="Center" />
                </WrapPanel>
            </Button>
            <Button Margin="35,5" MinWidth="60" Name="Modify">
                <WrapPanel >
                    <Image Source="/Images/modify.png" Width="15" Height="15"/>
                    <TextBlock Text="修改" VerticalAlignment="Center" />
                </WrapPanel>
            </Button>
        </StackPanel>
    </StackPanel>
</UserControl>

—

效果演示

05

—

源码

源码下载

链接：https://pan.baidu.com/s/1yExT_zXFfd6TiAJYoD8kIw

提取码：添加小编微信：mm1552923 获取。
