Tab栏

今天学习了一下Android的tab栏设计,其中图片啥的可以自己用心设计一下，我的比较粗糙。

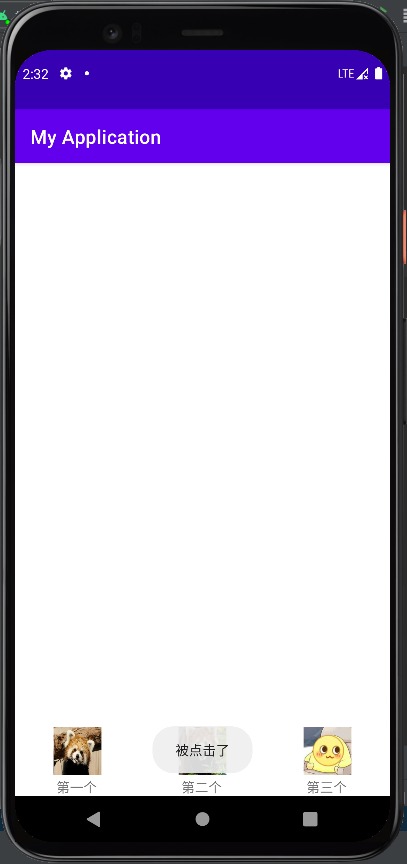

 这是运行效果，注释在代码里写的很详细，下面是代码：

MainActivity.java

package com.example.tabfragment;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.TextView;
import android.widget.Toast;
//实现tab栏

public class MainActivity extends AppCompatActivity  {
        //变量
    private TextView tab_one,tab_two,tab_three;
    private RelativeLayout rl_tab_one,rl_tab_two,rl_tab_three;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //初始化方法
        initview();
        onclick();





    }




    private void initview() {
        tab_one = (TextView) findViewById(R.id.tab_one);//CTRL+ALT +F可以设置为成员变量，前面最好加个m,作为成员变量
        tab_two = (TextView) findViewById(R.id.tab_two);
        tab_three = (TextView) findViewById(R.id.tab_three);

         rl_tab_one = (RelativeLayout) findViewById(R.id.rl_tab_one);
         rl_tab_two =(RelativeLayout) findViewById(R.id.rl_tab_two);
         rl_tab_three = (RelativeLayout)findViewById(R.id.rl_tab_three);

    }

    private void onclick() {

//        rl_tab_one.setOnClickListener((View.OnClickListener) this); //配合下面的绿色是另一种写法 需要imimplements View.OnClickListener接口
//        rl_tab_two.setOnClickListener((View.OnClickListener) this);
//        rl_tab_three.setOnClickListener((View.OnClickListener) this);


        //匿名内部类
        rl_tab_one.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Toast.makeText(MainActivity.this,"被点击了",Toast.LENGTH_SHORT).show();
                tab_one.setBackgroundResource(R.drawable.change);
                tab_two.setBackgroundResource(R.drawable.two);
                tab_three.setBackgroundResource(R.drawable.three);
            }
        });

        rl_tab_two.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Toast.makeText(MainActivity.this,"被点击了",Toast.LENGTH_SHORT).show();
                tab_one.setBackgroundResource(R.drawable.one);
                tab_two.setBackgroundResource(R.drawable.change);
                tab_three.setBackgroundResource(R.drawable.three);
            }
        });

        rl_tab_three.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Toast.makeText(MainActivity.this,"被点击了",Toast.LENGTH_SHORT).show();
                tab_one.setBackgroundResource(R.drawable.one);
                tab_two.setBackgroundResource(R.drawable.two);
                tab_three.setBackgroundResource(R.drawable.change);
            }
        });
    }






//    @Override
//    public void onClick(View view) {
//        //点击谁，就把谁的id传进来
//        int id = view.getId();
//        switch (id){
//            case R.id.rl_tab_one :
//        tab_one.setBackgroundResource(R.drawable.change);
//                tab_two.setBackgroundResource(R.drawable.two);
//                tab_three.setBackgroundResource(R.drawable.three);
    //  Toast.makeText(MainActivity.this,"被点击了",Toast.LENGTH_SHORT).show();
    // break;


//            case R.id.rl_tab_two:
//        tab_one.setBackgroundResource(R.drawable.one);
//                tab_two.setBackgroundResource(R.drawable.change);
//                tab_three.setBackgroundResource(R.drawable.three);
    //  Toast.makeText(MainActivity.this,"被点击了",Toast.LENGTH_SHORT).show();
      // break;
//



//            case R.id.rl_tab_three :
//                 tab_one.setBackgroundResource(R.drawable.one);
//                tab_two.setBackgroundResource(R.drawable.two);
//                tab_three.setBackgroundResource(R.drawable.change);
//                Toast.makeText(MainActivity.this,"被点击了",Toast.LENGTH_SHORT).show();
//                break;
//
//
//        }
//    }



    //把修改颜色写成一个方法
    private  void  changeColors(TextView changeTextView ,int changeId){
        //首先把所有的都设置为未点击的

        tab_one.setBackgroundResource(R.drawable.one);
        tab_two.setBackgroundResource(R.drawable.two);
        tab_three.setBackgroundResource(R.drawable.three);

        //当被选中时，设置为黄色 changeId是点击后的图片id
        changeTextView.setBackgroundResource(changeId);


    }
}

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">






    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:layout_alignParentBottom="true"
        >


        <RelativeLayout
            android:id="@+id/rl_tab_one"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:gravity="center"
            android:layout_weight="1"
            >

            <TextView
                android:id="@+id/tab_one"
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:background="@drawable/one"></TextView>


            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_below="@+id/tab_one"
                android:text="第一个"
                android:gravity="center"
                android:layout_marginLeft="3dp"
                android:layout_marginTop="3dp"
                ></TextView>


        </RelativeLayout>



    <RelativeLayout
        android:id="@+id/rl_tab_two"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:layout_weight="1"
        >

        <TextView
            android:id="@+id/tab_two"
            android:layout_width="50dp"
            android:layout_height="50dp"
            android:background="@drawable/two"></TextView>


        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/tab_two"
            android:text="第二个"
            android:gravity="center"
            android:layout_marginLeft="3dp"
            android:layout_marginTop="3dp"
            ></TextView>


    </RelativeLayout>



        <RelativeLayout
            android:id="@+id/rl_tab_three"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:gravity="center"
            android:layout_weight="1"
            >

            <TextView
                android:id="@+id/tab_three"
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:background="@drawable/three"></TextView>


            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_below="@+id/tab_three"
                android:text="第三个"
                android:gravity="center"
                android:layout_marginLeft="3dp"
                android:layout_marginTop="3dp"
                ></TextView>
        </RelativeLayout>





</LinearLayout>


</RelativeLayout>
