SpringCloud Gateway网关
目录
1.Spring Cloud Gateway 简介
1.1 概述
- Spring cloud gateway 是 spring 官方基于 Spring 5.0、Spring Boot2.0 和 Project Reactor 等技术开发的网关,Spring Cloud Gateway 旨在为微服务架构提供简单、有效和统一的 API 路由管理方式,Spring Cloud Gateway 作为 Spring Cloud 生态系统中的网关,目标是替代 Netflix Zuul,其不仅提供统一的路由方式,并且还基于 Filer 链的方式提供了网关基本的功能,例如:安全、监控/埋点、限流等。
1.2 核心概念

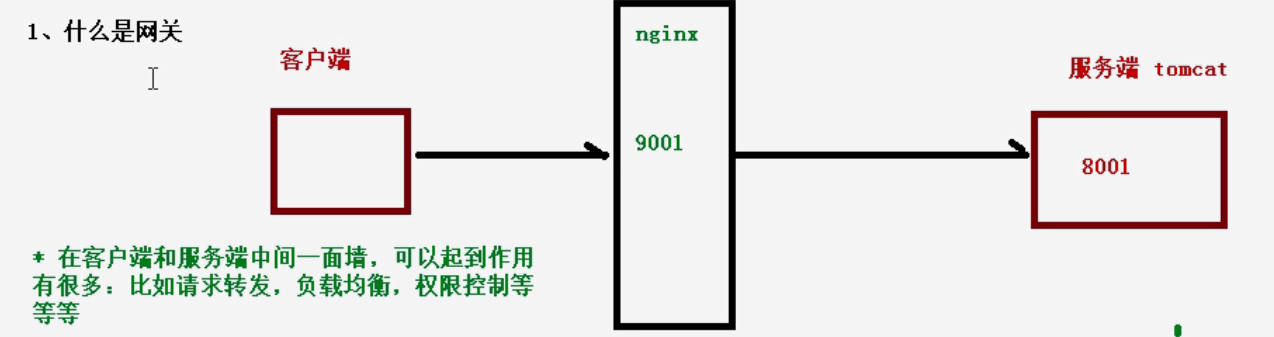

1.2.1 API 网关
-
API 网关出现的原因是微服务架构的出现,不同的微服务一般会有不同的网络地址,而外部客户端可能需要调用多个服务的接口才能完成一个业务需求,如果让客户端直接与各个微服务通信,会有以下的问题:
1.客户端会多次请求不同的微服务,增加了客户端的复杂性。
2.存在跨域请求,在一定场景下处理相对复杂。
3.认证复杂,每个服务都需要独立认证。
4.难以重构,随着项目的迭代,可能需要重新划分微服务。例如,可能将多个服务合并成一个或者将一个服务拆分成多个。如果客户端直接与微服务通信,那么重构将会很难实施。
5.某些微服务可能使用了防火墙 / 浏览器不友好的协议,直接访问会有一定的困难 -
以上这些问题可以借助 API 网关解决。API 网关是介于客户端和服务器端之间的中间层,所有的外部请求都会先经过 API 网关这一层。也就是说,API 的实现方面更多的考虑业务逻辑,而安全、性能、监控可以交由 API 网关来做,这样既提高业务灵活性又不缺安全性。
-

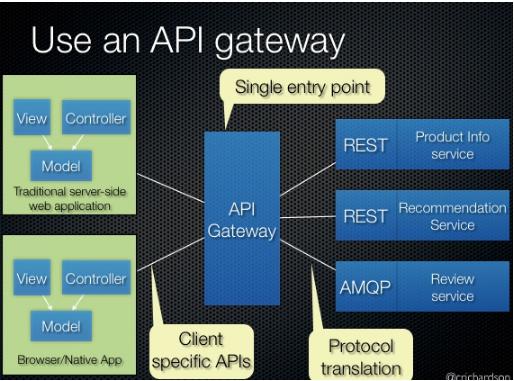

使用 API 网关后示意图:
使用 API 网关后的优点如下:
-
易于监控。可以在网关收集监控数据并将其推送到外部系统进行分析。
-
易于认证。可以在网关上进行认证,然后再将请求转发到后端的微服务,而无须在每个微服务中进行认证
-
统一接入。减少了客户端与各个微服务之间的交互次数。
1.2.2 路由
- 路由是网关最基础的部分,路由信息有一个 ID、一个目的 URL、一组断言和一组 Filter 组成。如果断言路由为真,则说明请求的 URL 和配置匹配。
1.2.3 过滤器
-
一个标准的 Spring webFilter。Spring cloud gateway 中的 filter 分为两种类型的 Filter,分别是 Gateway Filter 和 Global Filter。过滤器 Filter 将会对请求和响应进行修改处理。执行示意图如下:
-

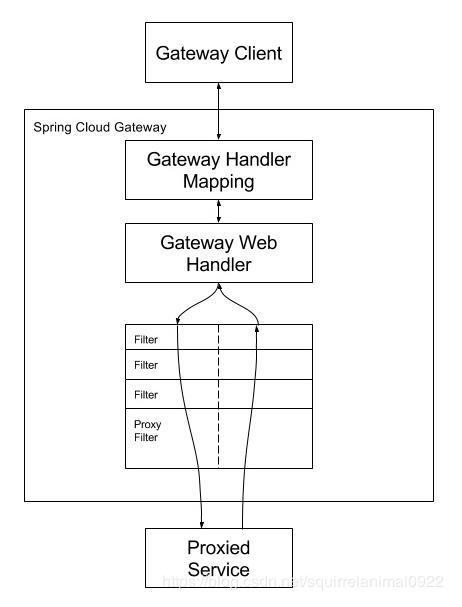

如上图所示,Spring cloudGateway 发出请求。然后再由 Gateway Handler Mapping 中找到与请求相匹配的路由,将其发送到 Gateway web handler。Handler 再通过指定的过滤器链将请求发送到我们实际的服务执行业务逻辑,然后返回。

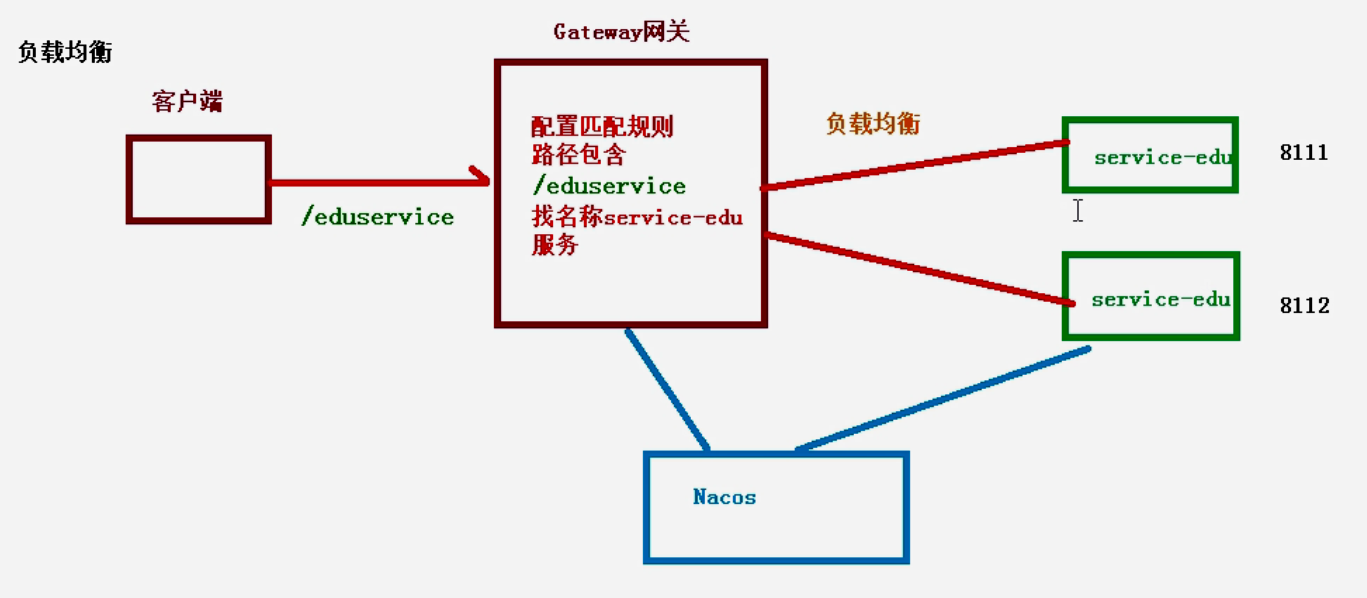

2 使用 Spring Cloud Gateway 实现路由功能
2.1入门案例

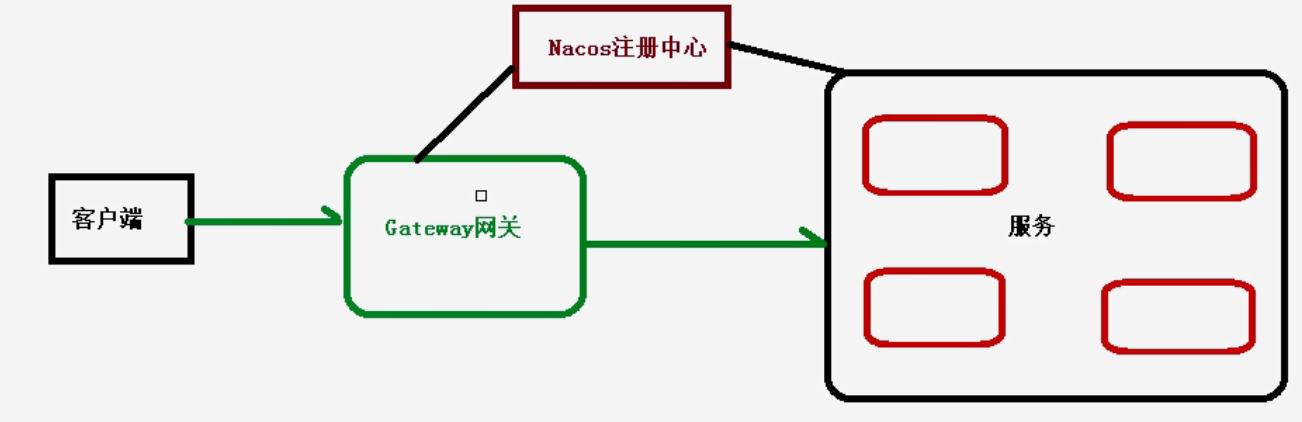

实现步骤是将gateway注册到注册中心,服务也要注册到注册中心
3 创建api-gateway模块(网关服务)
1、在infrastructure模块下创建api_gateway模块
2、在pom.xml引入依赖
<dependencies>
<dependency>
<groupId>com.atguigu</groupId>
<artifactId>common_utils</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>
<!--gson-->
<dependency>
<groupId>com.google.code.gson</groupId>
<artifactId>gson</artifactId>
</dependency>
<!--服务调用-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
</dependencies>
3、编写application.properties配置文件
# 服务端口
server.port=8222
# 服务名
spring.application.name=service-gateway
# nacos服务地址
spring.cloud.nacos.discovery.server-addr=127.0.0.1:8848
#使用服务发现路由
spring.cloud.gateway.discovery.locator.enabled=true
#服务路由名小写
#spring.cloud.gateway.discovery.locator.lower-case-service-id=true
#设置路由id
spring.cloud.gateway.routes[0].id=service-acl
#设置路由的uri
spring.cloud.gateway.routes[0].uri=lb://service-acl
#设置路由断言,代理servicerId为auth-service的/auth/路径
spring.cloud.gateway.routes[0].predicates= Path=/*/acl/**
#配置service-edu服务
spring.cloud.gateway.routes[1].id=service-edu
spring.cloud.gateway.routes[1].uri=lb://service-edu
spring.cloud.gateway.routes[1].predicates= Path=/eduservice/**
#配置service-ucenter服务
spring.cloud.gateway.routes[2].id=service-ucenter
spring.cloud.gateway.routes[2].uri=lb://service-ucenter
spring.cloud.gateway.routes[2].predicates= Path=/ucenterservice/**
#配置service-ucenter服务
spring.cloud.gateway.routes[3].id=service-cms
spring.cloud.gateway.routes[3].uri=lb://service-cms
spring.cloud.gateway.routes[3].predicates= Path=/cmsservice/**
spring.cloud.gateway.routes[4].id=service-msm
spring.cloud.gateway.routes[4].uri=lb://service-msm
spring.cloud.gateway.routes[4].predicates= Path=/edumsm/**
spring.cloud.gateway.routes[5].id=service-order
spring.cloud.gateway.routes[5].uri=lb://service-order
spring.cloud.gateway.routes[5].predicates= Path=/orderservice/**
spring.cloud.gateway.routes[6].id=service-order
spring.cloud.gateway.routes[6].uri=lb://service-order
spring.cloud.gateway.routes[6].predicates= Path=/orderservice/**
spring.cloud.gateway.routes[7].id=service-oss
spring.cloud.gateway.routes[7].uri=lb://service-oss
spring.cloud.gateway.routes[7].predicates= Path=/eduoss/**
spring.cloud.gateway.routes[8].id=service-statistic
spring.cloud.gateway.routes[8].uri=lb://service-statistic
spring.cloud.gateway.routes[8].predicates= Path=/staservice/**
spring.cloud.gateway.routes[9].id=service-vod
spring.cloud.gateway.routes[9].uri=lb://service-vod
spring.cloud.gateway.routes[9].predicates= Path=/eduvod/**
spring.cloud.gateway.routes[10].id=service-edu
spring.cloud.gateway.routes[10].uri=lb://service-edu
spring.cloud.gateway.routes[10].predicates= Path=/eduuser/**
yml文件:
server:
port: 8222
spring:
application:
cloud:
gateway:
discovery:
locator:
enabled: true
routes:
- id: SERVICE-ACL
uri: lb://SERVICE-ACL
predicates:
- Path=/*/acl/** # 路径匹配
- id: SERVICE-EDU
uri: lb://SERVICE-EDU
predicates:
- Path=/eduservice/** # 路径匹配
- id: SERVICE-UCENTER
uri: lb://SERVICE-UCENTER
predicates:
- Path=/ucenter/** # 路径匹配
nacos:
discovery:
server-addr: 127.0.0.1:8848
4、编写启动类
@SpringBootApplication
public class ApiGatewayApplication {
public static void main(String[] args) {
SpringApplication.run(ApiGatewayApplication.class, args);
}
}
4 网关相关配置
4.1、网关解决跨域问题
(1)创建配置类
@Configuration
public class CorsConfig {
@Bean
public CorsWebFilter corsFilter() {
CorsConfiguration config = new CorsConfiguration();
config.addAllowedMethod("*");
config.addAllowedOrigin("*");
config.addAllowedHeader("*");
UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource(new PathPatternParser());
source.registerCorsConfiguration("/**", config);
return new CorsWebFilter(source);
}
}

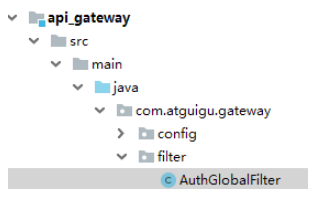

4.2、全局Filter,统一处理会员登录与外部不允许访问的服务
import com.google.gson.JsonObject;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.core.io.buffer.DataBuffer;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.util.AntPathMatcher;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;
import java.nio.charset.StandardCharsets;
import java.util.List;
/**
* <p>
* 全局Filter,统一处理会员登录与外部不允许访问的服务
* </p>
*/
@Component
public class AuthGlobalFilter implements GlobalFilter, Ordered {
private AntPathMatcher antPathMatcher = new AntPathMatcher();
@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
ServerHttpRequest request = exchange.getRequest();
String path = request.getURI().getPath();
//谷粒学院api接口,校验用户必须登录
if(antPathMatcher.match("/api/**/auth/**", path)) {
List<String> tokenList = request.getHeaders().get("token");
if(null == tokenList) {
ServerHttpResponse response = exchange.getResponse();
return out(response);
} else {
// Boolean isCheck = JwtUtils.checkToken(tokenList.get(0));
// if(!isCheck) {
ServerHttpResponse response = exchange.getResponse();
return out(response);
// }
}
}
//内部服务接口,不允许外部访问
if(antPathMatcher.match("/**/inner/**", path)) {
ServerHttpResponse response = exchange.getResponse();
return out(response);
}
return chain.filter(exchange);
}
@Override
public int getOrder() {
return 0;
}
private Mono<Void> out(ServerHttpResponse response) {
JsonObject message = new JsonObject();
message.addProperty("success", false);
message.addProperty("code", 28004);
message.addProperty("data", "鉴权失败");
byte[] bits = message.toString().getBytes(StandardCharsets.UTF_8);
DataBuffer buffer = response.bufferFactory().wrap(bits);
//response.setStatusCode(HttpStatus.UNAUTHORIZED);
//指定编码,否则在浏览器中会中文乱码
response.getHeaders().add("Content-Type", "application/json;charset=UTF-8");
return response.writeWith(Mono.just(buffer));
}
}

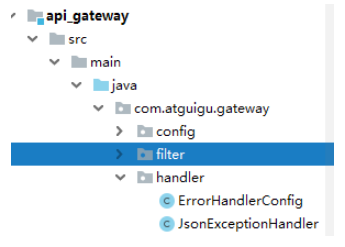

4.3、自定义异常处理
服务网关调用服务时可能会有一些异常或服务不可用,它返回错误信息不友好,需要我们覆盖处理
ErrorHandlerConfig:
import org.springframework.beans.factory.ObjectProvider;
import org.springframework.boot.autoconfigure.web.ResourceProperties;
import org.springframework.boot.autoconfigure.web.ServerProperties;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.boot.web.reactive.error.ErrorAttributes;
import org.springframework.boot.web.reactive.error.ErrorWebExceptionHandler;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.http.codec.ServerCodecConfigurer;
import org.springframework.web.reactive.result.view.ViewResolver;
import java.util.Collections;
import java.util.List;
/**
* 覆盖默认的异常处理
*
*/
@Configuration
@EnableConfigurationProperties({ServerProperties.class, ResourceProperties.class})
public class ErrorHandlerConfig {
private final ServerProperties serverProperties;
private final ApplicationContext applicationContext;
private final ResourceProperties resourceProperties;
private final List<ViewResolver> viewResolvers;
private final ServerCodecConfigurer serverCodecConfigurer;
public ErrorHandlerConfig(ServerProperties serverProperties,
ResourceProperties resourceProperties,
ObjectProvider<List<ViewResolver>> viewResolversProvider,
ServerCodecConfigurer serverCodecConfigurer,
ApplicationContext applicationContext) {
this.serverProperties = serverProperties;
this.applicationContext = applicationContext;
this.resourceProperties = resourceProperties;
this.viewResolvers = viewResolversProvider.getIfAvailable(Collections::emptyList);
this.serverCodecConfigurer = serverCodecConfigurer;
}
@Bean
@Order(Ordered.HIGHEST_PRECEDENCE)
public ErrorWebExceptionHandler errorWebExceptionHandler(ErrorAttributes errorAttributes) {
JsonExceptionHandler exceptionHandler = new JsonExceptionHandler(
errorAttributes,
this.resourceProperties,
this.serverProperties.getError(),
this.applicationContext);
exceptionHandler.setViewResolvers(this.viewResolvers);
exceptionHandler.setMessageWriters(this.serverCodecConfigurer.getWriters());
exceptionHandler.setMessageReaders(this.serverCodecConfigurer.getReaders());
return exceptionHandler;
}
}
JsonExceptionHandler:
import org.springframework.boot.autoconfigure.web.ErrorProperties;
import org.springframework.boot.autoconfigure.web.ResourceProperties;
import org.springframework.boot.autoconfigure.web.reactive.error.DefaultErrorWebExceptionHandler;
import org.springframework.boot.web.reactive.error.ErrorAttributes;
import org.springframework.context.ApplicationContext;
import org.springframework.http.HttpStatus;
import org.springframework.web.reactive.function.server.*;
import java.util.HashMap;
import java.util.Map;
/**
* 自定义异常处理
*
* <p>异常时用JSON代替HTML异常信息<p>
*
*/
public class JsonExceptionHandler extends DefaultErrorWebExceptionHandler {
public JsonExceptionHandler(ErrorAttributes errorAttributes, ResourceProperties resourceProperties,
ErrorProperties errorProperties, ApplicationContext applicationContext) {
super(errorAttributes, resourceProperties, errorProperties, applicationContext);
}
/**
* 获取异常属性
*/
@Override
protected Map<String, Object> getErrorAttributes(ServerRequest request, boolean includeStackTrace) {
Map<String, Object> map = new HashMap<>();
map.put("success", false);
map.put("code", 20005);
map.put("message", "网关失败");
map.put("data", null);
return map;
}
/**
* 指定响应处理方法为JSON处理的方法
* @param errorAttributes
*/
@Override
protected RouterFunction<ServerResponse> getRoutingFunction(ErrorAttributes errorAttributes) {
return RouterFunctions.route(RequestPredicates.all(), this::renderErrorResponse);
}
/**
* 根据code获取对应的HttpStatus
* @param errorAttributes
*/
@Override
protected HttpStatus getHttpStatus(Map<String, Object> errorAttributes) {
return HttpStatus.OK;
}
}
