大数据Flink Sink
目录
1 预定义Sink
1.1 基于控制台和文件的Sink
⚫ API
1.ds.print 直接输出到控制台
2.ds.printToErr() 直接输出到控制台,用红色
3.ds.writeAsText(“本地/HDFS的path”,WriteMode.OVERWRITE).setParallelism(1)
⚫ 注意:
在输出到path的时候,可以在前面设置并行度,如果
并行度>1,则path为目录
并行度=1,则path为文件名
⚫ 代码演示:
package cn.oldlu.sink;
import org.apache.flink.core.fs.FileSystem;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
/**
* Author oldlu
* Desc
* 1.ds.print 直接输出到控制台
* 2.ds.printToErr() 直接输出到控制台,用红色
* 3.ds.collect 将分布式数据收集为本地集合
* 4.ds.setParallelism(1).writeAsText("本地/HDFS的path",WriteMode.OVERWRITE)
*/
public class SinkDemo01 {
public static void main(String[] args) throws Exception {
//1.env
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//2.source
//DataStream<String> ds = env.fromElements("hadoop", "flink");
DataStream<String> ds = env.readTextFile("data/input/words.txt");
//3.transformation
//4.sink
ds.print();
ds.printToErr();
ds.writeAsText("data/output/test", FileSystem.WriteMode.OVERWRITE).setParallelism(2);
//注意:
//Parallelism=1为文件
//Parallelism>1为文件夹
//5.execute
env.execute();
}
}
2 自定义Sink
2.1 MySQL
⚫ 需求:
将Flink集合中的数据通过自定义Sink保存到MySQL
⚫ 代码实现:
package cn.oldlu.sink;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.RichSinkFunction;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
/**
* Author oldlu
* Desc
* 使用自定义sink将数据保存到MySQL
*/
public class SinkDemo02_MySQL {
public static void main(String[] args) throws Exception {
//1.env
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//2.Source
DataStream<Student> studentDS = env.fromElements(new Student(null, "tonyma", 18));
//3.Transformation
//4.Sink
studentDS.addSink(new MySQLSink());
//5.execute
env.execute();
}
@Data
@NoArgsConstructor
@AllArgsConstructor
public static class Student {
private Integer id;
private String name;
private Integer age;
}
public static class MySQLSink extends RichSinkFunction<Student> {
private Connection conn = null;
private PreparedStatement ps = null;
@Override
public void open(Configuration parameters) throws Exception {
//加载驱动,开启连接
//Class.forName("com.mysql.jdbc.Driver");
conn = DriverManager.getConnection("jdbc:mysql://localhost:3306/bigdata", "root", "root");
String sql = "INSERT INTO `t_student` (`id`, `name`, `age`) VALUES (null, ?, ?)";
ps = conn.prepareStatement(sql);
}
@Override
public void invoke(Student value, Context context) throws Exception {
//给ps中的?设置具体值
ps.setString(1,value.getName());
ps.setInt(2,value.getAge());
//执行sql
ps.executeUpdate();
}
@Override
public void close() throws Exception {
if (conn != null) conn.close();
if (ps != null) ps.close();
}
}
}
3. Connectors
3.1 JDBC
https://ci.apache.org/projects/flink/flink-docs-release-1.12/dev/connectors/jdbc.html
package cn.oldlu.connectors;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.connector.jdbc.JdbcConnectionOptions;
import org.apache.flink.connector.jdbc.JdbcSink;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
/**
* Author oldlu
* Desc
*/
public class ConnectorsDemo_JDBC {
public static void main(String[] args) throws Exception {
//1.env
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//2.Source
env.fromElements(new Student(null, "tonyma", 18))
//3.Transformation
//4.Sink
.addSink(JdbcSink.sink(
"INSERT INTO `t_student` (`id`, `name`, `age`) VALUES (null, ?, ?)",
(ps, s) -> {
ps.setString(1, s.getName());
ps.setInt(2, s.getAge());
},
new JdbcConnectionOptions.JdbcConnectionOptionsBuilder()
.withUrl("jdbc:mysql://localhost:3306/bigdata")
.withUsername("root")
.withPassword("root")
.withDriverName("com.mysql.jdbc.Driver")
.build()));
//5.execute
env.execute();
}
@Data
@NoArgsConstructor
@AllArgsConstructor
public static class Student {
private Integer id;
private String name;
private Integer age;
}
}
3.2 Kafka

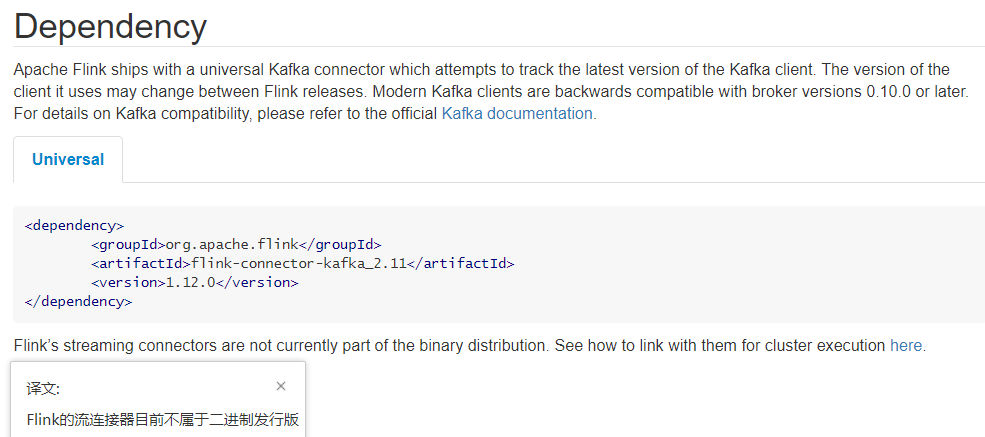

3.2.1 pom依赖
Flink 里已经提供了一些绑定的 Connector,例如 kafka source 和 sink,Es sink 等。读写
kafka、es、rabbitMQ 时可以直接使用相应 connector 的 api 即可,虽然该部分是 Flink 项目
源代码里的一部分,但是真正意义上不算作 Flink 引擎相关逻辑,并且该部分没有打包在二进制
的发布包里面。所以在提交 Job 时候需要注意, job 代码 jar 包中一定要将相应的 connetor
相关类打包进去,否则在提交作业时就会失败,提示找不到相应的类,或初始化某些类异常。

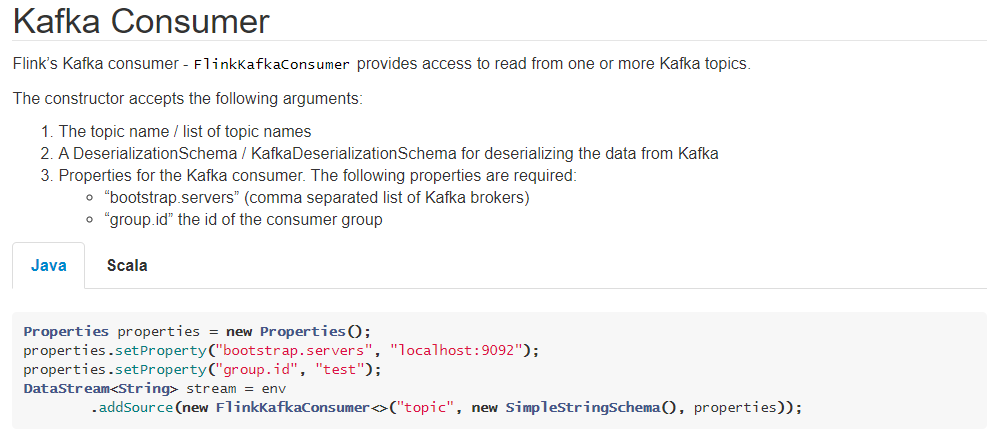

https://ci.apache.org/projects/flink/flink-docs-stable/dev/connectors/kafka.html
3.2.2 参数设置
以下参数都必须/建议设置上
1.订阅的主题

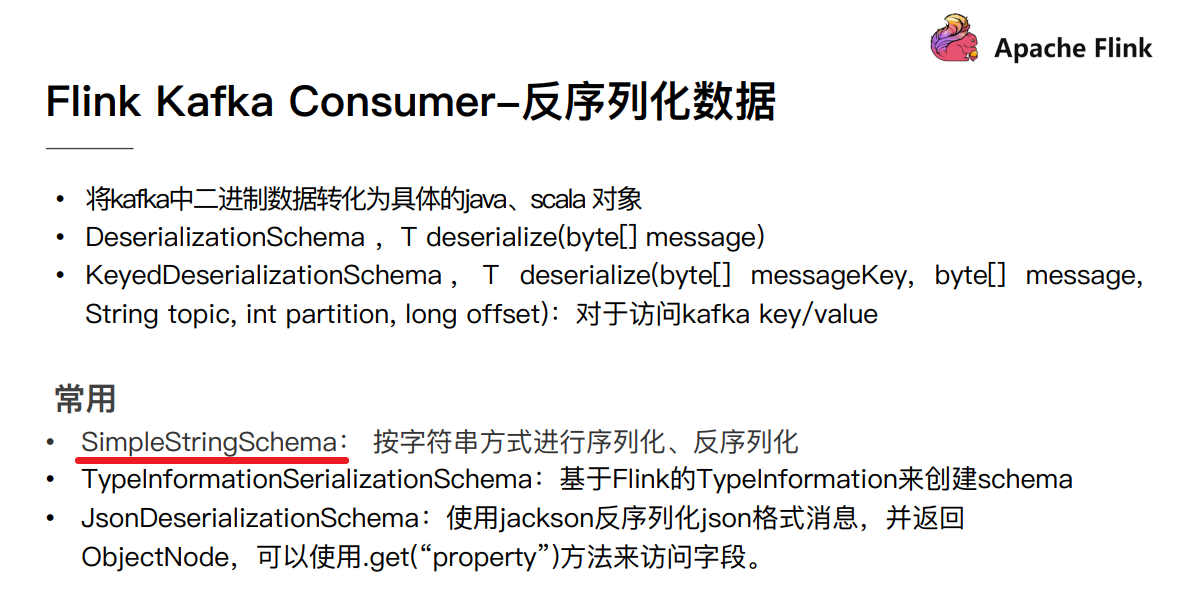

2.反序列化规则
3.消费者属性-集群地址
4.消费者属性-消费者组id(如果不设置,会有默认的,但是默认的不方便管理)
5.消费者属性-offset重置规则,如earliest/latest…
6.动态分区检测(当kafka的分区数变化/增加时,Flink能够检测到!)
7.如果没有设置Checkpoint,那么可以设置自动提交offset,后续学习了Checkpoint会把offset随着做
Checkpoint的时候提交到Checkpoint和默认主题中
3.2.3 参数说明
实际的生产环境中可能有这样一些需求,比如:
场景一:有一个 Flink 作业需要将五份数据聚合到一起,五份数据对应五个 kafka topic,随着
业务增长,新增一类数据,同时新增了一个 kafka topic,如何在不重启作业的情况下作业自动感
知新的 topic。
场景二:作业从一个固定的 kafka topic 读数据,开始该 topic 有 10 个 partition,但随着业
务的增长数据量变大,需要对 kafka partition 个数进行扩容,由 10 个扩容到 20。该情况下如
何在不重启作业情况下动态感知新扩容的 partition?

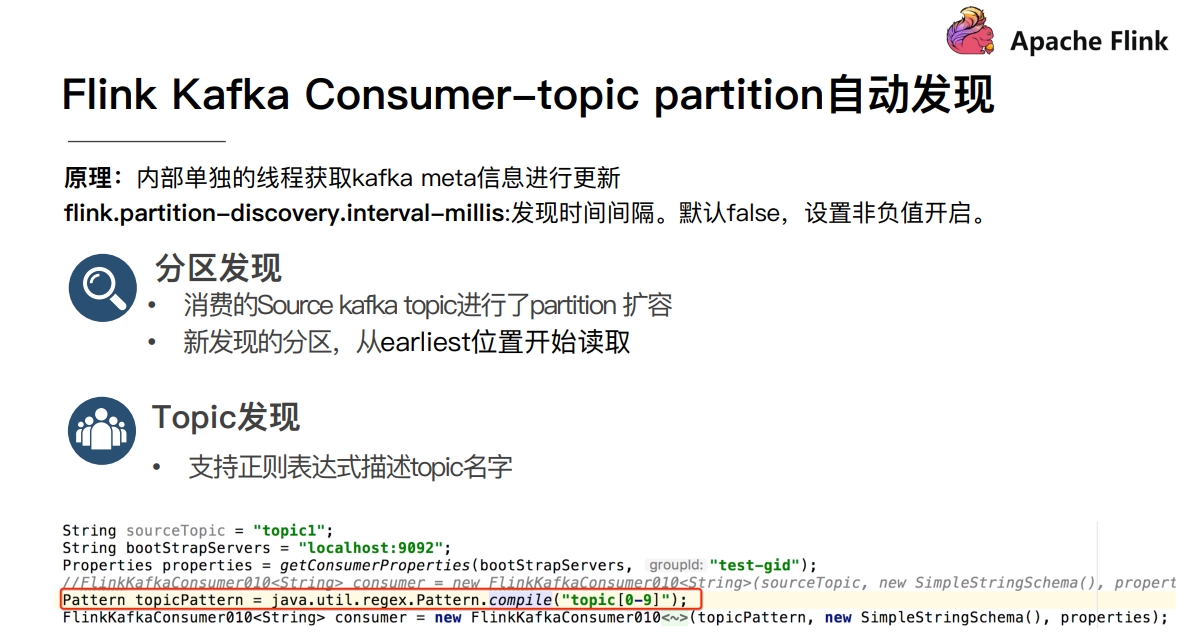

针对上面的两种场景,首先需要在构建 FlinkKafkaConsumer 时的 properties 中设置
flink.partition-discovery.interval-millis 参数为非负值,表示开启动态发现的开关,以及设置的时
间间隔。此时 FlinkKafkaConsumer 内部会启动一个单独的线程定期去 kafka 获取最新的 meta
信息。
针对场景一,还需在构建 FlinkKafkaConsumer 时,topic 的描述可以传一个正则表达式描述的
pattern。每次获取最新 kafka meta 时获取正则匹配的最新 topic 列表。
针对场景二,设置前面的动态发现参数,在定期获取 kafka 最新 meta 信息时会匹配新的
partition。为了保证数据的正确性,新发现的 partition 从最早的位置开始读取。
注意:
开启 checkpoint 时 offset 是 Flink 通过状态 state 管理和恢复的,并不是从 kafka 的 offset
位置恢复。在 checkpoint 机制下,作业从最近一次checkpoint 恢复,本身是会回放部分历史数
据,导致部分数据重复消费,Flink 引擎仅保证计算状态的精准一次,要想做到端到端精准一次需
要依赖一些幂等的存储系统或者事务操作。
3.2.4 Kafka命令
● 查看当前服务器中的所有topic
/export/server/kafka/bin/kafka-topics.sh --list --zookeeper node1:2181
● 创建topic
/export/server/kafka/bin/kafka-topics.sh --create --zookeeper node1:2181 --replication-factor 2
–partitions 3 --topic flink_kafka
● 查看某个Topic的详情
/export/server/kafka/bin/kafka-topics.sh --topic flink_kafka --describe --zookeeper node1:2181
● 删除topic
/export/server/kafka/bin/kafka-topics.sh --delete --zookeeper node1:2181 --topic flink_kafka
● 通过shell命令发送消息
/export/server/kafka/bin/kafka-console-producer.sh --broker-list node1:9092 --topic
flink_kafka
● 通过shell消费消息
/export/server/kafka/bin/kafka-console-consumer.sh --bootstrap-server node1:9092 --topic
flink_kafka --from-beginning
● 修改分区
/export/server/kafka/bin/kafka-topics.sh --alter --partitions 4 --topic flink_kafka --zookeeper
node1:2181
3.2.5 代码实现-Kafka Consumer
package cn.oldlu.connectors;
import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.api.java.tuple.Tuple;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.util.Collector;
import java.util.Properties;
/**
* Author oldlu
* Desc
* 需求:使用flink-connector-kafka_2.12中的FlinkKafkaConsumer消费Kafka中的数据做WordCount
* 需要设置如下参数:
* 1.订阅的主题
* 2.反序列化规则
* 3.消费者属性-集群地址
* 4.消费者属性-消费者组id(如果不设置,会有默认的,但是默认的不方便管理)
* 5.消费者属性-offset重置规则,如earliest/latest...
* 6.动态分区检测(当kafka的分区数变化/增加时,Flink能够检测到!)
* 7.如果没有设置Checkpoint,那么可以设置自动提交offset,后续学习了Checkpoint会把offset随着做Checkpoint的时候提交到Checkpoint和默认主题中
*/
public class ConnectorsDemo_KafkaConsumer {
public static void main(String[] args) throws Exception {
//1.env
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//2.Source
Properties props = new Properties();
props.setProperty("bootstrap.servers", "node1:9092");
props.setProperty("group.id", "flink");
props.setProperty("auto.offset.reset","latest");
props.setProperty("flink.partition-discovery.interval-millis","5000");//会开启一个后台线程每隔5s检测一下Kafka的分区情况
props.setProperty("enable.auto.commit", "true");
props.setProperty("auto.commit.interval.ms", "2000");
//kafkaSource就是KafkaConsumer
FlinkKafkaConsumer<String> kafkaSource = new FlinkKafkaConsumer<>("flink_kafka", new SimpleStringSchema(), props);
kafkaSource.setStartFromGroupOffsets();//设置从记录的offset开始消费,如果没有记录从auto.offset.reset配置开始消费
//kafkaSource.setStartFromEarliest();//设置直接从Earliest消费,和auto.offset.reset配置无关
DataStreamSource<String> kafkaDS = env.addSource(kafkaSource);
//3.Transformation
//3.1切割并记为1
SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOneDS = kafkaDS.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {
@Override
public void flatMap(String value, Collector<Tuple2<String, Integer>> out) throws Exception {
String[] words = value.split(" ");
for (String word : words) {
out.collect(Tuple2.of(word, 1));
}
}
});
//3.2分组
KeyedStream<Tuple2<String, Integer>, Tuple> groupedDS = wordAndOneDS.keyBy(0);
//3.3聚合
SingleOutputStreamOperator<Tuple2<String, Integer>> result = groupedDS.sum(1);
//4.Sink
result.print();
//5.execute
env.execute();
}
}
3.2.6 代码实现-Kafka Producer
⚫ 需求:
将Flink集合中的数据通过自定义Sink保存到Kafka
⚫ 代码实现
package cn.oldlu.connectors;
import com.alibaba.fastjson.JSON;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaProducer;
import java.util.Properties;
/**
* Author oldlu
* Desc
* 使用自定义sink-官方提供的flink-connector-kafka_2.12-将数据保存到Kafka
*/
public class ConnectorsDemo_KafkaProducer {
public static void main(String[] args) throws Exception {
//1.env
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//2.Source
DataStreamSource<Student> studentDS = env.fromElements(new Student(1, "tonyma", 18));
//3.Transformation
//注意:目前来说我们使用Kafka使用的序列化和反序列化都是直接使用最简单的字符串,所以先将Student转为字符串
//可以直接调用Student的toString,也可以转为JSON
SingleOutputStreamOperator<String> jsonDS = studentDS.map(new MapFunction<Student, String>() {
@Override
public String map(Student value) throws Exception {
//String str = value.toString();
String jsonStr = JSON.toJSONString(value);
return jsonStr;
}
});
//4.Sink
jsonDS.print();
//根据参数创建KafkaProducer/KafkaSink
Properties props = new Properties();
props.setProperty("bootstrap.servers", "node1:9092");
FlinkKafkaProducer<String> kafkaSink = new FlinkKafkaProducer<>("flink_kafka", new SimpleStringSchema(), props);
jsonDS.addSink(kafkaSink);
//5.execute
env.execute();
// /export/server/kafka/bin/kafka-console-consumer.sh --bootstrap-server node1:9092 --topic flink_kafka
}
@Data
@NoArgsConstructor
@AllArgsConstructor
public static class Student {
private Integer id;
private String name;
private Integer age;
}
}
3.3 Redis
⚫ API
通过flink 操作redis 其实我们可以通过传统的redis 连接池Jpoools 进行redis 的相关操作,但是
flink 提供了专门操作redis 的RedisSink,使用起来更方便,而且不用我们考虑性能的问题,接下
来将主要介绍RedisSink 如何使用。
https://bahir.apache.org/docs/flink/current/flink-streaming-redis/
RedisSink 核心类是RedisMapper 是一个接口,使用时我们要编写自己的redis 操作类实现这个
接口中的三个方法,如下所示
1.getCommandDescription() :

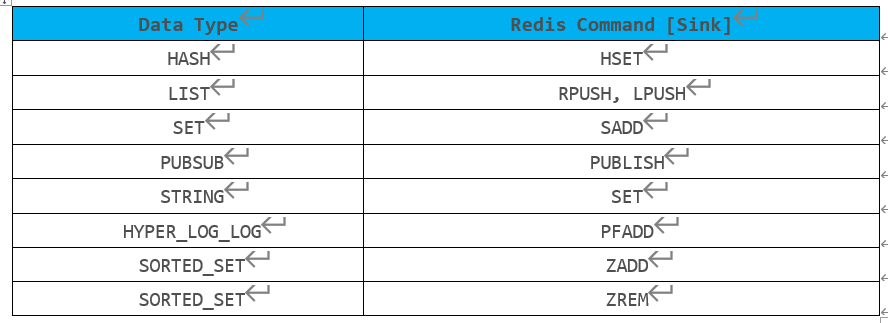

设置使用的redis 数据结构类型,和key 的名称,通过RedisCommand 设置数据结构类型
2.String getKeyFromData(T data):
设置value 中的键值对key的值
3.String getValueFromData(T data);
设置value 中的键值对value的值
⚫ 使用RedisCommand设置数据结构类型时和redis结构对应关系
⚫ 需求
将Flink集合中的数据通过自定义Sink保存到Redis
⚫ 代码实现
package cn.oldlu.connectors;
import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.tuple.Tuple;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.redis.RedisSink;
import org.apache.flink.streaming.connectors.redis.common.config.FlinkJedisPoolConfig;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisCommand;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisCommandDescription;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisMapper;
import org.apache.flink.util.Collector;
/**
* Author oldlu
* Desc
* 需求:
* 接收消息并做WordCount,
* 最后将结果保存到Redis
* 注意:存储到Redis的数据结构:使用hash也就是map
* key value
* WordCount (单词,数量)
*/
public class ConnectorsDemo_Redis {
public static void main(String[] args) throws Exception {
//1.env
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//2.Source
DataStream<String> linesDS = env.socketTextStream("node1", 9999);
//3.Transformation
//3.1切割并记为1
SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOneDS = linesDS.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {
@Override
public void flatMap(String value, Collector<Tuple2<String, Integer>> out) throws Exception {
String[] words = value.split(" ");
for (String word : words) {
out.collect(Tuple2.of(word, 1));
}
}
});
//3.2分组
KeyedStream<Tuple2<String, Integer>, Tuple> groupedDS = wordAndOneDS.keyBy(0);
//3.3聚合
SingleOutputStreamOperator<Tuple2<String, Integer>> result = groupedDS.sum(1);
//4.Sink
result.print();
// * 最后将结果保存到Redis
// * 注意:存储到Redis的数据结构:使用hash也就是map
// * key value
// * WordCount (单词,数量)
//-1.创建RedisSink之前需要创建RedisConfig
//连接单机版Redis
FlinkJedisPoolConfig conf = new FlinkJedisPoolConfig.Builder().setHost("127.0.0.1").build();
//连接集群版Redis
//HashSet<InetSocketAddress> nodes = new HashSet<>(Arrays.asList(new InetSocketAddress(InetAddress.getByName("node1"), 6379),new InetSocketAddress(InetAddress.getByName("node2"), 6379),new InetSocketAddress(InetAddress.getByName("node3"), 6379)));
//FlinkJedisClusterConfig conf2 = new FlinkJedisClusterConfig.Builder().setNodes(nodes).build();
//连接哨兵版Redis
//Set<String> sentinels = new HashSet<>(Arrays.asList("node1:26379", "node2:26379", "node3:26379"));
//FlinkJedisSentinelConfig conf3 = new FlinkJedisSentinelConfig.Builder().setMasterName("mymaster").setSentinels(sentinels).build();
//-3.创建并使用RedisSink
result.addSink(new RedisSink<Tuple2<String, Integer>>(conf, new RedisWordCountMapper()));
//5.execute
env.execute();
}
/**
* -2.定义一个Mapper用来指定存储到Redis中的数据结构
*/
public static class RedisWordCountMapper implements RedisMapper<Tuple2<String, Integer>> {
@Override
public RedisCommandDescription getCommandDescription() {
return new RedisCommandDescription(RedisCommand.HSET, "WordCount");
}
@Override
public String getKeyFromData(Tuple2<String, Integer> data) {
return data.f0;
}
@Override
public String getValueFromData(Tuple2<String, Integer> data) {
return data.f1.toString();
}
}
}
