Sentinel-dashboard监控数据持久化到InfluxDB 2.6

之前的有做过sentinel整合的工作，已经完成sentinel客户端集成到普通微服务、集成到gateway，以及sentinel控制台的规则数据持久化到nacos，当时的工作基本做的差不多了，但是还差一个监控数据的持久化没有做，这次是监控数据持久化到influxDB这一块补齐，涉及到源码的改造，经过测试已经基本实现了功能。

1、前置准备

需要安装InfluxDB，安装不多说，详情见Linux安装InfluxDB ，Windows下安装自行百度。
下载sentinel-dashboard的源码，前面的文章已经说了，这里就不再赘述，详细见 Sentinel-dashboard源码改造

2、依赖引入

这里自行选择合适的版本

 <dependency>
    <groupId>com.influxdb</groupId>
    <artifactId>influxdb-client-java</artifactId>
    <version>6.3.0</version>
</dependency>

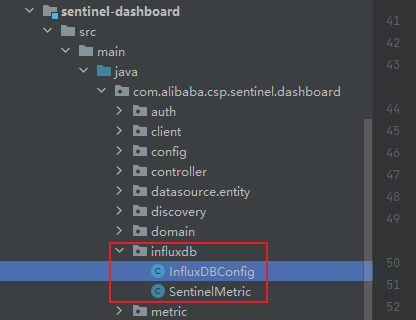

3、新建一个文件夹存放Influx相关代码

3.1、参考MetricEntity创建SentinelMetric

其实就是指定time为时间戳，然后app和resource为Tag，其他的字段都是Field，Field需要转换成数值类型存储，例如long、int、double类型，@Measurement用来指定表的名称。

注：网上其他的文章，将所有的字段都标记为Tag其实是不对的，因为tag就是表示数据的归属，这里就是app和resource，这块不太理解的可以参考时序数据库的数据结构

 import com.influxdb.annotations.Column;
import com.influxdb.annotations.Measurement;

import java.time.Instant;

/**
 * 参考com.alibaba.csp.sentinel.dashboard.datasource.entity.MetricEntity
 */
@Measurement(name = "sentinel_metric")
public class SentinelMetric {

    /**
     * 时间戳
     */
    @Column(name = "time", timestamp = true)
    private Instant time;

    @Column(name = "gmtCreate")
    private long gmtCreate;

    @Column(name = "gmtModified")
    private long gmtModified;

    @Column(name = "app", tag = true)
    private String app;

    /**
     * 监控信息的时间戳
     */
    @Column(name = "resource", tag = true)
    private String resource;

    @Column(name = "passQps")
    private long passQps;

    @Column(name = "successQps")
    private long successQps;

    @Column(name = "blockQps")
    private long blockQps;

    @Column(name = "exceptionQps")
    private long exceptionQps;

    /**
     * summary rt of all success exit qps.
     */
    @Column(name = "rt")
    private double rt;

    /**
     * 本次聚合的总条数
     */
    @Column(name = "count")
    private int count;

    @Column(name = "resourceCode")
    private int resourceCode;

    public Instant getTime() {
        return time;
    }

    public void setTime(Instant time) {
        this.time = time;
    }

    public long getGmtCreate() {
        return gmtCreate;
    }

    public void setGmtCreate(long gmtCreate) {
        this.gmtCreate = gmtCreate;
    }

    public long getGmtModified() {
        return gmtModified;
    }

    public void setGmtModified(long gmtModified) {
        this.gmtModified = gmtModified;
    }

    public String getApp() {
        return app;
    }

    public void setApp(String app) {
        this.app = app;
    }

    public String getResource() {
        return resource;
    }

    public void setResource(String resource) {
        this.resource = resource;
    }

    public long getPassQps() {
        return passQps;
    }

    public void setPassQps(long passQps) {
        this.passQps = passQps;
    }

    public long getSuccessQps() {
        return successQps;
    }

    public void setSuccessQps(long successQps) {
        this.successQps = successQps;
    }

    public long getBlockQps() {
        return blockQps;
    }

    public void setBlockQps(long blockQps) {
        this.blockQps = blockQps;
    }

    public long getExceptionQps() {
        return exceptionQps;
    }

    public void setExceptionQps(long exceptionQps) {
        this.exceptionQps = exceptionQps;
    }

    public double getRt() {
        return rt;
    }

    public void setRt(double rt) {
        this.rt = rt;
    }

    public int getCount() {
        return count;
    }

    public void setCount(int count) {
        this.count = count;
    }

    public int getResourceCode() {
        return resourceCode;
    }

    public void setResourceCode(int resourceCode) {
        this.resourceCode = resourceCode;
    }
}

3.2、Influx相关配置（Bean的注入）

为了防止每次调用Influx的API接口都去new 一个客户端，我们可以将其注入到Spring容器，初始化这些客户端时，需要用到一些参数，包含数据库的url、访问API接口时用到的Token（Token的申请见InfluxDB基本使用的 1.4 API Tokens章节），还需要用到账号注册时填写的组织，这些参数都可以放到配置文件中，代码如下：

 import com.influxdb.client.InfluxDBClient;
import com.influxdb.client.InfluxDBClientFactory;
import com.influxdb.client.QueryApi;
import com.influxdb.client.WriteApiBlocking;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class InfluxDBConfig {

    @Value("${influx.token}")
    private String token;

    @Value("${influx.url}")
    private String url;

    @Value("${influx.org:InfluxData}")
    private String org;

    @Bean
    public InfluxDBClient influxDBClient() {
        return InfluxDBClientFactory.create(url, token.toCharArray(), org);
    }

    @Bean
    public QueryApi queryApi() {
        return influxDBClient().getQueryApi();
    }

    @Bean
    public WriteApiBlocking writeApiBlocking() {
        return influxDBClient().getWriteApiBlocking();
    }
}

3.3、配置文件

这里是在application.properties中增加如下参数，根据实际情况填写。

 influx.url=http://localhost:8086
influx.token=sMiW3c4w0wBZO8WwZK_MrseZUYht9Fmm7HOUQDZF_kj6-Icwg0_6tEt_iyBSdTFAvRywHlOsuDMScypi93ejPQ==
influx.bucket=sentinel_db
influx.org=InfluxData

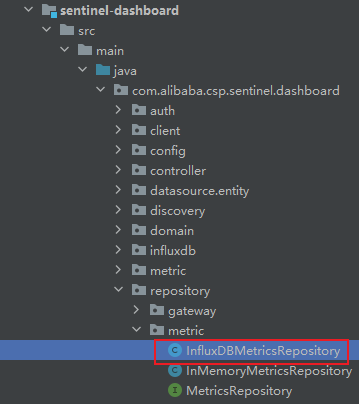

4、实现MetricsRepository<MetricEntity>接口

这里可以参考sentinel原有的实现，其原有的实现是将数据的存取放到内存，具体实现见InMemoryMetricsRepository，这里我们命名为InfluxDBMetricsRepository，存放位置如下图：

主要就是实现其保存监控数据到InfluxDB和从InfluxDB查询数据的逻辑，代码如下：

 import com.alibaba.csp.sentinel.dashboard.datasource.entity.MetricEntity;
import com.alibaba.csp.sentinel.dashboard.influxdb.SentinelMetric;
import com.alibaba.csp.sentinel.util.StringUtil;
import com.influxdb.annotations.Column;
import com.influxdb.client.QueryApi;
import com.influxdb.client.WriteApiBlocking;
import com.influxdb.client.domain.WritePrecision;
import com.influxdb.exceptions.InfluxException;
import com.influxdb.query.FluxRecord;
import com.influxdb.query.FluxTable;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import javax.annotation.Nonnull;
import javax.annotation.Nullable;
import java.lang.reflect.Field;
import java.math.BigDecimal;
import java.time.Instant;
import java.util.*;
import java.util.stream.Collectors;

@Component
public class InfluxDBMetricsRepository implements MetricsRepository<MetricEntity> {

    @Autowired
    private QueryApi queryApi;

    @Autowired
    private WriteApiBlocking writeApiBlocking;

    /**
     * InfluxDB界面上新建一个bucket
     */
    @Value("${influx.bucket:sentinel_db}")
    private String bucket;

    /**
     * 首次登录Influx界面时填写的组织
     */
    @Value("${influx.org:InfluxData}")
    private String org;

    /**
     * SentinelMetric上的@Measurement(name = "sentinel_metric")注解的name
     */
    @Value("${influx.measurement:sentinel_metric}")
    private String measurement;

    private static final String PASS_QPS = "passQps";

    private static final String BLOCK_QPS = "blockQps";

    private static final String RESOURCE = "resource";

    @Override
    public void save(MetricEntity metric) {
        writeApiBlocking.writeMeasurement(bucket, org, WritePrecision.NS, transferToSentinelMetric(metric));
    }

    @Override
    public void saveAll(Iterable<MetricEntity> metrics) {
        Iterator<MetricEntity> iterator = metrics.iterator();
        List<SentinelMetric> list = new ArrayList<>();
        while (iterator.hasNext()) {
            list.add(transferToSentinelMetric(iterator.next()));
        }
        if (!CollectionUtils.isEmpty(list)) {
            writeApiBlocking.writeMeasurements(bucket, org, WritePrecision.NS, list);
        }
    }

    @Override
    public List<MetricEntity> queryByAppAndResourceBetween(String app, String resource, long startTime, long endTime) {
        List<MetricEntity> results = new ArrayList<>();
        if (StringUtil.isBlank(app)) {
            return results;
        }

        if (StringUtil.isBlank(resource)) {
            return results;
        }

        long nowTime = System.currentTimeMillis();
        String start = (startTime - nowTime) / 60000 + "m";
        String stop = (endTime - nowTime) / 60000 + "m";

        String query = String.format("from(bucket: \"%s\")\n" +
                        "  |> range(start: %s , stop: %s)\n" +
                        "  |> filter(fn: (r) => (r[\"_measurement\"] == \"%s\"" +
                        " and r[\"app\"] ==\"%s\")" + "and r[\"resource\"] == \"%s\")",
                bucket, start, stop, measurement, app, resource);
        final List<FluxTable> tableList = queryApi.query(query, org);

        //获取总的数据条数
        List<FluxRecord> records = tableList.get(0).getRecords();
        int size = records.size();

        List<SentinelMetric> sentinelMetricList = new ArrayList<>();
        Field[] fields = SentinelMetric.class.getDeclaredFields();
        Map<String, Field> fieldMap = new HashMap<>(fields.length);
        for (Field field : fields) {
            Column anno = field.getAnnotation(Column.class);
            if (anno != null && !anno.name().isEmpty()) {
                fieldMap.put(anno.name(), field);
            }
        }

        for (int i = 0; i < size; i++) {
            SentinelMetric sentinelMetric = new SentinelMetric();
            sentinelMetric.setApp(app);
            sentinelMetric.setResource(resource);
            for (FluxTable table : tableList) {
                FluxRecord record = table.getRecords().get(i);
                sentinelMetric.setTime((Instant) record.getValueByKey("_time"));
                String fieldName = record.getField();
                if (fieldMap.containsKey(fieldName)) {
                    setFieldValue(sentinelMetric, fieldMap.get(fieldName), record.getValue());
                }
            }
            sentinelMetricList.add(sentinelMetric);
        }

        for (SentinelMetric metric : sentinelMetricList) {
            results.add(transferToMetricEntity(metric));
        }

        return results;
    }

    @Override
    public List<String> listResourcesOfApp(String app) {
        List<String> results = new ArrayList<>();
        if (StringUtil.isBlank(app)) {
            return results;
        }

        //只查询passQps和blockQps数据，因为下面的排序逻辑只用到了这两个参数
        String query = String.format("from(bucket: \"%s\")\n" +
                        "  |> range(start: %s)\n" +
                        "  |> filter(fn: (r) => r[\"_measurement\"] == \"%s\"" + " and r[\"app\"] ==\"%s\")\n" +
                        "  |> filter(fn: (r) => r[\"_field\"] == \"passQps\" or r[\"_field\"] == \"blockQps\")",
                bucket, "-1m", measurement, app);
        List<FluxTable> tableList = queryApi.query(query, org);

        if (CollectionUtils.isEmpty(tableList)) {
            return results;
        }

        //返回resource名称列表，按block_qps降序排列，block_qps相同时，按pass_qps降序排列
        Map<String, MetricEntity> resourceCount = new HashMap<>(32);
        for (FluxTable table : tableList) {
            final List<FluxRecord> records = table.getRecords();
            for (FluxRecord record : records) {
                String fieldName = record.getField();
                if (BLOCK_QPS.equals(fieldName) || PASS_QPS.equals(record.getField())) {
                    String resource = (String) record.getValueByKey(RESOURCE);
                    final Object o = record.getValue();
                    if (o == null) {
                        continue;
                    }
                    Long value = (Long) o;
                    if (resourceCount.containsKey(resource)) {
                        final MetricEntity metricEntity = resourceCount.get(resource);
                        if (BLOCK_QPS.equals(fieldName)) {
                            metricEntity.addBlockQps(value);
                        } else {
                            metricEntity.addPassQps(value);
                        }
                    } else {
                        final MetricEntity metricEntity = new MetricEntity();
                        metricEntity.setPassQps(0L);
                        metricEntity.setBlockQps(0L);
                        if (BLOCK_QPS.equals(fieldName)) {
                            metricEntity.setBlockQps(value);
                        } else {
                            metricEntity.setPassQps(value);
                        }
                        resourceCount.put(resource, metricEntity);
                    }
                }
            }
        }

        // 排序返回
        return resourceCount.entrySet()
                .stream()
                .sorted((o1, o2) -> {
                    MetricEntity e1 = o1.getValue();
                    MetricEntity e2 = o2.getValue();
                    int t = e2.getBlockQps().compareTo(e1.getBlockQps());
                    if (t != 0) {
                        return t;
                    }
                    return e2.getPassQps().compareTo(e1.getPassQps());
                })
                .map(Map.Entry::getKey)
                .collect(Collectors.toList());
    }

    private SentinelMetric transferToSentinelMetric(MetricEntity metric) {
        SentinelMetric sentinelMetric = new SentinelMetric();
        BeanUtils.copyProperties(metric, sentinelMetric);
        //增加8小时
        sentinelMetric.setTime(metric.getTimestamp().toInstant().plusMillis(TimeUnit.HOURS.toMillis(8)));
        sentinelMetric.setGmtCreate(metric.getGmtCreate().getTime());
        sentinelMetric.setGmtModified(metric.getGmtModified().getTime());
        return sentinelMetric;
    }

    private MetricEntity transferToMetricEntity(SentinelMetric sentinelMetric) {
        MetricEntity metric = new MetricEntity();
        BeanUtils.copyProperties(sentinelMetric, metric);
        metric.setTimestamp(Date.from(sentinelMetric.getTime()));
        metric.setGmtCreate(new Date(sentinelMetric.getGmtCreate()));
        metric.setGmtModified(new Date(sentinelMetric.getGmtModified()));
        return metric;
    }

    private void setFieldValue(@Nonnull final Object object,
                               @Nullable final Field field,
                               @Nullable final Object value) {

        if (field == null || value == null) {
            return;
        }
        String msg =
                "Class '%s' field '%s' was defined with a different field type and caused a ClassCastException. "
                        + "The correct type is '%s' (current field value: '%s').";

        try {
            if (!field.isAccessible()) {
                field.setAccessible(true);
            }
            Class<?> fieldType = field.getType();

            //the same type
            if (fieldType.equals(value.getClass())) {
                field.set(object, value);
                return;
            }

            //convert primitives
            if (double.class.isAssignableFrom(fieldType)) {
                field.setDouble(object, toDoubleValue(value));
                return;
            }
            if (long.class.isAssignableFrom(fieldType)) {
                field.setLong(object, toLongValue(value));
                return;
            }
            if (int.class.isAssignableFrom(fieldType)) {
                field.setInt(object, toIntValue(value));
                return;
            }
            if (boolean.class.isAssignableFrom(fieldType)) {
                field.setBoolean(object, Boolean.valueOf(String.valueOf(value)));
                return;
            }
            if (BigDecimal.class.isAssignableFrom(fieldType)) {
                field.set(object, toBigDecimalValue(value));
                return;
            }

            //enum
            if (fieldType.isEnum()) {
                //noinspection unchecked, rawtypes
                field.set(object, Enum.valueOf((Class<Enum>) fieldType, String.valueOf(value)));
                return;
            }

            field.set(object, value);

        } catch (ClassCastException | IllegalAccessException e) {

            throw new InfluxException(String.format(msg, object.getClass().getName(), field.getName(),
                    value.getClass().getName(), value));
        }
    }

    private double toDoubleValue(final Object value) {

        if (double.class.isAssignableFrom(value.getClass()) || Double.class.isAssignableFrom(value.getClass())) {
            return (double) value;
        }

        return (Double) value;
    }

    private long toLongValue(final Object value) {

        if (long.class.isAssignableFrom(value.getClass()) || Long.class.isAssignableFrom(value.getClass())) {
            return (long) value;
        }

        return ((Double) value).longValue();
    }

    private int toIntValue(final Object value) {

        if (int.class.isAssignableFrom(value.getClass()) || Integer.class.isAssignableFrom(value.getClass())) {
            return (int) value;
        }
        if (Long.class.isAssignableFrom(value.getClass())) {
            return ((Long) value).intValue();
        }

        return ((Double) value).intValue();
    }

    private BigDecimal toBigDecimalValue(final Object value) {
        if (String.class.isAssignableFrom(value.getClass())) {
            return new BigDecimal((String) value);
        }

        if (double.class.isAssignableFrom(value.getClass()) || Double.class.isAssignableFrom(value.getClass())) {
            return BigDecimal.valueOf((double) value);
        }

        if (int.class.isAssignableFrom(value.getClass()) || Integer.class.isAssignableFrom(value.getClass())) {
            return BigDecimal.valueOf((int) value);
        }

        if (long.class.isAssignableFrom(value.getClass()) || Long.class.isAssignableFrom(value.getClass())) {
            return BigDecimal.valueOf((long) value);
        }

        String message = String.format("Cannot cast %s [%s] to %s.",
                value.getClass().getName(), value, BigDecimal.class);

        throw new ClassCastException(message);
    }
}

5、修改引用了MetricsRepository的地方

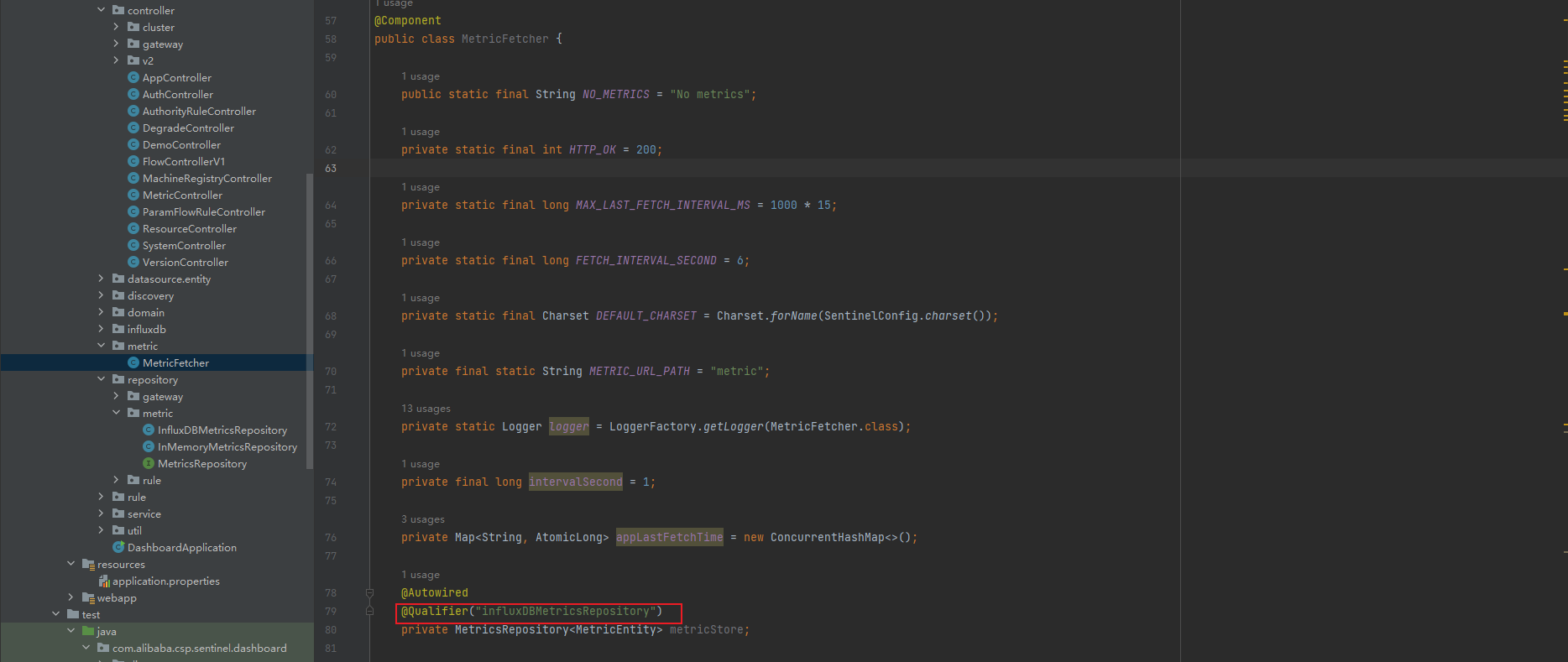

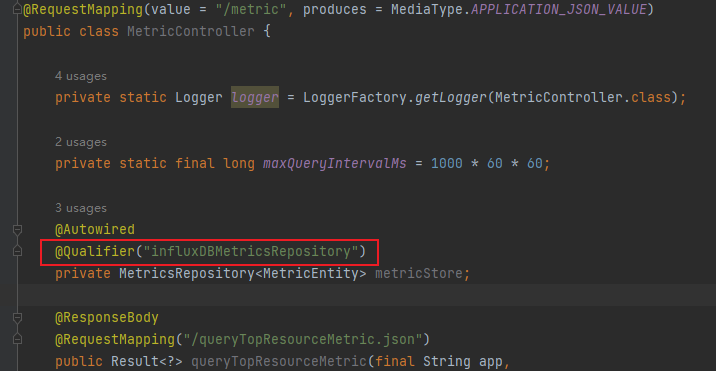

涉及到引用MetricsRepository的类有两个，分别是MetricFetcher和MetricController，将其采用@Qualifier("influxDBMetricsRepository")的方式，指定注入的Bean

6、存在的问题（补充：已经在上述代码中修改）

存储在InfluxDB的数据时区存在问题，和实际的差了8个小时，这里可以在存数据时处理，也可以将数据查询出来后处理，代码里面没有处理，需要自行修改。
SentinelMetric中有一个int参数count，从InfluxDB取出的值始终会被识别成Long型，这里是在代码里面做了特殊处理，在InfluxDBMetricsRepository的toIntValue方法中，增加了如下的判断。

 if (Long.class.isAssignableFrom(value.getClass())) {
	return ((Long) value).intValue();
}

posted @ 2023-01-03 17:57 浪迹天涯的派大星阅读(486) 评论(0) 编辑收藏举报

刷新页面返回顶部

登录后才能查看或发表评论，立即登录或者逛逛博客园首页

相关博文：

· Springboot整合Sentinel实现流控

· InfluxDB介绍（一）

· sentinel监控数据持久化&本地测试

· Sentinel 限流降级，Sentinel持久化

· Sentinel搭建与使用

阅读排行：
· 无需6万激活码！GitHub神秘组织3小时极速复刻Manus，手把手教你使用OpenManus搭建本
· Manus爆火，是硬核还是营销？
· 终于写完轮子一部分：tcp代理了，记录一下
· 别再用vector＜bool＞了！Google高级工程师：这可能是STL最大的设计失误
· 单元测试从入门到精通

公告

昵称：浪迹天涯的派大星
园龄： 2年11个月
粉丝： 3
关注： 0

+加关注

2025年3月

日

一

二

三

四

五

六

随笔分类

随笔档案

阅读排行榜

评论排行榜

1. Kafka相关（一）(2)

zhaodalei
