AWS CLI - Access EKS cluster



zzh@ZZHPC:~$ aws eks update-kubeconfig --name zimple-bank --region ap-southeast-2

An error occurred (AccessDeniedException) when calling the DescribeCluster operation: User: arn:aws:iam::793698357301:user/github-ci is not authorized to perform: eks:DescribeCluster on resource: arn:aws:eks:ap-southeast-2:793698357301:cluster/zimple-bank

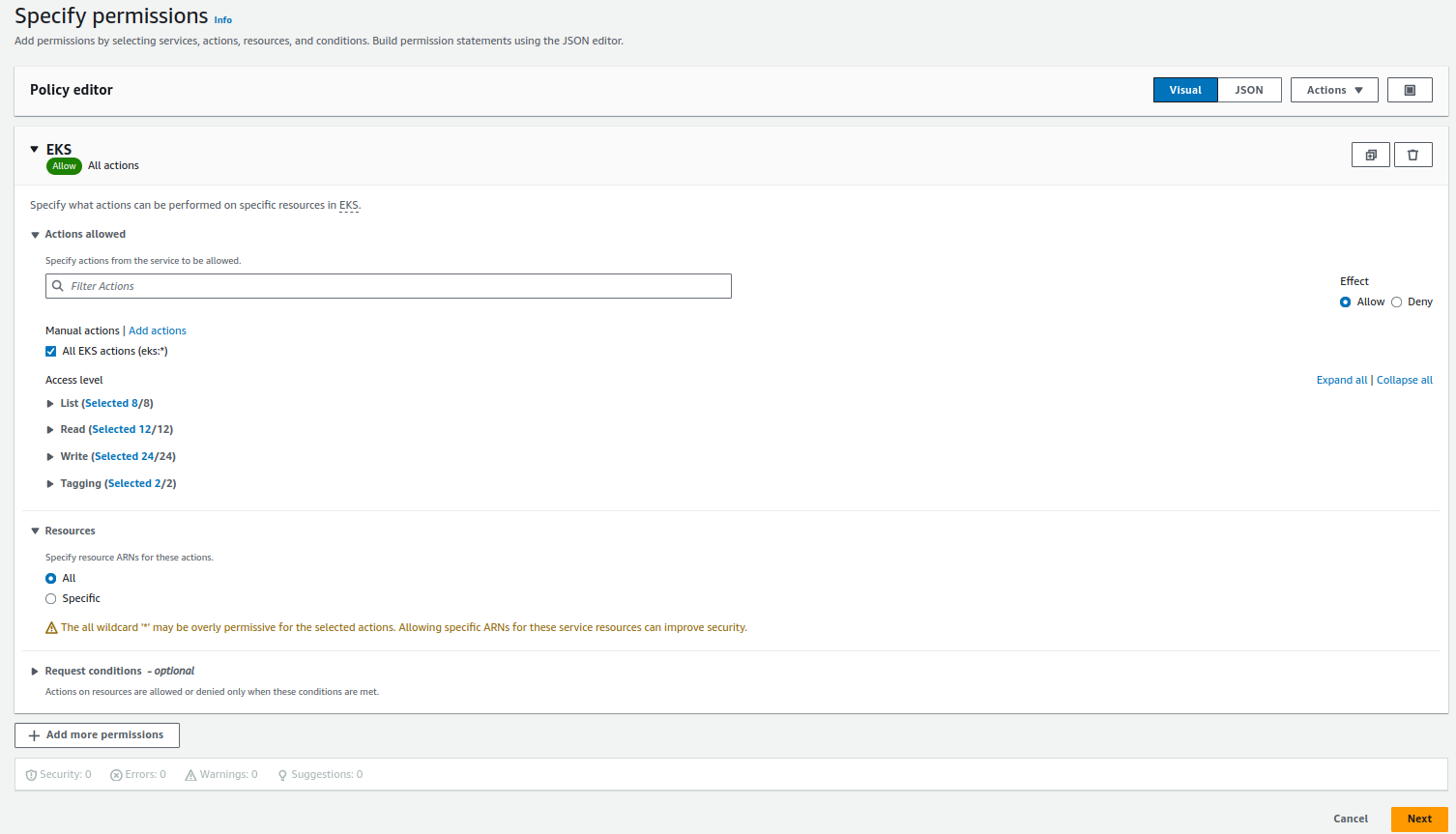

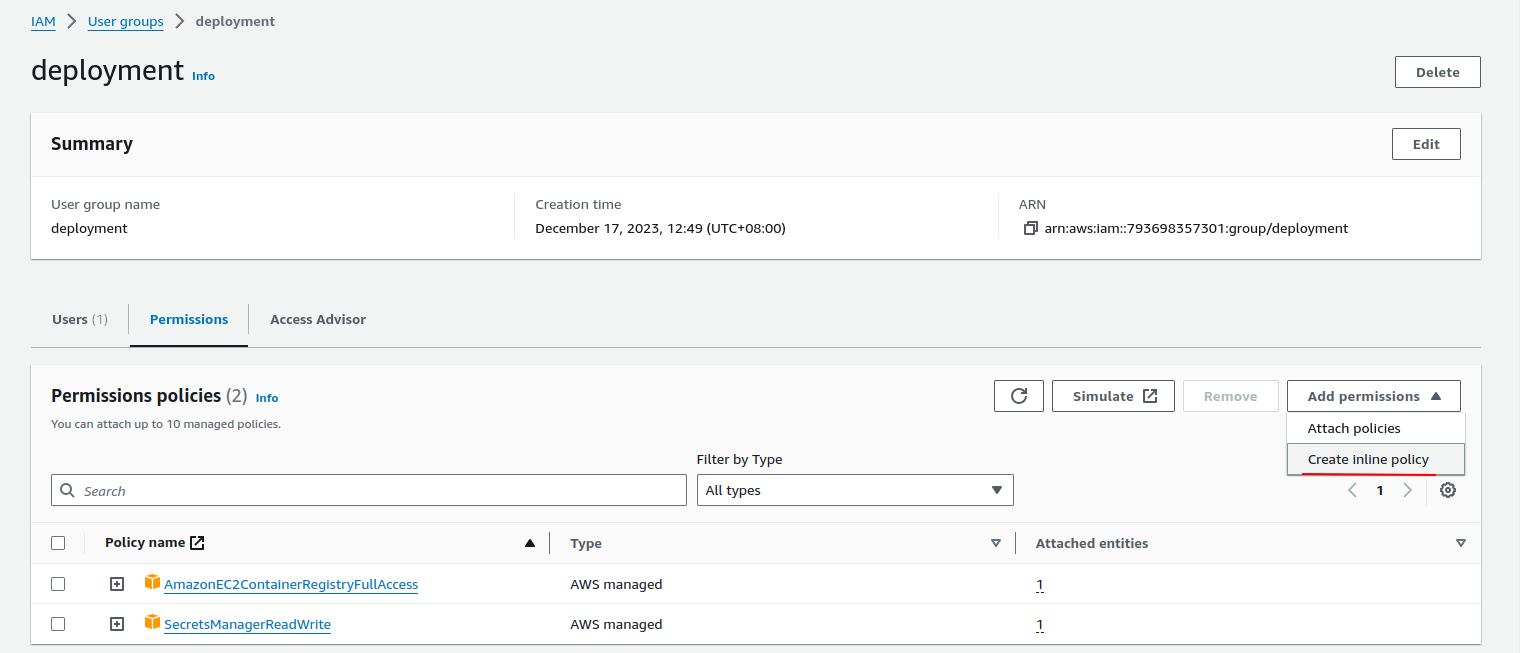

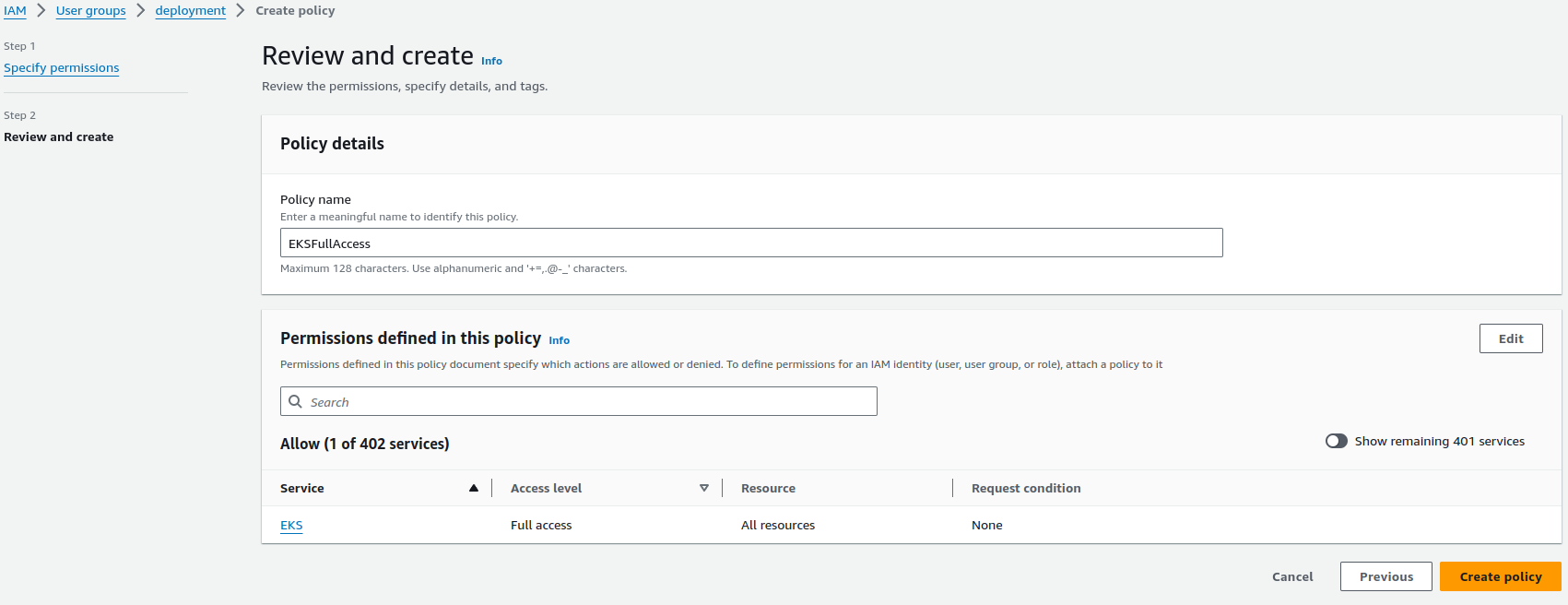

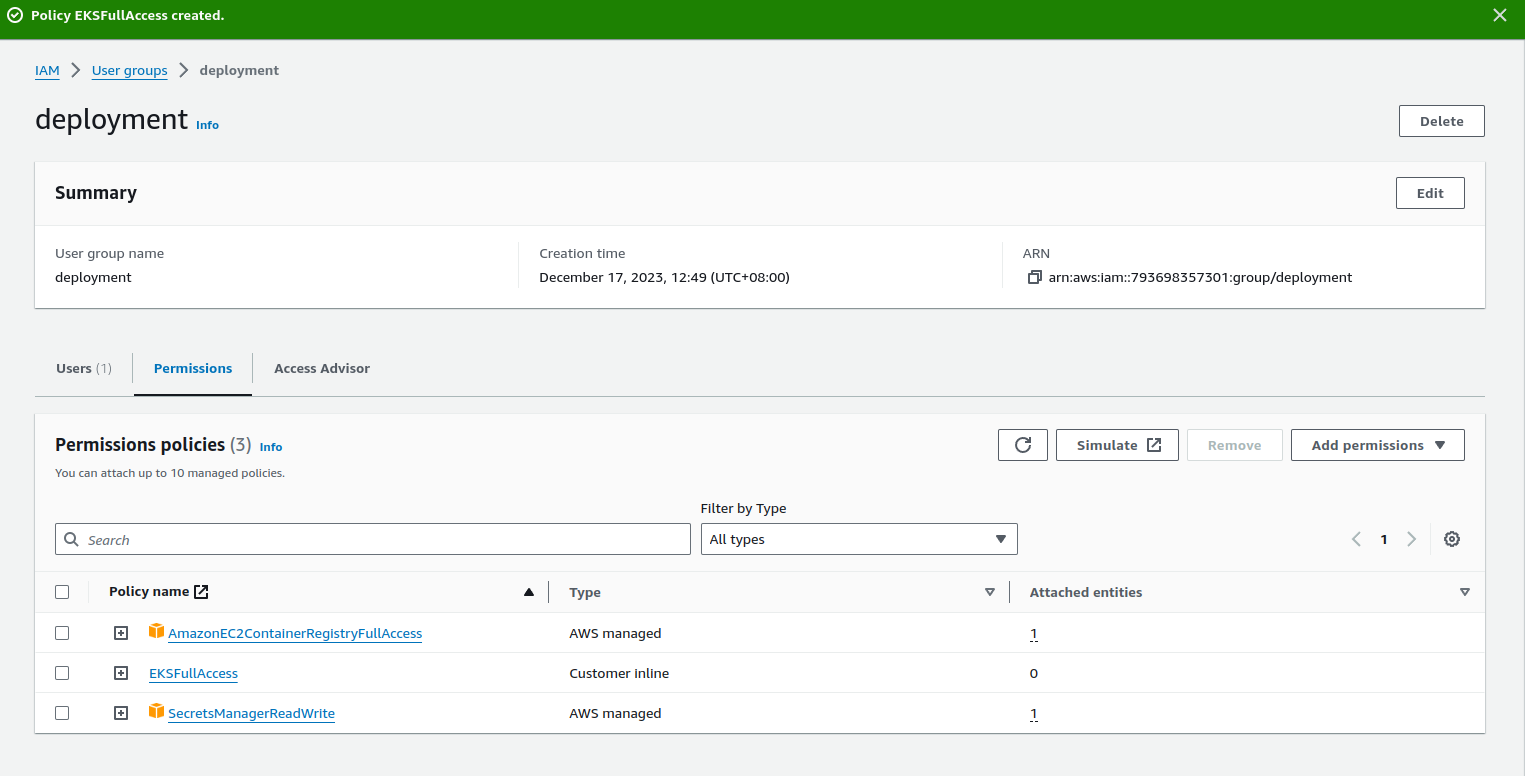

To fix this issue, we need to grant necessary EKS permissions to the user group which contains user github-ci:









zzh@ZZHPC:~$ aws eks update-kubeconfig --name zimple-bank --region ap-southeast-2
Added new context arn:aws:eks:ap-southeast-2:793698357301:cluster/zimple-bank to /home/zzh/.kube/config



zzh@ZZHPC:~$ cat .kube/config

Can find context in the output.



zzh@ZZHPC:~$ kubectl config use-context arn:aws:eks:ap-southeast-2:793698357301:cluster/zimple-bank
Switched to context "arn:aws:eks:ap-southeast-2:793698357301:cluster/zimple-bank".



zzh@ZZHPC:~$ kubectl cluster-info
......
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
error: You must be logged in to the server (the server has asked for the client to provide credentials)

For the reason and resolution, see https://repost.aws/knowledge-center/amazon-eks-cluster-access.

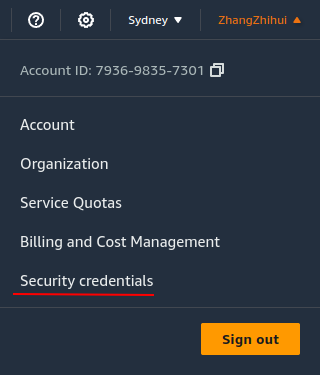

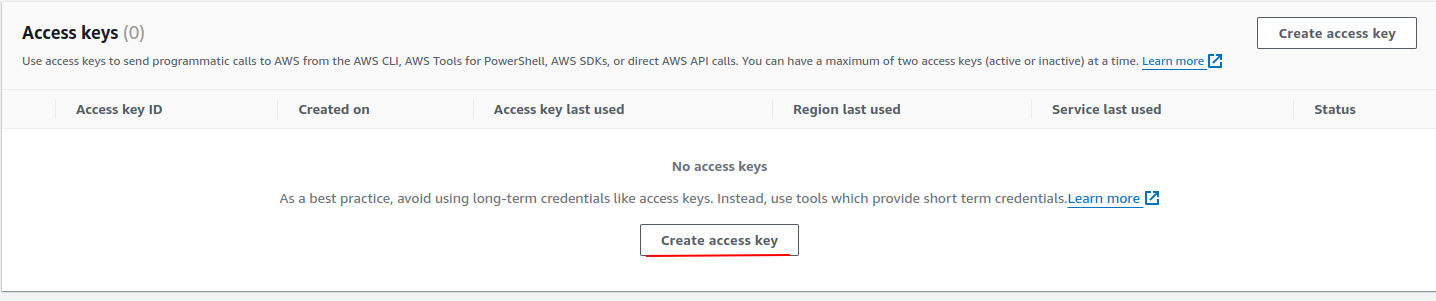

Add root user's access key to file ~/.aws/credentials:

[default]
aws_access_key_id = xxxxxxxxxx
aws_secret_access_key = xxxxxxxxxx

[github]
aws_access_key_id = xxxxxxxxxx
aws_secret_access_key = xxxxxxxxxx

To use the github credential, run: export AWS_PROFILE=github
To use the default credential, run export AWS_PROFILE=default



zzh@ZZHPC:~$ kubectl cluster-info
Kubernetes control plane is running at https://641E6CB44A7867FA1A1DCFD5D0E6730B.yl4.ap-southeast-2.eks.amazonaws.com
CoreDNS is running at https://641E6CB44A7867FA1A1DCFD5D0E6730B.yl4.ap-southeast-2.eks.amazonaws.com/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy



How to know which user your are using:

zzh@ZZHPC:~$ aws sts get-caller-identity
{
    "UserId": "xxxxxx",
    "Account": "000000",
    "Arn": "arn:aws:iam::000000:user/github-ci"
}
zzh@ZZHPC:~$ export AWS_PROFILE=rootuser
zzh@ZZHPC:~$ aws sts get-caller-identity
{
    "UserId": "xxxxxx",
    "Account": "000000",
    "Arn": "arn:aws:iam::000000:root"
}



How to allow user github-ci to access the EKS cluster:

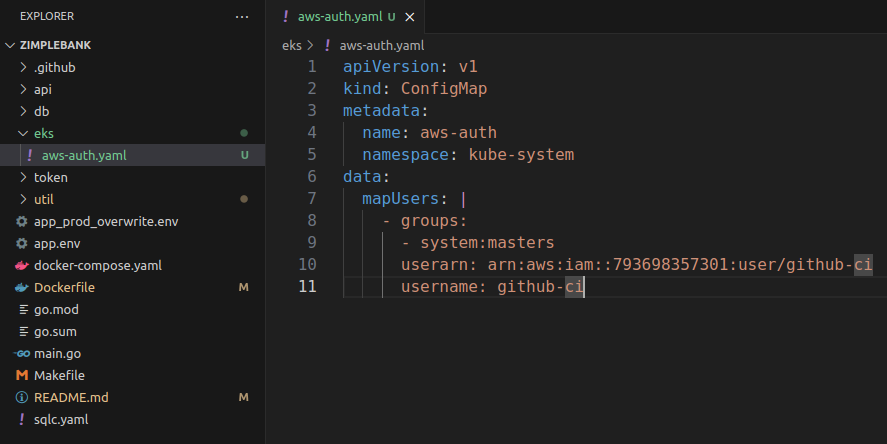

Create a file named aws-auth.yaml:



zzh@ZZHPC:/zdata/Github/zimplebank$ kubectl apply -f eks/aws-auth.yaml
Warning: resource configmaps/aws-auth is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
configmap/aws-auth configured



zzh@ZZHPC:/zdata/Github/zimplebank$ export AWS_PROFILE=github
zzh@ZZHPC:/zdata/Github/zimplebank$ kubectl cluster-info
Kubernetes control plane is running at https://641E6CB44A7867FA1A1DCFD5D0E6730B.yl4.ap-southeast-2.eks.amazonaws.com
CoreDNS is running at https://641E6CB44A7867FA1A1DCFD5D0E6730B.yl4.ap-southeast-2.eks.amazonaws.com/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
