Docker Swarm Deploy Selenium grid分布式执行自动化UI测试

假设有主机1,2,3三台主机：

为Dokcer创建一个网络

// xxx 代表网络名称
docker network create --driver=overlay --attachable XXXXX

$ docker network create --driver=overlay --attachable selenium

创建一个集群管理节点

docker swarm init --advertise-addr <manager-ip>
// 或者直接使用 docker swarm init

$ docker swarm init

Swarm initialized: current node (deyp099wnn94lgauxp9ljil83) is now a manager.
To add a worker to this swarm, run the following command:
    docker swarm join --token  \
    SWMTKN-1-5rm2sib935txv5k13j6leaqsfuuttalktt7jv4s55249izjf54-8ia31tagc4sbehqeqiqst4jfz \
    172.30.0.170:2377
To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.

其他两台主机执行加入集群中

$ docker swarm join --token \
  SWMTKN-1-5rm2sib935txv5k13j6leaqsfuuttalktt7jv4s55249izjf54-8ia31tagc4sbehqeqiqst4jfz \
  172.30.0.170:2377

This node joined a swarm as a worker.

执行完毕，可在主node节点执行docker info查看详情

$ docker info
...
Swarm: active
 NodeID: deyp099wnn94lgauxp9ljil83
 Is Manager: true
 ClusterID: ujst6yr4orqiyago1u277pppp
 Managers: 1
 Nodes: 3
...

如果一切正常，您将在输出中看到3，因为manager也认为是其中一个节点

Docker 拉取镜像

https://hub.docker.com/u/selenium/ 查看镜像是否存在

$ docker pull selenium/node-firefox-debug
$ docker pull selenium/node-chrome-debug
$ docker pull selenium/node-opera-debug

创建一个yaml文件（以下使用了单个节点进行操作）

version: '3'
networks:
  default:
    external:
        name: selenium
services:
  hub:
    image: selenium/hub
    ports:
        - 14444:4444
    deploy:
     mode: global
     placement:
       constraints:
       # manager 带表创建到 manange节点 也可时候用work节点
         - node.role == manager
    environment:
      GRID_NEW_SESSION_WAIT_TIMEOUT: 60000
    networks:
     - default
  firefoxdebug:
    image: selenium/node-firefox-debug
    depends_on:
      - hub
    environment:
       HUB_PORT_4444_TCP_ADDR: hub
       HUB_PORT_4444_TCP_PORT: 4444
       NODE_MAX_SESSION: 2
       NODE_MAX_INSTANCES: 2
    entrypoint: bash -c 'SE_OPTS="-host $$HOSTNAME -port 5556" /opt/bin/entry_point.sh'
    ports:
      - 5556:5555
    deploy:
      replicas: 1
    networks:
      - default
  chromedebug:
    image: selenium/node-chrome-debug
    depends_on:
      - hub
    environment:
       HUB_PORT_4444_TCP_ADDR: hub
       HUB_PORT_4444_TCP_PORT: 4444
       NODE_MAX_SESSION: 2
       NODE_MAX_INSTANCES: 2
    entrypoint: bash -c 'SE_OPTS="-host $$HOSTNAME -port 5557" /opt/bin/entry_point.sh'
    ports:
      - 5557:5556
    deploy:
      replicas: 1
    networks:
      - default
  operadebug:
    image: selenium/node-opera-debug
    depends_on:
      - hub
    environment:
       HUB_PORT_4444_TCP_ADDR: hub
       HUB_PORT_4444_TCP_PORT: 4444
       NODE_MAX_SESSION: 2
       NODE_MAX_INSTANCES: 2
    entrypoint: bash -c 'SE_OPTS="-host $$HOSTNAME -port 6001" /opt/bin/entry_point.sh'
    ports:
      - 6001:6000
    deploy:
      replicas: 1
    networks:
      - default

集群部署

$ docker stack deploy -c selenium.yaml s
# $ docker stack deploy --compose-file selenium.yaml s
Creating service s_firefoxdebug
Creating service s_chromedebug
Creating service s_hub

查看部署的镜像

$ docker service ls
ID             NAME             MODE         REPLICAS   IMAGE                                      PORTS
k7fa5af392x1   s_chromedebug    replicated   1/1        selenium/node-chrome-debug:latest          *:5557->5900/tcp
vd5e6mx1p5zt   s_firefoxdebug   replicated   1/1        selenium/node-firefox-debug:latest         *:5556->5900/tcp
oxgdwo222bev   s_hub            global       1/1        selenium/hub:latest                        *:14444->4444/tcp
5ijmybzff738   s_operadebug     replicated   1/1        selenium/node-opera-debug:latest           *:6001->5900/tcp

$ docker stack ps s
ID             NAME                              IMAGE                                      NODE                      DESIRED STATE   CURRENT STATE           ERROR     PORTS
mfr3aqrejpt3   s_chromedebug.1                   selenium/node-chrome-debug:latest          izm5eczfpx31lofdqk3tnzz   Running         Running 8 minutes ago
ug88h4fy3acy   s_firefoxdebug.1                  selenium/node-firefox-debug:latest         izm5eczfpx31lofdqk3tnzz   Running         Running 8 minutes ago
u8psiaf41n8r   s_hub.0g1n1qm6yxmbbe1srpho90t54   selenium/hub:latest                        izm5eczfpx31lofdqk3tnzz   Running         Running 8 minutes ago
e8kwk35kaxum   s_operadebug.1                    selenium/node-opera-debug:latest           izm5eczfpx31lofdqk3tnzz   Running         Running 8 minutes ago

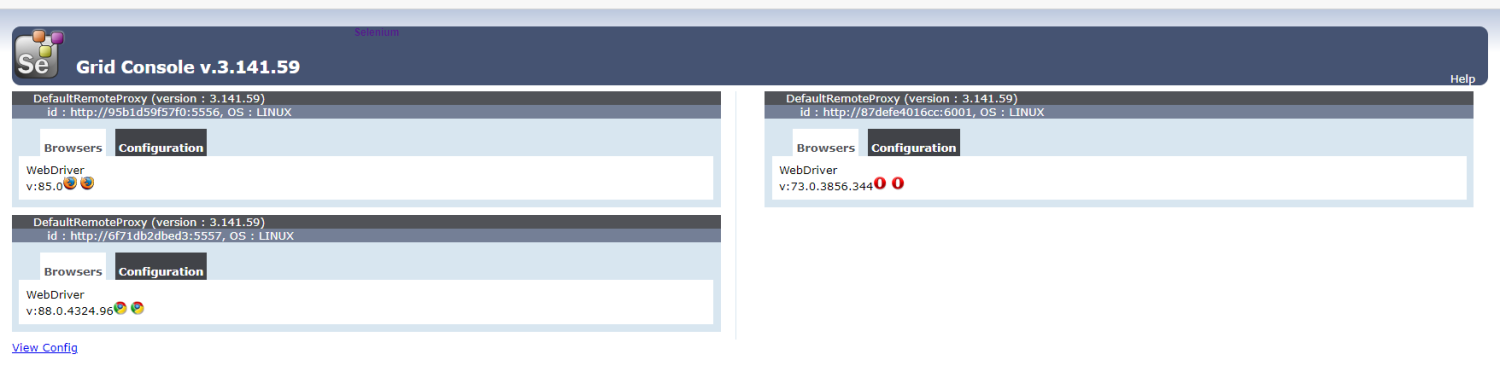

访问grid

http://127.0.0.1:14444/grid/console

删除

$ docker stack rm s
# 执行命令后节点全部被卸载，可重新使用deploy进行创建
Removing service s_chromedebug
Removing service s_firefoxdebug
Removing service s_hub
Removing service s_operadebug

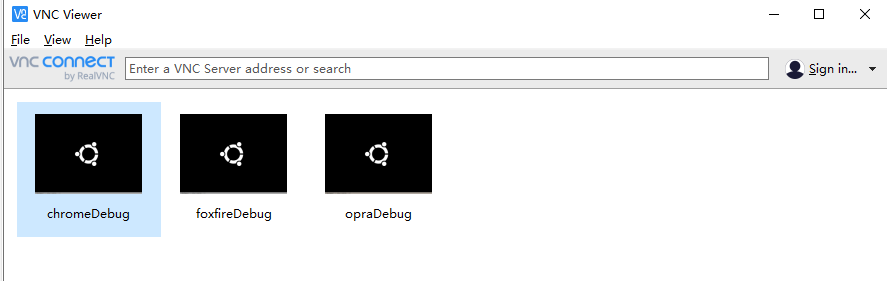

VNC远程连接查看执行过程

📎VNC-Viewer-6.20.529-Windows.rar

安装完毕后，可通过ip+对外映射的端口号访问：

如：

192.168.1.1:5556

192.168.1.1:5557

192.168.1.1:5558

如下：连接会提示需要密码，默认密码：secret

伸缩节点可使用scale

docker service scale s_chromedebug=2
selenium_chromedebug scaled to 2
overall progress: 2 out of 2 tasks
1/2: running   [==================================================>]
2/2: running   [==================================================>]
verify: Service converged

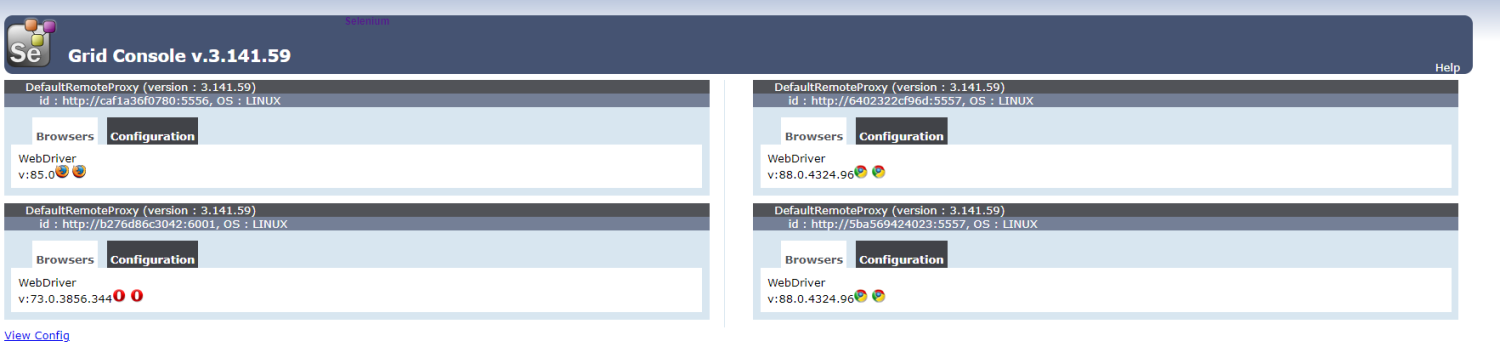

效果如下：

Selenium WebDriver实例化方法

        URL hubUrl = new URL("http://127.0.0.1:14444/wd/hub");\
        ChromeOptions chromeOptions = new ChromeOptions();
        chromeOptions.setPageLoadStrategy(PageLoadStrategy.EAGER);
        chromeOptions.setAcceptInsecureCerts(true);
        chromeOptions.setCapability("platform", Platform.LINUX);
        WebDriver driver = new RemoteWebDriver(hubUrl, chromeOptions);
