CefSharp之C#与JS互相调用

看了好些偏这类文章，但很多都是远古世界的代码，已经跑不通了，写个随笔，帮后面的人跳坑。

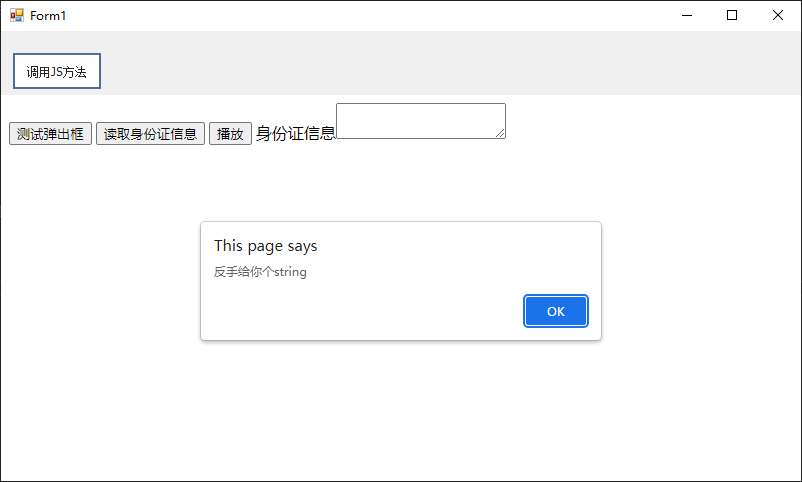

先上效果，界面丑不要在意这些细节

示例：简单粗暴，直接三二一上代码

一、HTML代码

<!DOCTYPE html>
<html style="overflow: hidden;">
<head>
    <title></title>
    <link type="text/css" href="../Content/css/framework-font.css" rel="stylesheet">
    <!-- jQuery相关引用 -->
    <script type="text/javascript" src="https://cdn.staticfile.org/jquery/3.4.0/jquery.min.js"></script>
    <script type="text/javascript" src="https://cdn.staticfile.org/jquery-cookie/1.4.1/jquery.cookie.min.js"></script>
</head>
<body >
    <div>
        <button onclick="test1()">测试弹出框</button>
        <button onclick="test2()">读取身份证信息</button>
        <button id="btn_play">播放</button>
        身份证信息<textarea id="idcardmsg"></textarea>
    </div>
<script>
    function test1() {
        bound.showAlertMsg("我是来自HTML的消息");
    }

    function test2() {
        var result = bound.readIdCard();
        $("#idcardmsg").val(result);
    }

    function GetCef() {
        //控制台打印数据，验证一下
        console.log(bound.getSrc());
        return bound.getSrc();
    }

    $(function () {
        $("#btn_play").click(function () {
            var txt = GetCef();
            console.log("button.play---" + txt);
            alert(txt);
        });
    });

</script>
</body>
</html>

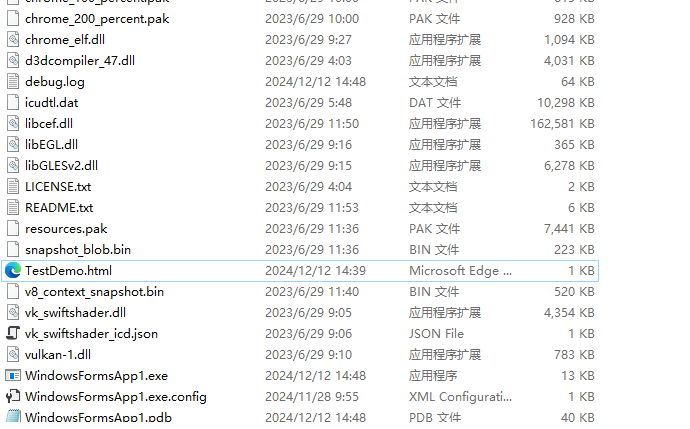

本地测试HTML文件的可以放在程序根目录下

String page = string.Format(@"{0}\TestDemo.html", Application.StartupPath);方便测试

二、C# 的Form代码

 1 using CefSharp;
 2 using CefSharp.WinForms;
 3 using System;
 4 using System.Collections.Generic;
 5 using System.ComponentModel;
 6 using System.Data;
 7 using System.Drawing;
 8 using System.IO;
 9 using System.Linq;
10 using System.Text;
11 using System.Threading.Tasks;
12 using System.Windows.Forms;
13
14 namespace WindowsFormsApp1
15 {
16     public partial class Form1 : Form
17     {
18         19
20         public Form1()
21         {
22             InitializeComponent();
23             InitializeChromium();
24         }
25
26         private void Form1_Load(object sender, EventArgs e)
27         {
28
29         }
30
31
32         /// <summary>
33         /// 初始化浏览器并启动
34         /// </summary>
35         public void InitializeChromium()
36         {
37             CefSettings settings = new CefSettings();
38             String page = string.Format(@"{0}\TestDemo.html", Application.StartupPath);
39
40             if (!File.Exists(page))
41             {
42                 MessageBox.Show("地址不对，我找不到");
43             }
44
45             // Initialize cef with the provided settings
46             Cef.Initialize(settings);
47             // Create a browser component
48
49             chromiumWebBrowser1.LoadUrl(page);
50             chromiumWebBrowser1.MenuHandler = new MenuHandler();
51
52             //需要添加此句代码，否则下面执行会报错
53             chromiumWebBrowser1.JavascriptObjectRepository.Settings.LegacyBindingEnabled = true;
54             CefSharpSettings.WcfEnabled = true;
55             chromiumWebBrowser1.JavascriptObjectRepository.Register("bound", new CefCustomObject(chromiumWebBrowser1, this), isAsync: false, options: BindingOptions.DefaultBinder);
61

　　　　　　　　 // Allow the use of local resources in the browser
62             BrowserSettings browserSettings = new BrowserSettings();
63             chromiumWebBrowser1.BrowserSettings = browserSettings;
64
65         }
66
67
68         /// <summary>
69         /// 关闭窗口时释放浏览器资源
70         /// </summary>
71         /// <param name="sender"></param>
72         /// <param name="e"></param>
73         private void Form1_FormClosing(object sender, FormClosingEventArgs e)
74         {
75             // 关闭时注销释放内核
76             try
77             {
78                 chromiumWebBrowser1.CloseDevTools();
79                 chromiumWebBrowser1.GetBrowser().CloseBrowser(true);
80             }
81             catch { }
82
83             try
84             {
85                 if (chromiumWebBrowser1 != null)
86                 {
87                     chromiumWebBrowser1.Dispose();
88                     Cef.Shutdown();
89                 }
90             }
91             catch { }
92         }
93     }
94 }

三、要注册的 CefCustomObject 类

 1 using CefSharp.WinForms;
 2 using CefSharp;
 3 using System;
 4 using System.Collections.Generic;
 5 using System.Linq;
 6 using System.Text;
 7 using System.Threading.Tasks;
 8 using System.Windows.Forms;
 9 using System.Security.Policy;
10
11 namespace WindowsFormsApp1
12 {
13     public class CefCustomObject
14     {
15         // Declare a local instance of chromium and the main form in order to execute things from here in the main thread
16         private static ChromiumWebBrowser _instanceBrowser = null;
17         // The form class needs to be changed according to yours
18         private static Form1 _instanceMainForm = null;
19
20         TextBox url;
21         public CefCustomObject(ChromiumWebBrowser originalBrowser, Form1 mainForm)
22         {
23             _instanceBrowser = originalBrowser;
24             _instanceMainForm = mainForm;
25         }
26
27         /// <summary>
28         /// 窗口加载完毕时需要触发的全局JS对象；
29         /// </summary>
30         public void OnFrameLoadEnd(object sender, FrameLoadEndEventArgs e)
31         {
32             if (e.Frame.IsMain)
33             {
34                 _instanceBrowser.ExecuteScriptAsync(@"
35               document.body.onmouseup = function()
36               {
37                 bound.onSelected(window.getSelection().toString());
38               }
39             ");
40             }
41         }
42
43         /// <summary>
44         /// 显示一个弹出对话框,前端JS调用的方法
45         /// </summary>
46         /// <param name="msg">传入参数</param>
47         public void ShowAlertMsg(string msg)
48         {
49             MessageBox.Show("The user selected some text [" + msg + "]");
50         }
51
52         public string getSrc()
53         {
54             return "反手给你个string";
55         }
56
57         public string ReadIdCard()
58         {
59             // 具体调用读身份证读卡器的方法
60             // IDCardModel model=IDCardSdk.Read();
61             //将身份证信息返回给前端；
62             // return model.ToJson();
63             return "调用失败";
64         }
65     }
66 }
