泰山派学习13--设备树LED字符驱动

1、在泰山派设备树的/根节点上添加zbl_led子节点（路径：Z:\sdk\linux\kernel\arch\arm64\boot\dts\rockchip）

　　打开tspi-rk3566-user-v10-linux.dts设备树源文件

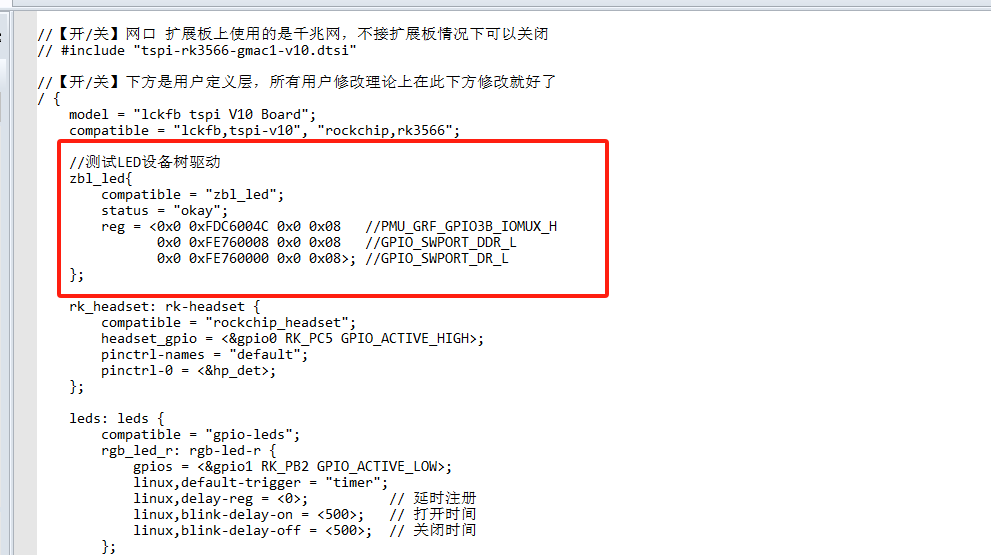

　　在根目录下添加zbl_led子节点

2、在SDK上编译kernel（./build.sh kernel）

　　执行内核编译：./build.sh kernel

　　内核编译成功输出：

　　查看boot.img是否生成最新的

3、烧录boot.img镜像（前提已经烧录了buildroot的uboot，且正常运行的）

　　仅勾选boot.img，进行烧录

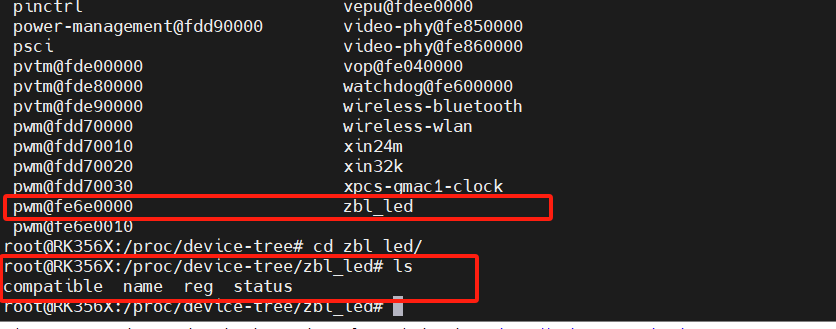

4、查看设备树上节点是否添加成功（cd /proc/device-tree）

　　cd zbl_led

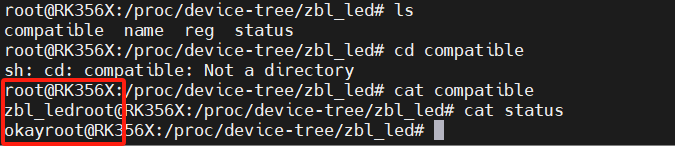

　　查看对应的属性是否与设置的一致

　　cat status

5、编写设备树的字符驱动对应函数

/*
** dtsled.c
** 复用型引脚分为5组(GPIO0~4)，每组里面都有32个复用型引脚，而且又分为4个小组(A、B、C、D)，每个小组8个引脚(0~7)
** GPIO3_4B
** 在GPIO3大组，第二的B小组，第4个引脚,
*/

#include <linux/module.h>
#include <linux/init.h>
#include <linux/kernel.h>
#include <linux/slab.h>
#include <linux/vmalloc.h>
#include <linux/fs.h>
#include <linux/cdev.h>
#include <linux/uaccess.h>
#include <linux/types.h>
#include <linux/moduleparam.h>
#include <linux/device.h>
#include <linux/gpio.h>
#include <linux/io.h>
#include <linux/of.h>
#include <linux/of_address.h>

//设备名称
#define DEV_NAME "dtsled"
#define DEV_CNT 1
//复用功能寄存器
//#define PMU_GRF_GPIO3B_IOMUX_H 0xFDC6004C
//GPIO方向控制寄存器
//#define GPIO_SWPORT_DDR_L 0xFE760008
//GPIO数据寄存器
//#define GPIO_SWPORT_DR_L 0xFE760000

#define LED_ON 1
#define LED_OFF 0

char kbuf[128] = {0};

//定义新的一个结构体 struct chr_dev
struct dtsled_dev{
dev_t dev_id; //设备编号
struct cdev cdev; //内核字符设备
struct class *class; //设备类
struct device *device; //设备
int major; //主设备
int minor; //从设备
struct device_node *nd; //设备节点
unsigned int __iomem *va_iomux; //地址映射虚拟地址指针
unsigned int __iomem *va_ddr;
unsigned int __iomem *va_dr;
};

static struct dtsled_dev dtsled;

void led_switch(unsigned char state)
{
unsigned int val;

if(state == LED_ON){
val = ioread32(dtsled.va_dr);
val |= ((unsigned int)0x01 << (12+16));
val |= ((unsigned int)0x01 << (12)); //输出高电平
iowrite32(val, dtsled.va_dr);
printk(KERN_ALERT "[ KERN_ALERT ] led turn on dr_val=%#lX.\n", *(dtsled.va_dr));
}
else if(state == LED_OFF){
val = ioread32(dtsled.va_dr);
val |= ((unsigned int)0x01 << (12+16));
val &= ~((unsigned int)0x01 << (12)); //输出低电平
iowrite32(val, dtsled.va_dr);
printk(KERN_ALERT "[ KERN_ALERT ] led turn off dr_val=%#lX.\n", *(dtsled.va_dr));
}
}

void led_unmap(void)
{

iounmap(dtsled.va_dr);
iounmap(dtsled.va_ddr);
iounmap(dtsled.va_iomux);

}

int led_open(struct inode *inode, struct file *file)
{

//把文件的私有数据 private_data 指向设备结构体 dtsled
file->private_data = &dtsled;

printk(KERN_ALERT "[ KERN_ALERT ] dtsled open ...\n");

return 0;
}

ssize_t led_read(struct file *file, char __user *ubuf, size_t size, loff_t *offset)
{
printk(KERN_ALERT "[ KERN_ALERT ] dtsled read!\n");
return 0;
}

ssize_t led_write(struct file *file, const char __user *ubuf, size_t size, loff_t *offset)
{
unsigned char ret;

if(size > sizeof(kbuf)){
size = sizeof(kbuf);

}
if(copy_from_user(kbuf, ubuf, size)){
printk(KERN_ALERT "[ KERN_ALERT ] copy data form user fail!\n");
return -EIO;
}

ret = kbuf[0];

if(ret == LED_ON){
led_switch(LED_ON);
}
else if(ret == LED_OFF){
led_switch(LED_OFF);
}

printk(KERN_ALERT "[ KERN_ALERT ] dtsled write!\n");
return size;

}

int led_close(struct inode *inode, struct file *file)
{
printk(KERN_ALERT "[ KERN_ALERT ] dtsled close!\n");
return 0;
}

struct file_operations dtsled_fops= {
.owner = THIS_MODULE,
.open = led_open,
.read = led_read,
.write = led_write,
.release = led_close
};

static int __init ledcdev_init(void)
{
unsigned char i = 0;
unsigned int val = 0;
int ret = 0;
unsigned int regdata[12];
const char *str;
struct property *proper;

//读取设备树节点的属性数据
//获取设备节点：zbl_led
dtsled.nd = of_find_node_by_path("/zbl_led");
if(dtsled.nd == NULL){
printk(KERN_ALERT "[ KERN_ALERT ] zbl_led node find failed.\n");
goto fail_find_node;
}else{
printk(KERN_ALERT "[ KERN_ALERT ] zbl_led node find ok.\n");
}

//获取设备的compatible属性内容
proper = of_find_property(dtsled.nd, "compatible", NULL);
if(proper == NULL){
printk(KERN_ALERT "[ KERN_ALERT ] compatible property find failed.\n");
}else{
printk(KERN_ALERT "[ KERN_ALERT ] compatible property find ok.\n");
}

//获取 status 属性内容
ret = of_property_read_string(dtsled.nd, "status", &str);
if(ret < 0){
printk(KERN_ALERT "[ KERN_ALERT ] status read failed!\n");

}else{
printk(KERN_ALERT "[ KERN_ALERT ] status = %s\n",str);
}

//获取设备的reg属性内容
ret = of_property_read_u32_array(dtsled.nd, "reg", regdata, 12);
if(ret < 0 ){
printk(KERN_ALERT "[ KERN_ALERT ] reg property find failed.\n");
}else{
printk(KERN_ALERT "[ KERN_ALERT ] regdata:\n");
for(i=0; i<12; i++){
printk(KERN_ALERT "[ KERN_ALERT ] %#X ", regdata[i]);
}
printk(KERN_ALERT "[ KERN_ALERT ] reg property find ok.\n");
}

//物理地址映射虚拟地址,32位==>A0~A7 B0~B7 C0~C7 D0~D7,其中A B对应低16位，C D对应高16位
dtsled.va_iomux = of_iomap(dtsled.nd, 0);
dtsled.va_ddr = of_iomap(dtsled.nd, 1);
dtsled.va_dr = of_iomap(dtsled.nd, 2);

//设置IO复用
val = ioread32(dtsled.va_iomux);
//val |= 0x70000;
val |= ((unsigned int)0x07 << (0+16));
val &= ~((unsigned int)0x01 << (0));
iowrite32(val, dtsled.va_iomux);
printk(KERN_ALERT "[ KERN_ALERT ] va_iomux_val=%#lX.\n", *(dtsled.va_iomux));

//设置输出模式
val = ioread32(dtsled.va_ddr);
val = ((unsigned int)0x01 << (12+16));
val |= ((unsigned int)0x01 << (12));
iowrite32(val, dtsled.va_ddr);
printk(KERN_ALERT "[ KERN_ALERT ] va_ddr_val=%#lX.\n", *(dtsled.va_ddr));

//输出低电平
val = ioread32(dtsled.va_dr);
val |= ((unsigned int)0x01 << (12+16));
val &= ~((unsigned int)0x01 << (12));
iowrite32(val, dtsled.va_dr);
printk(KERN_ALERT "[ KERN_ALERT ] va_dr_val=%#lX.\n", *(dtsled.va_dr));

//注册字符设备驱动
//创建设备号
if(dtsled.major){
dtsled.dev_id = MKDEV(dtsled.major, 0);
ret = register_chrdev_region(dtsled.dev_id, DEV_CNT, DEV_NAME);
if(ret < 0){
printk(KERN_ALERT "[ KERN_ALERT ] can't regsiter %s char driver [ret=%d]\n", DEV_CNT, DEV_NAME);
goto fail_devid;
}
}else{
ret = alloc_chrdev_region(&dtsled.dev_id, 0, DEV_CNT, DEV_NAME);
if(ret < 0){
printk(KERN_ALERT "[ KERN_ALERT ] %s can't alloc chrdev region, ret=%d.\n", DEV_NAME, ret);
goto fail_devid;
}
dtsled.major = MAJOR(dtsled.dev_id);
dtsled.minor = MINOR(dtsled.dev_id);
}

printk(KERN_ALERT "[ KERN_ALERT ] dtsled major=%d, minor=%d.\n", dtsled.major, dtsled.minor);

//关联结构体
dtsled.cdev.owner = THIS_MODULE;
cdev_init(&dtsled.cdev, &dtsled_fops);

ret = cdev_add(&dtsled.cdev, dtsled.dev_id, DEV_CNT);
if(ret < 0){
goto del_unregister;
}

dtsled.class = class_create(THIS_MODULE, DEV_NAME);
if(IS_ERR(dtsled.class)){
goto del_cdev;
}

dtsled.device = device_create(dtsled.class, NULL, dtsled.dev_id, NULL, DEV_NAME);
if(IS_ERR(dtsled.device)){
goto destroy_class;
}

printk(KERN_ALERT "[ KERN_ALERT ] dtsled init ...\n");
return 0;

destroy_class:
class_destroy(dtsled.class);
del_cdev:
cdev_del(&dtsled.cdev);
del_unregister:
unregister_chrdev_region(dtsled.dev_id, DEV_CNT);
fail_devid:
led_unmap();
fail_find_node:
return -EIO;

}

static void __exit ledcdev_exit(void)
{

printk(KERN_ALERT "[ KERN_ALERT ] dtsled exit ...\n");

led_unmap();

cdev_del(&dtsled.cdev);

unregister_chrdev_region(dtsled.dev_id, DEV_CNT);

device_destroy(dtsled.class, dtsled.dev_id);

class_destroy(dtsled.class);

}

module_init(ledcdev_init);

module_exit(ledcdev_exit);

MODULE_LICENSE("GPL");

MODULE_AUTHOR("zbl");

6、编写应用函数

/*
** dtsledapp.c
**
*/

#include <stdio.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <unistd.h>
#include <string.h>
#include <stdlib.h>

#define LED_ON 1
#define LED_OFF 0

int main(int argc, char *argv[])
{

int fd;
int ret;
unsigned char databuf[1] = {0};

if(argc != 2){
printf("Error Usage!\n");
return -1;
}

fd = open("/dev/dtsled", O_RDWR);
if(fd == -1)
{
printf("open %s failed.\n", "/dev/dtsled");
return -1;
}

databuf[0] = atoi(argv[1]);
ret = write(fd, databuf, sizeof(databuf));
if(ret < 0){
printf("LED control failed.\n");
close(fd);
return -1;
}

ret = close(fd);
if(ret < 0){
printf("close %s failed.\n", "/dev/dtsled");
return -1;
}

return 0;
}

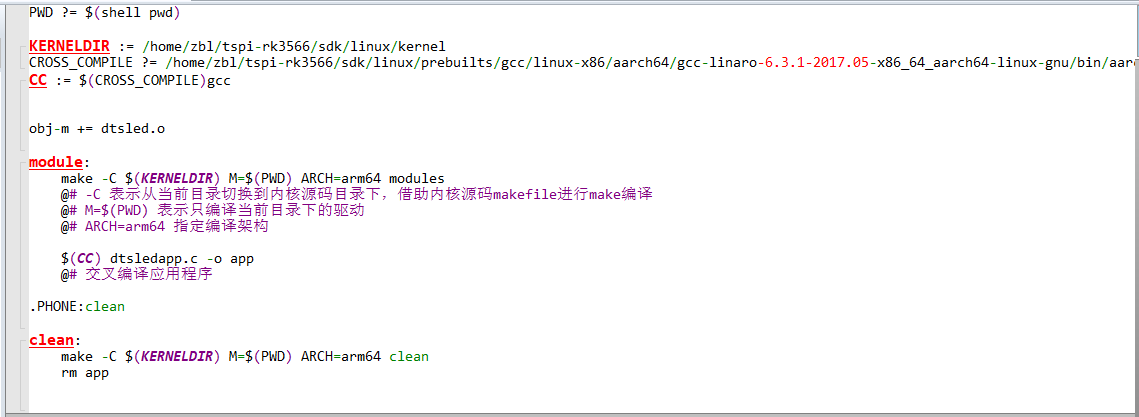

7、编写makefile （修改对应文件名称）
