SSM17.4【SSM框架整合--Spring+Mybatis】

搭建和测试Mybatis的开发环境

创建和编写sqlMapConfig.xml配置文件

1 jdbc.driver=com.mysql.jdbc.Driver
2 jdbc.url=jdbc:mysql://localhost:3306/hm_ssm
3 jdbc.username=root
4 jdbc.password=root

 1 <?xml version="1.0" encoding="UTF-8"?>
 2 <!DOCTYPE configuration
 3         PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
 4         "http://mybatis.org/dtd/mybatis-3-config.dtd">
 5
 6 <configuration>
 7
 8     <!--加载外部properties文件-->
 9     <properties resource="jdbc.properties"></properties>
10
11     <!--配置环境-->
12     <environments default="mysql_environment">
13         <environment id="mysql_environment">
14             <transactionManager type="JDBC"></transactionManager>
15             <dataSource type="POOLED">
16                 <property name="driver" value="${jdbc.driver}"/>
17                 <property name="url" value="${jdbc.url}"/>
18                 <property name="username" value="${jdbc.username}"/>
19                 <property name="password" value="${jdbc.password}"/>
20             </dataSource>
21         </environment>
22     </environments>
23
24
25     <!--1、加载映射文件(xml实现)-->
26     <!--<mappers>
27         <mapper resource="com/haifei/mapper/UserMapper.xml"/>
28     </mappers>-->
29     <!--2、加载映射关系(注解实现)-->
30     <!--实现方式1：扫接口所在的包-->
31     <mappers>
32         <package name="com.haifei.dao"></package>
33     </mappers>
34     <!--实现方式2：指定接口的全路径-->
35     <!--<mappers>
36         <mapper class="com.haifei.dao.AccountDao" />
37     </mappers>-->
38
39
40 </configuration>

在AccountDao接口的方法上添加注解，编写SQL语句

 1 package com.haifei.dao;
 2
 3 import com.haifei.domain.Account;
 4 import org.apache.ibatis.annotations.Insert;
 5 import org.apache.ibatis.annotations.Select;
 6
 7 import java.util.List;
 8
 9 /**
10  * dao接口-账户
11  */
12 public interface AccountDao {
13
14     //查询所有账户
15     @Select("select * from ssm_account")
16     public List<Account> findAll();
17
18     //保存账户信息
19     @Insert("insert into ssm_account(name,money) values(#{name},#{money})")
20     public void saveAccount(Account account);
21
22 }

测试Mybatis框架是否搭建成功

 1 package com.haifei.test;
 2
 3 import com.haifei.dao.AccountDao;
 4 import com.haifei.domain.Account;
 5 import org.apache.ibatis.io.Resources;
 6 import org.apache.ibatis.session.SqlSession;
 7 import org.apache.ibatis.session.SqlSessionFactory;
 8 import org.apache.ibatis.session.SqlSessionFactoryBuilder;
 9 import org.junit.Test;
10
11 import java.io.IOException;
12 import java.io.InputStream;
13 import java.util.List;
14
15 public class TestMybatis {
16
17     /**
18      * 测试查询
19      * @throws Exception
20      */
21     @Test
22     public void run1() throws Exception {
23         //加载配置文件
24         InputStream is = Resources.getResourceAsStream("sqlMapConfig.xml");
25         //创建SqlSessionFactory对象
26         SqlSessionFactory factory = new SqlSessionFactoryBuilder().build(is);
27         //创建SqlSession对象
28         SqlSession session = factory.openSession();
29         //获取代理对象
30         AccountDao dao = session.getMapper(AccountDao.class);
31         //调用方法
32         List<Account> accountList = dao.findAll();
33         for (Account account : accountList) {
34             System.out.println(account);
35         }
36         //关闭/释放资源
37         session.close();
38         is.close();
39     }

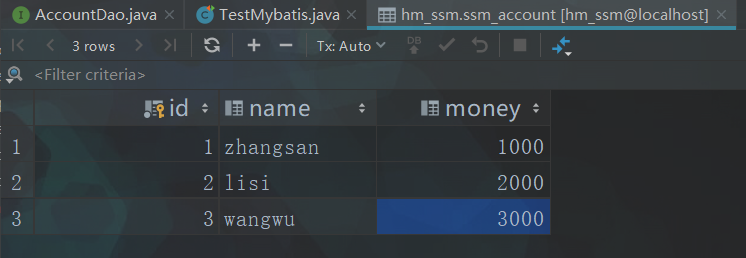

40     /*
41     Account{id=1, name='zhangsan', money=1000.0}
42     Account{id=2, name='lisi', money=2000.0}
43     Account{id=3, name='wangwu', money=3000.0}
44      */
45
46     /**
47      * 测试保存
48      * @throws Exception
49      */

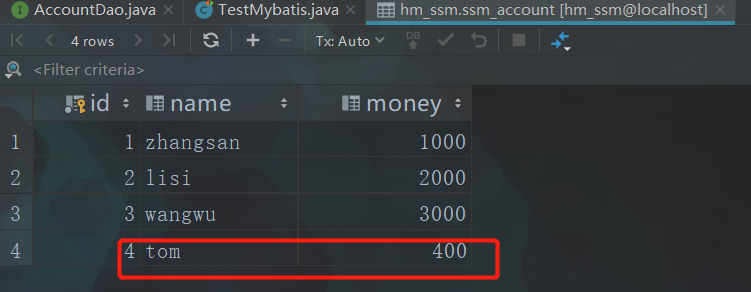

50     @Test
51     public void run2() throws Exception {
52         //加载配置文件
53         InputStream is = Resources.getResourceAsStream("sqlMapConfig.xml");
54         //创建SqlSessionFactory对象
55         SqlSessionFactory factory = new SqlSessionFactoryBuilder().build(is);
56         //创建SqlSession对象
57         SqlSession session = factory.openSession(true); //设置为true-->session.commit();
58         //获取代理对象
59         AccountDao dao = session.getMapper(AccountDao.class);
60         //调用方法
61         Account account = new Account();
62         account.setName("tom");
63         account.setMoney(400D); //Double包装类
64         dao.saveAccount(account);
65         //关闭/释放资源
66         session.close();
67         is.close();
68     }
69
70 }

Spring整合Mybatis

 1 <?xml version="1.0" encoding="UTF-8"?>
 2 <beans xmlns="http://www.springframework.org/schema/beans"
 3        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 4        xmlns:context="http://www.springframework.org/schema/context"
 5        xmlns:aop="http://www.springframework.org/schema/aop"
 6        xmlns:tx="http://www.springframework.org/schema/tx"
 7        xsi:schemaLocation="
 8         http://www.springframework.org/schema/beans
 9         http://www.springframework.org/schema/beans/spring-beans.xsd
10         http://www.springframework.org/schema/context
11         http://www.springframework.org/schema/context/spring-context.xsd
12         http://www.springframework.org/schema/aop
13         http://www.springframework.org/schema/aop/spring-aop.xsd
14         http://www.springframework.org/schema/tx
15         http://www.springframework.org/schema/tx/spring-tx.xsd
16 ">
17
18
19     <!--开启注解所需的组件扫描，期望spring只负责处理service和dao；controller用springMVC处理-->
20     <context:component-scan base-package="com.haifei">
21         <!--配置哪些注解不被扫描-->
22         <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller" />
23     </context:component-scan>
24
25
26     <!--Spring整合Mybatis框架-->
27     <!--1、加载外部的properties文件-->
28     <context:property-placeholder location="classpath:jdbc.properties"/>
29     <!--2、配置数据源（数据库连接池）-->
30     <bean id="dataSource_c3p0" class="com.mchange.v2.c3p0.ComboPooledDataSource">
31         <property name="driverClass" value="${jdbc.driver}"></property>
32         <property name="jdbcUrl" value="${jdbc.url}"></property>
33         <property name="user" value="${jdbc.username}"></property>
34         <property name="password" value="${jdbc.password}"></property>
35     </bean>
36     <bean id="dataSource_druid" class="com.alibaba.druid.pool.DruidDataSource">
37         <property name="driverClassName" value="${jdbc.driver}"></property>
38         <property name="url" value="${jdbc.url}"></property>
39         <property name="username" value="${jdbc.username}"></property>
40         <property name="password" value="${jdbc.password}"></property>
41     </bean>
42     <!--&lt;!&ndash;配置spring jdbcTemplate&ndash;&gt;
43     <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
44         <property name="dataSource" ref="dataSource_c3p0"/>
45     </bean>-->
46     <!--3、配置SqlSessionFactory工厂-->
47     <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
48         <property name="dataSource" ref="dataSource_c3p0" /> <!--数据源可选c3p0和druid-->
49     </bean>
50     <!--4、配置AccountDao接口所在包-->
51     <bean id="mapperScanner" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
52         <property name="basePackage" value="com.haifei.dao"/>
53     </bean>
54     <!--/Spring整合Mybatis框架(以上配置完成后，sqlMapConfig.xml可以删掉了)-->
55
56
57     <!--配置Spring框架的声明式事务管理-->
58     <!--1、配置事务管理器-->
59     <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
60         <property name="dataSource" ref="dataSource_c3p0"/> <!--数据源可选c3p0和druid-->
61     </bean>
62     <!--2、配置事务通知-->
63     <tx:advice id="txAdvice" transaction-manager="transactionManager">
64         <tx:attributes>
65             <tx:method name="find*" read-only="true"/> <!--以find开头的方法设置为只读-->
66             <tx:method name="*" isolation="DEFAULT"/> <!--除了以find开头的方法设置，例如隔离级别设置为默认-->
67         </tx:attributes>
68     </tx:advice>
69     <!--3、配置AOP增强-->
70     <aop:config>
71         <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.haifei.service.impl.*ServiceImpl.*(..))" />
72         <!--public可以省略不写  返回值为*  impl包下的*ServiceImpl类中的所有方法，且任意类型的参数-->
73         <!--对以上描述的方法进行增强-->
74     </aop:config>
75     <!--/配置Spring框架的声明式事务管理-->
76
77
78 </beans>

 1 package com.haifei.dao;
 2
 3 import com.haifei.domain.Account;
 4 import org.apache.ibatis.annotations.Insert;
 5 import org.apache.ibatis.annotations.Select;
 6 import org.springframework.stereotype.Repository;
 7
 8 import java.util.List;
 9
10 /**
11  * dao接口-账户
12  */
13 @Repository //将dao层类交给spring的IOC容器进行管理，实例化bean
14 public interface AccountDao {
15
16     //查询所有账户
17     @Select("select * from ssm_account")
18     public List<Account> findAll();
19
20     //保存账户信息
21     @Insert("insert into ssm_account(name,money) values(#{name},#{money})")
22     public void saveAccount(Account account);
23
24 }

 1 package com.haifei.service.impl;
 2
 3 import com.haifei.dao.AccountDao;
 4 import com.haifei.domain.Account;
 5 import com.haifei.service.AccountService;
 6 import org.springframework.beans.factory.annotation.Autowired;
 7 import org.springframework.stereotype.Service;
 8
 9 import java.util.List;
10
11 /**
12  * service接口实现类-账户
13  */
14 @Service("accountService") //将service层类交给spring的IOC容器进行管理，实例化bean
15 public class AccountServiceImpl implements AccountService {
16
17     @Autowired //根据类型进行自动注入
18     private AccountDao accountDao;
19
20     @Override
21     public List<Account> findAll() {
22         System.out.println("业务层：查询所有账户");
23         return accountDao.findAll();
24     }
25
26     @Override
27     public void saveAccount(Account account) {
28         System.out.println("业务层：保存账户信息");
29         accountDao.saveAccount(account);
30     }
31
32 }

 1 package com.haifei.controller;
 2
 3 import com.haifei.domain.Account;
 4 import com.haifei.service.AccountService;
 5 import org.springframework.beans.factory.annotation.Autowired;
 6 import org.springframework.stereotype.Controller;
 7 import org.springframework.ui.Model;
 8 import org.springframework.web.bind.annotation.RequestMapping;
 9 import org.springframework.web.servlet.ModelAndView;
10
11 import javax.servlet.http.HttpServletRequest;
12 import javax.servlet.http.HttpServletResponse;
13 import java.io.IOException;
14 import java.util.List;
15
16 /**
17  * web层-账户
18  */
19 @Controller //将web层类交给spring的IOC容器进行管理，实例化bean
20 @RequestMapping("/account")
21 public class AccountController {
22
23     @Autowired //根据类型进行自动注入
24     private AccountService accountService;
25
26     @RequestMapping("/findAll")
27     public String findAll(Model model){
28         System.out.println("表现层：查询所有账户信息");
29         List<Account> accountList = accountService.findAll();
30         model.addAttribute("accountList", accountList);
31         return "list";
32     }
33     /*@RequestMapping("/findAll")
34     public ModelAndView findAll(ModelAndView modelAndView){
35         System.out.println("表现层：查询所有账户信息");
36         List<Account> accountList = accountService.findAll();
37         modelAndView.addObject("accountList", accountList);
38         modelAndView.setViewName("list");
39         return modelAndView;
40     }*/
41
42     @RequestMapping("/save")
43     public void save(Account account, HttpServletRequest request, HttpServletResponse response) throws IOException {
44         System.out.println("表现层：保存账户信息");
45         accountService.saveAccount(account);
46         response.sendRedirect(request.getContextPath() + "/account/findAll"); //重定向至查询功能
47     }
48
49 }

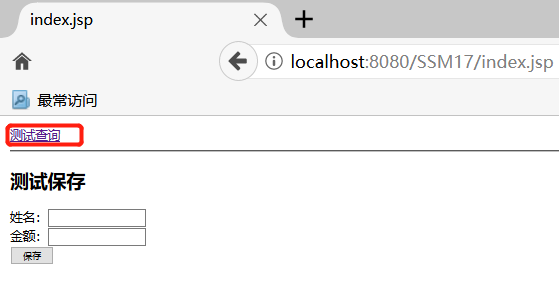

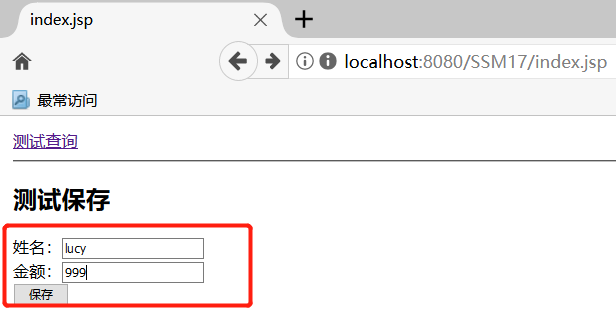

 1 <%@ page contentType="text/html;charset=UTF-8" language="java" %>
 2 <html>
 3 <head>
 4     <title>index.jsp</title>
 5 </head>
 6 <body>
 7     <a href="account/findAll">测试查询</a>
 8     <hr>
 9     <h2>测试保存</h2>
10     <form action="account/save" method="post">
11         姓名：<input type="text" name="name" /><br/>
12         金额：<input type="text" name="money" /><br/>
13         <input type="submit" value="保存"/><br/>
14     </form>
15 </body>
16 </html>

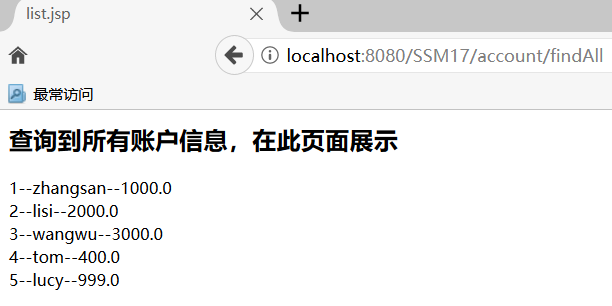

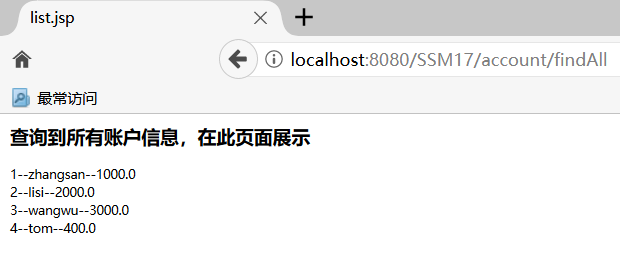

 1 <%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
 2 <%--https://blog.csdn.net/fyqcdbdx/article/details/6317579--%>
 3 <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
 4 <html>
 5 <head>
 6     <title>list.jsp</title>
 7 </head>
 8 <body>
 9     <h2>查询到所有账户信息，在此页面展示</h2>
10     <c:forEach items="${accountList}" var="account">
11         ${account.id}--${account.name}--${account.money}<br>
12     </c:forEach>
13 </body>
14 </html>
