SSM9.2【Spring：基于XML的AOP开发】

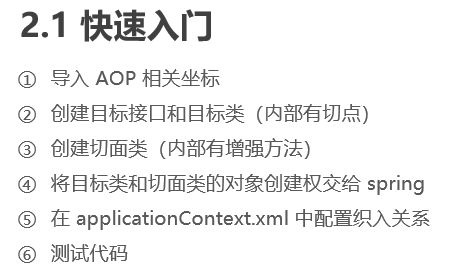

快速入门

代码实现

 1 <?xml version="1.0" encoding="UTF-8"?>
 2 <project xmlns="http://maven.apache.org/POM/4.0.0"
 3          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 4          xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
 5     <modelVersion>4.0.0</modelVersion>
 6
 7     <groupId>com.haifei</groupId>
 8     <artifactId>SSM9_spring_aop</artifactId>
 9     <version>1.0-SNAPSHOT</version>
10     <packaging>war</packaging>
11
12
13     <dependencies>

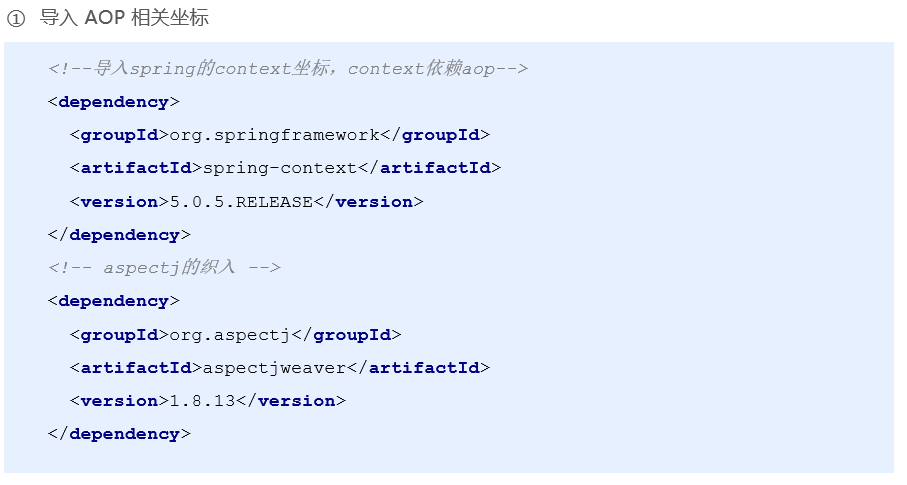

14         <!--导入spring的context坐标，context依赖aop-->
15         <dependency>
16             <groupId>org.springframework</groupId>
17             <artifactId>spring-context</artifactId>
18             <version>5.0.5.RELEASE</version>
19         </dependency>
20         <!-- aspectj的织入 -->
21         <dependency>
22             <groupId>org.aspectj</groupId>
23             <artifactId>aspectjweaver</artifactId>
24             <version>1.8.4</version>
25         </dependency>
26
27         <dependency>
28             <groupId>org.springframework</groupId>
29             <artifactId>spring-test</artifactId>
30             <version>5.0.5.RELEASE</version>
31         </dependency>
32         <dependency>
33             <groupId>junit</groupId>
34             <artifactId>junit</artifactId>
35             <version>4.12</version>
36         </dependency>
37     </dependencies>
38
39
40     <build>
41         <plugins>
42             <!--jdk编译插件-->
43             <plugin>
44                 <groupId>org.apache.maven.plugins</groupId>
45                 <artifactId>maven-compiler-plugin</artifactId>
46                 <version>3.1</version>
47                 <configuration>
48                     <target>1.8</target>
49                     <source>1.8</source>
50                     <encoding>UTF-8</encoding> <!--防止sout内部输出中文乱码-->
51                 </configuration>
52             </plugin>
53             <!--tomcat7插件-->
54             <plugin>
55                 <groupId>org.apache.tomcat.maven</groupId>
56                 <artifactId>tomcat7-maven-plugin</artifactId>
57                 <version>2.1</version>
58                 <configuration>
59                     <port>8080</port>
60                     <path>/ssm9</path>
61                     <uriEncoding>UTF-8</uriEncoding> <!--防止get请求url中中文参数乱码-->
62                 </configuration>
63             </plugin>
64         </plugins>
65     </build>
66
67
68 </project>

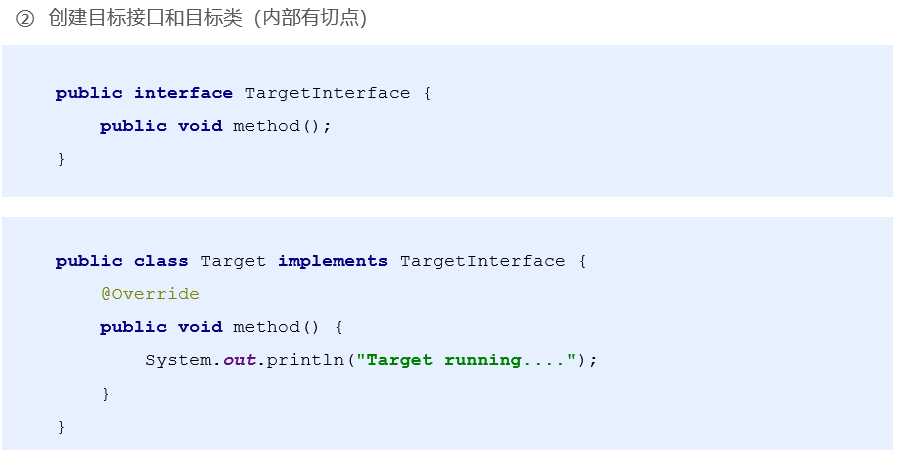

 1 package com.haifei.aop;
 2
 3 /**
 4  * 目标接口
 5  */
 6 public interface TargetInterface {
 7
 8     public void save();
 9
10 }

 1 package com.haifei.aop;
 2
 3 /**
 4  * 目标类
 5  */
 6 public class Target implements TargetInterface {
 7
 8     //切点方法
 9     @Override
10     public void save() {
11         System.out.println("save running...");
12 //        int i = 1/0;
13     }
14
15 }

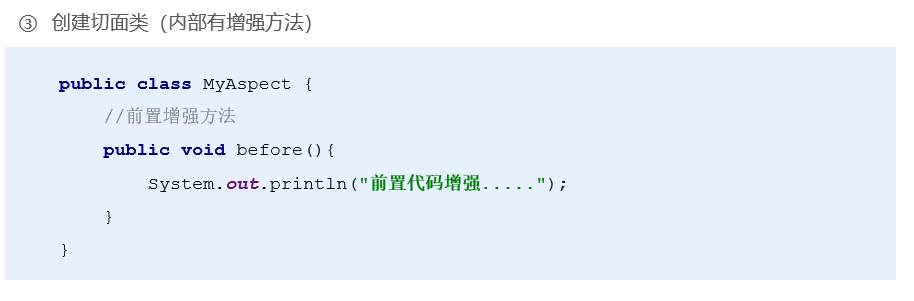

 1 package com.haifei.aop;
 2
 3 import org.aspectj.lang.ProceedingJoinPoint;
 4
 5 /**
 6  * 切面类
 7  */
 8 public class MyAspect {
 9
10     //前置增强方法
11     public void beforeTarget(){
12         System.out.println("前置增强..........");
13     }
14
15     //后置增强方法
16     public void afterReturning(){
17         System.out.println("后置增强..........");
18     }
19
20     //环绕增强方法
21     public Object aroundTarget(ProceedingJoinPoint pjp) throws Throwable { //正在执行的连接点==切点
22         System.out.println("环绕前增强");
23         Object proceed = pjp.proceed(); //切点方法
24         System.out.println("环绕后增强");
25         return proceed;
26     }
27
28     //异常抛出增强方法
29     public void afterThrowing(){
30         System.out.println("异常抛出增强....");
31     }
32
33     //最终增强方法（不管抛不抛异常，该增强都会执行）
34     public void after(){
35         System.out.println("最终增强....");
36     }
37
38 }

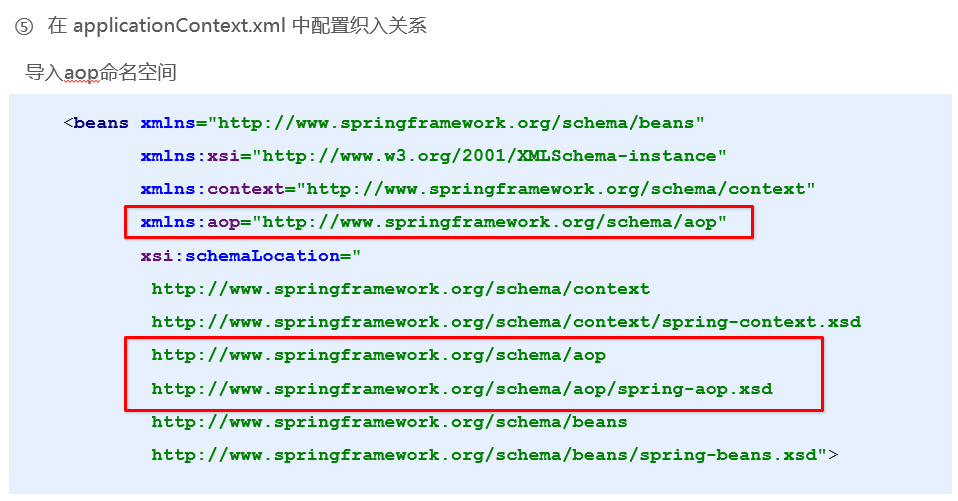

 1 <?xml version="1.0" encoding="UTF-8"?>
 2 <beans xmlns="http://www.springframework.org/schema/beans"
 3        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 4        xmlns:aop="http://www.springframework.org/schema/aop"
 5        xsi:schemaLocation="
 6             http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
 7             http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
 8

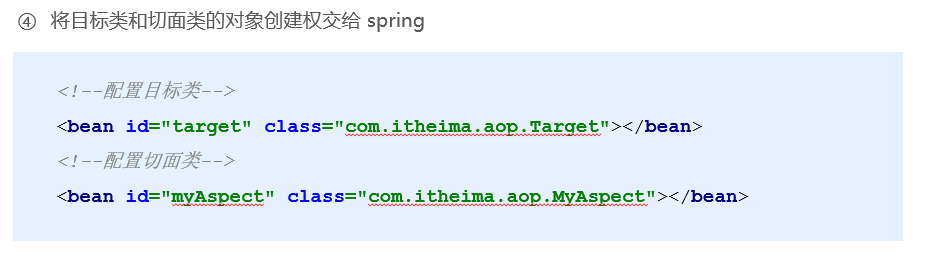

 9     <!--目标对象-->
10     <bean id="target" class="com.haifei.aop.Target"></bean>
11
12     <!--切面对象-->
13     <bean id="myAspect" class="com.haifei.aop.MyAspect"></bean>
14

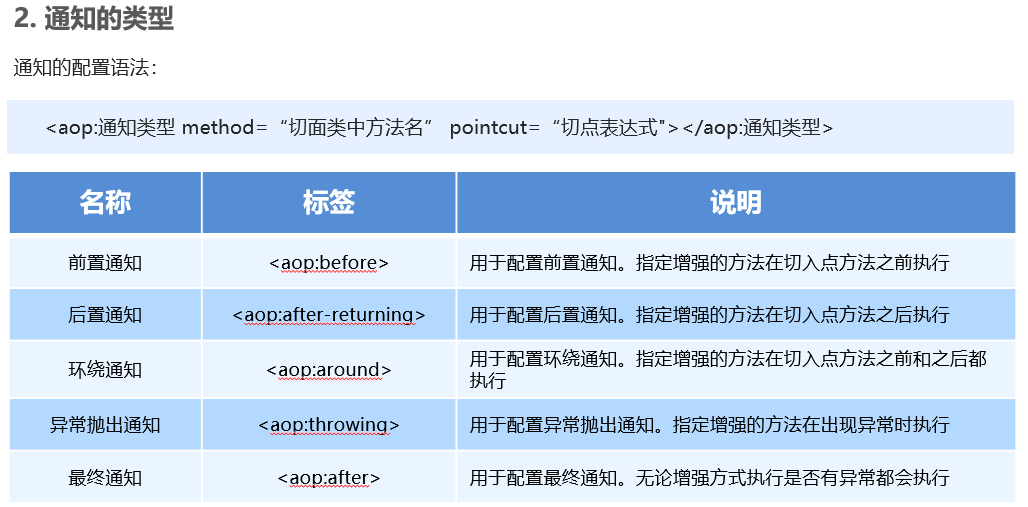

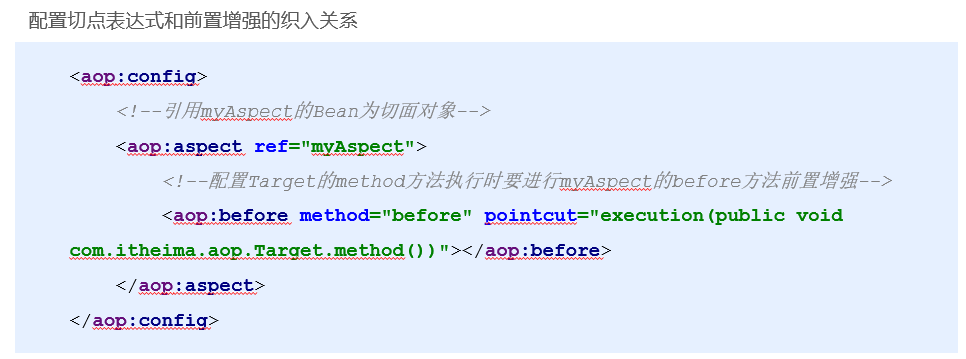

15     <!--配置织入：告诉spring框架 哪些方法(切点)需要进行哪些增强(前置、后置...)-->

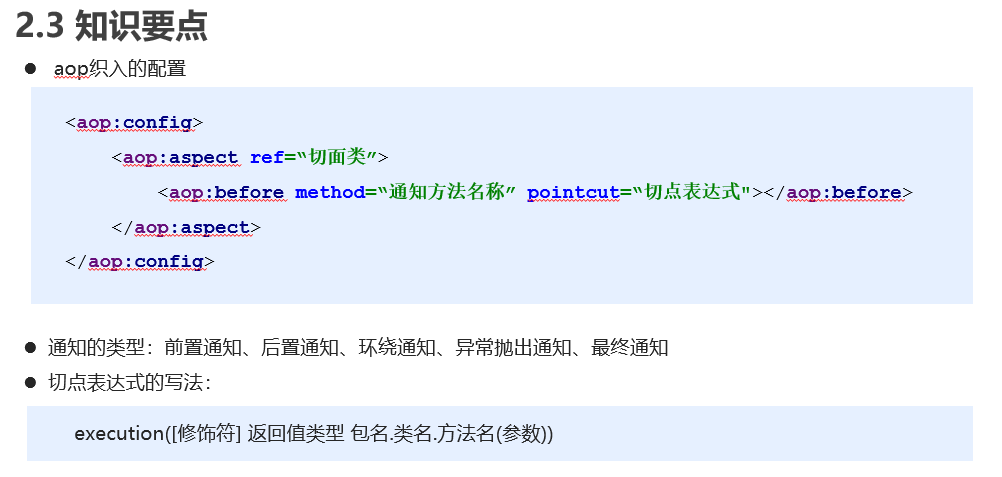

16     <aop:config>
17         <!--声明切面-->
18         <aop:aspect ref="myAspect">
19             <!--切面：切点+通知-->
20             <!--<aop:before method="before" pointcut="execution(public void com.haifei.aop.Target.save())" />-->
21
22             <!--<aop:before method="beforeTarget" pointcut="execution(* com.haifei.aop.*.*(..))" />
23             <aop:after-returning method="afterReturning" pointcut="execution(* com.haifei.aop.*.*(..))" />-->
24
25             <!--<aop:around method="aroundTarget" pointcut="execution(* com.haifei.aop.*.*(..))" />
26
27             <aop:after-throwing method="afterThrowing" pointcut="execution(* com.haifei.aop.*.*(..))" />
28
29             <aop:after method="after" pointcut="execution(* com.haifei.aop.*.*(..))" />-->
30

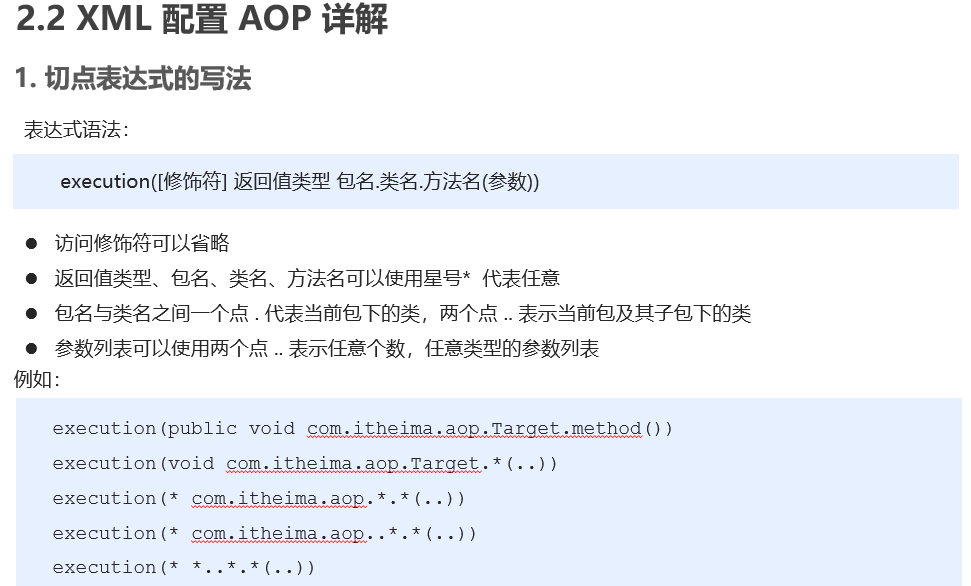

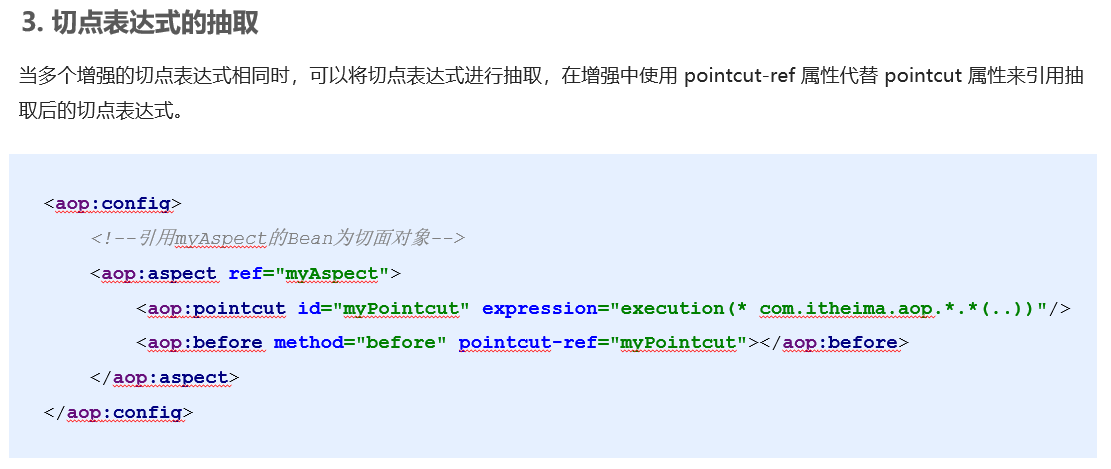

31             <!--配置-抽取切点表达式-->
32             <aop:pointcut id="myPointcut" expression="execution(* com.haifei.aop.*.*(..))"></aop:pointcut>
33             <aop:around method="aroundTarget" pointcut-ref="myPointcut" />
34             <aop:after method="after" pointcut-ref="myPointcut" />
35
36         </aop:aspect>
37     </aop:config>
38
39 </beans>

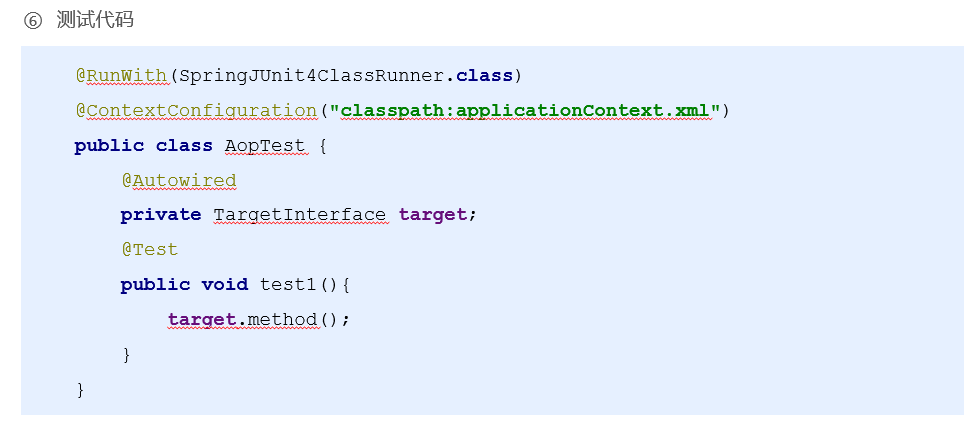

  1 package com.haifei.test;
  2
  3 import com.haifei.aop.TargetInterface;
  4 import org.junit.Test;
  5 import org.junit.runner.RunWith;
  6 import org.springframework.beans.factory.annotation.Autowired;
  7 import org.springframework.test.context.ContextConfiguration;
  8 import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
  9
 10 @RunWith(SpringJUnit4ClassRunner.class)
 11 @ContextConfiguration("classpath:applicationContext.xml")
 12 public class AopTest {
 13
 14     @Autowired
 15     private TargetInterface target;
 16
 17     @Test
 18     public void test1(){
 19         target.save();
 20         /*
 21         applicationContext.xml
 22         <aop:before method="before" pointcut="execution(public void com.haifei.aop.Target.save())" />
 23         配置织入前
 24             save running...
 25
 26         配置织入后
 27             前置增强..........
 28             save running...
 29          */
 30     }
 31
 32     @Test
 33     public void test2(){
 34         target.save();
 35         /*
 36         <aop:before method="beforeTarget" pointcut="execution(* com.haifei.aop.*.*(..))" />
 37
 38         效果同上test1
 39          */
 40     }
 41
 42     @Test
 43     public void test3(){
 44         target.save();
 45         /*
 46         <aop:before method="beforeTarget" pointcut="execution(* com.haifei.aop.*.*(..))" />
 47         <aop:after-returning method="afterReturning" pointcut="execution(* com.haifei.aop.*.*(..))" />
 48
 49         前置增强..........
 50         save running...
 51         后置增强..........
 52          */
 53     }
 54
 55     @Test
 56     public void test4(){
 57         target.save();
 58         /*
 59         <aop:around method="aroundTarget" pointcut="execution(* com.haifei.aop.*.*(..))" />
 60
 61         环绕前增强
 62         save running...
 63         环绕后增强
 64          */
 65     }
 66
 67     @Test
 68     public void test5(){
 69         target.save();
 70         /*
 71         <aop:around method="aroundTarget" pointcut="execution(* com.haifei.aop.*.*(..))" />
 72         <aop:after-throwing method="afterThrowing" pointcut="execution(* com.haifei.aop.*.*(..))" />
 73
 74          public void save() {
 75             int i = 1/0;
 76             System.out.println("save running...");
 77          }
 78         环绕前增强
 79         异常抛出增强....
 80         ArithmeticException: / by zero
 81
 82         public void save() {
 83             System.out.println("save running...");
 84             int i = 1/0;
 85          }
 86         环绕前增强
 87         save running...
 88         异常抛出增强....
 89         ArithmeticException: / by zero
 90          */
 91     }
 92
 93     @Test
 94     public void test6(){
 95         target.save();
 96         /*
 97         <aop:around method="aroundTarget" pointcut="execution(* com.haifei.aop.*.*(..))" />
 98         <aop:after-throwing method="afterThrowing" pointcut="execution(* com.haifei.aop.*.*(..))" />
 99         <aop:after method="after" pointcut="execution(* com.haifei.aop.*.*(..))" />
100
101         public void save() {
102             System.out.println("save running...");
103             int i = 1/0;
104          }
105         环绕前增强
106         save running...
107         异常抛出增强....
108         最终增强....
109         ArithmeticException: / by zero
110
111         public void save() {
112             System.out.println("save running...");
113          }
114         环绕前增强
115         save running...
116         环绕后增强
117         最终增强....
118          */
119     }
120
121     /**
122      * 测试 抽取切点表达式 的抽取配置及使用
123      */
124     @Test
125     public void test7(){
126         target.save();
127         /*
128         <aop:pointcut id="myPointcut" expression="execution(* com.haifei.aop.*.*(..))"></aop:pointcut>
129         <aop:around method="aroundTarget" pointcut-ref="myPointcut" />
130         <aop:after method="after" pointcut-ref="myPointcut" />
131
132             环绕前增强
133             save running...
134             环绕后增强
135             最终增强....
136          */
137     }
138
139 }
