SSM3.2【Spring：SpringMVC简介】

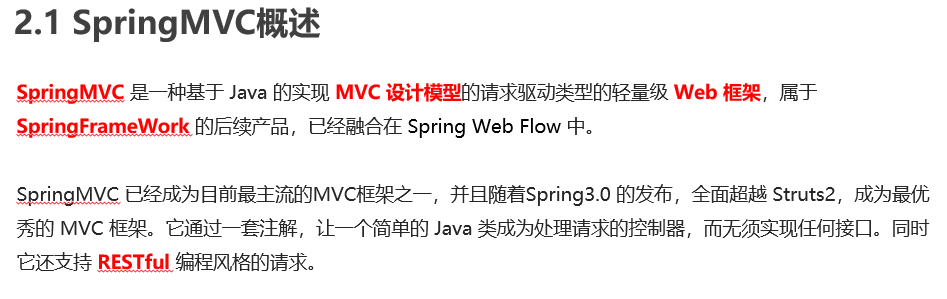

SpringMVC概述

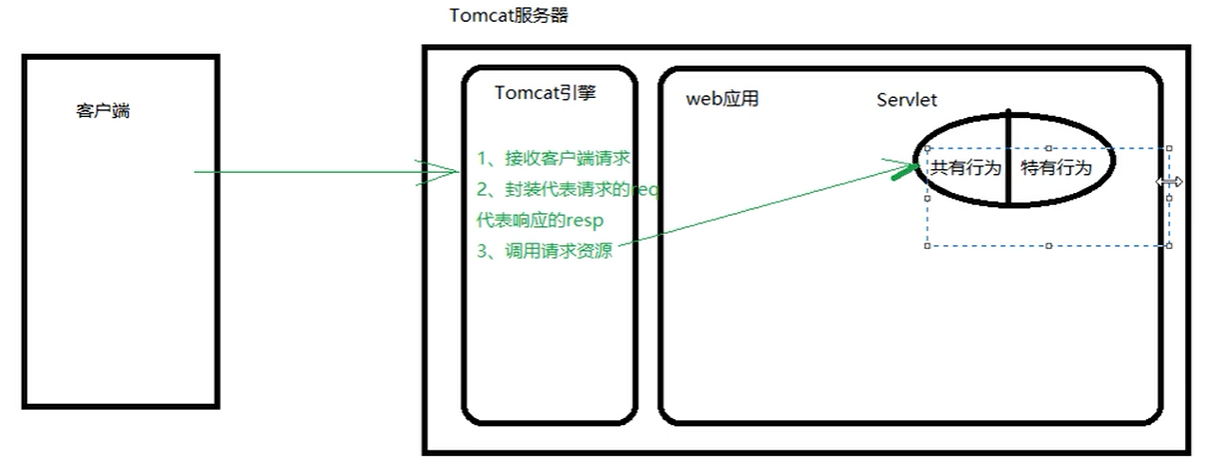

传统java web

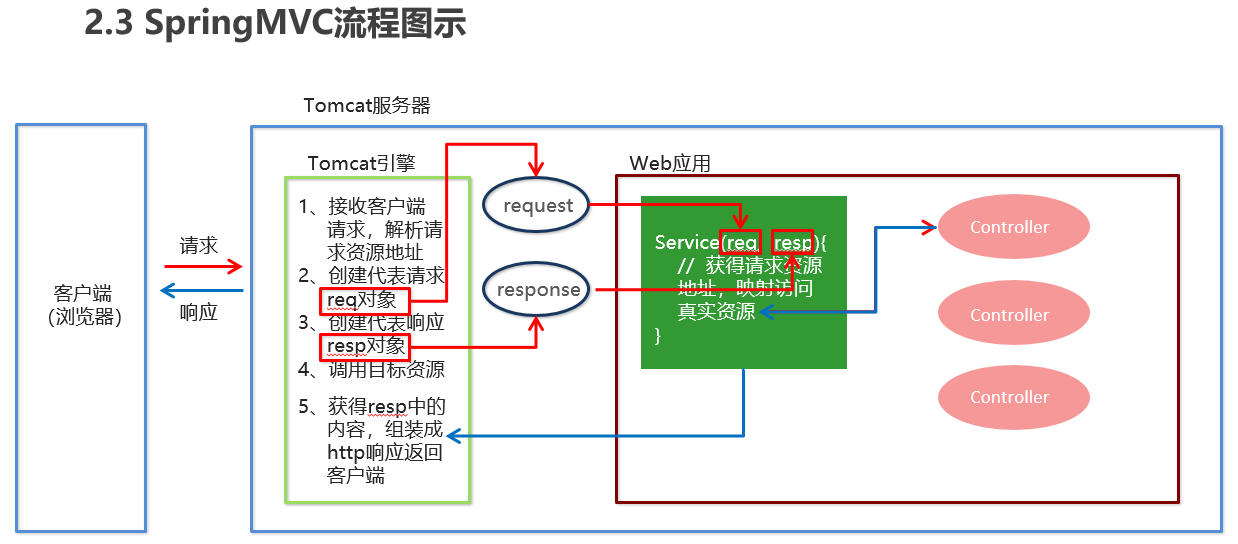

SpringMVC web

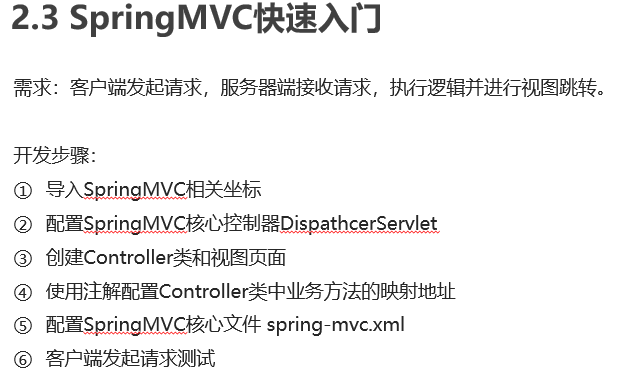

SpringMVC快速入门

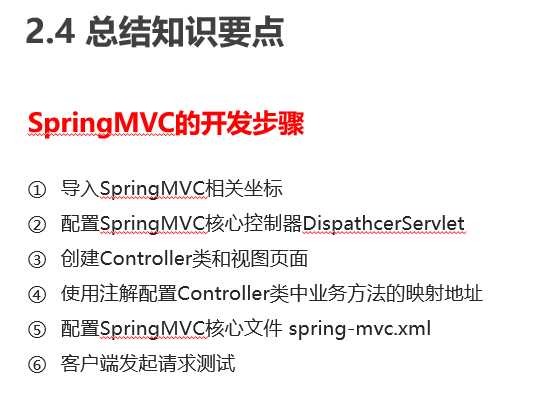

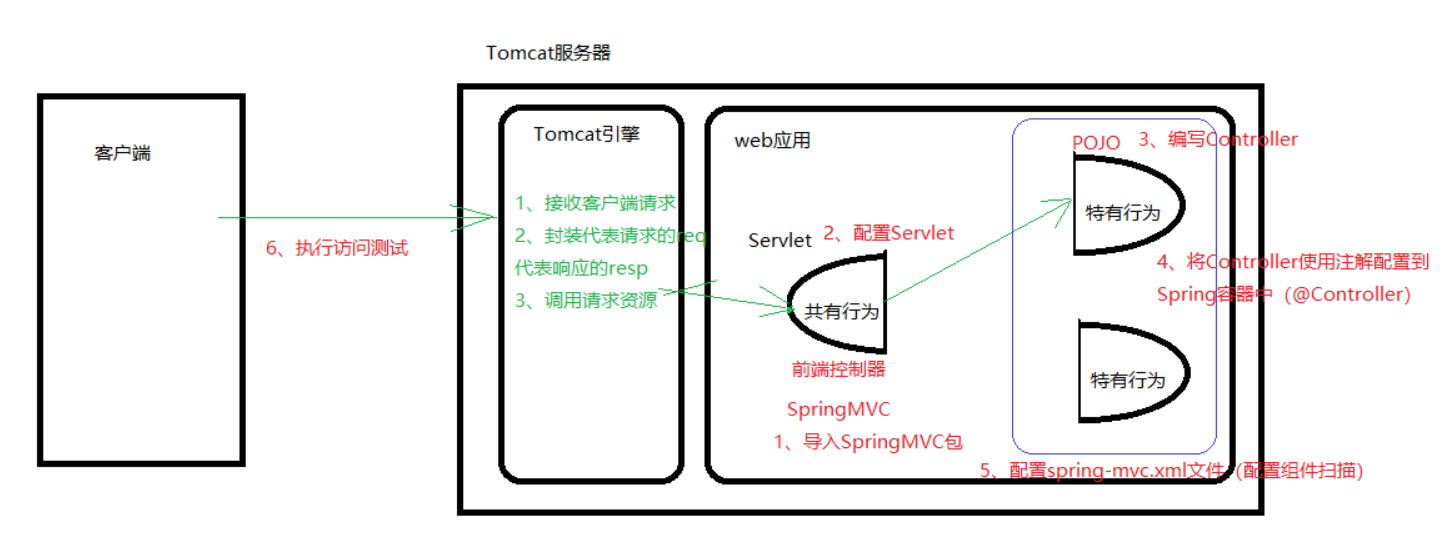

实现步骤（如上图）

代码实现

pom.xml中需要配置的依赖


<!--spring坐标-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.0.5.RELEASE</version>
        </dependency>
<!--springMVC坐标-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.0.5.RELEASE</version>
        </dependency>

<!--servlet坐标-->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.0.1</version>
            <scope>provided</scope>
        </dependency>
<!--jsp坐标-->
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>javax.servlet.jsp-api</artifactId>
            <version>2.2.1</version>
            <scope>provided</scope>
        </dependency>

web.xml


<!--配置SpringMVC的核心（前端）控制器-->
     <servlet>
         <servlet-name>DispatcherServlet</servlet-name>
         <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
         <init-param>
             <param-name>contextConfigLocation</param-name>
             <param-value>classpath:spring-mvc.xml</param-value>
         </init-param>
         <load-on-startup>1</load-on-startup>
     </servlet>
     <servlet-mapping>
         <servlet-name>DispatcherServlet</servlet-name>
         <url-pattern>/</url-pattern>  <!--配置为缺省目的是所有请求都要过前端控制器-->
     </servlet-mapping>

 1 <%--
 2   Created by IntelliJ IDEA.
 3   User: yubaby
 4   Date: 2021/7/16
 5   Time: 13:33
 6   To change this template use File | Settings | File Templates.
 7 --%>
 8 <%@ page contentType="text/html;charset=UTF-8" language="java" %>
 9 <html>
10 <head>
11     <title>创建视图页面</title>
12 </head>
13 <body>
14     <h1>success!</h1>
15 </body>
16 </html>

 1 package com.haifei.controller;
 2
 3 import org.springframework.stereotype.Controller;
 4 import org.springframework.web.bind.annotation.RequestMapping;
 5
 6 /**
 7  * SpringMVC框架中的controller包  ==  传统servlet项目中的web包
 8  * 创建Controller类和业务方法，并配置注解
 9  */
10 @Controller //注入到spring容器中
11 public class UserController {
12
13     @RequestMapping("/save") //配置请求映射地址
14     public String save(){
15         System.out.println("UserController save...");
16         return "success.jsp"; //跳转视图
17
18         /*

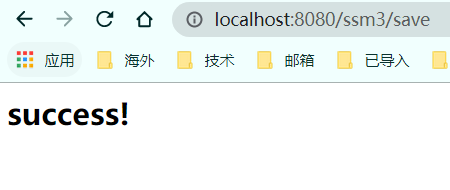

19         访问：http://localhost:8080/ssm3/save
20         页面：success!

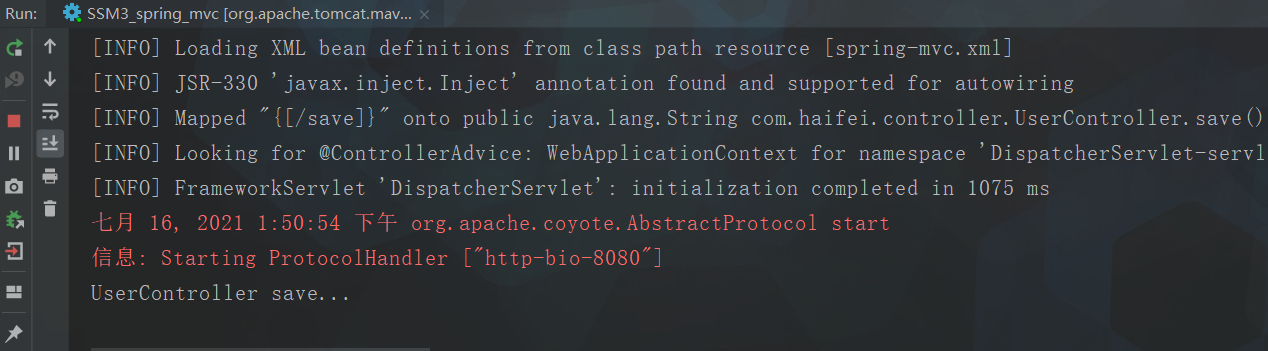

21         控制台：UserController save...
22          */
23     }
24 }

 1 spring-mvc.xml
 2
 3
 4
 5 <?xml version="1.0" encoding="UTF-8"?>
 6 <beans xmlns="http://www.springframework.org/schema/beans"
 7        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 8        xmlns:context="http://www.springframework.org/schema/context"
 9        xsi:schemaLocation="
10         http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
11         http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
12     <!--配置context命名空间及其约束-->
13
14
15
16     <!--配置Controller的组件扫描-->
17     <!--PS：之前在spring的核心配置文件applicationContext.xml中配置context:component-scan进行组件扫描，其实在此也是可以生效的；
18         但是，在结合了SpringMVC框架之后，习惯将组件扫描交给SpringMVC来做，其核心配置文件习惯上命名为spring-mvc.xml
19         分开的原则：单一职责原则-->
20     <context:component-scan base-package="com.haifei.controller" />
21     <!--此处SringMVC仅负责扫描controller层，其他层应由spring来扫，业务要区分开-->
22
23
24
25 </beans>
