多进程并发服务器

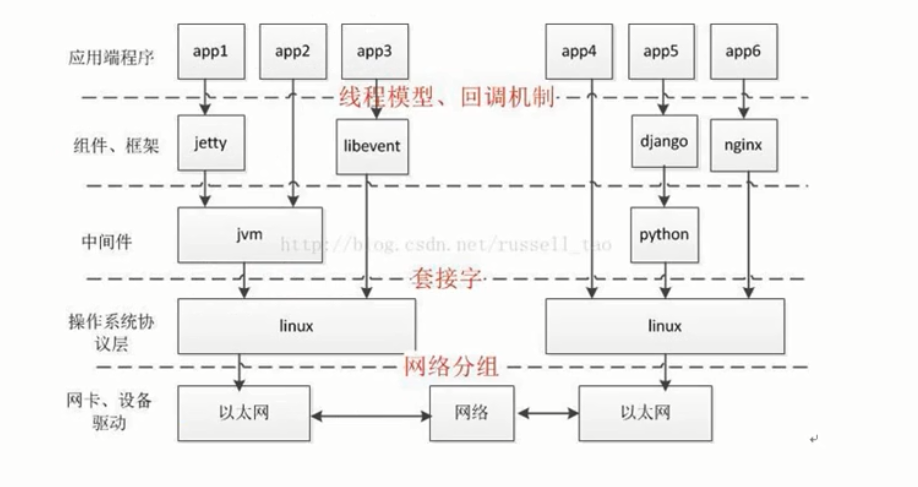

高并发服务器

多进程并发服务器

多线程并发服务器

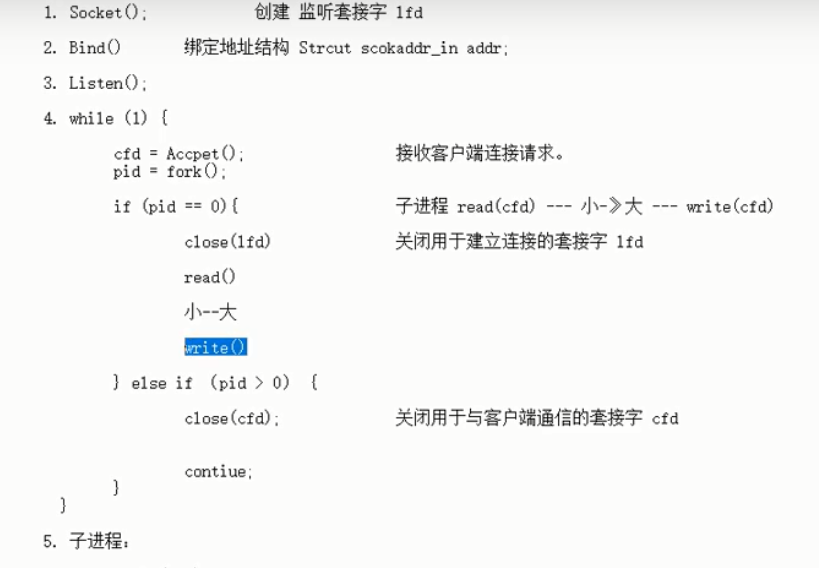

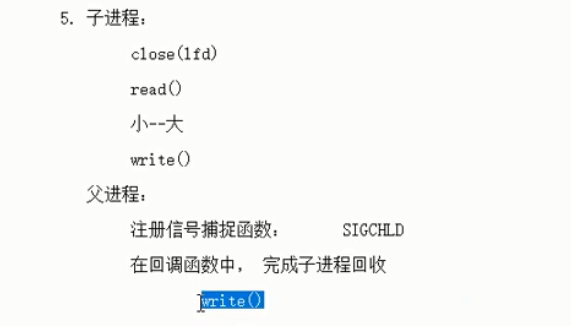

多进程并发服务器实现

server.c

#include <stdio.h>
#include <string.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <signal.h>
#include <sys/wait.h>
#include <ctype.h>
#include <unistd.h>

#include "wrap.h"

#define MAXLINE 8192
#define SERV_PORT 8000

void do_sigchild(int num)
{
    while (waitpid(0, NULL, WNOHANG) > 0); //无差别回收所有子进程
}

int main(void)
{
    struct sockaddr_in servaddr, cliaddr;
    socklen_t cliaddr_len;
    int listenfd, connfd;
    char buf[MAXLINE];
    char str[INET_ADDRSTRLEN];
    int i, n;
    pid_t pid;
    struct sigaction newact;

	/* 回收子进程的代码 */
    newact.sa_handler = do_sigchild;
    sigemptyset(&newact.sa_mask);
    newact.sa_flags = 0;
    sigaction(SIGCHLD, &newact, NULL);

    listenfd = Socket(AF_INET, SOCK_STREAM, 0);

    int opt = 1;
    setsockopt(listenfd, SOL_SOCKET, SO_REUSEADDR, &opt, sizeof(opt));

    bzero(&servaddr, sizeof(servaddr));
    servaddr.sin_family = AF_INET;
    servaddr.sin_addr.s_addr = htonl(INADDR_ANY);
    servaddr.sin_port = htons(SERV_PORT);

    Bind(listenfd, (struct sockaddr *)&servaddr, sizeof(servaddr));

    Listen(listenfd, 20);

    printf("Accepting connections ...\n");
    while (1) {
        cliaddr_len = sizeof(cliaddr);
        connfd = Accept(listenfd, (struct sockaddr *)&cliaddr, &cliaddr_len);
		//上一条语句连接成功后说明有客户端连接了，所以创建一个子进程
        pid = fork();
        if (pid == 0) {
			//子进程，首先关闭父进程监听文件描述符号，此时都是子进程的
            Close(listenfd);
			//子进程和客户端建立连接，传输数据，所以一直连接
            while (1) {
				//读取客户端数据
                n = Read(connfd, buf, MAXLINE);
                if (n == 0) {
                    printf("the other side has been closed.\n");
                    break;
                }
				//打印客户端信息
                printf("received from %s at PORT %d\n",
                        inet_ntop(AF_INET, &cliaddr.sin_addr, str, sizeof(str)),
                        ntohs(cliaddr.sin_port));

                for (i = 0; i < n; i++)
                    buf[i] = toupper(buf[i]);

                Write(STDOUT_FILENO, buf, n);
                Write(connfd, buf, n);
            }
            Close(connfd);
            return 0;
        } else if (pid > 0) {
			//父进程是监听作用，所以连接成功后要删了子进程
            Close(connfd);
        }  else
            perr_exit("fork");
    }
    return 0;
}

client.c

/* client.c */
#include <stdio.h>
#include <string.h>
#include <unistd.h>
#include <netinet/in.h>
#include <arpa/inet.h>

#include "wrap.h"

#define MAXLINE 8192
#define SERV_PORT 8000

int main(int argc, char *argv[])
{
    struct sockaddr_in servaddr;
    char buf[MAXLINE];
    int sockfd, n;

    sockfd = Socket(AF_INET, SOCK_STREAM, 0);

    bzero(&servaddr, sizeof(servaddr));
    servaddr.sin_family = AF_INET;
    inet_pton(AF_INET, "127.0.0.1", &servaddr.sin_addr);
    servaddr.sin_port = htons(SERV_PORT);

    Connect(sockfd, (struct sockaddr *)&servaddr, sizeof(servaddr));

    while (fgets(buf, MAXLINE, stdin) != NULL) {
        Write(sockfd, buf, strlen(buf));
        n = Read(sockfd, buf, MAXLINE);
        if (n == 0) {
            printf("the other side has been closed.\n");
            break;
        }
        else
            Write(STDOUT_FILENO, buf, n);
    }

    Close(sockfd);

    return 0;
}

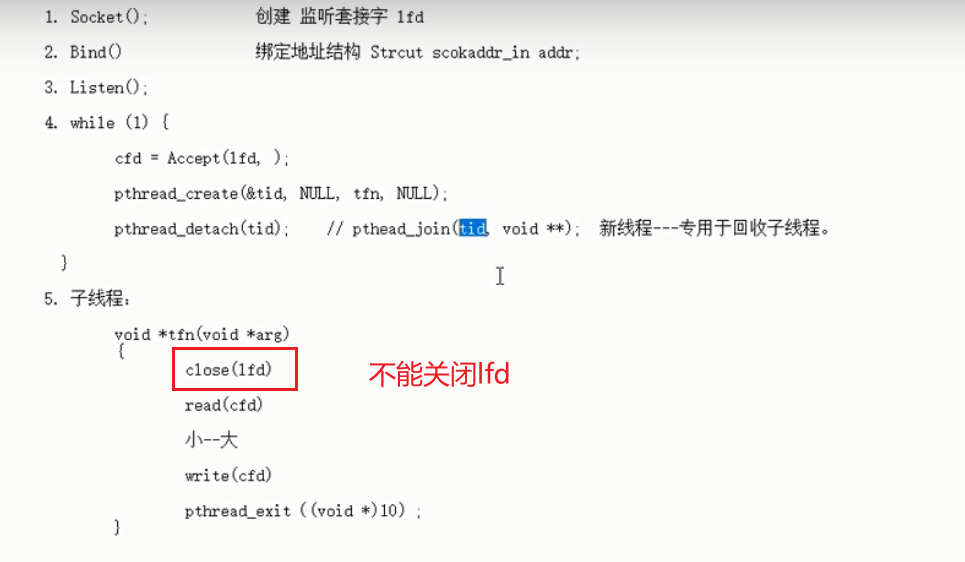

多线程并发服务器实现

server.c

#include <stdio.h>
#include <string.h>
#include <arpa/inet.h>
#include <pthread.h>
#include <ctype.h>
#include <unistd.h>
#include <fcntl.h>

#include "wrap.h"

#define MAXLINE 8192
#define SERV_PORT 8000

struct s_info {                     //定义一个结构体, 将地址结构跟cfd捆绑
    struct sockaddr_in cliaddr;
    int connfd;
};

void *do_work(void *arg)
{
    int n,i;
    struct s_info *ts = (struct s_info*)arg;
    char buf[MAXLINE];
    char str[INET_ADDRSTRLEN];      //#define INET_ADDRSTRLEN 16  可用"[+d"查看

    while (1) {
        n = Read(ts->connfd, buf, MAXLINE);                     //读客户端
        if (n == 0) {
            printf("the client %d closed...\n", ts->connfd);
            break;                                              //跳出循环,关闭cfd
        }
        printf("received from %s at PORT %d\n",
                inet_ntop(AF_INET, &(*ts).cliaddr.sin_addr, str, sizeof(str)),
                ntohs((*ts).cliaddr.sin_port));                 //打印客户端信息(IP/PORT)

        for (i = 0; i < n; i++)
            buf[i] = toupper(buf[i]);                           //小写-->大写

        Write(STDOUT_FILENO, buf, n);                           //写出至屏幕
        Write(ts->connfd, buf, n);                              //回写给客户端
    }
    Close(ts->connfd);

    return (void *)0;
}

int main(void)
{
    struct sockaddr_in servaddr, cliaddr;
    socklen_t cliaddr_len;
    int listenfd, connfd;
    pthread_t tid;
    struct s_info ts[256];      //根据最大线程数创建结构体数组.
    int i = 0;

    listenfd = Socket(AF_INET, SOCK_STREAM, 0);                     //创建一个socket, 得到lfd

    bzero(&servaddr, sizeof(servaddr));                             //地址结构清零
    servaddr.sin_family = AF_INET;
    servaddr.sin_addr.s_addr = htonl(INADDR_ANY);                   //指定本地任意IP
    servaddr.sin_port = htons(SERV_PORT);                           //指定端口号 8000

    Bind(listenfd, (struct sockaddr *)&servaddr, sizeof(servaddr)); //绑定

    Listen(listenfd, 128);      //设置同一时刻链接服务器上限数

    printf("Accepting client connect ...\n");

    while (1) {
        cliaddr_len = sizeof(cliaddr);
        connfd = Accept(listenfd, (struct sockaddr *)&cliaddr, &cliaddr_len);   //阻塞监听客户端链接请求
        ts[i].cliaddr = cliaddr;
        ts[i].connfd = connfd;

        /* 达到线程最大数时，pthread_create出错处理, 增加服务器稳定性 */
        pthread_create(&tid, NULL, do_work, (void*)&ts[i]);
        pthread_detach(tid);                                                    //子线程分离,防止僵线程产生.
        i++;
    }

    return 0;
}

client.c

/* client.c */
#include <stdio.h>
#include <string.h>
#include <unistd.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include "wrap.h"

#define MAXLINE 80
#define SERV_PORT 8000

int main(int argc, char *argv[])
{
	struct sockaddr_in servaddr;
	char buf[MAXLINE];
	int sockfd, n;

	sockfd = Socket(AF_INET, SOCK_STREAM, 0);

	bzero(&servaddr, sizeof(servaddr));
	servaddr.sin_family = AF_INET;
	inet_pton(AF_INET, "127.0.0.1", &servaddr.sin_addr.s_addr);
	servaddr.sin_port = htons(SERV_PORT);

	Connect(sockfd, (struct sockaddr *)&servaddr, sizeof(servaddr));

	while (fgets(buf, MAXLINE, stdin) != NULL) {
		Write(sockfd, buf, strlen(buf));
		n = Read(sockfd, buf, MAXLINE);
		if (n == 0)
			printf("the other side has been closed.\n");
		else
			Write(STDOUT_FILENO, buf, n);
	}

	Close(sockfd);

	return 0;
}
