Linux顶层Makefile

1.内核编译

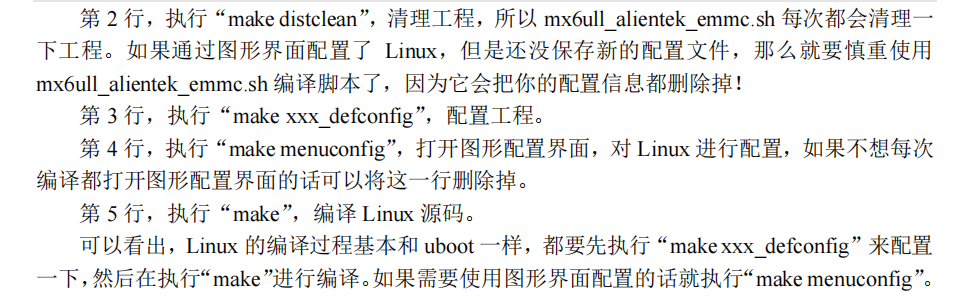

得到内核之后编写shell脚本

 #!/bin/sh
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- distclean
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- imx_v7_defconfig
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- menuconfig
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- all -j12

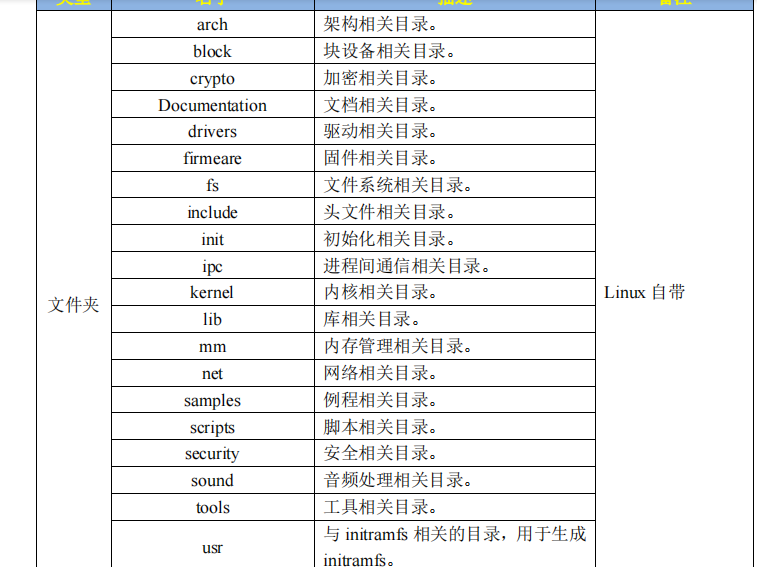

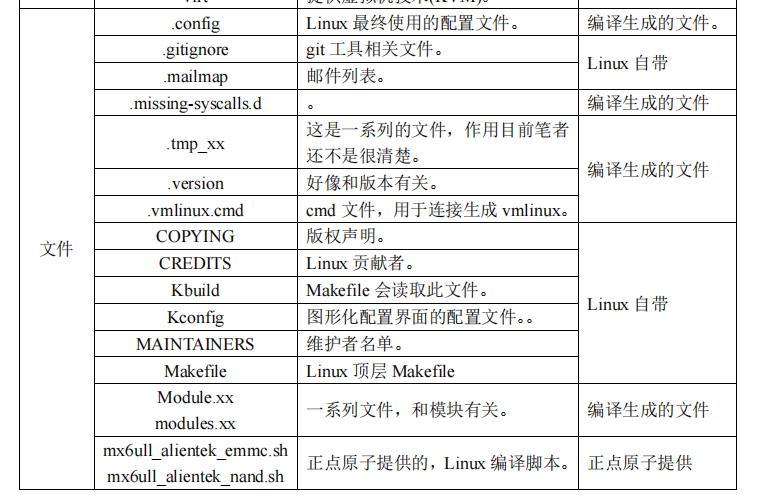

2.目录介绍

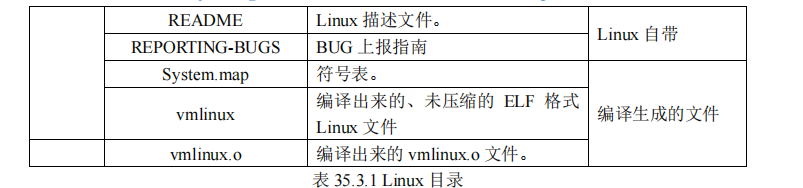

编译之后的目录为

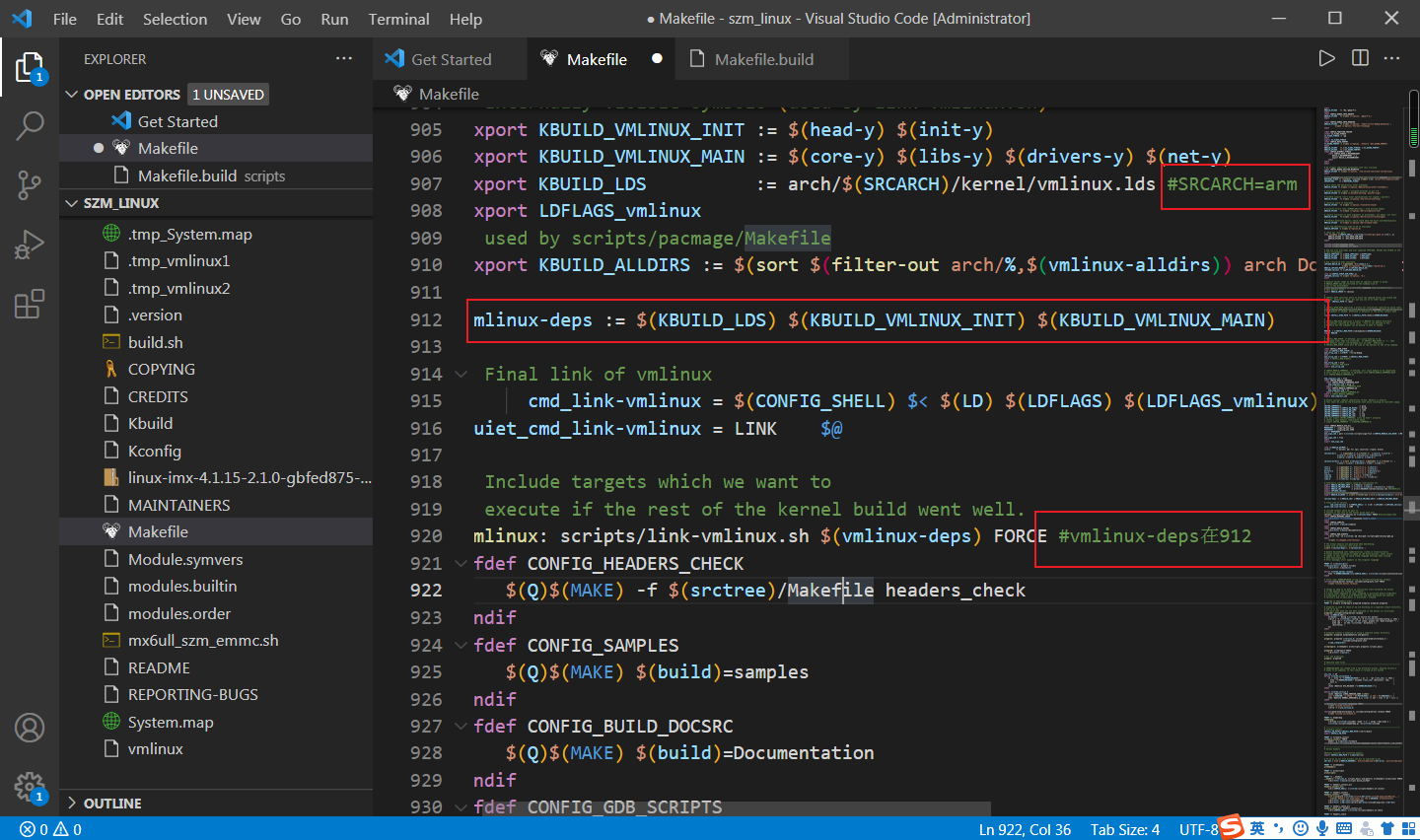

3.Makefile讲解

首先建立json排除不需要看的代码

{
     "search.exclude":
     {
        "**/node_modules": true,
        "**/bower_components": true,
        "**/*.o":true,
        "**/*.su":true,
         "**/*.cmd":true,
         "Documentation":true,
        /* 屏蔽不用的架构相关的文件 */
        "arch/alpha":true,
        "arch/arc":true,
        "arch/arm64":true,
        "arch/avr32":true,
        "arch/[b-z]*":true,
        "arch/arm/plat*":true,
        "arch/arm/mach-[a-h]*":true,
        "arch/arm/mach-[n-z]*":true,
        "arch/arm/mach-i[n-z]*":true,
        "arch/arm/mach-m[e-v]*":true,
        "arch/arm/mach-k*":true,
        "arch/arm/mach-l*":true,

        /* 屏蔽排除不用的配置文件 */
        "arch/arm/configs/[a-h]*":true,
        "arch/arm/configs/[j-z]*":true,
        "arch/arm/configs/imo*":true,
        "arch/arm/configs/in*":true,
        "arch/arm/configs/io*":true,
        "arch/arm/configs/ix*":true,

        /* 屏蔽掉不用的 DTB 文件 */
        "arch/arm/boot/dts/[a-h]*":true,
        "arch/arm/boot/dts/[k-z]*":true,
        "arch/arm/boot/dts/in*":true,
        "arch/arm/boot/dts/imx1*":true,
        "arch/arm/boot/dts/imx7*":true,
        "arch/arm/boot/dts/imx2*":true,
        "arch/arm/boot/dts/imx3*":true,
        "arch/arm/boot/dts/imx5*":true,
        "arch/arm/boot/dts/imx6d*":true,
        "arch/arm/boot/dts/imx6q*":true,
        "arch/arm/boot/dts/imx6s*":true,
        "arch/arm/boot/dts/imx6ul-*":true,
        "arch/arm/boot/dts/imx6ull-9x9*":true,
        "arch/arm/boot/dts/imx6ull-14x14-ddr*":true,
    },
    "files.exclude":
    {
        "**/.git": true,
        "**/.svn": true,
        "**/.hg": true,
        "**/CVS": true,
        "**/.DS_Store": true,
        "**/*.o":true,
        "**/*.su":true,
        "**/*.cmd":true,
        "Documentation":true,

        /* 屏蔽不用的架构相关的文件 */
        "arch/alpha":true,
        "arch/arc":true,
        "arch/arm64":true,
        "arch/avr32":true,
        "arch/[b-z]*":true,
        "arch/arm/plat*":true,
        "arch/arm/mach-[a-h]*":true,
        "arch/arm/mach-[n-z]*":true,
        "arch/arm/mach-i[n-z]*":true,
        "arch/arm/mach-m[e-v]*":true,
        "arch/arm/mach-k*":true,
        "arch/arm/mach-l*":true,

        /* 屏蔽排除不用的配置文件 */
        "arch/arm/configs/[a-h]*":true,
        "arch/arm/configs/[j-z]*":true,
        "arch/arm/configs/imo*":true,
        "arch/arm/configs/in*":true,
        "arch/arm/configs/io*":true,
        "arch/arm/configs/ix*":true,

        /* 屏蔽掉不用的 DTB 文件 */
        "arch/arm/boot/dts/[a-h]*":true,
        "arch/arm/boot/dts/[k-z]*":true,
        "arch/arm/boot/dts/in*":true,
        "arch/arm/boot/dts/imx1*":true,
        "arch/arm/boot/dts/imx7*":true,
        "arch/arm/boot/dts/imx2*":true,
        "arch/arm/boot/dts/imx3*":true,
        "arch/arm/boot/dts/imx5*":true,
        "arch/arm/boot/dts/imx6d*":true,
        "arch/arm/boot/dts/imx6q*":true,
        "arch/arm/boot/dts/imx6s*":true,
        "arch/arm/boot/dts/imx6ul-*":true,
        "arch/arm/boot/dts/imx6ull-9x9*":true,
        "arch/arm/boot/dts/imx6ull-14x14-ddr*":true,
    }
}

前面很多都是和uboot的makefile一样的

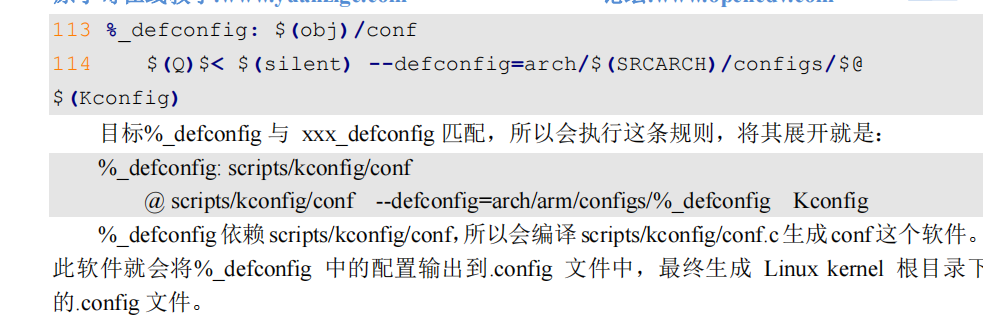

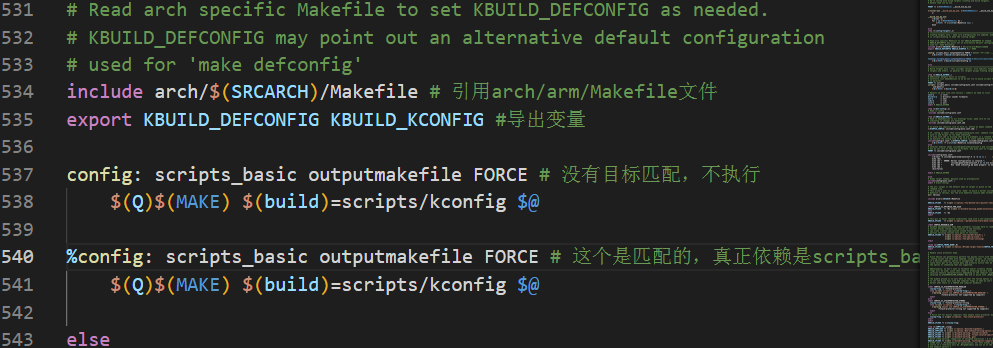

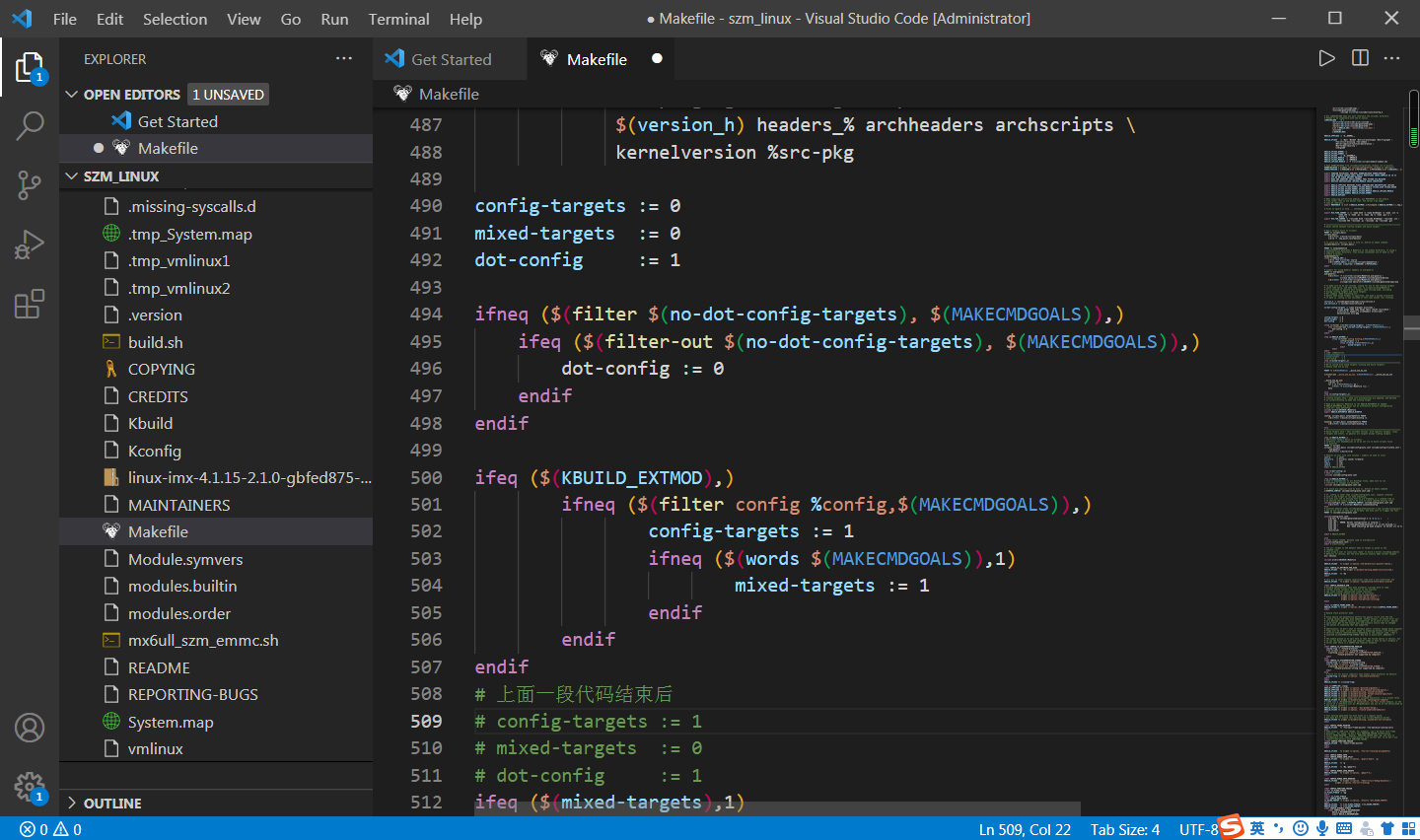

3.1 make_xxx_defconfig

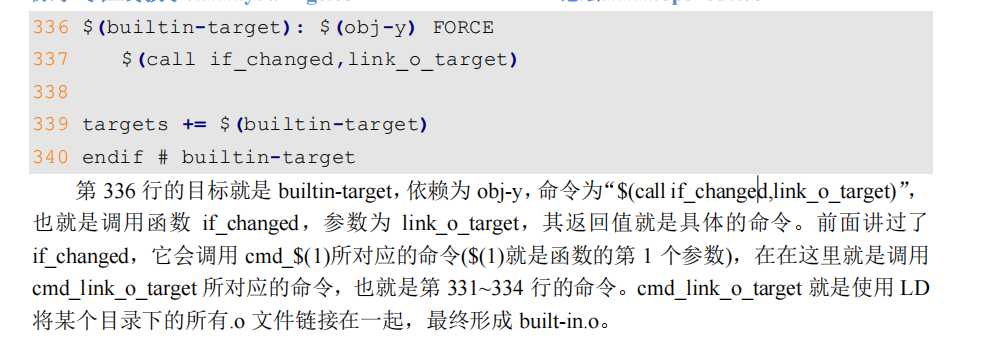

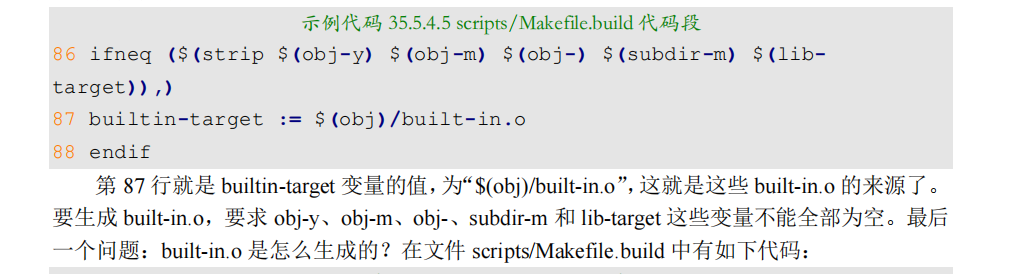

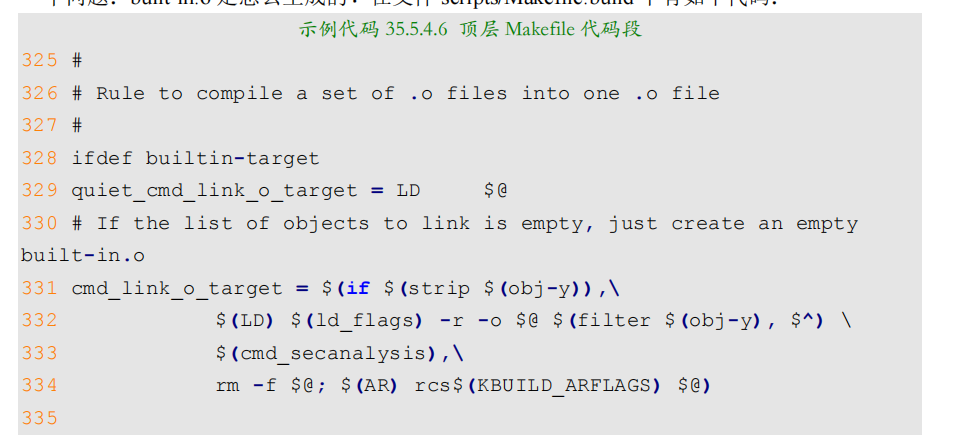

3.2 Makefile.build脚本

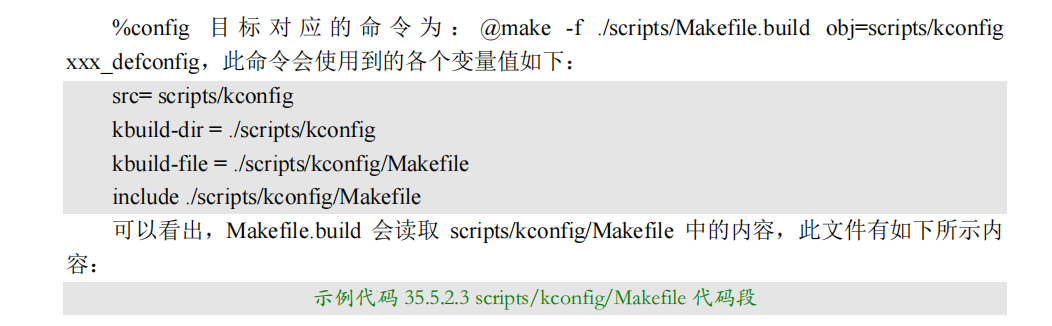

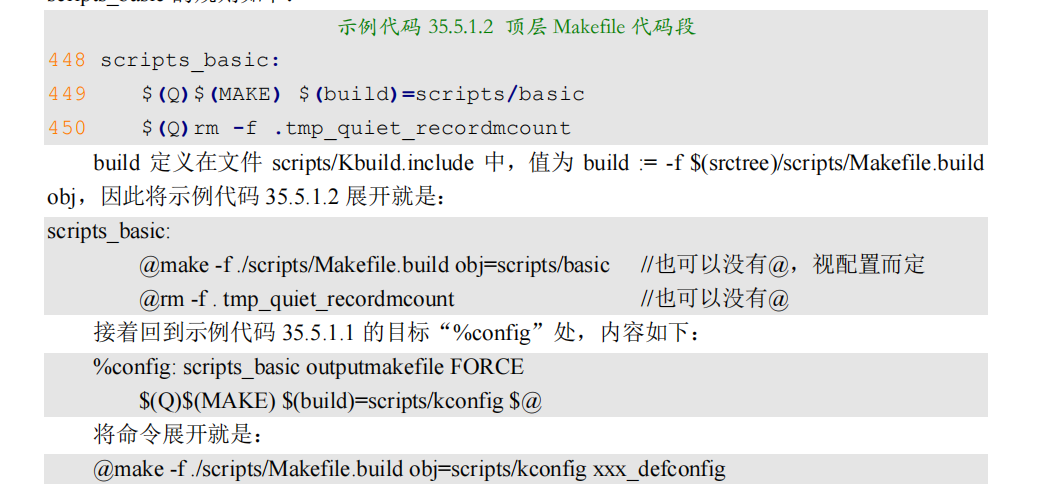

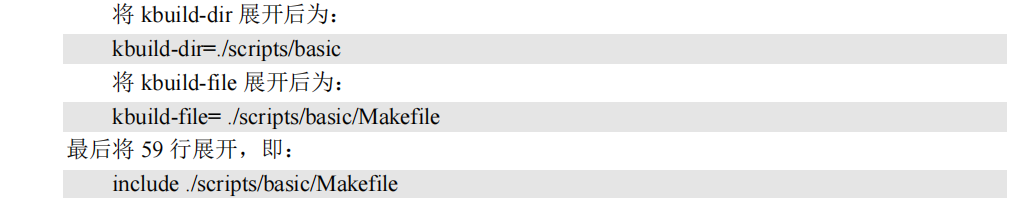

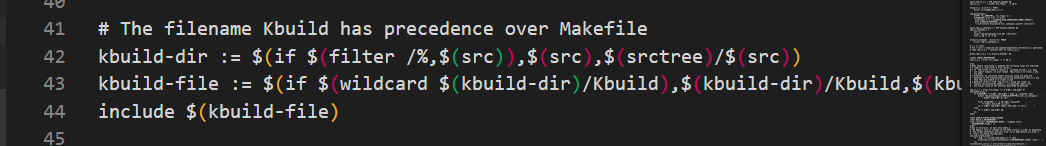

scripts_basic 目标对应的命令为：@make -f./scripts/Makefile.buildobj=scripts/basic。打开文件 scripts/Makefile.build

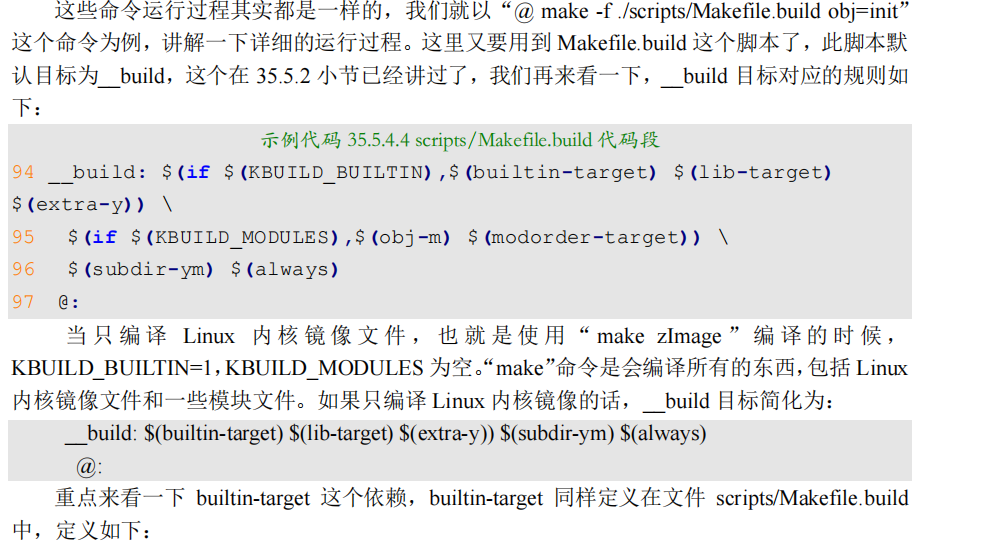

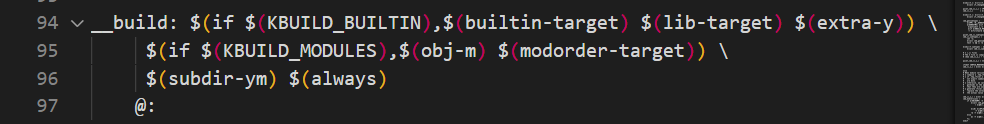

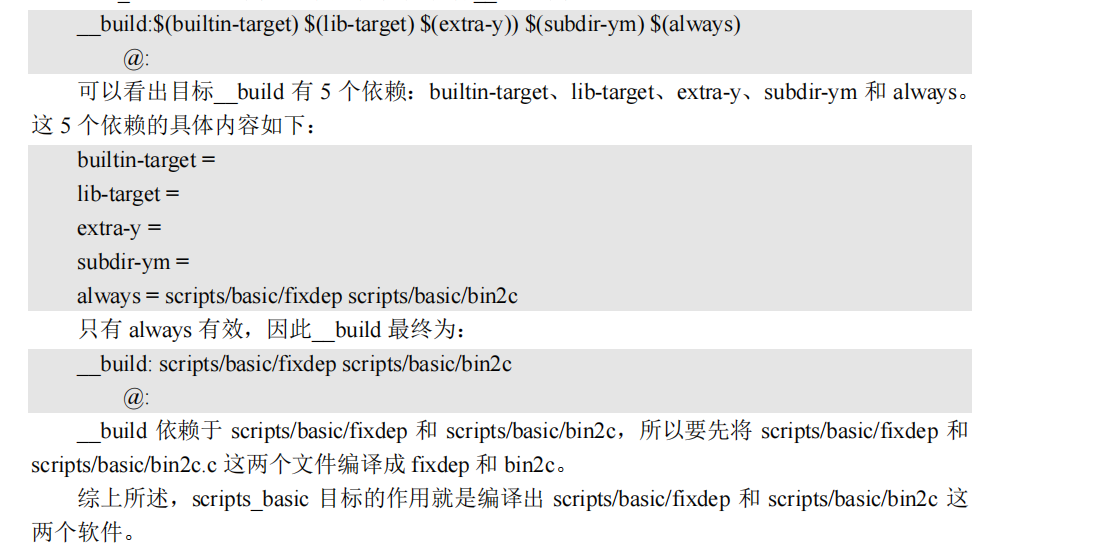

__build 是默认目标，因为命令“@make -f ./scripts/Makefile.buildobj=scripts/basic”没有指定目标，所以会使用到默认目标__build。在顶层 Makefile 中，KBUILD_BUILTIN 为 1，KBUILD_MODULES 为空，因此展开后目标__build 为
