VRF_DHCP-Relay

DHCP Relay实验
关键知识点
- 指了路由并不意味着通
- DCHP 报文能穿越
复习：传统的DHCP

DHCP Relay实验

拓扑

说明
- 在CE1上创建一个VN：TEST
- 将vlanif10和vlanif20加入到当中
- CE上要使用VRF与旁挂的DHCP SERVER对接

第一步：Underlay的配置

# LSW1
sys
sysn LSW1
vlan batch 10 20
int g0/0/1
	port link-type access
	port default vlan 10
int g0/0/2
	port link-type access
	port default vlan 20
int g0/0/3
	port link-type trunk
	port trunk all vlan 10 20

# CE1
sys i
sysn CE1
vlan batch 10 20
ip vpn-instance test
	route-dist 1:1
ip vpn-instance dhcp_server
	route-dist 2:2
int vlan 10
	ip binding vpn-instance test
	ip add 192.168.10.1 24
int vlan 20
	ip binding vpn-instance test
	ip add 192.168.20.1 24
int g1/0/0
	undo shutdown
	port link-ty trunk
	port trunk all vlan 10 20
	quit
int g1/0/1
	undo shutdown
	undo portsw
	ip binding vpn-instance dhcp_server
	ip add 10.0.12.1 24
	quit

第二步：DHCP相关配置

# DHCP SERVER的基础配置
sys
sys dhcp-server
dhcp enable
int g0/0/0
	ip add 10.0.12.2 24
	dhcp select global
	quit

# DHCP SERVER的配置
ip pool vlan_10
	network 192.168.10.0 mask 24
	gateway-list 192.168.10.1
ip pool vlan_20
	network 192.168.20.0 mask 24
	gateway-list 192.168.20.1

# CE1
dhcp enable
int vlan 10
	 dhcp select relay
 	 dhcp relay binding server ip 10.0.12.2 vpn-instance dhcp_server
int vlan 20
	 dhcp select relay
 	 dhcp relay binding server ip 10.0.12.2 vpn-instance dhcp_server

第三步：VRF互通路由

# CE1上test实例去往dhcp_server的路由
ip route-static vpn-instance test 10.0.12.2 32 vpn-instance dhcp_server

# CE1上dhcp_server回复实例test的路由
ip route-static vpn-instance dhcp_server 192.168.10.0 24 vpn-instance test
ip route-static vpn-instance dhcp_server 192.168.20.0 24 vpn-instance test

# DHCP_server的回包路由
ip route-static 192.168.10.0 24 10.0.12.1
ip route-static 192.168.20.0 24 10.0.12.1

第四步：验证

# PC1
dhcp enable
interface GigabitEthernet0/0/0
 ip address dhcp-alloc

# PC2
dhcp enable
interface GigabitEthernet0/0/0
 ip address dhcp-alloc

PC1]dis ip int bri
Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              192.168.10.253/24    up         up
GigabitEthernet0/0/1              unassigned           down       down
GigabitEthernet0/0/2              unassigned           down       down
NULL0                             unassigned           up         up(s)
[PC1]ping 192.168.20.253
  Reply from 192.168.20.253: bytes=56 Sequence=1 ttl=254 time=110 ms

关键知识点

指了路由并不意味着通

做完业务VN与DHCP_SERVER VRF的相互指完路由之后就意味着业务内的主机可以与dhcp_server主机通信吗？

不是这样的，如下所示：

[CE1]dis ip routing-table vpn-instance test

Destination/Mask    Proto   Pre  Cost        Flags NextHop         Interface
      **10.0.12.2/32  Static  60   0             DT  0.0.0.0         dhcp_server**
   192.168.10.0/24  Direct  0    0             D   192.168.10.1    Vlanif10
   192.168.10.1/32  Direct  0    0             D   127.0.0.1       Vlanif10
 192.168.10.255/32  Direct  0    0             D   127.0.0.1       Vlanif10
   192.168.20.0/24  Direct  0    0             D   192.168.20.1    Vlanif20
   192.168.20.1/32  Direct  0    0             D   127.0.0.1       Vlanif20
 192.168.20.255/32  Direct  0    0             D   127.0.0.1       Vlanif20
255.255.255.255/32  Direct  0    0             D   127.0.0.1       InLoopBack0

[CE1]ping -vpn-instance test -a 192.168.10.1 10.0.12.2
  PING 10.0.12.2: 56  data bytes, press CTRL_C to break
    Request time out
    Request time out
    Request time out
    Request time out
    Request time out

即使三层实例当中拥有10.0.12.2（dhcp_server）的路由，但是test实例内的主机依然是无法ping通dhcp_server主机的。

DCHP 报文能穿越

test实例当中的dhcp报文是如何穿越的呢？

以下是从dhcp-server主机上抓的包

其实看一下报文就能知道CE1内部的VRF之间到底是如何通信的了！我们来梳理一下

终端主机开机，向外发送dhcp_discover广播报文，被所属网关探测到
由于所属在vlanif-10接口上开启了dhcp中继，中继给了10.0.12.2这台dhcp_server主机，这个时候其实就已经将报文从广播改成了单播，目的地址就是dhcp服务器的地址10.0.12.2，源IP地址是vlanif-10网关的地址192.168.10.1
于是，从vlan10所属的test实例当中查找路由表，发现去往10.0.12.2的路由要交给dhcp_server这台实例
```
[CE1]dis ip routing-table vpn-instance test
 10.0.12.2/32  Static  60   0             DT  0.0.0.0         dhcp_server
```
dhcp_discover报文被CE1交换机通过内部通信机制交给了dhcp_server实例，dhcp_server也去查找路由表，发现报文的10.0.12.2是自己的直连网段，于是将dhcp_discover报文重新封装成单播报文，目的地址不变，但源地址会改成自己的直连接口地址10.0.12.1，将原本的源IP地址192.168.10.1隐藏到报文当中，如下所示：
dhcp_discover的报文顺利到达dhcp服务器，服务器通过判断源IP地址找到地址池，通过dhcp_offer报文向着报文当中隐藏的192.168.10.1回复一个地址，报文根据路由交给CE1上的dhcp_server VRF，VRF再根据路由转发到test实例当中，这个地方当然也会涉及到地址转换，下图是从CE1的下行接口当中抓到的，如下所示：

回复报文的的源和IP地址都都转换了！

总结：

搞这种穿越VRF之间的dhcp中继，我们会发现报文地址会经过多次转换，许多机制是VRF内部完成的，咱们只能看到现象而不到具体的处理机制。

复习：传统的DHCP

接口DHCP
```
# AR4的配置
sys
sysn AR4
dhcp enable
int g0/0/0
	ip add 192.168.10.1 24
	dhcp select interface
```
```
# PC6
dhcp enable
interface GigabitEthernet0/0/0
 ip address dhcp-alloc
```
全局DHCP
```
# AR4
sys
SYSN AR4
dhcp enable
ip pool test_pool
	network 192.168.10.0 mask 24
	gateway-list 192.168.10.1
int g0/0/0
	ip add 192.168.10.1 24
	dhcp select global

```
```
# PC6
dhcp enable
interface GigabitEthernet0/0/0
 ip address dhcp-alloc
```
DHCP 中继

```html
# AR5的配置
sys
sysn AR5_dhcp_server
dhcp enable
ip pool test_pool
	network 192.168.10.0 mask 24
	gateway-list 192.168.10.1
int g0/0/0
	ip add 10.0.45.5 24
	dhcp select global
ip route-static 192.168.10.0 24 10.0.45.4
```

```html
# AR4的配置
sys
sysn AR4
dhcp enable
int g0/0/1
	ip add 10.0.45.4 24
int g0/0/0
	ip add 192.168.10.1 24
	dhcp select relay
	dhcp relay server-ip 10.0.45.5
```

```html
# PC6
sys
dhcp enable
interface GigabitEthernet0/0/0
 ip address dhcp-alloc

[PC6]dis ip int bri
Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              192.168.10.254/24    up         up
```

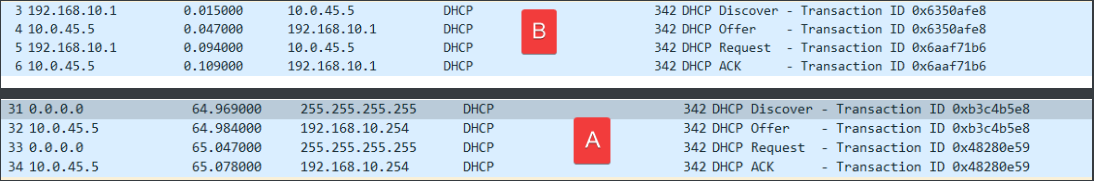

![image-20230627103403259](https://img2023.cnblogs.com/blog/1703421/202306/1703421-20230627103612805-1109407274.png)



我们可以来梳理一下这种传统方式的的dhcp中继了，如下所示：

1. 终端广播
2. 网关将广播dhcp发现报文重新封装源192.168.10.1 目标10.0.45.5，发送给10.0.45.5 dhcp服务器
3. dhcp服务器回包，回包源IP是10.0.45.5，目标是192.168.10.1
4. 网关192.168.10.1收到回包之后，源IP不变，目的地方改成目标终端主机

总结：传统方式的DHCP中继比在VRF当中做dhcp要简单多了
