实验4：抽象工厂模式

本次实验属于模仿型实验，通过本次实验学生将掌握以下内容：

1、理解抽象工厂模式的动机，掌握该模式的结构；

2、能够利用抽象工厂模式解决实际问题。



[实验任务一]：人与肤色

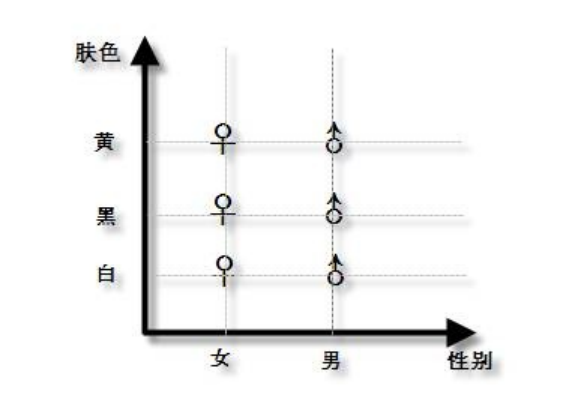

使用抽象工厂模式，完成下述产品等级结构：









实验要求：

1. 画出对应的类图；







2. 提交源代码；

package test4;

/*

 * 抽象产品类Man

 */

public interface Man {



    public void makeM();



}



package test4;



public class WhiteMan implements Man {

    public void makeM() {

        System.out.println("我是白种男人！");

    }



}



package test4;



public class YellowMan implements Man {

    public void makeM() {

        System.out.println("我是黄种男人！");

    }



}



package test4;



public class BlackMan implements Man {

    @Override

    public void makeM() {

        System.out.println("我是黑种男人！");

    }



}



package test4;

/*

 * 抽象产品类Woman

 */

public interface Woman {



    public void makeW();

}



package test4;



public class WhiteWoman implements Woman {

    @Override

    public void makeW() {

        System.out.println("我是白种女人！");

    }



}



package test4;



public class YellowWoman implements Woman {

    public void makeW() {

        System.out.println("我是黄种女人！");

    }



}



package test4;



public class BlackWoman implements Woman {

    @Override

    public void makeW() {

        System.out.println("我是黑种女人！");

    }



}

package test4;

/*

 * 抽象工厂类 （肤色）

 */

public interface Color {



 public Man produceMan();

 public Woman produceWoman();



}



package test4;

/*

 * 具体工厂类 白色肤色

 */

public class White implements Color{

    @Override

    public Man produceMan() {

        return new WhiteMan();

    }

    @Override

    public Woman produceWoman() {

        return new WhiteWoman();

    }

}



package test4;

/*

 * 具体工厂类 黄色肤色

 */

public class Yellow implements Color{

    @Override

    public Man produceMan() {

        return new YellowMan();

    }

    @Override

    public Woman produceWoman() {

        return new YellowWoman();

    }

}



package test4;

/*

 * 具体工厂类 黑色肤色

 */

public class Black implements Color{

    @Override

    public Man produceMan() {

        return new BlackMan();

    }

    @Override

    public Woman produceWoman() {

        return new BlackWoman();

    }

}



package test4;

/*

 * 读取XML文件并根据存储在XML文件中的类名获取对应的对象

 */



 import javax.xml.parsers.*;

 import org.w3c.dom.*;

 import java.io.File;

 public class XMLUtil {

     @SuppressWarnings("deprecation")

    public static Object getBean() {

         try {

                 //创建DOM文档对象

                 DocumentBuilderFactory dFactory = DocumentBuilderFactory.newInstance();

                 DocumentBuilder builder = dFactory.newDocumentBuilder();

                 Document doc;

                 doc = builder.parse(new File("config.xml"));



                 //获取包含类名的文本节点

                 NodeList nl = doc.getElementsByTagName("className");

                 Node classNode = nl.item(0).getFirstChild();

                 String cName = classNode.getNodeValue();

                 System.out.println("类名:  "+ cName); //输出类名



                 //通过类名生成实例对象返回

                 Class c = Class.forName(cName);

                 Object obj = c.newInstance();

                 return obj;

         } catch (Exception e) {

             e.printStackTrace();

             return null;

         }

     }

 }



package test4;

/*

 * 客户端测试类

 */

public class Client {

    public static void main(String[] args) {

        try

        {

            Color color;

            Man man;

            Woman woman;

            color=(Color)XMLUtil.getBean();

            System.out.println(color);

            woman=color.produceWoman();

            woman.makeW();

            man=color.produceMan();

            man.makeM();

       }catch(Exception e){

           System.out.print(e.getMessage());

       }



   }

}



3.注意编程规范。
