Spring MVC+Maven+Freemarker+Mybatis开发环境搭建

版权声明：本文为博主原创文章，未经博主允许不得转载。



目录(?)[-]

1. 创建一个Spring MVC项目
2. 集成Freemarker
3. 集成Mybatis
4. Mybatis自动生成工具



利用STS（Spring Tool Suite）开发工具可以很方便的创建一个基于Maven的Spring MVC工程项目。然后再分别集成Freemarker以及Mybatis。
STS官网下载地址：点此下载Spring Tool Suite 运行STS后，
设置下工作空间的默认编码方式为UTF-8，Window->Preferences->General->Workspace。
配置下JRE，选择你自己安装的JDK（如1.8的版本），Window->Preferences->Java->Installed JREs 。
配置Maven本地仓库位置，默认是C盘路径,Window->Preferences->Maven->User Settings,可以自己安装个Maven，若嫌麻烦则默认用STS自带的即可不用配置。

1.创建一个Spring MVC项目

File->New->Spring Legacy Project,弹出向导后输入项目名称并选择Spring MVC Project，然后Next,

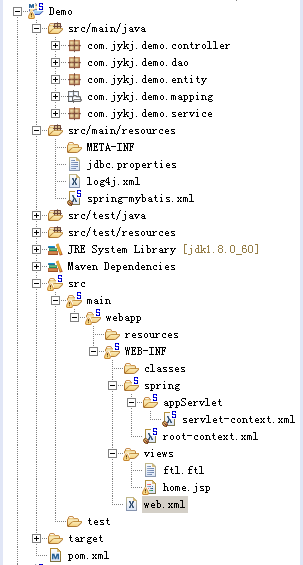

输入包名，Finish。第一次创建会提示下载模板文件，点下载即可，创建好的工程目录如下：

运行项目Run as -> Run on Server ,可以用Tomcat 作为服务器，自己自行配置。如果项目有错误，请检查Build Path 以及pom.xml中的jar包是否在maven本地仓库中下载好了。
运行成功后，会打印出Hello world 以及服务器的时间，时间若是乱码，在jsp中 加上charset=utf-8即可。

2.集成Freemarker

表现层技术主要有三种：jsp、freemarker、velocity。
其实集成Freemarker是可选的，jsp就很好了。三者优缺点都有，看个人喜好吧。
1）在pom.xml中添加Freemarker 依赖：

        <!-- freemarker 依赖于 spring-context-support-->
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.23</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
        </dependency>

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10

2）找到servlet-context.xml，添加Freemarker的配置
为了看起来更简洁，beans和mvc的命名空间前缀调换了下，自己可以对照着更改。
文件在最后列出来了，在此不重复列出

Freemarker配置中的视图后缀可以是任意的，默认的是.ftl .
如果要配置多个视图解析器，如同时配置jsp和Freemarker，那么Freemarker的优先级要设置的比jsp的高，通过order来设置。
很简单，就这两步，配置完后，运行成功则表示Freemarker配置成功。

3.集成Mybatis

实体映射框架可能会选择Hibernate，个人觉得Hibernate难学点，特别是那些对应关系。而Mybatis是半自动映射框架，灵活性高，学起来也简单。
1）依赖jar

 <!-- mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.2.6</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.2.2</version>
        </dependency>
        <!-- microsoft jdbc -->
        <dependency>
            <groupId>net.sourceforge.jtds</groupId>
            <artifactId>jtds</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- 事务 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>${org.aspectj-version}</version>
        </dependency>
        <!-- 导入dbcp的jar包 -->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.4</version>
        </dependency>

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34
• 35
• 36
• 37

驱动是Sqlserver的，自己可以替换成其他的
2）jdbc.properties

hibernate.dialect=org.hibernate.dialect.SQLServerDialect
driverClassName=net.sourceforge.jtds.jdbc.Driver
validationQuery=SELECT 1
jdbc_url=jdbc:jtds:sqlserver://127.0.0.1:1433/PTMPDB
jdbc_password=12345
jdbc_username=part_user

• 1
• 2
• 3
• 4
• 5
• 6

3）spring-mybatis.xml
文件在后面列举出来了，在此不重复列举

4）最后别忘了将spring-mytabis.xml 让spring容器加载进去，在web.xml中加入：

<context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/spring/root-context.xml,classpath:spring-mybatis.xml</param-value>
    </context-param>

• 1
• 2
• 3
• 4

至此配置已经完成了，最后还得测试下是否集成成功。

4.Mybatis自动生成工具

可以根据数据库表自动生成dao、mapping、entity。Mybatis实体映射自动生成工具下载
运行项目，看是否能成功连接数据库并且能查出数据以验证是否配置成功。

1)pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.jykj</groupId>
    <artifactId>demo</artifactId>
    <name>Demo</name>
    <packaging>war</packaging>
    <version>1.0.0-BUILD-SNAPSHOT</version>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java-version>1.6</java-version>
        <org.springframework-version>4.1.2.RELEASE</org.springframework-version>
        <org.aspectj-version>1.6.10</org.aspectj-version>
        <org.slf4j-version>1.6.6</org.slf4j-version>
    </properties>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-framework-bom</artifactId>
                <version>${org.springframework-version}</version>

                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <dependencies>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <exclusions>
                <!-- Exclude Commons Logging in favor of SLF4j -->
                <exclusion>
                    <groupId>commons-logging</groupId>
                    <artifactId>commons-logging</artifactId>
                 </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <!-- AspectJ -->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjrt</artifactId>
            <version>${org.aspectj-version}</version>
        </dependency>

        <!-- Logging -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>${org.slf4j-version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>jcl-over-slf4j</artifactId>
            <version>${org.slf4j-version}</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>${org.slf4j-version}</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.15</version>
            <exclusions>
                <exclusion>
                    <groupId>javax.mail</groupId>
                    <artifactId>mail</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>javax.jms</groupId>
                    <artifactId>jms</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>com.sun.jdmk</groupId>
                    <artifactId>jmxtools</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>com.sun.jmx</groupId>
                    <artifactId>jmxri</artifactId>
                </exclusion>
            </exclusions>
            <scope>runtime</scope>
        </dependency>

        <!-- @Inject -->
        <dependency>
            <groupId>javax.inject</groupId>
            <artifactId>javax.inject</artifactId>
            <version>1</version>
        </dependency>

        <!-- Servlet -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <!-- Test -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.7</version>
            <scope>test</scope>
        </dependency>
        <!-- freemarker 依赖于 spring-context-support-->
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.23</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
        </dependency>
         <!-- mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.2.6</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.2.2</version>
        </dependency>
        <!-- microsoft jdbc -->
        <dependency>
            <groupId>net.sourceforge.jtds</groupId>
            <artifactId>jtds</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- 事务 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>${org.aspectj-version}</version>
        </dependency>
        <!-- 导入dbcp的jar包 -->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.4</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-eclipse-plugin</artifactId>
                <version>2.9</version>
                <configuration>
                    <additionalProjectnatures>
                        <projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
                    </additionalProjectnatures>
                    <additionalBuildcommands>
                        <buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
                    </additionalBuildcommands>
                    <downloadSources>true</downloadSources>
                    <downloadJavadocs>true</downloadJavadocs>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.5.1</version>
                <configuration>
                    <source>1.6</source>
                    <target>1.6</target>
                    <compilerArgument>-Xlint:all</compilerArgument>
                    <showWarnings>true</showWarnings>
                    <showDeprecation>true</showDeprecation>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <version>1.2.1</version>
                <configuration>
                    <mainClass>org.test.int1.Main</mainClass>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>
