06 使用bbed提交delete的数据--01

使用bbed模拟delete提交操作

--session 1

TEST@ orcl >create table tt(id int,name varchar2(100));
Table created.
TEST@ orcl >insert into tt values(1,'AAAAA');
1 row created.
TEST@ orcl > insert into tt values(2,'BBBBB');
1 row created.
TEST@ orcl >insert into tt values(3,'CCCCC');
1 row created.
TEST@ orcl >COMMIT;
Commit complete.
TEST@ orcl > alter system flush buffer_cache;
System altered.
TEST@ orcl > select rowid,id,name,DBMS_ROWID.ROWID_RELATIVE_FNO(rowid) file#,DBMS_ROWID.ROWID_BLOCK_NUMBER(rowid) block# from test.tt;
ROWID               ID NAME            FILE#      BLOCK#
------------------ ---------- -------------------- ---------- ----------
AAAVW0AAFAAAAi3AAA        1 AAAAA                5        2231
AAAVW0AAFAAAAi3AAB        2 BBBBB                5        2231
AAAVW0AAFAAAAi3AAC        3 CCCCC                5        2231
TEST@ orcl >alter system checkpoint;
System altered.
TEST@ orcl > alter system dump datafile 5 block 2231;
System altered.
TEST@ orcl >select * from v$diag_info where name='Default Trace File';
   INST_ID NAME         VALUE
---------- -------------------- --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
     1 Default Trace File    /u01/app/oracle/diag/rdbms/orcl/orcl/trace/orcl_ora_18408.trc

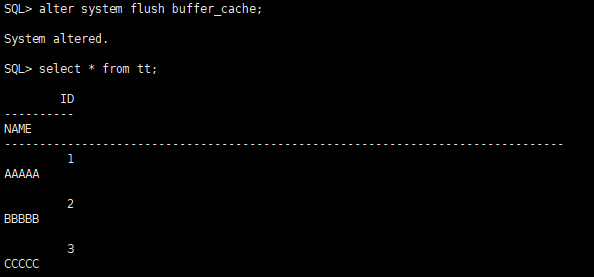

TEST@ orcl >select * from tt;
    ID NAME
---------- --------------------
     1 AAAAA
     2 BBBBB
     3 CCCCC

dump的结果

--session 1执行删除操作

TEST@ orcl >delete from tt where name='AAAAA';
1 row deleted.
TEST@ orcl > select * from tt;
    ID NAME
---------- --------------------
     2 BBBBB
     3 CCCCC

--session2执行操作

SQL> alter system checkpoint;
System altered.
SQL> alter system flush buffer_cache;
System altered.
SQL> alter system flush shared_pool;
System altered.
SQL> alter system dump datafile 5 block 2231;
System altered.
SQL> select * from v$diag_info where name='Default Trace File';
   INST_ID NAME
---------- ----------------------------------------------------------------
VALUE
--------------------------------------------------------------------------------
     1 Default Trace File
/u01/app/oracle/diag/rdbms/orcl/orcl/trace/orcl_ora_22529.trc
SQL> alter system dump datafile 5 block 2231;
System altered.
SQL> select * from v$diag_info where name='Default Trace File';
   INST_ID NAME
---------- ----------------------------------------------------------------
VALUE
--------------------------------------------------------------------------------
     1 Default Trace File
/u01/app/oracle/diag/rdbms/orcl/orcl/trace/orcl_ora_22529.trc

dump结果

--session 3 bbed会话

BBED>  set file 5 block 2231
    FILE#              5
    BLOCK#             2231
BBED> p ktbbh
struct ktbbh, 72 bytes                      @20
   ub1 ktbbhtyp                             @20       0x01 (KDDBTDATA)
   union ktbbhsid, 4 bytes                  @24
      ub4 ktbbhsg1                          @24       0x000155b4
      ub4 ktbbhod1                          @24       0x000155b4
   struct ktbbhcsc, 8 bytes                 @28
      ub4 kscnbas                           @28       0x0092cb9b
      ub2 kscnwrp                           @32       0x0000
   sb2 ktbbhict                             @36       2
   ub1 ktbbhflg                             @38       0x32 (NONE)
   ub1 ktbbhfsl                             @39       0x00
   ub4 ktbbhfnx                             @40       0x014008b0
   struct ktbbhitl[0], 24 bytes             @44
      struct ktbitxid, 8 bytes              @44
         ub2 kxidusn                        @44       0x000a
         ub2 kxidslt                        @46       0x000b
         ub4 kxidsqn                        @48       0x00004456
      struct ktbituba, 8 bytes              @52
         ub4 kubadba                        @52       0x00c002d8
         ub2 kubaseq                        @56       0x0175
         ub1 kubarec                        @58       0x08
      ub2 ktbitflg                          @60       0x8000 (KTBFCOM)
      union _ktbitun, 2 bytes               @62
         sb2 _ktbitfsc                      @62       0
         ub2 _ktbitwrp                      @62       0x0000
      ub4 ktbitbas                          @64       0x0092cb3d
   struct ktbbhitl[1], 24 bytes             @68
      struct ktbitxid, 8 bytes              @68
         ub2 kxidusn                        @68       0x0008
         ub2 kxidslt                        @70       0x0011
         ub4 kxidsqn                        @72       0x000078b4
      struct ktbituba, 8 bytes              @76
         ub4 kubadba                        @76       0x00c00397
         ub2 kubaseq                        @80       0x017e
         ub1 kubarec                        @82       0x1d
      ub2 ktbitflg                          @84       0x0001 (NONE)
      union _ktbitun, 2 bytes               @86
         sb2 _ktbitfsc                      @86       10
         ub2 _ktbitwrp                      @86       0x000a
      ub4 ktbitbas                          @88       0x00000000

bbed执行修改

BBED> m /x 0080 offset 84
Warning: contents of previous BIFILE will be lost. Proceed? (Y/N) y
 File: /u01/app/oracle/oradata/orcl/test01.dbf (5)
 Block: 2231             Offsets:   84 to  595           Dba:0x014008b7
------------------------------------------------------------------------
 00800a00 00000000 00000000 00000000 00010300 ffff1800 741f5c1f 681f0000
 03008c1f 801f741f c21db41e 770b6e0c 480d240e 1d0f2510 21110312 1513f013 <32 bytes per line>
BBED> sum apply
Check value for File 5, Block 2231:
current = 0x1761, required = 0x1761

再次查看

BBED> p ktbbh
struct ktbbh, 72 bytes                      @20
   ub1 ktbbhtyp                             @20       0x01 (KDDBTDATA)
   union ktbbhsid, 4 bytes                  @24
      ub4 ktbbhsg1                          @24       0x000155b4
      ub4 ktbbhod1                          @24       0x000155b4
   struct ktbbhcsc, 8 bytes                 @28
      ub4 kscnbas                           @28       0x0092cb9b
      ub2 kscnwrp                           @32       0x0000
   sb2 ktbbhict                             @36       2
   ub1 ktbbhflg                             @38       0x32 (NONE)
   ub1 ktbbhfsl                             @39       0x00
   ub4 ktbbhfnx                             @40       0x014008b0
   struct ktbbhitl[0], 24 bytes             @44
      struct ktbitxid, 8 bytes              @44
         ub2 kxidusn                        @44       0x000a
         ub2 kxidslt                        @46       0x000b
         ub4 kxidsqn                        @48       0x00004456
      struct ktbituba, 8 bytes              @52
         ub4 kubadba                        @52       0x00c002d8
         ub2 kubaseq                        @56       0x0175
         ub1 kubarec                        @58       0x08
      ub2 ktbitflg                          @60       0x8000 (KTBFCOM)
      union _ktbitun, 2 bytes               @62
         sb2 _ktbitfsc                      @62       0
         ub2 _ktbitwrp                      @62       0x0000
      ub4 ktbitbas                          @64       0x0092cb3d
   struct ktbbhitl[1], 24 bytes             @68
      struct ktbitxid, 8 bytes              @68
         ub2 kxidusn                        @68       0x0008
         ub2 kxidslt                        @70       0x0011
         ub4 kxidsqn                        @72       0x000078b4
      struct ktbituba, 8 bytes              @76
         ub4 kubadba                        @76       0x00c00397
         ub2 kubaseq                        @80       0x017e
         ub1 kubarec                        @82       0x1d
      ub2 ktbitflg                          @84       0x8000 (KTBFCOM)
      union _ktbitun, 2 bytes               @86
         sb2 _ktbitfsc                      @86       10
         ub2 _ktbitwrp                      @86       0x000a
      ub4 ktbitbas                          @88       0x00000000

BBED> p *kdbr[0]
rowdata[24]
-----------
ub1 rowdata[24]                             @8176     0x3c ###状态为3c，标记已经删除

BBED> x/rncccccc
rowdata[24]                                 @8176
-----------
flag@8176: 0x3c (KDRHFL, KDRHFF, KDRHFD, KDRHFH)
lock@8177: 0x02
cols@8178:    0

BBED> dump /v offset 8176 count 20
 File: /u01/app/oracle/oradata/orcl/test01.dbf (5)
 Block: 2231    Offsets: 8176 to 8191  Dba:0x014008b7
-------------------------------------------------------
 3c020202 c1020541 41414141 01069bcb l <...󿿮.AAAAA...

 <16 bytes per line>

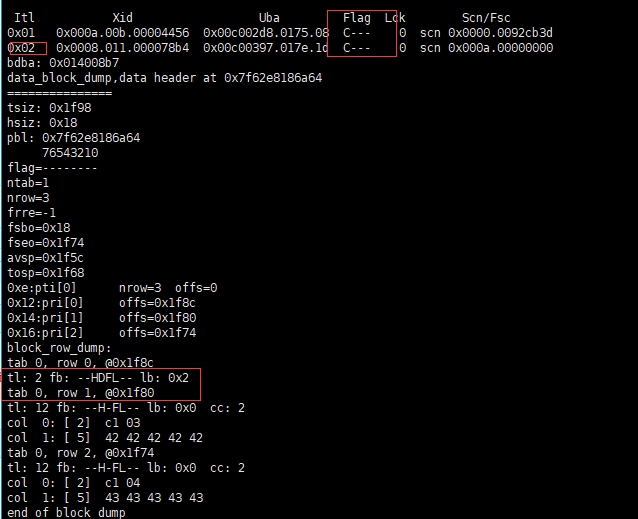

--sessino 2 再次执行dumpfile

SQL> alter system dump datafile 5 block 2231;
System altered.
SQL> select * from v$diag_info where name='Default Trace File';
   INST_ID NAME
---------- ----------------------------------------------------------------
VALUE
--------------------------------------------------------------------------------
     1 Default Trace File
/u01/app/oracle/diag/rdbms/orcl/orcl/trace/orcl_ora_22529.trc
