SpringBoot项目整合微信登录
一.开通微信登录
- 去微信开发者平台
1.注册
2.邮箱激活
3.完善开发者资料
4.开发者资质认证
准备营业执照，1-2个工作日审批、300元
5.创建网站应用
6.提交审核，7个工作日审批

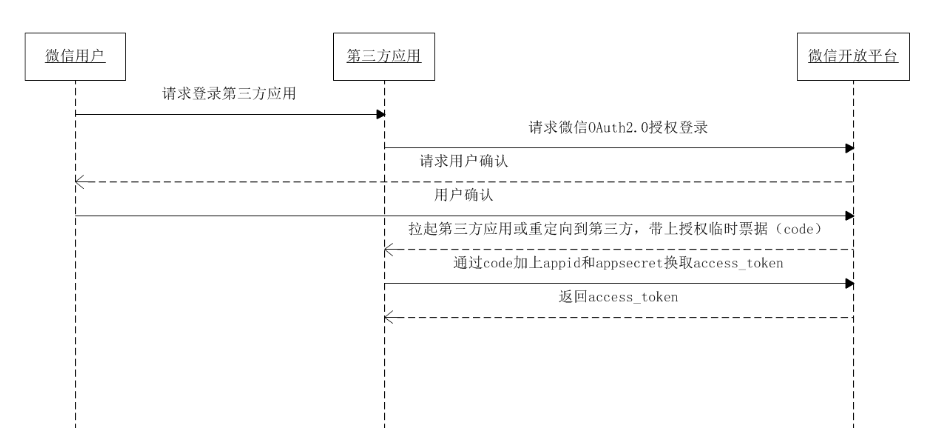

7.熟悉微信登录流程
参考文档：https://open.weixin.qq.com/cgi-bin/showdocument?action=dir_list&t=resource/res_list&verify=1&id=open1419316505&token=e547653f995d8f402704d5cb2945177dc8aa4e7e&lang=zh_CN
请求示例
登录一号店网站应用 https://passport.yhd.com/wechat/login.do 打开后，一号店会生成state参数，跳转到 https://open.weixin.qq.com/connect/qrconnect?appid=wxbdc5610cc59c1631&redirect_uri=https%3A%2F%2Fpassport.yhd.com%2Fwechat%2Fcallback.do&response_type=code&scope=snsapi_login&state=3d6be0a4035d839573b04816624a415e#wechat_redirect 微信用户使用微信扫描二维码并且确认登录后，PC端会跳转到 https://passport.yhd.com/wechat/callback.do?code=CODE&state=3d6be0a4035d839573b04816624a415e 为了满足网站更定制化的需求，我们还提供了第二种获取code的方式，支持网站将微信登录二维码内嵌到自己页面中，用户使用微信扫码授权后通过JS将code返回给网站。 JS微信登录主要用途：网站希望用户在网站内就能完成登录，无需跳转到微信域下登录后再返回，提升微信登录的流畅性与成功率。 网站内嵌二维码微信登录JS实现办法：
二.整合步骤
1.在页面中先引入如下JS文件（支持https）：
http://res.wx.qq.com/connect/zh_CN/htmledition/js/wxLogin.js
2.在需要使用微信登录的地方实例以下JS对象：生成二维码
var obj = new WxLogin({
self_redirect:true,
id:"login_container",
appid: "",
scope: "",
redirect_uri: "",
state: "",
style: "",
href: ""
});

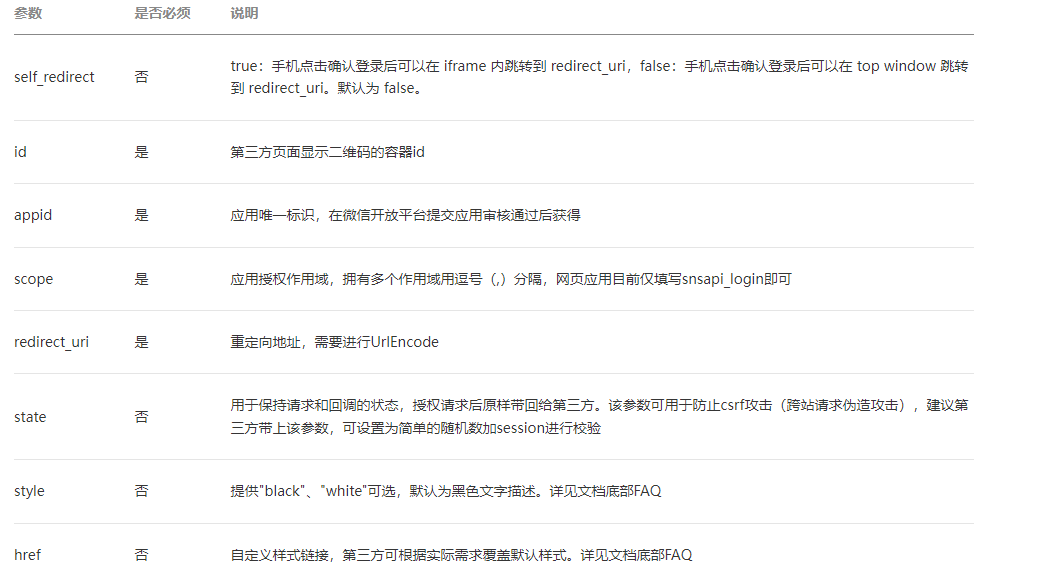

参数说明

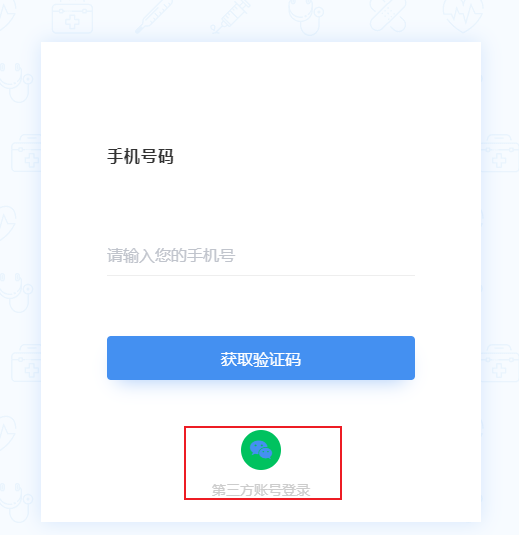

3.前端页面整合微信登录按钮(项目源码后续我会上传到github上)
<!-- 微信登录 #start -->
<div class="operate-view" v-if="dialogAtrr.showLoginType === 'weixin'" >
<div class="wrapper wechat" style="height: 400px">
<div>
<div id="weixinLogin"></div>
</div>
<div class="bottom wechat" style="margin-top: -80px;">
<div class="phone-container">
<div class="phone-wrapper" @click="phoneLogin()"><span
class="iconfont icon"></span></div>
<span class="third-text"> 手机短信验证码登录 </span></div>
</div>
</div>
</div>
<!-- 微信登录 #end -->
4.创建一个SpringBoot项目导入依赖,在配置文件中倒入相关微信的秘钥信息
<dependencies>
<dependency>
<groupId>org.apache.httpcomponents</groupId>
<artifactId>httpclient</artifactId>
</dependency>
</dependencies>
wx:
open:
app_id: 你的appid
app_secret: 你的appsecret
redirect_url: 你的回调地址
5.创建一个配置类,绑定yml中的配置信息
package com.qbb.yygh.user.properties;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;
/**
* @author QiuQiu&LL (个人博客:https://www.cnblogs.com/qbbit)
* @version 1.0
* @date 2022-04-24 21:25
* @Description:
*/
@ConfigurationProperties(prefix = "wx.open")
@Component
@Data
public class WXProperties {
private String appid;
private String appsecret;
private String redirecturl;
}
三.核心业务流程
1.点击微信登录时向微信服务器发送一个请求,获取一个微信登录的二维码
package com.qbb.yygh.user.controller;
import com.qbb.yygh.result.R;
import com.qbb.yygh.user.properties.WXProperties;
import io.swagger.annotations.ApiOperation;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import java.util.HashMap;
import java.util.Map;
/**
* @author QiuQiu&LL (个人博客:https://www.cnblogs.com/qbbit)
* @version 1.0
* @date 2022-04-24 21:43
* @Description:
*/
@Controller
@RequestMapping("/api/userInfo/wx")
public class WXApiController {
@Autowired
private WXProperties wxProperties;
@ApiOperation("微信登录生成二维码需要的参数")
@GetMapping("/params")
public R getParams() {
Map<String, Object> map = new HashMap<>();
/**
* self_redirect:true,
* id:"login_container", 第三方页面显示二维码的容器id
* appid: "", 应用唯一标识，在微信开放平台提交应用审核通过后获得
* scope: "", 应用授权作用域，拥有多个作用域用逗号（,）分隔，网页应用目前仅填写snsapi_login即可
* redirect_uri: "", 重定向地址，需要进行UrlEncode
* state: "",
* style: "",
* href: ""
*/
map.put("id", "weixinLogin");
map.put("appid", wxProperties.getAppid());
map.put("scope", "snsapi_login");
map.put("redirect_uri", wxProperties.getRedirecturl());
map.put("state", System.currentTimeMillis()+"");
return R.ok().data(map);
}
}
//1、引入微信js
// 注册全局登录事件对象
window.loginEvent = new Vue();
// 监听登录事件
loginEvent.$on('loginDialogEvent', function () {
document.getElementById("loginDialog").click();
})
// 触发事件，显示登录层：loginEvent.$emit('loginDialogEvent')
//初始化微信js
const script = document.createElement('script')
script.type = 'text/javascript'
script.src = 'https://res.wx.qq.com/connect/zh_CN/htmledition/js/wxLogin.js'
document.body.appendChild(script)
//2、撞见WxLogin对象,并请求后盾接口为参数赋值(参数也可以在前段写死,但是那样不太安全)
weixinApi.getLoginParam().then(response => {
var obj = new WxLogin({
self_redirect:true,
id: 'weixinLogin', // 需要显示的容器id
appid: response.data.appid, // 公众号appid wx*******
scope: response.data.scope, // 网页默认即可
redirect_uri: response.data.redirectUri, // 授权成功后回调的url
state: response.data.state, // 可设置为简单的随机数加session用来校验
style: 'black', // 提供"black"、"white"可选。二维码的样式
href: '' // 外部css文件url，需要https
})
})

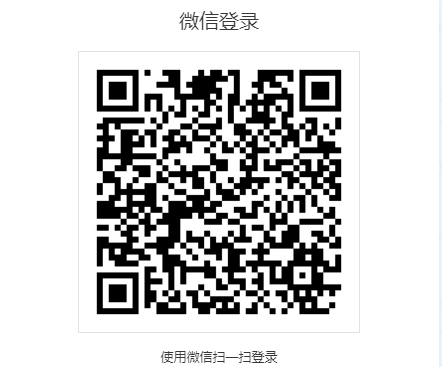

效果如下:
2.微信用户使用微信扫描二维码并且确认登录后，PC端会跳转到 https://passport.yhd.com/wechat/callback.do?code=CODE&state=3d6be0a4035d839573b04816624a415e
3.所以我们需要提供一个callback回调接口(注意:如果没有配置内网穿透,则此为服务的端口号必须是8160,微信官方官方提供的)
# 端口号
server:
port: 8160
HttpClientUtils工具类
package com.qbb.yygh.user.utils;
import org.apache.commons.io.IOUtils;
import org.apache.commons.lang.StringUtils;
import org.apache.http.Consts;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.client.HttpClient;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.config.RequestConfig.Builder;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.conn.ConnectTimeoutException;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.conn.ssl.SSLContextBuilder;
import org.apache.http.conn.ssl.TrustStrategy;
import org.apache.http.conn.ssl.X509HostnameVerifier;
import org.apache.http.entity.ContentType;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.apache.http.message.BasicNameValuePair;
import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLException;
import javax.net.ssl.SSLSession;
import javax.net.ssl.SSLSocket;
import java.io.IOException;
import java.net.SocketTimeoutException;
import java.security.GeneralSecurityException;
import java.security.cert.CertificateException;
import java.security.cert.X509Certificate;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.Map.Entry;
import java.util.Set;
/**
* @author QiuQiu&LL (个人博客:https://www.cnblogs.com/qbbit)
* @version 1.0
* @date 2022-04-25 11:25
* @Description:
* 依赖的jar包有：commons-lang-2.6.jar、httpclient-4.3.2.jar、httpcore-4.3.1.jar、commons-io-2.4.jar
*/
public class HttpClientUtils {
public static final int connTimeout=10000;
public static final int readTimeout=10000;
public static final String charset="UTF-8";
private static HttpClient client = null;
static {
PoolingHttpClientConnectionManager cm = new PoolingHttpClientConnectionManager();
cm.setMaxTotal(128);
cm.setDefaultMaxPerRoute(128);
client = HttpClients.custom().setConnectionManager(cm).build();
}
public static String postParameters(String url, String parameterStr) throws ConnectTimeoutException, SocketTimeoutException, Exception{
return post(url,parameterStr,"application/x-www-form-urlencoded",charset,connTimeout,readTimeout);
}
public static String postParameters(String url, String parameterStr,String charset, Integer connTimeout, Integer readTimeout) throws ConnectTimeoutException, SocketTimeoutException, Exception{
return post(url,parameterStr,"application/x-www-form-urlencoded",charset,connTimeout,readTimeout);
}
public static String postParameters(String url, Map<String, String> params) throws ConnectTimeoutException,
SocketTimeoutException, Exception {
return postForm(url, params, null, connTimeout, readTimeout);
}
public static String postParameters(String url, Map<String, String> params, Integer connTimeout,Integer readTimeout) throws ConnectTimeoutException,
SocketTimeoutException, Exception {
return postForm(url, params, null, connTimeout, readTimeout);
}
public static String get(String url) throws Exception {
return get(url, charset, null, null);
}
public static String get(String url, String charset) throws Exception {
return get(url, charset, connTimeout, readTimeout);
}
/**
* 发送一个 Post 请求, 使用指定的字符集编码.
*
* @param url
* @param body RequestBody
* @param mimeType 例如 application/xml "application/x-www-form-urlencoded" a=1&b=2&c=3
* @param charset 编码
* @param connTimeout 建立链接超时时间,毫秒.
* @param readTimeout 响应超时时间,毫秒.
* @return ResponseBody, 使用指定的字符集编码.
* @throws ConnectTimeoutException 建立链接超时异常
* @throws SocketTimeoutException 响应超时
* @throws Exception
*/
public static String post(String url, String body, String mimeType,String charset, Integer connTimeout, Integer readTimeout)
throws ConnectTimeoutException, SocketTimeoutException, Exception {
HttpClient client = null;
HttpPost post = new HttpPost(url);
String result = "";
try {
if (StringUtils.isNotBlank(body)) {
HttpEntity entity = new StringEntity(body, ContentType.create(mimeType, charset));
post.setEntity(entity);
}
// 设置参数
RequestConfig.Builder customReqConf = RequestConfig.custom();
if (connTimeout != null) {
customReqConf.setConnectTimeout(connTimeout);
}
if (readTimeout != null) {
customReqConf.setSocketTimeout(readTimeout);
}
post.setConfig(customReqConf.build());
HttpResponse res;
if (url.startsWith("https")) {
// 执行 Https 请求.
client = createSSLInsecureClient();
res = client.execute(post);
} else {
// 执行 Http 请求.
client = HttpClientUtils.client;
res = client.execute(post);
}
result = IOUtils.toString(res.getEntity().getContent(), charset);
} finally {
post.releaseConnection();
if (url.startsWith("https") && client != null&& client instanceof CloseableHttpClient) {
((CloseableHttpClient) client).close();
}
}
return result;
}
/**
* 提交form表单
*
* @param url
* @param params
* @param connTimeout
* @param readTimeout
* @return
* @throws ConnectTimeoutException
* @throws SocketTimeoutException
* @throws Exception
*/
public static String postForm(String url, Map<String, String> params, Map<String, String> headers, Integer connTimeout,Integer readTimeout) throws ConnectTimeoutException,
SocketTimeoutException, Exception {
HttpClient client = null;
HttpPost post = new HttpPost(url);
try {
if (params != null && !params.isEmpty()) {
List<NameValuePair> formParams = new ArrayList<NameValuePair>();
Set<Entry<String, String>> entrySet = params.entrySet();
for (Entry<String, String> entry : entrySet) {
formParams.add(new BasicNameValuePair(entry.getKey(), entry.getValue()));
}
UrlEncodedFormEntity entity = new UrlEncodedFormEntity(formParams, Consts.UTF_8);
post.setEntity(entity);
}
if (headers != null && !headers.isEmpty()) {
for (Entry<String, String> entry : headers.entrySet()) {
post.addHeader(entry.getKey(), entry.getValue());
}
}
// 设置参数
Builder customReqConf = RequestConfig.custom();
if (connTimeout != null) {
customReqConf.setConnectTimeout(connTimeout);
}
if (readTimeout != null) {
customReqConf.setSocketTimeout(readTimeout);
}
post.setConfig(customReqConf.build());
HttpResponse res = null;
if (url.startsWith("https")) {
// 执行 Https 请求.
client = createSSLInsecureClient();
res = client.execute(post);
} else {
// 执行 Http 请求.
client = HttpClientUtils.client;
res = client.execute(post);
}
return IOUtils.toString(res.getEntity().getContent(), "UTF-8");
} finally {
post.releaseConnection();
if (url.startsWith("https") && client != null
&& client instanceof CloseableHttpClient) {
((CloseableHttpClient) client).close();
}
}
}
/**
* 发送一个 GET 请求
*
* @param url
* @param charset
* @param connTimeout 建立链接超时时间,毫秒.
* @param readTimeout 响应超时时间,毫秒.
* @return
* @throws ConnectTimeoutException 建立链接超时
* @throws SocketTimeoutException 响应超时
* @throws Exception
*/
public static String get(String url, String charset, Integer connTimeout,Integer readTimeout)
throws ConnectTimeoutException,SocketTimeoutException, Exception {
HttpClient client = null;
HttpGet get = new HttpGet(url);
String result = "";
try {
// 设置参数
Builder customReqConf = RequestConfig.custom();
if (connTimeout != null) {
customReqConf.setConnectTimeout(connTimeout);
}
if (readTimeout != null) {
customReqConf.setSocketTimeout(readTimeout);
}
get.setConfig(customReqConf.build());
HttpResponse res = null;
if (url.startsWith("https")) {
// 执行 Https 请求.
client = createSSLInsecureClient();
res = client.execute(get);
} else {
// 执行 Http 请求.
client = HttpClientUtils.client;
res = client.execute(get);
}
result = IOUtils.toString(res.getEntity().getContent(), charset);
} finally {
get.releaseConnection();
if (url.startsWith("https") && client != null && client instanceof CloseableHttpClient) {
((CloseableHttpClient) client).close();
}
}
return result;
}
/**
* 从 response 里获取 charset
*
* @param ressponse
* @return
*/
@SuppressWarnings("unused")
private static String getCharsetFromResponse(HttpResponse ressponse) {
// Content-Type:text/html; charset=GBK
if (ressponse.getEntity() != null && ressponse.getEntity().getContentType() != null && ressponse.getEntity().getContentType().getValue() != null) {
String contentType = ressponse.getEntity().getContentType().getValue();
if (contentType.contains("charset=")) {
return contentType.substring(contentType.indexOf("charset=") + 8);
}
}
return null;
}
/**
* 创建 SSL连接
* @return
* @throws GeneralSecurityException
*/
private static CloseableHttpClient createSSLInsecureClient() throws GeneralSecurityException {
try {
SSLContext sslContext = new SSLContextBuilder().loadTrustMaterial(null, new TrustStrategy() {
public boolean isTrusted(X509Certificate[] chain,String authType) throws CertificateException {
return true;
}
}).build();
SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory(sslContext, new X509HostnameVerifier() {
@Override
public boolean verify(String arg0, SSLSession arg1) {
return true;
}
@Override
public void verify(String host, SSLSocket ssl)
throws IOException {
}
@Override
public void verify(String host, X509Certificate cert)
throws SSLException {
}
@Override
public void verify(String host, String[] cns,
String[] subjectAlts) throws SSLException {
}
});
return HttpClients.custom().setSSLSocketFactory(sslsf).build();
} catch (GeneralSecurityException e) {
throw e;
}
}
public static void main(String[] args) {
try {
String str= post("https://localhost:443/ssl/test.shtml","name=12&page=34","application/x-www-form-urlencoded", "UTF-8", 10000, 10000);
//String str= get("https://localhost:443/ssl/test.shtml?name=12&page=34","GBK");
/*Map<String,String> map = new HashMap<String,String>();
map.put("name", "111");
map.put("page", "222");
String str= postForm("https://localhost:443/ssl/test.shtml",map,null, 10000, 10000);*/
System.out.println(str);
} catch (ConnectTimeoutException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (SocketTimeoutException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}
controller
@GetMapping("/callback")
public String callback(String code, String state) {
String result = wxApiService.callback(code,state);
return result;
}
service
@Override
public String callback(String code, String state) {
StringBuilder sb = new StringBuilder();
sb.append("https://api.weixin.qq.com/sns/oauth2/access_token?")
.append("appid=%s")
.append("&secret=%s")
.append("&code=%s")
.append("&grant_type=%s");
String authUrl = String.format(sb.toString(), wxProperties.getAppid(), wxProperties.getAppsecret(), code, "authorization_code");
// https://api.weixin.qq.com/sns/oauth2/access_token?appid=APPID&secret=SECRET&code=CODE&grant_type=authorization_code
try {
String resultJson = HttpClientUtils.get(authUrl);
JSONObject jsonObject = JSONObject.parseObject(resultJson);
/**
* 微信给的标准正确返回信息
* {
* "access_token":"ACCESS_TOKEN",
* "expires_in":7200,
* "refresh_token":"REFRESH_TOKEN",
* "openid":"OPENID",
* "scope":"SCOPE",
* "unionid": "o6_bmasdasdsad6_2sgVt7hMZOPfL"
* }
*/
// 获取accessToken和openid
String accessToken = (String) jsonObject.get("access_token");
String openid = (String) jsonObject.get("openid");
log.info("accessToken={}", accessToken);
log.info("openid={}", openid);
// 通过openid查询用户信息
LambdaQueryWrapper<UserInfo> wrapper = Wrappers.<UserInfo>lambdaQuery();
wrapper.eq(UserInfo::getOpenid, openid);
UserInfo userInfo = userInfoMapper.selectOne(wrapper);
String avatar = null;
if (userInfo == null) {
// 首次登录
// 请求微信服务端,获取用户基本信息
String getWxUserInfoString = "https://api.weixin.qq.com/sns/userinfo?access_token=%s&openid=%s";
String getWxUserInfoUrl = String.format(getWxUserInfoString, accessToken, openid);
String jsonStr = HttpClientUtils.get(getWxUserInfoUrl);
/**
* 正确的Json返回结果：
*
* {
* "openid":"OPENID",
* "nickname":"NICKNAME",
* "sex":1,
* "province":"PROVINCE",
* "city":"CITY",
* "country":"COUNTRY",
* "headimgurl": "https://thirdwx.qlogo.cn/mmopen/g3MonUZtNHkdmzicIlibx6iaFqAc56vxLSUfpb6n5WKSYVY0ChQKkiaJSgQ1dZuTOgvLLrhJbERQQ4eMsv84eavHiaiceqxibJxCfHe/0",
* "privilege":[
* "PRIVILEGE1",
* "PRIVILEGE2"
* ],
* "unionid": " o6_bmasdasdsad6_2sgVt7hMZOPfL"
*
* }
*
* 参数 说明
* openid 普通用户的标识，对当前开发者帐号唯一
* nickname 普通用户昵称
* sex 普通用户性别，1为男性，2为女性
* province 普通用户个人资料填写的省份
* city 普通用户个人资料填写的城市
* country 国家，如中国为CN
* headimgurl 用户头像，最后一个数值代表正方形头像大小（有0、46、64、96、132数值可选，0代表640*640正方形头像），用户没有头像时该项为空
* privilege 用户特权信息，json数组，如微信沃卡用户为（chinaunicom）
* unionid 用户统一标识。针对一个微信开放平台帐号下的应用，同一用户的unionid是唯一的。
*/
JSONObject obj = JSONObject.parseObject(jsonStr);
// 获取用户的nickName
String nickname = (String) obj.get("nickname");
avatar = (String) obj.get("headimgurl");
userInfo = new UserInfo();
userInfo.setOpenid(openid);
userInfo.setStatus(1);
userInfo.setNickName(nickname);
userInfo.setAvatar(avatar);
userInfoMapper.insert(userInfo);
}
// 返回页面显示名称
Map<String, String> map = new HashMap<>();
// 判断用户状态
if (userInfo.getStatus() == 0) {
throw new YyghException("用户已锁定", -1);
}
// 判断用户是否一定绑定了手机号
if (StringUtils.isEmpty(userInfo.getPhone())) {
// 未绑定,设置openid
map.put("openid", openid);
} else {
// 已绑定,设置opneid为空
map.put("openid", "");
}
String name = userInfo.getName();
if (StringUtils.isEmpty(name)) {
name = userInfo.getNickName();
}
if (StringUtils.isEmpty(name)) {
name = userInfo.getPhone();
}
// 生成token
String token = JwtUtils.createToken(userInfo.getId(), userInfo.getName());
map.put("name", name);
map.put("token", token);
map.put("avatar", avatar);
//跳转到前端页面,携带openid是为了在页面强制绑定手机号
return "redirect:http://localhost:3000/weixin/callback?token=" + map.get("token") + "&openid=" + map.get("openid") + "&name=" + URLEncoder.encode(map.get("name"), "utf-8");
} catch (Exception e) {
throw new YyghException(ResponseEnum.WX_LOGIN_ERROR);
}
}

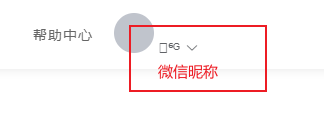

测试扫码登录
【推荐】国内首个AI IDE，深度理解中文开发场景，立即下载体验Trae
【推荐】编程新体验，更懂你的AI，立即体验豆包MarsCode编程助手
【推荐】抖音旗下AI助手豆包，你的智能百科全书，全免费不限次数
【推荐】轻量又高性能的 SSH 工具 IShell：AI 加持，快人一步
· TypeScript + Deepseek 打造卜卦网站：技术与玄学的结合
· 阿里巴巴 QwQ-32B真的超越了 DeepSeek R-1吗？
· 【译】Visual Studio 中新的强大生产力特性
· 10年+ .NET Coder 心语 ── 封装的思维：从隐藏、稳定开始理解其本质意义
· 【设计模式】告别冗长if-else语句：使用策略模式优化代码结构
