|NO.Z.00043|——————————|BigDataEnd|——|Hadoop&实时数仓.V23|——|项目.v23|需求二：数据处理&增量统计.V1|——|需求分析|

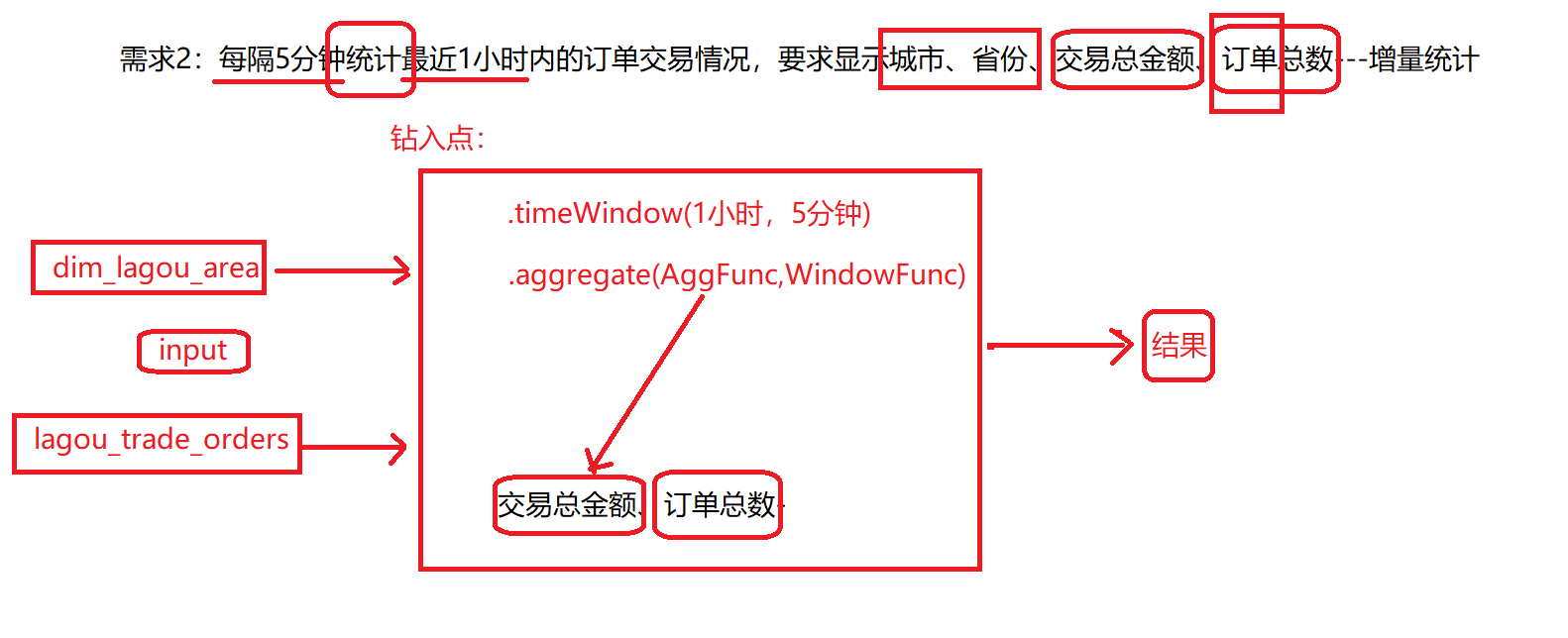

一、需求2：每隔5分钟统计最近1小时内的订单交易情况，显示城市/省份/交易总金额/订单总数---增量统计

二、编程实现流程

### --- 读取数据源（input）

~~~     # input读取数据源：
input1：mysql：yanqi_area --- HBase：dim_yanqi_area(地域宽表)           # 从hbash中获取地域宽表
input2：mysql：yanqi_trade_orders --- kafka：yanqi_trade_orders        # 数据不用下沉到hbash中，直接从kafka中获取数据

### --- 对input进行transformation（转化）

~~~     # input1：区域id, 区域的名字，城市的id，城市的名字，省份的id，省份的名字
~~~     # toList： 地域宽表的所有数据
    (370200,青岛市,370000,山东省,100000,中国)
    (370202,市南区,370200,青岛市,370000,山东省)
    (370203,市北区,370200,青岛市,370000,山东省)
    (370211,黄岛区,370200,青岛市,370000,山东省)
    ...
    (713702,金湖镇,713700,金门县,710000,台湾)
    (713703,金沙镇,713700,金门县,710000,台湾)

~~~     # input2： 数据格式：json

~~~     获取区：json
~~~     数据中的如下四个字段的数据：data、type、database、table
~~~     把这四个字段的数据贴在样例类中：TableObject

~~~     # filter：yanqi_trade_orders

~~~     把dataInfo中的数据拿出我们想要的字段：orderId、orderNo、userId、status、totalMoney、areaId
~~~     把这几个字段包装到TradeOrder样例类中

~~~     # 把订单数据根据areaId进行分组：区、市、省 市、省

~~~     # totalMoney：提取

~~~     计算出订单的数量（订单..，1）（(青岛市-山东省)，（1000,1））
~~~     根据【城市-省份 （地域）分组】.timeWindow

~~~     # aggregate方法中，进行计算的逻辑：

~~~     # AggFunc：UDF
~~~     # 订单总额的累加：
~~~     # 订单总数的累加：

### --- WindowFunc：
### --- timeWindow

~~~     将计算结果数据向下游流动 ---- 输出到控制台上

三、程序下沉数据流程

### --- ODS：--增量的数据---canal将mysql的bin_log放在kafka的test中

use dwshow;
INSERT INTO `yanqi_trade_orders` VALUES ('1', '23a0b124546', '98', '2', '0.12', '10468.00','2', '0', '370203', '0', '0', '1', '2', '2020-06-28 18:14:01', '2020-06-28 18:14:01', '2020-10-21 22:54:31');
INSERT INTO `yanqi_trade_orders` VALUES ('2', '23a0b124546', '121', '2', '0.12', '6331.00','2', '0', '370203', '0', '0', '0', '1', '2020-06-28 16:55:02', '2020-06-28 16:55:02', '2020-10-21 22:54:32');
INSERT INTO `yanqi_trade_orders` VALUES ('3', '23a0b124546', '35', '2', '0.12', '1987.50','4', '0', '370203', '0', '0', '0', '1', '2020-06-28 12:07:01', '2020-06-28 12:07:01', '2020-10-21 22:54:34');
INSERT INTO `yanqi_trade_orders` VALUES ('4', '23a0b124546', '161', '2', '0.12', '43659.00','4', '0', '370203', '0', '0', '0', '1', '2020-06-28 13:19:48', '2020-06-28 13:19:48', '2020-10-21 22:54:35');
INSERT INTO `yanqi_trade_orders` VALUES ('5', '23a0b124546', '72', '2', '0.12', '32757.00','0', '0', '370203', '0', '0', '0', '1', '2020-06-28 22:14:21', '2020-06-28 22:14:21', '2020-10-21 22:54:37');
INSERT INTO `yanqi_trade_orders` VALUES ('6', '23a0b124546', '1', '2', '0.12', '5295.60','3', '0', '370203', '0', '0', '0', '1', '2020-06-28 18:28:48', '2020-06-28 18:28:48', '2020-10-21 22:55:03');

~~~     # DIM：同第四部分：用到DIM层的区城市省份的三级地区明细宽表：
~~~     # DW--DWS

四、编程实现

### --- 编程实现：

~~~     每隔5分钟统计最近1小时内的订单交易情况，
~~~     要求显示城市、省份、交易总金额、订单总数---增量统计

### --- 将计算结果数据向下游流程——输出到控制台上

{
  "data": [
    {
      "orderId": "59",
      "orderNo": "23a0b124546",
      "userId": "52",
      "status": "2",
      "productMoney": "0.12",
      "totalMoney": "59998.0",
      "payMethod": "4",
      "isPay": "0",
      "areaId": "370211",
      "tradeSrc": "0",
      "tradeType": "0",
      "isRefund": "0",
      "dataFlag": "1",
      "createTime": "2020-06-28 10:51:38",
      "payTime": "2020-06-28 10:51:38",
      "modifiedTime": "2020-10-21 22:56:38"
    }
  ],
  "database": "dwshow",
  "es": 1607331155000,
  "id": 16,
  "isDdl": false,
  "mysqlType": {
    "orderId": "bigint(11)",
    "orderNo": "varchar(20)",
    "userId": "bigint(11)",
    "status": "tinyint(4)",
    "productMoney": "decimal(11,2)",
    "totalMoney": "decimal(11,2)",
    "payMethod": "tinyint(4)",
    "isPay": "tinyint(4)",
    "areaId": "int(11)",
    "tradeSrc": "tinyint(4)",
    "tradeType": "int(11)",
    "isRefund": "tinyint(4)",
    "dataFlag": "tinyint(4)",
    "createTime": "varchar(25)",
    "payTime": "varchar(25)",
    "modifiedTime": "timestamp"
  },
  "old": null,
  "pkNames": [
    "orderId"
  ],
  "sql": "",
  "sqlType": {
    "orderId": -5,
    "orderNo": 12,
    "userId": -5,
    "status": -6,
    "productMoney": 3,
    "totalMoney": 3,
    "payMethod": -6,
    "isPay": -6,
    "areaId": 4,
    "tradeSrc": -6,
    "tradeType": 4,
    "isRefund": -6,
    "dataFlag": -6,
    "createTime": 12,
    "payTime": 12,
    "modifiedTime": 93
  },
  "table": "yanqi_trade_orders",
  "ts": 1607331155758,
  "type": "INSERT"
}

---



















---
