|NO.Z.00012|——————————|BigDataEnd|——|Hadoop&实时数仓.V12|——|项目.v12|ODS层处理|JSON日志数据格式|

一、json日志数据格式

### --- 样例sql

~~~     # 在mysql中插入数
mysql> INSERT INTO `yanqi_trade_orders` VALUES ('2', '23a0b124546', '121', '2', '0.12', '6331.00', '2', '0', '370203', '0', '0', '0', '1', '2020-06-28 16:55:02', '2020-06-28 16:55:02', '2020-10-21 22:54:32');

### --- kafka中收到Canal的消息 {"data":[{"productId":"115908","productName":"索尼

~~~     # 在kafka消费者主题下查看采集到的数据
[root@hadoop02 ~]# kafka-console-consumer.sh --zookeeper hadoop02:2181/myKafka --topic canal --from-beginning
 ~~~    # 在mysql下insert插入操作采集到数据
{"data":[{"orderId":"2","orderNo":"23a0b124546","userId":"121","status":"2","productMoney":"0.12","totalMoney":"6331.0","payMethod":"2","isPay":"0","areaId":"370203","tradeSrc":"0","tradeType":"0","isRefund":"0","dataFlag":"1","createTime":"2020-06-28 16:55:02","payTime":"2020-06-28 16:55:02","modifiedTime":"2020-10-21 22:54:32"}],"database":"dwshow","es":1638097808000,"id":3,"isDdl":false,"mysqlType":{"orderId":"bigint(11)","orderNo":"varchar(20)","userId":"bigint(11)","status":"tinyint(4)","productMoney":"decimal(11,2)","totalMoney":"decimal(11,2)","payMethod":"tinyint(4)","isPay":"tinyint(4)","areaId":"int(11)","tradeSrc":"tinyint(4)","tradeType":"int(11)","isRefund":"tinyint(4)","dataFlag":"tinyint(4)","createTime":"varchar(25)","payTime":"varchar(25)","modifiedTime":"timestamp"},"old":null,"pkNames":["orderId"],"sql":"","sqlType":{"orderId":-5,"orderNo":12,"userId":-5,"status":-6,"productMoney":3,"totalMoney":3,"payMethod":-6,"isPay":-6,"areaId":4,"tradeSrc":-6,"tradeType":4,"isRefund":-6,"dataFlag":-6,"createTime":12,"payTime":12,"modifiedTime":93},"table":"yanqi_trade_orders","ts":1638097808750,"type":"INSERT"}
{"data":[{"orderId":"3","orderNo":"23a0b124546","userId":"35","status":"2","productMoney":"0.12","totalMoney":"1987.50","payMethod":"4","isPay":"0","areaId":"370203","tradeSrc":"0","tradeType":"0","isRefund":"0","dataFlag":"1","createTime":"2020-06-28 12:07:01","payTime":"2020-06-28 12:07:01","modifiedTime":"2020-10-21 22:54:34"}],"database":"dwshow","es":1638098012000,"id":4,"isDdl":false,"mysqlType":{"orderId":"bigint(11)","orderNo":"varchar(20)","userId":"bigint(11)","status":"tinyint(4)","productMoney":"decimal(11,2)","totalMoney":"decimal(11,2)","payMethod":"tinyint(4)","isPay":"tinyint(4)","areaId":"int(11)","tradeSrc":"tinyint(4)","tradeType":"int(11)","isRefund":"tinyint(4)","dataFlag":"tinyint(4)","createTime":"varchar(25)","payTime":"varchar(25)","modifiedTime":"timestamp"},"old":null,"pkNames":["orderId"],"sql":"","sqlType":{"orderId":-5,"orderNo":12,"userId":-5,"status":-6,"productMoney":3,"totalMoney":3,"payMethod":-6,"isPay":-6,"areaId":4,"tradeSrc":-6,"tradeType":4,"isRefund":-6,"dataFlag":-6,"createTime":12,"payTime":12,"modifiedTime":93},"table":"yanqi_trade_orders","ts":1638098012708,"type":"INSERT"}

### --- 注意：
~~~     Canal将MySQL数据库所有的表数据都写入Kafka的同一个分区中，
~~~     可以通过json文件中的table属性来获取表名。
~~~     只要对数据表进行insert、update、delete操作，
~~~     就会产生相应的日志，并且产生的日志就会通过Canal写入Kafka分区。
~~~     这样就会有一个问题，当我们向某张表中添加数据，然后对其进行修改和删除操作，
~~~     那么就会产生三条相应的日志，并且这三条日志都会写入Kafka分区。
~~~     此时，数据表中已经删除了这条数据，但是Kafka中没有删除。
~~~     这样就会造成Kafka与MySQL中数据不一致的情况。

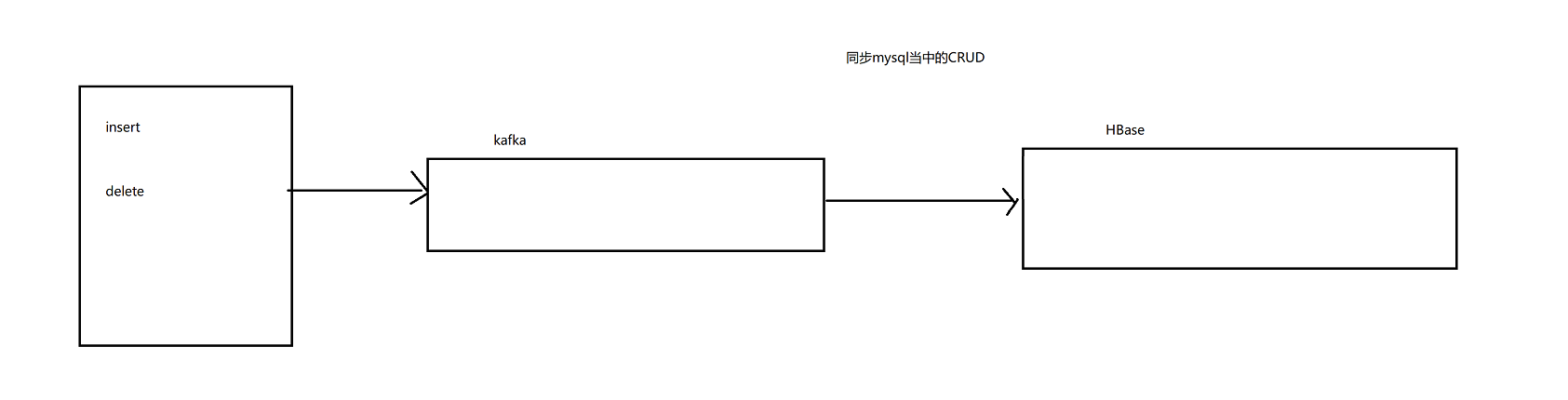

~~~     解决上述问题可以通过解析Kafka中的json日志将数据写入HBase中，
~~~     因为HBase中可以有多版本的数据。
~~~     地域：省、市、区

---



















---
