|NO.Z.00015|——————————|BigDataEnd|——|Hadoop&PB级数仓.V07|——|PB数仓.v07|会员活跃度分析|自定义拦截器实现&测试|

一、采集启动日志和事件日志
### --- 采集启动日志和事件日志

~~~     本系统中要采集两种日志：启动日志、事件日志，不同的日志放置在不同的目录下。
~~~     要想一次拿到全部日志需要监控多个目录。

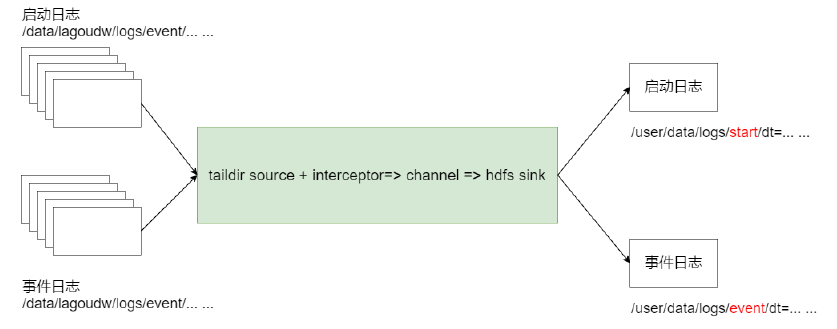

### --- 总体思路

~~~     taildir监控多个目录
~~~     修改自定义拦截器，不同来源的数据加上不同标志
~~~     hdfs sink 根据标志写文件
二、Agent配置
### --- Agent配置

[root@hadoop02 ~]# vim /data/yanqidw/conf/flume-log2hdfs3.conf
a1.sources = r1
a1.sinks = k1
a1.channels = c1

# taildir source
a1.sources.r1.type = TAILDIR
a1.sources.r1.positionFile = /data/yanqidw/conf/startlog_position.json
a1.sources.r1.filegroups = f1 f2
a1.sources.r1.filegroups.f1 = /data/yanqidw/logs/start/.*log
a1.sources.r1.headers.f1.logtype = start
a1.sources.r1.filegroups.f2 = /data/yanqidw/logs/event/.*log
a1.sources.r1.headers.f2.logtype = event

# 自定义拦截器
a1.sources.r1.interceptors = i1
a1.sources.r1.interceptors.i1.type = cn.yanqi.dw.flume.interceptor.LogTypeInterceptor$Builder

# memorychannel
a1.channels.c1.type = memory
a1.channels.c1.capacity = 100000
a1.channels.c1.transactionCapacity = 2000

# hdfs sink
a1.sinks.k1.type = hdfs
a1.sinks.k1.hdfs.path = /user/data/logs/%{logtype}/dt=%{logtime}/
a1.sinks.k1.hdfs.filePrefix = startlog.
a1.sinks.k1.hdfs.fileType = DataStream

# 配置文件滚动方式（文件大小32M）
a1.sinks.k1.hdfs.rollSize = 33554432
a1.sinks.k1.hdfs.rollCount = 0
a1.sinks.k1.hdfs.rollInterval = 0
a1.sinks.k1.hdfs.idleTimeout = 0
a1.sinks.k1.hdfs.minBlockReplicas = 1

# 向hdfs上刷新的event的个数
a1.sinks.k1.hdfs.batchSize = 1000

# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1
~~~     # filegroups
~~~     指定filegroups，可以有多个，以空格分隔（taildir source可同时监控多个目录中的文件）

~~~     # headers.<filegroupName>.<headerKey>
~~~     给 event 增加header key。不同的filegroup，可配置不同的value
三、自定义拦截器
### --- 自定义拦截器

package cn.yanqi.dw.flume.interceptor;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import org.apache.commons.compress.utils.Charsets;
import org.apache.flume.Context;
import org.apache.flume.Event;
import org.apache.flume.event.SimpleEvent;
import org.apache.flume.interceptor.Interceptor;
import org.junit.Test;
import java.time.Instant;
import java.time.LocalDateTime;
import java.time.ZoneId;
import java.time.format.DateTimeFormatter;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class LogTypeInterceptor implements Interceptor {
    @Override
    public void initialize() {

    }

    @Override
    // 逐条处理event
    public Event intercept(Event event) {
        // 获取 event 的 body
        String eventBody = new String(event.getBody(), Charsets.UTF_8);
        // 获取 event 的 header
        Map<String, String> headersMap = event.getHeaders();
        // 解析body获取json串
        String[] bodyArr = eventBody.split("\\s+");

        try{
            String jsonStr = bodyArr[6];
            // 解析json串获取时间戳
            String timestampStr = "";
            JSONObject jsonObject = JSON.parseObject(jsonStr);
            if (headersMap.getOrDefault("logtype", "").equals("start")){
                // 取启动日志的时间戳
                timestampStr = jsonObject.getJSONObject("app_active").getString("time");
            } else if (headersMap.getOrDefault("logtype", "").equals("event")) {
                // 取事件日志第一条记录的时间戳
                JSONArray jsonArray = jsonObject.getJSONArray("yanqi_event");
                if (jsonArray.size() > 0){
                    timestampStr = jsonArray.getJSONObject(0).getString("time");
                }
            }

            // 将时间戳转换为字符串 "yyyy-MM-dd"
            // 将字符串转换为Long
            long timestamp = Long.parseLong(timestampStr);
            DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd");
            Instant instant = Instant.ofEpochMilli(timestamp);
            LocalDateTime localDateTime = LocalDateTime.ofInstant(instant, ZoneId.systemDefault());
            String date = formatter.format(localDateTime);

            // 将转换后的字符串放置header中
            headersMap.put("logtime", date);
            event.setHeaders(headersMap);
        }catch (Exception e){
            headersMap.put("logtime", "Unknown");
            event.setHeaders(headersMap);
        }
        return event;
    }

    @Override
    public List<Event> intercept(List<Event> events) { List<Event> lstEvent = new ArrayList<>();
        for (Event event: events){ Event outEvent = intercept(event);
            if (outEvent != null) { lstEvent.add(outEvent);
            }
        }
        return lstEvent;
    }

    @Override
    public void close() {

    }

    public static class Builder implements Interceptor.Builder {
        @Override
        public Interceptor build() {
            return new LogTypeInterceptor();
        }

        @Override
        public void configure(Context context) {

        }
    }

    @Test
    public void startJunit(){
        String str = "2020-08-02 18:19:32.959 [main] INFO com.yanqi.ecommerce.AppStart - {\"app_active\":{\"name\":\"app_active\",\"json\":{\"entry\":\"1\",\"action\":\"0\",\"error_code\":\"0\"},\"time\":1596342840284},\"attr\":{\"area\":\"杭州\",\"uid\":\"2F10092A2\",\"app_v\":\"1.1.15\",\"event_type\":\"common\",\"device_id\":\"1FB872-9A1002\",\"os_type\":\"2.8\",\"channel\":\"TB\",\"language\":\"chinese\",\"brand\":\"iphone-8\"}}";
        Map<String, String> map = new HashMap<>();
        // new Event
        Event event = new SimpleEvent();
        map.put("logtype", "start");
        event.setHeaders(map);
        event.setBody(str.getBytes(Charsets.UTF_8));
        // 调用interceptor处理event
        LogTypeInterceptor customerInterceptor = new LogTypeInterceptor();
        Event outEvent = customerInterceptor.intercept(event);

        // 处理结果
        Map<String, String> headersMap = outEvent.getHeaders();
        System.out.println(JSON.toJSONString(headersMap));
    }

    @Test
    public void eventJunit(){
        String str = "2020-08-02 18:20:11.877 [main] INFO com.yanqi.ecommerce.AppEvent - {\"yanqi_event\":[{\"name\":\"goods_detail_loading\",\"json\":{\"entry\":\"1\",\"goodsid\":\"0\",\"loading_time\":\"93\",\"action\":\"3\",\"staytime\":\"56\",\"showtype\":\"2\"},\"time\":1596343881690},{\"name\":\"loading\",\"json\":{\"loading_time\":\"15\",\"action\":\"3\",\"loading_type\":\"3\",\"type\":\"1\"},\"time\":1596356988428},{\"name\":\"notification\",\"json\":{\"action\":\"1\",\"type\":\"2\"},\"time\":1596374167278},{\"name\":\"favorites\",\"json\":{\"course_id\":1,\"id\":0,\"userid\":0},\"time\":1596350933962}],\"attr\":{\"area\":\"杭州\",\"uid\":\"2F10092A4\",\"app_v\":\"1.1.14\",\"event_type\":\"common\",\"device_id\":\"1FB872-9A1004\",\"os_type\":\"0.5.0\",\"channel\":\"QL\",\"language\":\"chinese\",\"brand\":\"xiaomi-0\"}}";
        Map<String, String> map = new HashMap<>();
        // new Event
        Event event = new SimpleEvent();
        map.put("logtype", "event");
        event.setHeaders(map);
        event.setBody(str.getBytes(Charsets.UTF_8));
        // 调用interceptor处理event
        LogTypeInterceptor customerInterceptor = new LogTypeInterceptor();
        Event outEvent = customerInterceptor.intercept(event);
        // 处理结果
        Map<String, String> headersMap = outEvent.getHeaders();
        System.out.println(JSON.toJSONString(headersMap));
    }
}
四、编译测试
### --- 准备编译日志数据文件

[root@hadoop02 ~]# more /data/yanqidw/logs/data/start0802.log
~~~ startJunit数据
"2020-08-02 18:19:32.959 [main] INFO com.yanqi.ecommerce.AppStart - {\"app_active\":{\"name\":\"app_active\",\"json\":{\"entry\":\"1\",\"action\":\"0\",\"error_code\":\"0\"},\"time\":1596342840284},\"attr\":{\"area\":\"杭州\",\"uid\":\"2F10092A2\",\"app_v\":\"1.1.15\",\"event_type\":\"common\",\"device_id\":\"1FB872-9A1002\",\"os_type\":\"2.8\",\"channel\":\"TB\",\"language\":\"chinese\",\"brand\":\"iphone-8\"}}";
~~~ eventJunit数据
"2020-08-02 18:20:11.877 [main] INFOcom.yanqi.ecommerce.AppEvent - {\"yanqi_event\":[{\"name\":\"goods_detail_loading\",\"json\":{\"entry\":\"1\",\"goodsid\":\"0\",\"loading_time\":\"93\",\"action\":\"3\",\"staytime\":\"56\",\"showtype\":\"2\"},\"time\":1596343881690},{\"name\":\"loading\",\"json\":{\"loading_time\":\"15\",\"action\":\"3\",\"loading_type\":\"3\",\"type\":\"1\"},\"time\":1596356988428},{\"name\":\"notification\",\"json\":{\"action\":\"1\",\"type\":\"2\"},\"time\":1596374167278},{\"name\":\"favorites\",\"json\":{\"course_id\":1,\"id\":0,\"userid\":0},\"time\":1596350933962}],\"attr\":{\"area\":\"杭州\",\"uid\":\"2F10092A4\",\"app_v\":\"1.1.14\",\"event_type\":\"common\",\"device_id\":\"1FB872-9A1004\",\"os_type\":\"0.5.0\",\"channel\":\"QL\",\"language\":\"chinese\",\"brand\":\"xiaomi-0\"}}";
### --- 编译测试

~~~     # 启动startJunit测试
D:\JAVA\jdk1.8.0_231\bin\java.exe -ea -Didea.test.cyclic.buffer.size=1048576 "-javaagent:D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\lib\idea_rt.jar=58462:D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\bin" -Dfile.encoding=UTF-8 -classpath "D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\lib\idea_rt.jar;D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\plugins\junit\lib\junit5-rt.jar;D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\plugins\junit\lib\junit-rt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\charsets.jar;D:\JAVA\jdk1.8.0_231\jre\lib\deploy.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\access-bridge-64.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\cldrdata.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\dnsns.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\jaccess.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\jfxrt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\localedata.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\nashorn.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunec.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunjce_provider.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunmscapi.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunpkcs11.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\zipfs.jar;D:\JAVA\jdk1.8.0_231\jre\lib\javaws.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jce.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jfr.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jfxswt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jsse.jar;D:\JAVA\jdk1.8.0_231\jre\lib\management-agent.jar;D:\JAVA\jdk1.8.0_231\jre\lib\plugin.jar;D:\JAVA\jdk1.8.0_231\jre\lib\resources.jar;D:\JAVA\jdk1.8.0_231\jre\lib\rt.jar;E:\NO.Z.10000——javaproject\NO.Z.00002.Hadoop\cn.yanqi.dw\target\classes;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-core\1.9.0\flume-ng-core-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-sdk\1.9.0\flume-ng-sdk-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-configuration\1.9.0\flume-ng-configuration-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-configfilters\flume-ng-config-filter-api\1.9.0\flume-ng-config-filter-api-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-auth\1.9.0\flume-ng-auth-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\slf4j\slf4j-api\1.7.25\slf4j-api-1.7.25.jar;C:\Users\Administrator\.m2\repository\com\google\guava\guava\11.0.2\guava-11.0.2.jar;C:\Users\Administrator\.m2\repository\com\google\code\findbugs\jsr305\1.3.9\jsr305-1.3.9.jar;C:\Users\Administrator\.m2\repository\commons-io\commons-io\2.1\commons-io-2.1.jar;C:\Users\Administrator\.m2\repository\commons-codec\commons-codec\1.8\commons-codec-1.8.jar;C:\Users\Administrator\.m2\repository\commons-cli\commons-cli\1.2\commons-cli-1.2.jar;C:\Users\Administrator\.m2\repository\commons-lang\commons-lang\2.5\commons-lang-2.5.jar;C:\Users\Administrator\.m2\repository\org\apache\avro\avro\1.7.4\avro-1.7.4.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jackson\jackson-core-asl\1.8.8\jackson-core-asl-1.8.8.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jackson\jackson-mapper-asl\1.8.8\jackson-mapper-asl-1.8.8.jar;C:\Users\Administrator\.m2\repository\com\thoughtworks\paranamer\paranamer\2.3\paranamer-2.3.jar;C:\Users\Administrator\.m2\repository\org\xerial\snappy\snappy-java\1.0.4.1\snappy-java-1.0.4.1.jar;C:\Users\Administrator\.m2\repository\org\apache\commons\commons-compress\1.4.1\commons-compress-1.4.1.jar;C:\Users\Administrator\.m2\repository\org\tukaani\xz\1.0\xz-1.0.jar;C:\Users\Administrator\.m2\repository\org\apache\avro\avro-ipc\1.7.4\avro-ipc-1.7.4.jar;C:\Users\Administrator\.m2\repository\org\mortbay\jetty\jetty\6.1.26\jetty-6.1.26.jar;C:\Users\Administrator\.m2\repository\org\mortbay\jetty\jetty-util\6.1.26\jetty-util-6.1.26.jar;C:\Users\Administrator\.m2\repository\org\apache\velocity\velocity\1.7\velocity-1.7.jar;C:\Users\Administrator\.m2\repository\commons-collections\commons-collections\3.2.1\commons-collections-3.2.1.jar;C:\Users\Administrator\.m2\repository\io\netty\netty\3.10.6.Final\netty-3.10.6.Final.jar;C:\Users\Administrator\.m2\repository\joda-time\joda-time\2.9.9\joda-time-2.9.9.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-servlet\9.4.6.v20170531\jetty-servlet-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-security\9.4.6.v20170531\jetty-security-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-util\9.4.6.v20170531\jetty-util-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-server\9.4.6.v20170531\jetty-server-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\javax\servlet\javax.servlet-api\3.1.0\javax.servlet-api-3.1.0.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-http\9.4.6.v20170531\jetty-http-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-io\9.4.6.v20170531\jetty-io-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-jmx\9.4.6.v20170531\jetty-jmx-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\com\google\code\gson\gson\2.2.2\gson-2.2.2.jar;C:\Users\Administrator\.m2\repository\org\apache\thrift\libthrift\0.9.3\libthrift-0.9.3.jar;C:\Users\Administrator\.m2\repository\org\apache\httpcomponents\httpclient\4.4.1\httpclient-4.4.1.jar;C:\Users\Administrator\.m2\repository\commons-logging\commons-logging\1.2\commons-logging-1.2.jar;C:\Users\Administrator\.m2\repository\org\apache\httpcomponents\httpcore\4.4.1\httpcore-4.4.1.jar;C:\Users\Administrator\.m2\repository\org\apache\mina\mina-core\2.0.4\mina-core-2.0.4.jar;C:\Users\Administrator\.m2\repository\com\alibaba\fastjson\1.1.23\fastjson-1.1.23.jar;C:\Users\Administrator\.m2\repository\junit\junit\4.12\junit-4.12.jar;C:\Users\Administrator\.m2\repository\org\hamcrest\hamcrest-core\1.3\hamcrest-core-1.3.jar" com.intellij.rt.junit.JUnitStarter -ideVersion5 -junit4 cn.yanqi.dw.flume.interceptor.LogTypeInterceptor,startJunit
{"logtime":"2020-08-02","logtype":"start"}

~~~     # 启动eventJunit测试
D:\JAVA\jdk1.8.0_231\bin\java.exe -ea -Didea.test.cyclic.buffer.size=1048576 "-javaagent:D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\lib\idea_rt.jar=58484:D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\bin" -Dfile.encoding=UTF-8 -classpath "D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\lib\idea_rt.jar;D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\plugins\junit\lib\junit5-rt.jar;D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\plugins\junit\lib\junit-rt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\charsets.jar;D:\JAVA\jdk1.8.0_231\jre\lib\deploy.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\access-bridge-64.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\cldrdata.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\dnsns.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\jaccess.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\jfxrt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\localedata.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\nashorn.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunec.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunjce_provider.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunmscapi.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunpkcs11.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\zipfs.jar;D:\JAVA\jdk1.8.0_231\jre\lib\javaws.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jce.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jfr.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jfxswt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jsse.jar;D:\JAVA\jdk1.8.0_231\jre\lib\management-agent.jar;D:\JAVA\jdk1.8.0_231\jre\lib\plugin.jar;D:\JAVA\jdk1.8.0_231\jre\lib\resources.jar;D:\JAVA\jdk1.8.0_231\jre\lib\rt.jar;E:\NO.Z.10000——javaproject\NO.Z.00002.Hadoop\cn.yanqi.dw\target\classes;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-core\1.9.0\flume-ng-core-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-sdk\1.9.0\flume-ng-sdk-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-configuration\1.9.0\flume-ng-configuration-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-configfilters\flume-ng-config-filter-api\1.9.0\flume-ng-config-filter-api-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\apache\flume\flume-ng-auth\1.9.0\flume-ng-auth-1.9.0.jar;C:\Users\Administrator\.m2\repository\org\slf4j\slf4j-api\1.7.25\slf4j-api-1.7.25.jar;C:\Users\Administrator\.m2\repository\com\google\guava\guava\11.0.2\guava-11.0.2.jar;C:\Users\Administrator\.m2\repository\com\google\code\findbugs\jsr305\1.3.9\jsr305-1.3.9.jar;C:\Users\Administrator\.m2\repository\commons-io\commons-io\2.1\commons-io-2.1.jar;C:\Users\Administrator\.m2\repository\commons-codec\commons-codec\1.8\commons-codec-1.8.jar;C:\Users\Administrator\.m2\repository\commons-cli\commons-cli\1.2\commons-cli-1.2.jar;C:\Users\Administrator\.m2\repository\commons-lang\commons-lang\2.5\commons-lang-2.5.jar;C:\Users\Administrator\.m2\repository\org\apache\avro\avro\1.7.4\avro-1.7.4.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jackson\jackson-core-asl\1.8.8\jackson-core-asl-1.8.8.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jackson\jackson-mapper-asl\1.8.8\jackson-mapper-asl-1.8.8.jar;C:\Users\Administrator\.m2\repository\com\thoughtworks\paranamer\paranamer\2.3\paranamer-2.3.jar;C:\Users\Administrator\.m2\repository\org\xerial\snappy\snappy-java\1.0.4.1\snappy-java-1.0.4.1.jar;C:\Users\Administrator\.m2\repository\org\apache\commons\commons-compress\1.4.1\commons-compress-1.4.1.jar;C:\Users\Administrator\.m2\repository\org\tukaani\xz\1.0\xz-1.0.jar;C:\Users\Administrator\.m2\repository\org\apache\avro\avro-ipc\1.7.4\avro-ipc-1.7.4.jar;C:\Users\Administrator\.m2\repository\org\mortbay\jetty\jetty\6.1.26\jetty-6.1.26.jar;C:\Users\Administrator\.m2\repository\org\mortbay\jetty\jetty-util\6.1.26\jetty-util-6.1.26.jar;C:\Users\Administrator\.m2\repository\org\apache\velocity\velocity\1.7\velocity-1.7.jar;C:\Users\Administrator\.m2\repository\commons-collections\commons-collections\3.2.1\commons-collections-3.2.1.jar;C:\Users\Administrator\.m2\repository\io\netty\netty\3.10.6.Final\netty-3.10.6.Final.jar;C:\Users\Administrator\.m2\repository\joda-time\joda-time\2.9.9\joda-time-2.9.9.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-servlet\9.4.6.v20170531\jetty-servlet-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-security\9.4.6.v20170531\jetty-security-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-util\9.4.6.v20170531\jetty-util-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-server\9.4.6.v20170531\jetty-server-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\javax\servlet\javax.servlet-api\3.1.0\javax.servlet-api-3.1.0.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-http\9.4.6.v20170531\jetty-http-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-io\9.4.6.v20170531\jetty-io-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\org\eclipse\jetty\jetty-jmx\9.4.6.v20170531\jetty-jmx-9.4.6.v20170531.jar;C:\Users\Administrator\.m2\repository\com\google\code\gson\gson\2.2.2\gson-2.2.2.jar;C:\Users\Administrator\.m2\repository\org\apache\thrift\libthrift\0.9.3\libthrift-0.9.3.jar;C:\Users\Administrator\.m2\repository\org\apache\httpcomponents\httpclient\4.4.1\httpclient-4.4.1.jar;C:\Users\Administrator\.m2\repository\commons-logging\commons-logging\1.2\commons-logging-1.2.jar;C:\Users\Administrator\.m2\repository\org\apache\httpcomponents\httpcore\4.4.1\httpcore-4.4.1.jar;C:\Users\Administrator\.m2\repository\org\apache\mina\mina-core\2.0.4\mina-core-2.0.4.jar;C:\Users\Administrator\.m2\repository\com\alibaba\fastjson\1.1.23\fastjson-1.1.23.jar;C:\Users\Administrator\.m2\repository\junit\junit\4.12\junit-4.12.jar;C:\Users\Administrator\.m2\repository\org\hamcrest\hamcrest-core\1.3\hamcrest-core-1.3.jar" com.intellij.rt.junit.JUnitStarter -ideVersion5 -junit4 cn.yanqi.dw.flume.interceptor.LogTypeInterceptor,eventJunit
{"logtime":"2020-08-02","logtype":"event"}
五、打包并上传到服务下：
### --- 编码完成后打包上传服务器，放置在$FLUME_HOME/lib 下

[root@hadoop02 ~]# ll /data/yanqidw/jars/
-rw-r--r-- 1 root root 358821 Sep 28 20:47 cn.yanqi.dw-1.0-SNAPSHOT-jar-with-dependencies.jar

[root@hadoop02 ~]# cp /data/yanqidw/jars/cn.yanqi.dw-1.0-SNAPSHOT-jar-with-dependencies.jar \
/opt/yanqi/servers/flume-1.9.0/lib/
六、验证测试
### --- 清理环境

~~~     # 清理本地环境
[root@hadoop02 ~]# rm -f /data/yanqidw/conf/startlog_position.json
[root@hadoop02 ~]# rm -f /data/yanqidw/logs/start/*.log
[root@hadoop02 ~]# rm -f /data/yanqidw/logs/event/*.log
~~~     # 清理HDFS环境

[root@hadoop02 ~]# hdfs dfs -rm -f -r /user/data/logs/event/*
[root@hadoop02 ~]# hdfs dfs -rm -f -r /user/data/logs/start/*
### --- 启动agent，拷贝日志，检查HDFS文件

~~~     # 启动 Agent
[root@hadoop02 ~]#  flume-ng agent --conf /opt/yanqi/servers/flume-1.9.0/conf/ \
--conf-file /data/yanqidw/conf/flume-log2hdfs3.conf \
-name a1 -Dflume.root.logger=INFO,console
~~~     # 拷贝日志

~~~ 拷贝event日志数据
[root@hadoop02 ~]# cp /data/yanqidw/logs/data/event0721.log /data/yanqidw/logs/event/event1.log
[root@hadoop02 ~]# cp /data/yanqidw/logs/data/event0721.log /data/yanqidw/logs/event/event2.log
~~~ 拷贝start日志数据
[root@hadoop02 event]# cp /data/yanqidw/logs/data/start0721.log /data/yanqidw/logs/start/start1.log
[root@hadoop02 event]# cp /data/yanqidw/logs/data/start0721.log /data/yanqidw/logs/start/start2.log
~~~     # 检查HDFS文件

[root@hadoop02 ~]# hdfs dfs -ls /user/data/logs/event
drwxr-xr-x   - root supergroup          0 2021-09-28 21:11 /user/data/logs/event/dt=2020-07-21
drwxr-xr-x   - root supergroup          0 2021-09-28 21:11 /user/data/logs/event/dt=Unknown
[root@hadoop02 ~]# hdfs dfs -ls /user/data/logs/start
Found 2 items
drwxr-xr-x   - root supergroup          0 2021-09-28 21:22 /user/data/logs/start/dt=2020-07-21
drwxr-xr-x   - root supergroup          0 2021-09-28 21:22 /user/data/logs/start/dt=Unknown
### --- 后三台启动agent
~~~     # 生产环境中用以下方式启动Agent

[root@hadoop02 ~]#  nohup flume-ng agent --conf /opt/yanqi/servers/flume-1.9.0/conf/ \
--conf-file /data/yanqidw/conf/flume-log2hdfs3.conf \
-name a1 -Dflume.root.logger=INFO,LOGFILE > /dev/null 2>&1 &
~~~     nohup，该命令允许用户退出帐户/关闭终端之后继续运行相应的进程
~~~     /dev/null，代表linux的空设备文件，所有往这个文件里面写入的内容都会丢失，俗称黑洞
~~~     标准输入0，从键盘获得输入 /proc/self/fd/0
~~~     标准输出1，输出到屏幕（控制台） /proc/self/fd/1
~~~     错误输出2，输出到屏幕（控制台） /proc/self/fd/2
~~~     >/dev/null 标准输出1重定向到 /dev/null 中，此时标准输出不存在，没有任何地方能够找到输出的内容
~~~     2>&1 错误输出将会和标准输出输出到同一个地方
~~~     >/dev/null 2>&1 不会输出任何信息到控制台，也不会有任何信息输出到文件中
七、日志数据采集小结
### --- 日志数据采集

~~~     使用taildir source 监控指定的多个目录，可以给不同目录的日志加上不同header
~~~     在每个目录中可以使用正则匹配多个文件
~~~     使用自定义拦截器，主要功能是从json串中获取时间戳，加到event的header中
~~~     hdfs sink使用event header中的信息写数据（控制写文件的位置）
~~~     hdfs文件的滚动方式（基于文件大小、基于event数量、基于时间）
~~~     调节flume jvm内存的分配
