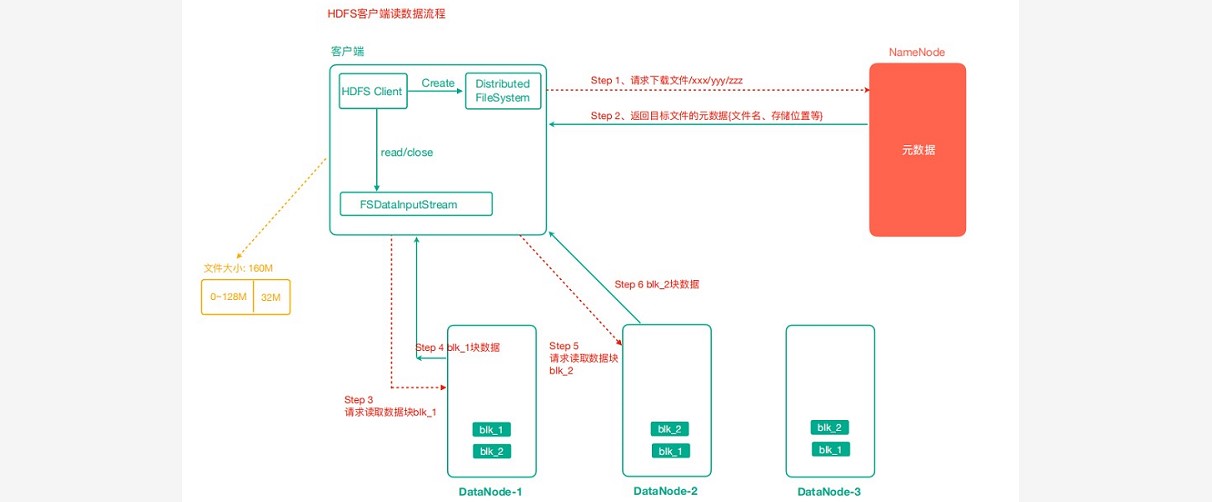

一、HDFS读写解析：HDFS读数据流程

### --- HDFS读数据流程

~~~     客户端通过Distributed FileSystem向NameNode请求下载文件，
~~~     NameNode通过查询元数据，找到文件块所在的DataNode地址。
~~~     挑选一台DataNode（就近原则，然后随机）服务器，请求读取数据。
~~~     DataNode开始传输数据给客户端（从磁盘里面读取数据输入流，以Packet为单位来做校验）。
~~~     客户端以Packet为单位接收，先在本地缓存，然后写入目标文件。

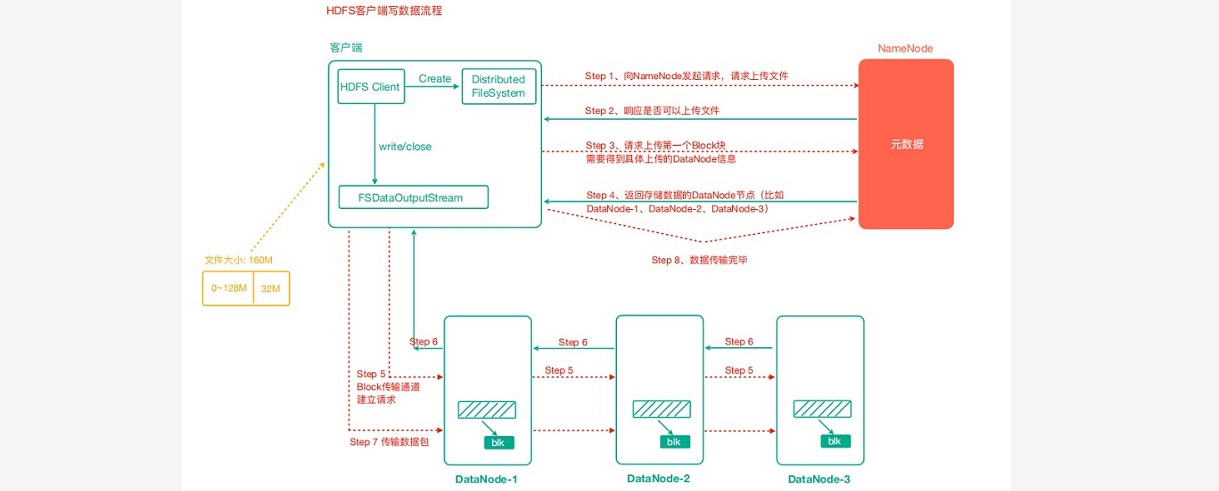

二、HDFS写数据流程

### --- HDFS写数据流程

~~~     客户端通过Distributed FileSystem模块向NameNode请求上传文件，
~~~     NameNode检查目标文件是否已存在，父目录是否存在。
~~~     NameNode返回是否可以上传。
~~~     客户端请求第一个 Block上传到哪几个DataNode服务器上。
~~~     NameNode返回3个DataNode节点，分别为dn1、dn2、dn3。
~~~     客户端通过FSDataOutputStream模块请求dn1上传数据，dn1收到请求会继续调用dn2，
~~~     然后dn2调用dn3，将这个通信管道建立完成。
~~~     dn1、dn2、dn3逐级应答客户端。
~~~     客户端开始往dn1上传第一个Block（先从磁盘读取数据放到一个本地内存缓存），
~~~     以Packet为单位，dn1收到一个Packet就会传给dn2，dn2传给dn3；
~~~     dn1每传一个packet会放入一个确认队列等待确认。
~~~     当一个Block传输完成之后，客户端再次请求NameNode上传第二个Block的服务器。（重复执行3-7步）。

三、验证Packet代码

    @Test
    public void testUploadPacket() throws IOException {
        //1 准备读取本地文件的输入流
        final FileInputStream in = new FileInputStream(new
File("e:/yanqi.txt"));
        //2 准备好写出数据到hdfs的输出流
        final FSDataOutputStream out = fs.create(new Path("/yanqi.txt"), new
Progressable() {
            public void progress() { //这个progress方法就是每传输64KB（packet）就会执行一次，

                System.out.println("&");
            }
        });
        //3 实现流拷贝
        IOUtils.copyBytes(in, out, configuration); //默认关闭流选项是true，所以会自动关闭

        //4 关流 可以再次关闭也可以不关了
    }

四、编程代码

### --- 编程代码：验证packet代码

package cn.yanqi.hdfs;


import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.*;
import org.apache.hadoop.fs.permission.FsPermission;
import org.apache.hadoop.io.IOUtils;
import org.apache.hadoop.util.Progressable;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;

import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.net.URI;
import java.net.URISyntaxException;

public class HdfsClientDemo12 {
    FileSystem fs = null;
    Configuration configuration = null;
    @Before
    public void init() throws URISyntaxException, IOException, InterruptedException {
        //1、获取Hadoop集群的configuration对象
        configuration = new Configuration();
        //configuration.set( "fs.defaultFS", "hdfs://linux121:9000" );
        //configuration.set( "dfs.replication", "2" );

        //2、根据configuration获取Filesystem对象
        fs = FileSystem.get( new URI( "hdfs://linux121:9000" ), configuration, "root" );
    }


    @After
    public void destory() throws IOException {
        //4、释放filesystem对象(类似数据库连接)
        fs.close();
    }


    //验证packet代码
    @Test
    public void testUploadPacket() throws IOException {
        //1 准备读取本地文件的输入流
        final FileInputStream in = new FileInputStream(new  File("e:/yanqi.txt"));
        //2 准备好写出数据到hdfs的输出流
        final FSDataOutputStream out = fs.create(new Path("/yanqi.txt"), new Progressable() {
            public void progress() { //这个progress方法就是每传输64KB（packet）就会执行一次，
                System.out.println("&");
            }
        });
        //3 实现流拷贝
        IOUtils.copyBytes(in, out, configuration); //默认关闭流选项是true，所以会自动关闭

        //4 关流 可以再次关闭也可以不关了
    }

}

### --- 打印输出

D:\JAVA\jdk1.8.0_231\bin\java.exe -ea -Didea.test.cyclic.buffer.size=1048576 "-javaagent:D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\lib\idea_rt.jar=53127:D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\bin" -Dfile.encoding=UTF-8 -classpath "D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\lib\idea_rt.jar;D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\plugins\junit\lib\junit5-rt.jar;D:\IntelliJIDEA\IntelliJ IDEA 2019.3.3\plugins\junit\lib\junit-rt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\charsets.jar;D:\JAVA\jdk1.8.0_231\jre\lib\deploy.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\access-bridge-64.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\cldrdata.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\dnsns.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\jaccess.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\jfxrt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\localedata.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\nashorn.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunec.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunjce_provider.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunmscapi.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\sunpkcs11.jar;D:\JAVA\jdk1.8.0_231\jre\lib\ext\zipfs.jar;D:\JAVA\jdk1.8.0_231\jre\lib\javaws.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jce.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jfr.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jfxswt.jar;D:\JAVA\jdk1.8.0_231\jre\lib\jsse.jar;D:\JAVA\jdk1.8.0_231\jre\lib\management-agent.jar;D:\JAVA\jdk1.8.0_231\jre\lib\plugin.jar;D:\JAVA\jdk1.8.0_231\jre\lib\resources.jar;D:\JAVA\jdk1.8.0_231\jre\lib\rt.jar;E:\NO.Z.10000——javaproject\NO.Z.00002.Hadoop\client_demo\target\classes;C:\Users\Administrator\.m2\repository\junit\junit\4.13.2\junit-4.13.2.jar;C:\Users\Administrator\.m2\repository\org\hamcrest\hamcrest-core\1.3\hamcrest-core-1.3.jar;C:\Users\Administrator\.m2\repository\org\apache\logging\log4j\log4j-core\2.8.2\log4j-core-2.8.2.jar;C:\Users\Administrator\.m2\repository\org\apache\logging\log4j\log4j-api\2.8.2\log4j-api-2.8.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-common\2.9.2\hadoop-common-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-annotations\2.9.2\hadoop-annotations-2.9.2.jar;C:\Users\Administrator\.m2\repository\com\google\guava\guava\11.0.2\guava-11.0.2.jar;C:\Users\Administrator\.m2\repository\commons-cli\commons-cli\1.2\commons-cli-1.2.jar;C:\Users\Administrator\.m2\repository\org\apache\commons\commons-math3\3.1.1\commons-math3-3.1.1.jar;C:\Users\Administrator\.m2\repository\xmlenc\xmlenc\0.52\xmlenc-0.52.jar;C:\Users\Administrator\.m2\repository\org\apache\httpcomponents\httpclient\4.5.2\httpclient-4.5.2.jar;C:\Users\Administrator\.m2\repository\org\apache\httpcomponents\httpcore\4.4.4\httpcore-4.4.4.jar;C:\Users\Administrator\.m2\repository\commons-codec\commons-codec\1.4\commons-codec-1.4.jar;C:\Users\Administrator\.m2\repository\commons-io\commons-io\2.4\commons-io-2.4.jar;C:\Users\Administrator\.m2\repository\commons-net\commons-net\3.1\commons-net-3.1.jar;C:\Users\Administrator\.m2\repository\commons-collections\commons-collections\3.2.2\commons-collections-3.2.2.jar;C:\Users\Administrator\.m2\repository\javax\servlet\servlet-api\2.5\servlet-api-2.5.jar;C:\Users\Administrator\.m2\repository\org\mortbay\jetty\jetty\6.1.26\jetty-6.1.26.jar;C:\Users\Administrator\.m2\repository\org\mortbay\jetty\jetty-util\6.1.26\jetty-util-6.1.26.jar;C:\Users\Administrator\.m2\repository\org\mortbay\jetty\jetty-sslengine\6.1.26\jetty-sslengine-6.1.26.jar;C:\Users\Administrator\.m2\repository\javax\servlet\jsp\jsp-api\2.1\jsp-api-2.1.jar;C:\Users\Administrator\.m2\repository\com\sun\jersey\jersey-core\1.9\jersey-core-1.9.jar;C:\Users\Administrator\.m2\repository\com\sun\jersey\jersey-json\1.9\jersey-json-1.9.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jettison\jettison\1.1\jettison-1.1.jar;C:\Users\Administrator\.m2\repository\com\sun\xml\bind\jaxb-impl\2.2.3-1\jaxb-impl-2.2.3-1.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jackson\jackson-jaxrs\1.8.3\jackson-jaxrs-1.8.3.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jackson\jackson-xc\1.8.3\jackson-xc-1.8.3.jar;C:\Users\Administrator\.m2\repository\com\sun\jersey\jersey-server\1.9\jersey-server-1.9.jar;C:\Users\Administrator\.m2\repository\asm\asm\3.1\asm-3.1.jar;C:\Users\Administrator\.m2\repository\commons-logging\commons-logging\1.1.3\commons-logging-1.1.3.jar;C:\Users\Administrator\.m2\repository\log4j\log4j\1.2.17\log4j-1.2.17.jar;C:\Users\Administrator\.m2\repository\net\java\dev\jets3t\jets3t\0.9.0\jets3t-0.9.0.jar;C:\Users\Administrator\.m2\repository\com\jamesmurty\utils\java-xmlbuilder\0.4\java-xmlbuilder-0.4.jar;C:\Users\Administrator\.m2\repository\commons-lang\commons-lang\2.6\commons-lang-2.6.jar;C:\Users\Administrator\.m2\repository\commons-configuration\commons-configuration\1.6\commons-configuration-1.6.jar;C:\Users\Administrator\.m2\repository\commons-digester\commons-digester\1.8\commons-digester-1.8.jar;C:\Users\Administrator\.m2\repository\commons-beanutils\commons-beanutils\1.7.0\commons-beanutils-1.7.0.jar;C:\Users\Administrator\.m2\repository\commons-beanutils\commons-beanutils-core\1.8.0\commons-beanutils-core-1.8.0.jar;C:\Users\Administrator\.m2\repository\org\apache\commons\commons-lang3\3.4\commons-lang3-3.4.jar;C:\Users\Administrator\.m2\repository\org\slf4j\slf4j-api\1.7.25\slf4j-api-1.7.25.jar;C:\Users\Administrator\.m2\repository\org\slf4j\slf4j-log4j12\1.7.25\slf4j-log4j12-1.7.25.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jackson\jackson-core-asl\1.9.13\jackson-core-asl-1.9.13.jar;C:\Users\Administrator\.m2\repository\org\codehaus\jackson\jackson-mapper-asl\1.9.13\jackson-mapper-asl-1.9.13.jar;C:\Users\Administrator\.m2\repository\org\apache\avro\avro\1.7.7\avro-1.7.7.jar;C:\Users\Administrator\.m2\repository\com\thoughtworks\paranamer\paranamer\2.3\paranamer-2.3.jar;C:\Users\Administrator\.m2\repository\org\xerial\snappy\snappy-java\1.0.5\snappy-java-1.0.5.jar;C:\Users\Administrator\.m2\repository\com\google\protobuf\protobuf-java\2.5.0\protobuf-java-2.5.0.jar;C:\Users\Administrator\.m2\repository\com\google\code\gson\gson\2.2.4\gson-2.2.4.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-auth\2.9.2\hadoop-auth-2.9.2.jar;C:\Users\Administrator\.m2\repository\com\nimbusds\nimbus-jose-jwt\4.41.1\nimbus-jose-jwt-4.41.1.jar;C:\Users\Administrator\.m2\repository\com\github\stephenc\jcip\jcip-annotations\1.0-1\jcip-annotations-1.0-1.jar;C:\Users\Administrator\.m2\repository\net\minidev\json-smart\2.3\json-smart-2.3.jar;C:\Users\Administrator\.m2\repository\net\minidev\accessors-smart\1.2\accessors-smart-1.2.jar;C:\Users\Administrator\.m2\repository\org\ow2\asm\asm\5.0.4\asm-5.0.4.jar;C:\Users\Administrator\.m2\repository\org\apache\directory\server\apacheds-kerberos-codec\2.0.0-M15\apacheds-kerberos-codec-2.0.0-M15.jar;C:\Users\Administrator\.m2\repository\org\apache\directory\server\apacheds-i18n\2.0.0-M15\apacheds-i18n-2.0.0-M15.jar;C:\Users\Administrator\.m2\repository\org\apache\directory\api\api-asn1-api\1.0.0-M20\api-asn1-api-1.0.0-M20.jar;C:\Users\Administrator\.m2\repository\org\apache\directory\api\api-util\1.0.0-M20\api-util-1.0.0-M20.jar;C:\Users\Administrator\.m2\repository\org\apache\curator\curator-framework\2.7.1\curator-framework-2.7.1.jar;C:\Users\Administrator\.m2\repository\com\jcraft\jsch\0.1.54\jsch-0.1.54.jar;C:\Users\Administrator\.m2\repository\org\apache\curator\curator-client\2.7.1\curator-client-2.7.1.jar;C:\Users\Administrator\.m2\repository\org\apache\curator\curator-recipes\2.7.1\curator-recipes-2.7.1.jar;C:\Users\Administrator\.m2\repository\com\google\code\findbugs\jsr305\3.0.0\jsr305-3.0.0.jar;C:\Users\Administrator\.m2\repository\org\apache\htrace\htrace-core4\4.1.0-incubating\htrace-core4-4.1.0-incubating.jar;C:\Users\Administrator\.m2\repository\org\apache\zookeeper\zookeeper\3.4.6\zookeeper-3.4.6.jar;C:\Users\Administrator\.m2\repository\org\apache\commons\commons-compress\1.4.1\commons-compress-1.4.1.jar;C:\Users\Administrator\.m2\repository\org\tukaani\xz\1.0\xz-1.0.jar;C:\Users\Administrator\.m2\repository\org\codehaus\woodstox\stax2-api\3.1.4\stax2-api-3.1.4.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\woodstox\woodstox-core\5.0.3\woodstox-core-5.0.3.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-client\2.9.2\hadoop-client-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-hdfs-client\2.9.2\hadoop-hdfs-client-2.9.2.jar;C:\Users\Administrator\.m2\repository\com\squareup\okhttp\okhttp\2.7.5\okhttp-2.7.5.jar;C:\Users\Administrator\.m2\repository\com\squareup\okio\okio\1.6.0\okio-1.6.0.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-mapreduce-client-app\2.9.2\hadoop-mapreduce-client-app-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-mapreduce-client-common\2.9.2\hadoop-mapreduce-client-common-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-mapreduce-client-shuffle\2.9.2\hadoop-mapreduce-client-shuffle-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-yarn-server-common\2.9.2\hadoop-yarn-server-common-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-yarn-registry\2.9.2\hadoop-yarn-registry-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\geronimo\specs\geronimo-jcache_1.0_spec\1.0-alpha-1\geronimo-jcache_1.0_spec-1.0-alpha-1.jar;C:\Users\Administrator\.m2\repository\org\ehcache\ehcache\3.3.1\ehcache-3.3.1.jar;C:\Users\Administrator\.m2\repository\com\zaxxer\HikariCP-java7\2.4.12\HikariCP-java7-2.4.12.jar;C:\Users\Administrator\.m2\repository\com\microsoft\sqlserver\mssql-jdbc\6.2.1.jre7\mssql-jdbc-6.2.1.jre7.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-yarn-api\2.9.2\hadoop-yarn-api-2.9.2.jar;C:\Users\Administrator\.m2\repository\javax\xml\bind\jaxb-api\2.2.2\jaxb-api-2.2.2.jar;C:\Users\Administrator\.m2\repository\javax\xml\stream\stax-api\1.0-2\stax-api-1.0-2.jar;C:\Users\Administrator\.m2\repository\javax\activation\activation\1.1\activation-1.1.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-mapreduce-client-core\2.9.2\hadoop-mapreduce-client-core-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-yarn-client\2.9.2\hadoop-yarn-client-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-yarn-common\2.9.2\hadoop-yarn-common-2.9.2.jar;C:\Users\Administrator\.m2\repository\com\sun\jersey\jersey-client\1.9\jersey-client-1.9.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-mapreduce-client-jobclient\2.9.2\hadoop-mapreduce-client-jobclient-2.9.2.jar;C:\Users\Administrator\.m2\repository\org\apache\hadoop\hadoop-hdfs\2.9.2\hadoop-hdfs-2.9.2.jar;C:\Users\Administrator\.m2\repository\commons-daemon\commons-daemon\1.0.13\commons-daemon-1.0.13.jar;C:\Users\Administrator\.m2\repository\io\netty\netty\3.6.2.Final\netty-3.6.2.Final.jar;C:\Users\Administrator\.m2\repository\io\netty\netty-all\4.0.23.Final\netty-all-4.0.23.Final.jar;C:\Users\Administrator\.m2\repository\xerces\xercesImpl\2.9.1\xercesImpl-2.9.1.jar;C:\Users\Administrator\.m2\repository\xml-apis\xml-apis\1.3.04\xml-apis-1.3.04.jar;C:\Users\Administrator\.m2\repository\org\fusesource\leveldbjni\leveldbjni-all\1.8\leveldbjni-all-1.8.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\jackson\core\jackson-databind\2.7.8\jackson-databind-2.7.8.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\jackson\core\jackson-annotations\2.7.0\jackson-annotations-2.7.0.jar;C:\Users\Administrator\.m2\repository\com\fasterxml\jackson\core\jackson-core\2.7.8\jackson-core-2.7.8.jar" com.intellij.rt.junit.JUnitStarter -ideVersion5 -junit4 cn.yanqi.hdfs.HdfsClientDemo12
&
&

Process finished with exit code 0

---



















---
