|NO.Z.00386|——————————|CloudNative|——|KuberNetes&CI/CD.V24|——|Jenkins.v04|自动构建Java应用.v04|

一、查看创建的spring-cloud-demo的资源文件是否正常运行

### --- 查看创建的deployment，service，endpoints，ingress，secrets，namespace
### --- 查看创建的namespace

[root@k8s-master01 spring-cloud-demo]# kubectl get namespace
NAME                   STATUS   AGE
java-test              Active   3d1h

### --- 查看创建的secrets

[root@k8s-master01 spring-cloud-demo]# kubectl get secrets -n java-test -owide
NAME                  TYPE                                  DATA   AGE
registrykey           kubernetes.io/dockerconfigjson        1      46h

### --- 查看创建的service

[root@k8s-master01 spring-cloud-demo]# kubectl get service -n java-test -owide
NAME                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE   SELECTOR
spring-cloud-demo-eureka   ClusterIP   10.107.119.68   <none>        8761/TCP   21h   app=spring-cloud-demo-eureka

### --- 查看创建的endpoints

[root@k8s-master01 spring-cloud-demo]# kubectl get endpoints -n java-test -owide
NAME                       ENDPOINTS             AGE
spring-cloud-demo-eureka   172.25.244.232:8761   21h

### --- 查看创建的ingress

[root@k8s-master01 spring-cloud-demo]# kubectl get ingress -n java-test -owide
NAME                       CLASS    HOSTS             ADDRESS         PORTS   AGE
spring-cloud-demo-eureka   <none>   eureka.test.com   10.105.89.225   80      21h

### --- 查看创建deployment

[root@k8s-master01 spring-cloud-demo]# kubectl get deployment -n java-test -owide
NAME                       READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS                 IMAGES                                                                                                            SELECTOR
spring-cloud-demo-eureka   1/1     1            1           21h   spring-cloud-demo-eureka   registry.cn-beijing.aliyuncs.com/java-demo-yanqi/spring-cloud-demo-eureka:20210623-114026-b2a0f8e-pipeline-test   app=spring-cloud-demo-eureka

### --- 查看创建的pod是否正常运行

[root@k8s-master01 spring-cloud-demo]# kubectl get po -n java-test -owide
NAME                                        READY   STATUS    RESTARTS   AGE   IP               NODE           NOMINATED NODE   READINESS GATES
spring-cloud-demo-eureka-8498bbcc5b-g449c   1/1     Running   0          75m   172.25.244.232   k8s-master01   <none>           <none>

二、配置本地hosts文件

### --- 配置本地hosts文件

192.168.1.11 eureka.test.com

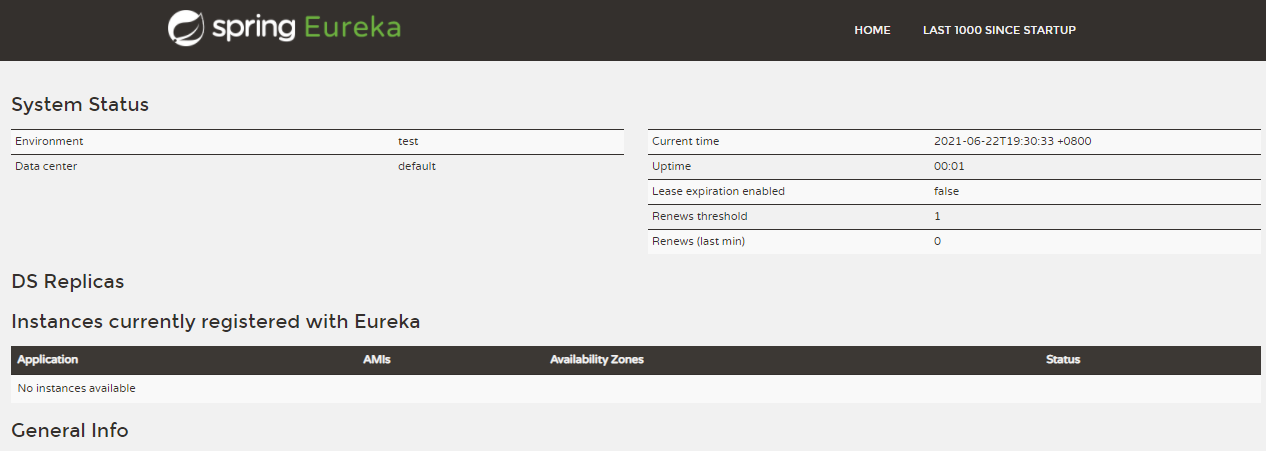

三、通过IE访问测试spring服务是否启动：http://eureka.test.com/

---



















---
