一、redirect：重定向

### --- redirect：重定向

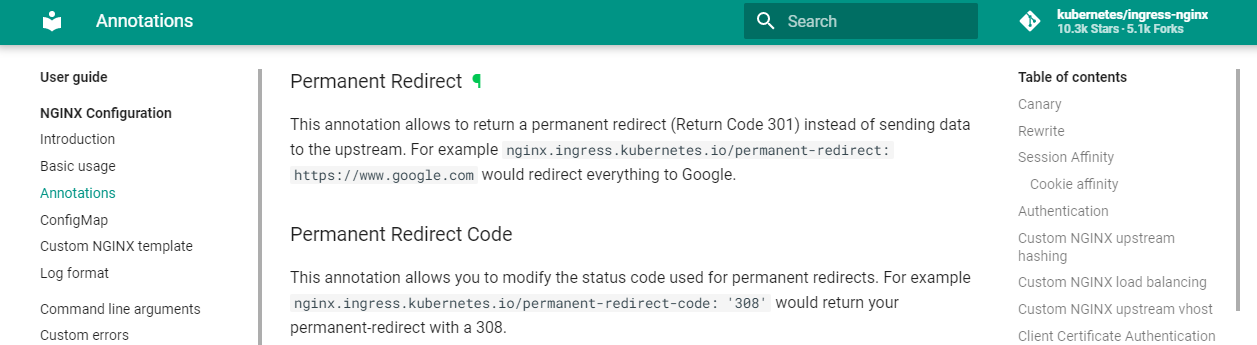

~~~     # 地址：
~~~     https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/#permanent-redirect

二、为nginx-ingress配置重定向到百度

### --- 创建nginx-ingress.yaml文件；配置annotations

apiVersion: v1
items:
- apiVersion: extensions/v1beta1
  kind: Ingress
  metadata:
    annotations:
      nginx.ingress.kubernetes.io/permanent-redirect: https://www.baidu.com
    name: ingress-test
    namespace: ratel-test1
  spec:
    rules:
    - host: ingress.test.com
      http:
        paths:
        - backend:
            serviceName: ingress-test
            servicePort: 80
          path: /
kind: List
metadata:
  resourceVersion: ""
  selfLink: ""

### --- replace.nginx-ingress-redirect

[root@k8s-master01 IngressNginx]# kubectl replace -f nginx-ingress-redirect-demo.yaml
ingress.extensions/ingress-test replaced

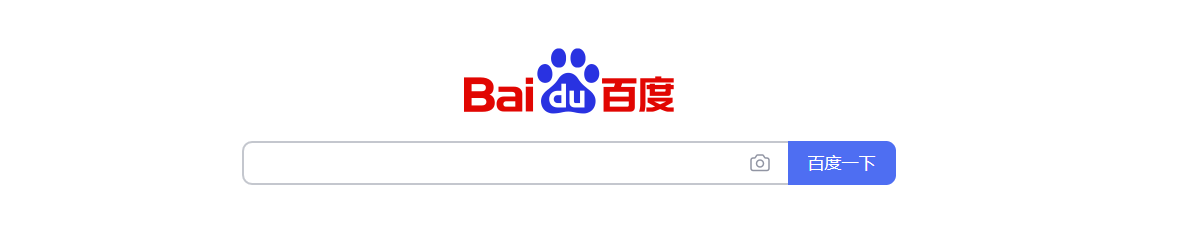

三、访问域名：http://ingress.test.com/——>会自动跳转到百度

四、进入ingressnginx查看域名重定向配置

### --- 进入容器

[root@k8s-master01 IngressNginx]# kubectl get po -n ingress-nginx -owide
NAME                             READY   STATUS    RESTARTS   AGE     IP             NODE           NOMINATED NODE   READINESS GATES
ingress-nginx-controller-fs68p   1/1     Running   1          5h24m   192.168.1.11   k8s-master01   <none>           <none>
ingress-nginx-controller-mvh2c   1/1     Running   1          8h      192.168.1.14   k8s-node01     <none>           <none>
ingress-nginx-controller-sz8tr   1/1     Running   0          5h24m   192.168.1.15   k8s-node02     <none>           <none>
[root@k8s-master01 IngressNginx]# kubectl exec -ti ingress-nginx-controller-fs68p -n ingress-nginx -- bash
bash-5.0$ ls
nginx.conf

~~~     # 进入容器查看ingress.test.com

bash-5.0$ grep "ingress.test.com" nginx.conf
    ## start server ingress.test.com      // 域名的开始
        server_name ingress.test.com ;    // 配置项
    ## end server ingress.test.com        // 域名的结束

### --- 查看域名配置内容
~~~     注：它自动生成了这个配置，把这个根跳转到www.baidu.com
~~~     注：若是nginx配置，需要自己手动添加的
~~~     注：若是使用ingress使用自动声明的方式，就会自动添加，直接使用annotations声明就可以

bash-5.0$ grep "## start server ingress.test.com" nginx.conf -A 200
            # In case of errors try the next upstream server before returning an error
            proxy_next_upstream                     error timeout;
            proxy_next_upstream_timeout             0;
            proxy_next_upstream_tries               3;

            return 301 https://www.baidu.com;

            proxy_pass http://upstream_balancer;

            proxy_redirect                          off;

        }

五、也可以更改状态码：默认是301，更改为308

### --- 创建ingress-test1的更改状态码yaml

[root@k8s-master01 IngressNginx]# vim nginx-ingress-redirect-308-demo.yaml
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/permanent-redirect: https://www.baidu.com
    nginx.ingress.kubernetes.io/permanent-redirect-code: "308"
  name: ingress-test
  namespace: ratel-test1
spec:
  rules:
  - host: ingress.test.com
    http:
      paths:
      - backend:
          serviceName: ingress-test
          servicePort: 80
        path: /
        pathType: ImplementationSpecific

### --- replace-nginx-ingress-308

[root@k8s-master01 IngressNginx]# kubectl replace -f nginx-ingress-redirect-308-demo.yaml

### --- 查看百度的状态码是否为308

[root@k8s-master01 IngressNginx]# kubectl exec -ti ingress-nginx-controller-fs68p -n ingress-nginx -- bash
bash-5.0$ grep "https://www.baidu.com" nginx.conf
            return 308 https://www.baidu.com;

---



















---
