|NO.Z.00096|——————————|^^ 升级 ^^|——|KuberNetes&二进制升级.V07|——|kubernetes组件|metrics-server.v0.4.1——>v0.5.0|

一、kubernetes.metrics-server

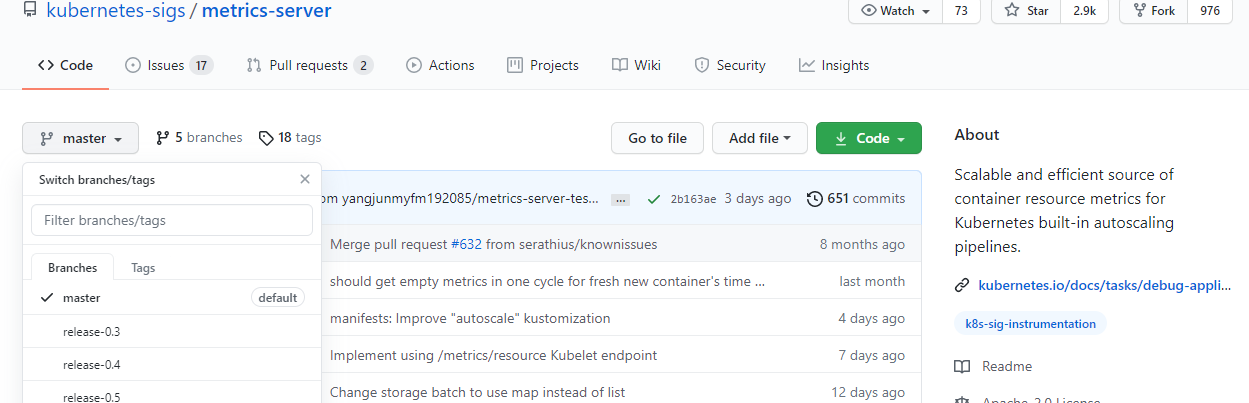

### --- metrics-server官方GitHub地址

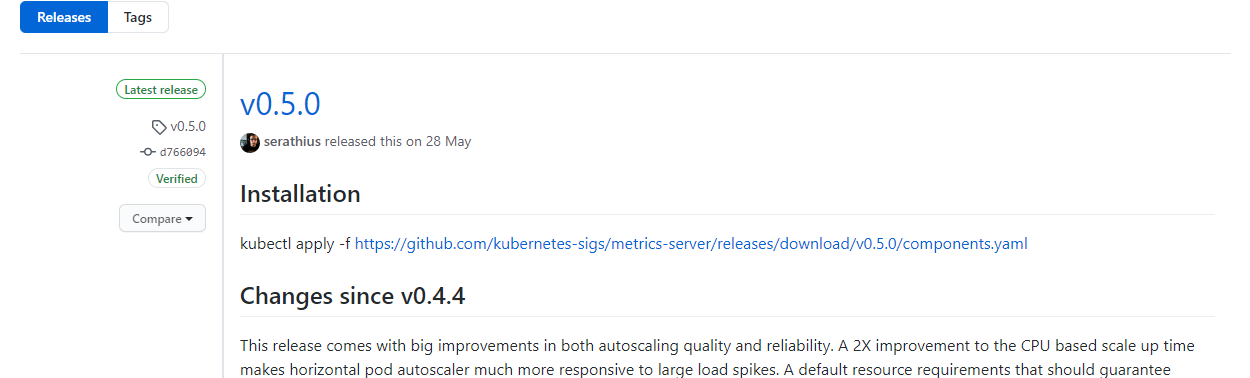

### --- metrics-server资源下载地址

~~~     https://github.com/kubernetes-sigs/metrics-server

二、升级metrics-server服务

### --- 下载metrics-server.v0.5.0版本包
~~~     获取metrics-server版本包

[root@k8s-master01 metrics-server]# pwd
/root/upgrade/metrics-server
[root@k8s-master01 metrics-server]# wget -c https://github.com/kubernetes-sigs/metrics-server/releases/download/v0.5.0/components.yaml

### --- 备份metrics-server配置资源
~~~     # 查看metrics-server配置资源

[root@k8s-master01 ~]# kubectl get secret metrics-server-token-qrtmc -n kube-system
NAME                         TYPE                                  DATA   AGE
metrics-server-token-qrtmc   kubernetes.io/service-account-token   3      55d
[root@k8s-master01 ~]#  kubectl get deployment metrics-server  -n kube-system -owide
NAME             READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS       IMAGES                                                           SELECTOR
metrics-server   1/1     1            1           55d   metrics-server   registry.cn-beijing.aliyuncs.com/dotbalo/metrics-server:v0.4.1   k8s-app=metrics-server
[root@k8s-master01 ~]# kubectl get service metrics-server -n kube-system -owide
NAME             TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE   SELECTOR
metrics-server   ClusterIP   10.107.213.132   <none>        443/TCP   55d   k8s-app=metrics-server
[root@k8s-master01 ~]# kubectl get endpoints -n kube-system -owide
NAME                      ENDPOINTS                                                 AGEkube-controller-manager   <none>                                                    2d3h
metrics-server            172.17.125.15:4443                                        55d

~~~     # 备份metrics-server配置资源

[root@k8s-master01 metrics.bak]# pwd
/root/upgrade/metrics-server/metrics.bak
[root@k8s-master01 ~]# kubectl get secret metrics-server-token-qrtmc -n kube-system -oyaml > upgrade/metrics-server/metrics.bak/metrics-secret.yaml
[root@k8s-master01 ~]# kubectl get deployment metrics-server -n kube-system -oyaml > upgrade/metrics-server/metrics.bak/metrics-deployment.yaml
[root@k8s-master01 ~]# kubectl get service metrics-server -n kube-system -oyaml > upgrade/metrics-server/metrics.bak/metrics-service.yaml
[root@k8s-master01 ~]# kubectl get endpoints metrics-server -n kube-system -oyaml > upgrade/metrics-server/metrics.bak/metrics-endpoints.yaml

~~~     # 查看查看metrics-server的ClusterRole 和clusterrolebinding

[root@k8s-master01 ~]# kubectl get clusterrole system:metrics-server
NAME                    CREATED AT
system:metrics-server   2021-05-10T12:38:57Z
[root@k8s-master01 ~]# kubectl get clusterrolebinding system:metrics-server
NAME                    ROLE                                AGE
system:metrics-server   ClusterRole/system:metrics-server   55d

~~~     # 备份metrics-server的ClusterRole和ClusterRoleBinding

[root@k8s-master01 ~]# kubectl get clusterrole system:metrics-server  -oyaml > upgrade/metrics-server/metrics.bak/metrics-cr.yaml
[root@k8s-master01 ~]# kubectl get clusterrolebinding system:metrics-server -oyaml > upgrade/metrics-server/metrics.bak/metrics-crb.yaml

三、升级并验证

### --- 升级metrics-server版本：metrics-server.v0.4.1——>v0.5.0
~~~     # 查看metrics-server的版本

[root@k8s-master01 ~]# kubectl get deployment metrics-server -n kube-system -oyaml | grep image
        image: registry.cn-beijing.aliyuncs.com/dotbalo/metrics-server:v0.4.1

~~~     # 升级metrics-server

[root@k8s-master01 metrics-server]# pwd
/root/upgrade/metrics-server
[root@k8s-master01 metrics-server]# kubectl apply -f components.yaml
[root@k8s-master01 ~]#  kubectl get po -n kube-system -owide
NAME                                       READY   STATUS              RESTARTS   AGE     IP              NODE           NOMINATED NODE   READINESS GATES
coredns-746fcb4bc5-p9r7r                   0/1     ContainerCreating   0          15s     <none>          k8s-master02   <none>           <none>

~~~     # 查看metrics-server更新后版本

[root@k8s-master01 ~]# kubectl get deployment metrics-server -n kube-system -oyaml | grep image
        image: registry.cn-beijing.aliyuncs.com/dotbalo/metrics-server:v0.5.0

### --- 验证metrics-server是否正常获取数据

[root@k8s-master01 ~]# kubectl get hpa
NAME         REFERENCE               TARGETS         MINPODS   MAXPODS   REPLICAS   AGE
demo-nginx   Deployment/demo-nginx   <unknown>/20%   2         5         2          54d

[root@k8s-master01 ~]# kubectl top node
NAME           CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
k8s-master01   404m         20%    1205Mi          65%
k8s-master02   343m         17%    1214Mi          66%
k8s-master03   387m         19%    1245Mi          67%
k8s-node01     190m         19%    973Mi           52%
k8s-node02     141m         14%    624Mi           33%

---



















---
