|NO.Z.00060|——————————|^^ 部署 ^^|——|KuberNetes&二进制部署.V13|3台Server|——|kubernetes组件|calico|

一、部署calico：calico组件说明

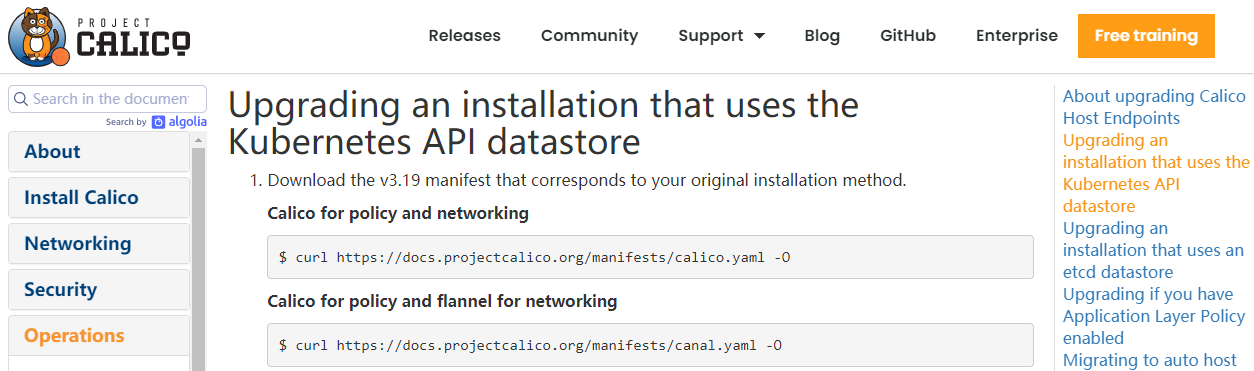

### --- calico官网

~~~     https://docs.projectcalico.org/maintenance/kubernetes-upgrade#upgrading-an-installation-that-uses-the-kubernetes-api-datastore

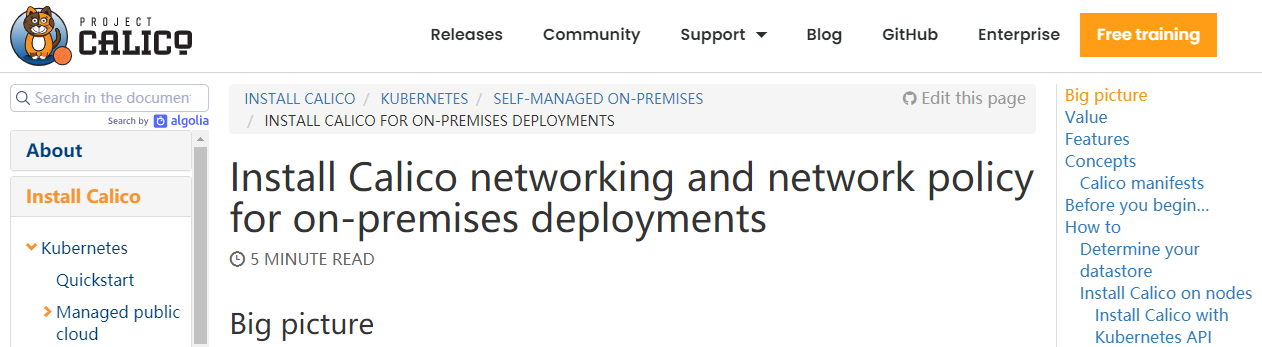

### --- calico安装手册

~~~     https://docs.projectcalico.org/getting-started/kubernetes/self-managed-onprem/onpremises

### --- calico安装方式有两种：

~~~     第一种：通过etcd直连的
~~~     第二种：通过aliserver连接etcd，就是通过apiserver中继了一个过程：
~~~     第二种：方案一：少于50个节点
~~~     第二种：方案二：大于50个节点；多了一个管理的容器

### --- calico安装选择方式

~~~     apiserver方式：官网建议使用apiserver连接的方式安装calico，方式比较简单；无需任何配置，直接运行即可
~~~     etcd的方式：把etcd的证书和节点的IP地址配置进去即可
~~~     使用apiserver连接的方式连接的etcd，若是当etcd全部都挂掉，会导致每个宿主机上的容器不通；在虚拟化环境下：openstack环境。在物理节点是没有任何问题的。
~~~     etcd直连的方式，对apiserver的并发要求会少一点
~~~     # calico所在节点和kubelet并行的去升级，这样就不会出现2次节点下线，pod漂移的情况

二、部署calico：以下步骤只在master01执行

### --- 进入calico安装目录下

[root@k8s-master01 ~]# cd /root/k8s-ha-install/calico/

### --- 修改calico-etcd.yaml配置参数

[root@k8s-master01 calico]# sed -i 's#etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"#etcd_endpoints: "https://192.168.1.11:2379,https://192.168.1.14:2379,https://192.168.1.15:2379"#g' calico-etcd.yaml
RT=`cat /etc/kubernetes/pki/etcd/etcd.pem | base64 | tr -d '\n'`
ETCD_KEY=`cat /etc/kubernetes/pki/etcd/etcd-key.pem | base64 | tr -d '\n'`
sed -i "s@# etcd-key: null@etcd-key: ${ETCD_KEY}@g; s@# etcd-cert: null@etcd-cert: ${ETCD_CERT}@g; s@# etcd-ca: null@etcd-ca: ${ETCD_CA}@g" calico-etcd.yaml
sed -i 's#etcd_ca: ""#etcd_ca: "/calico-secrets/etcd-ca"#g; s#etcd_cert: ""#etcd_cert: "/calico-secrets/etcd-cert"#g; s#etcd_key: "" #etcd_key: "/calico-secrets/etcd-key" #g' calico-etcd.yaml

[root@k8s-master01 calico]# ETCD_CA=`cat /etc/kubernetes/pki/etcd/etcd-ca.pem | base64 | tr -d '\n'`
[root@k8s-master01 calico]# ETCD_CERT=`cat /etc/kubernetes/pki/etcd/etcd.pem | base64 | tr -d '\n'`
[root@k8s-master01 calico]# ETCD_KEY=`cat /etc/kubernetes/pki/etcd/etcd-key.pem | base64 | tr -d '\n'`
[root@k8s-master01 calico]# sed -i "s@# etcd-key: null@etcd-key: ${ETCD_KEY}@g; s@# etcd-cert: null@etcd-cert: ${ETCD_CERT}@g; s@# etcd-ca: null@etcd-ca: ${ETCD_CA}@g" calico-etcd.yaml
[root@k8s-master01 calico]# sed -i 's#etcd_ca: ""#etcd_ca: "/calico-secrets/etcd-ca"#g; s#etcd_cert: ""#etcd_cert: "/calico-secrets/etcd-cert"#g; s#etcd_key: "" #etcd_key: "/calico-secrets/etcd-key" #g' calico-etcd.yaml

### --- 将calico下pod的网段设置成自定义的网段
~~~     # 定义calico网段地址
~~~     注：注意下面的这个步骤是把calico-etcd.yaml文件里面的CALICO_IPV4POOL_CIDR下的网段改成自己的Pod网段，也就是把192.168.x.x/16改成自己的集群网段，并打开注释：
~~~     注：所以更改的时候请确保这个步骤的这个网段没有被统一替换掉，如果被替换掉了，还请改回来：

[root@k8s-master01 calico]# POD_SUBNET="172.16.0.0/12"

### --- 修改pod的网段
[root@k8s-master01 calico]# sed -i 's@# - name: CALICO_IPV4POOL_CIDR@- name: CALICO_IPV4POOL_CIDR@g; s@#   value: "192.168.0.0/16"@  value: '"${POD_SUBNET}"'@g' calico-etcd.yaml

### --- 查看pod网段
[root@k8s-master01 calico]# vim calico-etcd.yaml
            - name: CALICO_IPV4POOL_CIDR
              value: 172.16.0.0/12                      # 更改后的结果

### --- 创建calico

[root@k8s-master01 calico]# kubectl apply -f calico-etcd.yaml
~~~     注：输出结果
secret/calico-etcd-secrets created
configmap/calico-config created
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrole.rbac.authorization.k8s.io/calico-node created
clusterrolebinding.rbac.authorization.k8s.io/calico-node created
daemonset.apps/calico-node created
serviceaccount/calico-node created
deployment.apps/calico-kube-controllers created
serviceaccount/calico-kube-controllers created

三、查看服务状态

### --- 查看容器状态
~~~     查看calico状态

[root@k8s-master01 calico]# kubectl  get po -n kube-system
NAME                                       READY   STATUS    RESTARTS   AGE
calico-kube-controllers-5f6d4b864b-lmxz4   1/1     Running   0          2m58s
calico-node-8pcrk                          1/1     Running   0          2m58s
calico-node-99xlf                          1/1     Running   0          2m58s
calico-node-bngjb                          1/1     Running   1          2m58s

### --- 查看node状态，可以正常获取到node数据
~~~     状态变为Ready，正常状态

[root@k8s-master01 calico]# kubectl get node
NAME           STATUS   ROLES    AGE   VERSION
k8s-master01   Ready    <none>   82m   v1.20.0
k8s-node01     Ready    <none>   81m   v1.20.0
k8s-node02     Ready    <none>   81m   v1.20.0

### --- 查看日志信息，没有报错信息了

[root@k8s-master01 calico]# tail -f /var/log/messages
