一、部署dashboard

### --- Dashboard概述

~~~     Dashboard用于展示集群中的各类资源，
~~~     同时也可以通过Dashboard实时查看Pod的日志和在容器中执行一些命令等。

### --- 安装指定版本dashboard
~~~     # 切换到dashboard部署目录下

[root@k8s-master01 ~]# cd /root/k8s-ha-install/dashboard/

~~~     # 部署dashboard

[root@k8s-master01 dashboard]# kubectl  create -f .
~~~     注：输出结果：
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created

### --- 查看dashboard.pod状态
~~~     # 查看dashboard部署运行结果

[root@k8s-master01 dashboard]# kubectl get po -n kubernetes-dashboard
NAME                                         READY   STATUS    RESTARTS   AGE
dashboard-metrics-scraper-7645f69d8c-7dd2b   1/1     Running   0          2m24s
kubernetes-dashboard-78cb679857-mqccg        1/1     Running   0          2m25s

二、登录dashboard-UI

### --- Chrome客户端配置

~~~     在谷歌浏览器（Chrome）启动文件中加入启动参数，用于解决无法访问Dashboard的问题：
~~~     --test-type --ignore-certificate-errors

### --- 查看dashboard.service端口号
~~~     # 更改dashboard的svc为NodePort：
~~~     注：将ClusterIP更改为NodePort（如果已经为NodePort忽略此步骤）：

[root@k8s-master01 dashboard]#  kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard
  type: NodePort

~~~     # 查看端口号

[root@k8s-master01 dashboard]# kubectl get svc kubernetes-dashboard -n kubernetes-dashboard
NAME                   TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
kubernetes-dashboard   NodePort   10.104.232.53   <none>        443:30008/TCP   5m26s

### --- 查看dashboard-token值
~~~     # 查看token值

[root@k8s-master01 dashboard]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name:         admin-user-token-nh8n7
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: cc002287-5bd5-4e09-9b87-bfe1ea9d6d1f

Type:  kubernetes.io/service-account-token

Data
====
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6InQ2ci1YY3cwaTZjVlQ2bzhaeTJiaGhMNE1fblFzMExrWDhOd25PZmFMXzAifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLW5oOG43Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJjYzAwMjI4Ny01YmQ1LTRlMDktOWI4Ny1iZmUxZWE5ZDZkMWYiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.AkpCaM-gosJ_v_oZJoym3DcgT4qcSlBEsxDZOpqaRLJrF0LTb6ncEFey5MRMXXTEruCnocssuZtb7nuumw2jMgJtEpUsYhhz52ft7aEji8jKRP5-oFBnjX1h1F-vGNupvXq7hZ8CKaK-rGiI40cp8MQAVC8YLpmfGdCSnxDlxiN2DnsqIa6yN5yY0CC3J5dT_4du9oKezujyOi0L0V6f2jCtoWYFfCyTZNspmdSfthVhQQCX3SmlEoh4-mTulem8Ng0TC5Gj-VjVGCbQnZwwKT9dyuu4j0s9rfOjElMTIgBNkwiQ-T6kZB8u2MNroGV5kJjlfB_4l5atDia0YtmD2Q
ca.crt:     1411 bytes

三、登录dashboard：

### --- 登录dashboard：

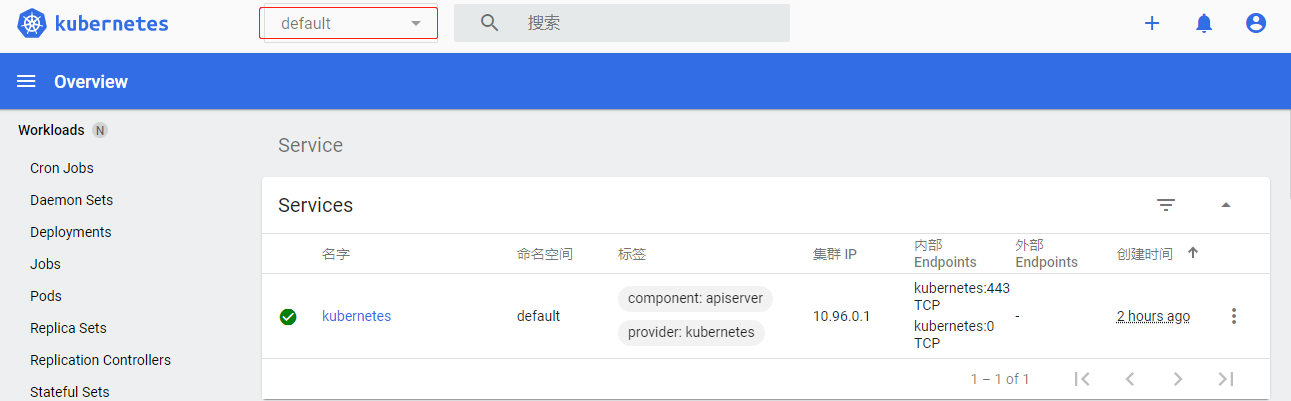

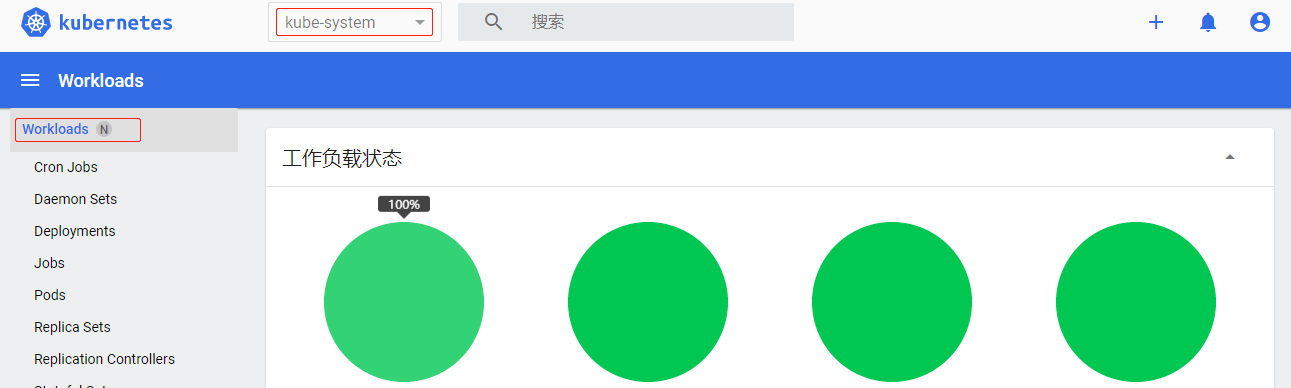

~~~     # 将token值输入到令牌后，单击登录即可访问Dashboard

~~~     根据实例端口号，通过任意安装了kube-proxy的宿主机或者VIP的IP+端口即可访问到dashboard：
~~~     访问Dashboard：https://192.168.1.11:30008（请更改30008为自己的端口），
~~~     http://192.168.1.20:30008/；若是http会报错，改为https
~~~     Client sent an HTTP request to an HTTPS server.

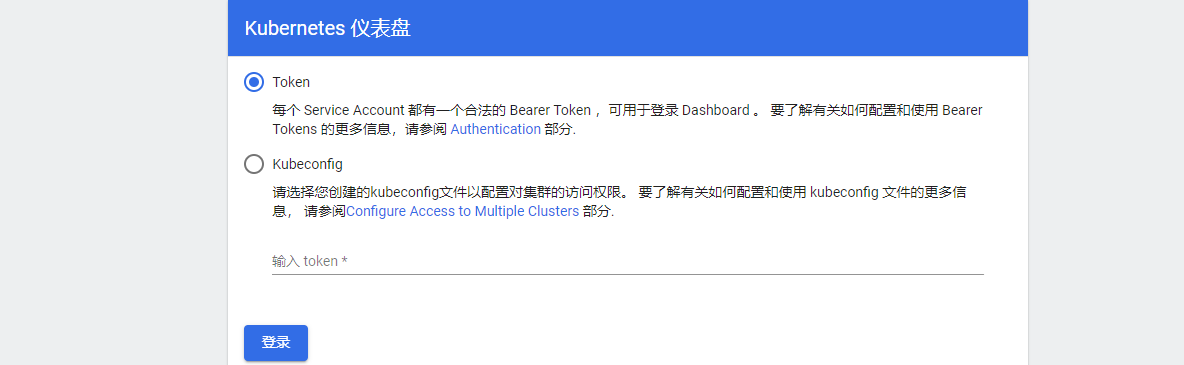

~~~     选择登录方式为令牌：即token方式

---

四、部署最新版本的dashboar

### --- 部署最新版本的dashboard

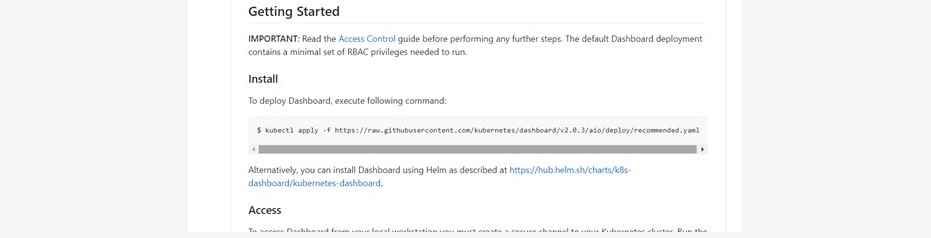

~~~     # dashboard官方GitHub地址：https://github.com/kubernetes/dashboard
~~~     可以在官方dashboard查看到最新版dashboard

### --- 安装最新版本dashboard

[root@k8s-master01 ~]# kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.3/aio/deploy/recommended.yaml

### --- 创建dashboard管理员用户
~~~     # 创建dashboard管理员用户配置文件

[root@k8s-master01 ~]# vim admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kube-system

~~~     # 创建dashboard管理员用户

[root@k8s-master01 ~]# kubectl apply -f admin.yaml -n kube-system

---



















---
