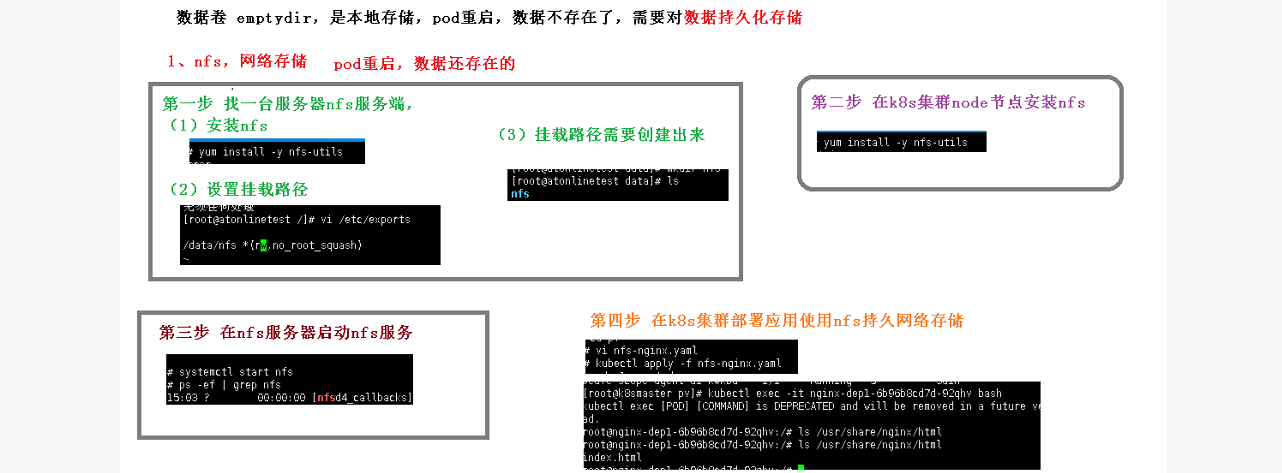

一、持久存储-nfs

二、持久存储-NFS

### --- 找一台新的服务器作为nfs服务器，

[root@k8s-nfs ~]#  yum install -y nfs-utils

~~~     设置挂载的目录
[root@k8s-node2 ~]# vim /etc/exports
/data/nfs *(rw,no_root_squash)

~~~     挂载的路径必须手动创建，若是不创建，后期挂载时挂载不成功的
[root@k8s-node2 ~]# mkdir -p /data/nfs

### --- 在k8snode节点上安装上nfs服务
~~~     两个k8s-node节点上都需要部署nfs服务，执行第一步操作
~~~     安装上之后，它会自动帮你挂载

[root@k8s-node1 ~]# yum install -y nfs-utils
[root@k8s-node2 ~]# yum install -y nfs-utils

### --- 在nfs服务端启动nfs

[root@k8s-nfs ~]# systemctl restart rpcbind
[root@k8s-nfs ~]# systemctl start nfs

### --- 在k8s集群部署应用使用nfs持久网络存储

[root@k8s-master ~]# mkdir pv
[root@k8s-master ~]# cd pv

[root@k8s-master pv]# vim nfs-nginx.yaml
apiVersion: apps/v1
kind: Deployment                                    # 部署一个deployment
metadata:
  name: nginx-dep1
spec:
  replicas: 1                                       # 副本只有一个
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx
        volumeMounts:                               # 通过volumeMounts挂载镜像
        - name: wwwroot
          mountPath: /usr/share/nginx/html          # 挂载路径
        ports:
        - containerPort: 80
      volumes:
        - name: wwwroot
          nfs:
            server: 10.10.10.14                      # nfs服务器地址
            path: /data/nfs

[root@k8s-master pv]# kubectl apply -f nfs-nginx.yaml
deployment.apps/nginx-dep1 created

[root@k8s-master pv]# kubectl get pods
nginx-dep1-64f6dc84c9-7jcpm                     1/1     Running     0          8s

### --- 查看它的创建日志

[root@k8s-master pv]# kubectl describe pod nginx-dep1-64f6dc84c9-7jcpm
Events:
  Type    Reason     Age   From                Message
  ----    ------     ----  ----                -------
  Normal  Scheduled  62s   default-scheduler   Successfully assigned default/nginx-dep1-64f6dc84c9-7jcpm to k8s-node2
  Normal  Pulling    57s   kubelet, k8s-node2  Pulling image "nginx"
  Normal  Pulled     57s   kubelet, k8s-node2  Successfully pulled image "nginx"
  Normal  Created    56s   kubelet, k8s-node2  Created container nginx
  Normal  Started    56s   kubelet, k8s-node2  Started container nginx

### --- 进入应用
[root@k8s-master pv]# kubectl exec -it nginx-dep1-64f6dc84c9-7jcpm  bash

~~~     #挂载目录下目前为空
root@nginx-dep1-64f6dc84c9-7jcpm:/# ls /usr/share/nginx/html/

### --- 在nfs服务端创建文件
[root@k8s-nfs ~]# vim /data/nfs/index.html
hello k8s-nfs server

~~~     进入k8s部署的持久应用服务查看挂载目录，可以查看到在k8s-nfs下创建的文件
root@nginx-dep1-64f6dc84c9-7jcpm:/# ls /usr/share/nginx/html/
index.html
root@nginx-dep1-64f6dc84c9-7jcpm:/# cat /usr/share/nginx/html/index.html
hello k8s-nfs server

### --- 对外暴露端口

[root@k8s-master pv]# kubectl expose deployment nginx-dep1 --port=80 --target-port=80 --type=NodePort
service/nginx-dep1 exposed
[root@k8s-master pv]# kubectl get svc
nginx-dep1       NodePort    10.99.50.53     <none>        80:30769/TCP   4s

### --- 通过Chrome访问持久化地址+端口号访问网页页面：http://10.10.10.14:30769/：
~~~     访问到该内容

service/nginx-dep1 exposed

---



















---
