|NO.Z.00020|——————————|CloudNative|——|Kubernetes&RBAC介绍.V03|——|helm|

一、Helm

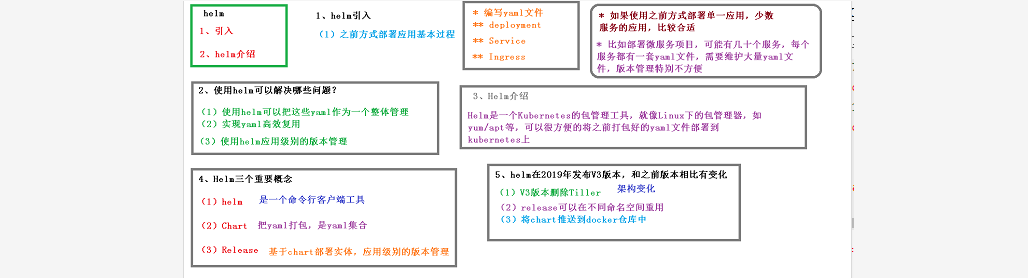

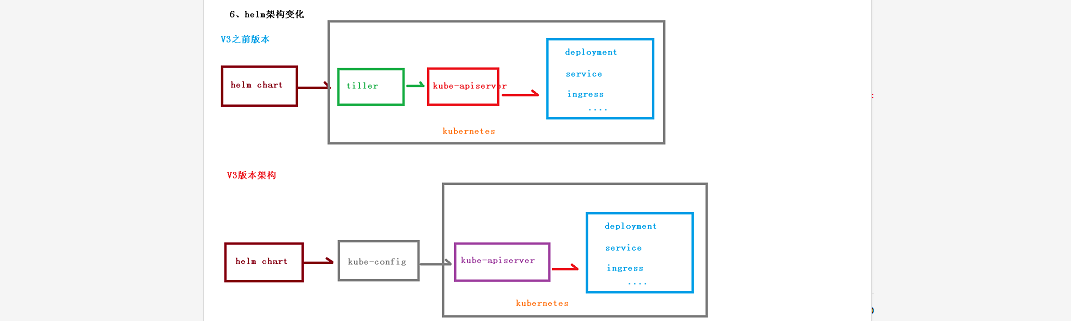

二、helm概述

~~~     helm官网地址：
### --- 之前方式部署应用基本操作
~~~     部署一个nginx应用；导出为yaml文件

[root@k8s-master ~]# kubectl create deployment nginx --image=nginx -o yaml

### --- 对外暴露端口，创建一个services

[root@k8s-master ~]# kubectl expose deployment nginx --port=80 --target-port=80 --type=NodePort
[root@k8s-master ~]# kubectl get pods                   # 查看Pod
[root@k8s-master ~]# kubectl get svc                    # 查看services

---

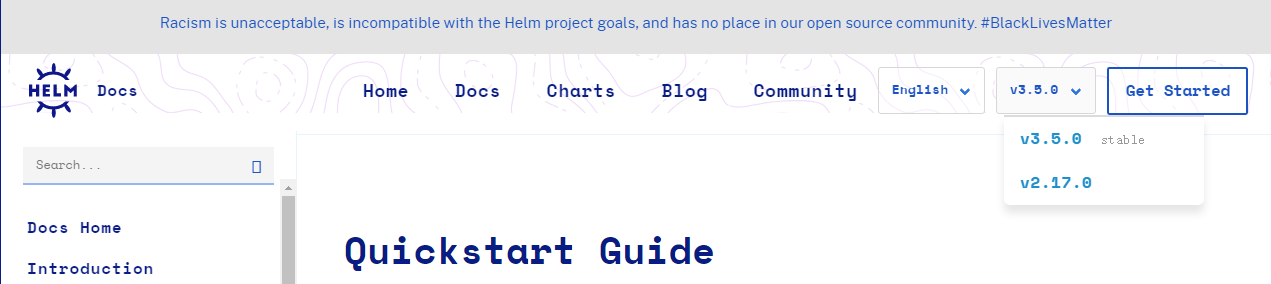

一、helm快速部署应用：helm官网地址：https://helm.sh/docs/intro/quickstart/

三、使用helm部署应用

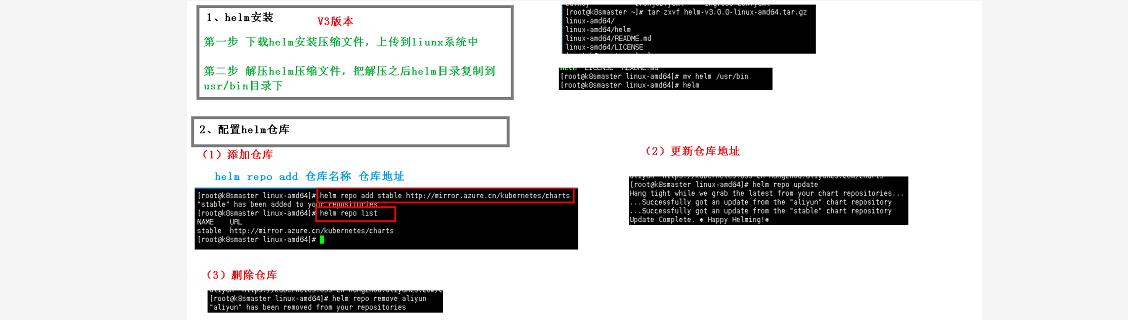

### --- 将helm-v3.0.0-linux-amd64.tar.gz该软件包上传到服务器并解压

[root@k8s-master ~]# tar -zxvf helm-v3.0.0-linux-amd64.tar.gz

### --- 将helm执行文件放到可以执行目录下
[root@k8s-master linux-amd64]# mv helm /usr/bin/

~~~     验证helm是否可以使用，只要有输出内容，说明输出正常
[root@k8s-master linux-amd64]# helm

### --- 配置helm仓库
~~~		添加微软的仓库地址

[root@k8s-master linux-amd64]# helm repo add stable http://mirror.azure.cn/kubernetes/charts     #仓库名称+仓库地址
"stable" has been added to your repositories

~~~		查看仓库地址

[root@k8s-master linux-amd64]# helm repo list
NAME    URL
stable  http://mirror.azure.cn/kubernetes/charts

~~~		添加aliyun的仓库地址

[root@k8s-master linux-amd64]# helm repo add aliyun https://kubernetes.oss-cn-hangzhou.aliyuncs.com/charts
"aliyun" has been added to your repositories
[root@k8s-master linux-amd64]# helm repo list
NAME    URL
stable  http://mirror.azure.cn/kubernetes/charts
aliyun  https://kubernetes.oss-cn-hangzhou.aliyuncs.com/charts

~~~		可以更新仓库包
[root@k8s-master linux-amd64]# helm repo update

~~~		删除仓库源地址
[root@k8s-master linux-amd64]# helm repo remove aliyun
"aliyun" has been removed from your repositories

~~~		查看仓库源后结构，只有微软的仓库源
[root@k8s-master linux-amd64]# helm repo list
stable  http://mirror.azure.cn/kubernetes/charts

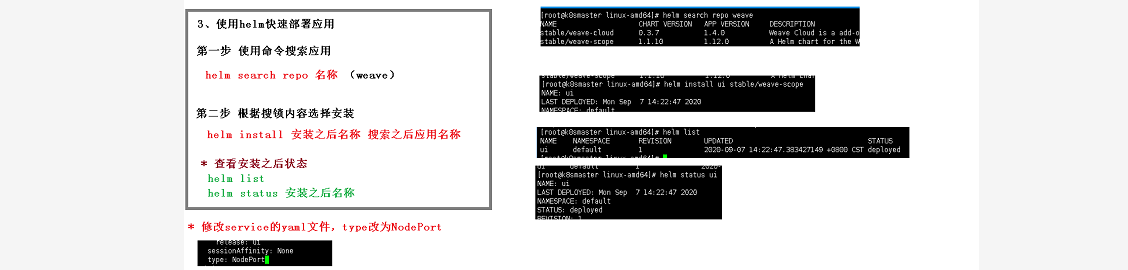

### --- 使用helm快速部署应用
~~~		# 第一步：使用命令搜索应用
~~~		命令格式：helm search repo 名称 （weave）

[root@k8s-master ~]# helm search repo weave
NAME                CHART VERSION   APP VERSION DESCRIPTION
stable/weave-cloud  0.3.9           1.4.0       DEPRECATED - Weave Cloud is a add-on to Kuberne...
stable/weave-scope  1.1.12          1.12.0      DEPRECATED - A Helm chart for the Weave Scope c...

~~~		# 根据所索到的内容进行选择安装
~~~		命令格式：helm install 安装之后名称  搜索之后应用的名称

[root@k8s-master ~]# helm install ui stable/weave-scope
NAME: ui
LAST DEPLOYED: Tue Feb 23 19:32:04 2021
NAMESPACE: default
STATUS: deployed
REVISION: 1
NOTES:
You should now be able to access the Scope frontend in your web browser, by
using kubectl port-forward:

kubectl -n default port-forward $(kubectl -n default get endpoints \
ui-weave-scope -o jsonpath='{.subsets[0].addresses[0].targetRef.name}') 8080:4040

then browsing to http://localhost:8080/.
For more details on using Weave Scope, see the Weave Scope documentation:

https://www.weave.works/docs/scope/latest/introducing/

~~~		# 查看它的状态
~~~		命令格式：helm list
~~~		命令格式某个具体的：helm status 安装之后名称：
~~~		查看安装状态

[root@k8s-master ~]# helm list
NAME    NAMESPACE   REVISION    UPDATED                                 STATUS      CHART               APP VERSION
ui      default     1           2021-02-23 19:32:04.316266249 +0800 CST deployed    weave-scope-1.1.12  1.12.0

 ~~~		查看详细信息

[root@k8s-master ~]# helm status ui
NAME: ui
LAST DEPLOYED: Tue Feb 23 19:32:04 2021
NAMESPACE: default
STATUS: deployed
REVISION: 1
NOTES:
You should now be able to access the Scope frontend in your web browser, by
using kubectl port-forward:

kubectl -n default port-forward $(kubectl -n default get endpoints \
ui-weave-scope -o jsonpath='{.subsets[0].addresses[0].targetRef.name}') 8080:4040

then browsing to http://localhost:8080/.
For more details on using Weave Scope, see the Weave Scope documentation:

https://www.weave.works/docs/scope/latest/introducing/

### --- 通过kubectl查看部署的应用

[root@k8s-master ~]# kubectl get pods
weave-scope-agent-ui-6cfhf                      1/1     Running     0          3m13s
weave-scope-agent-ui-gfkbh                      1/1     Running     0          3m13s
weave-scope-agent-ui-sjmrw                      1/1     Running     0          3m13s
weave-scope-cluster-agent-ui-7498b8d4f4-ck66v   1/1     Running     0          3m13s
weave-scope-frontend-ui-649c7dcd5d-kxptj        1/1     Running     0          3m13s

~~~		查看没有对外暴露端口

[root@k8s-master ~]# kubectl get svc
ui-weave-scope   ClusterIP   10.98.111.244   <none>        80/TCP         4m2s

~~~		修改对外暴露端口

[root@k8s-master ~]#  kubectl edit svc ui-weave-scope
service/ui-weave-scope edited
spec:
  clusterIP: 10.98.111.244
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: http
  selector:
    app: weave-scope
    component: frontend
    release: ui
  sessionAffinity: None
  type: NodePort                                # 修改对外暴露端口

~~~		# 端口号暴露配置完成

[root@k8s-master ~]# kubectl get svc
ui-weave-scope   NodePort    10.98.111.244   <none>        80:32212/TCP   6m35s

---



















---
