|NO.Z.00017|——————————|CloudNative|——|Kubernetes&pod操作.V05|——|configmap不加密数据|

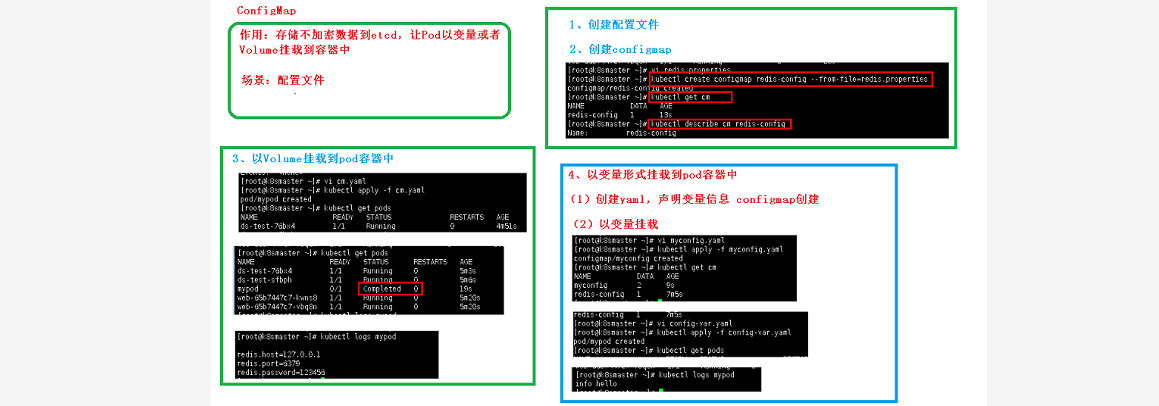

一、configMap：不加密数据

二、configmap操作流程

### --- 将历史环境删除

[root@k8s-master ~]# kubectl delete secret --all
secret "default-token-686hn" deleted
secret "mysecret" deleted
[root@k8s-master ~]# kubectl delete Pod --all
pod "ds-test-fv2kx" deleted
pod "ds-test-gzxlq" deleted
pod "hello-1614010320-rh726" deleted
pod "hello-1614010380-mt6dc" deleted
pod "hello-1614010440-dcqzj" deleted
pod "mypod" deleted
pod "nginx-f89759699-gp9rr" deleted

### --- 将配置文件上传到服务器

[root@k8s-master ~]# ls cm* config* myconfig* redis*
cm.yaml  config-var.yaml  myconfig.yaml  redis.properties

### --- 常见配置文件redis.properties

[root@k8s-master ~]# vim redis.properties
redis.host=127.0.0.1
redis.port=6379
redis.password=123456

### --- 创建configmap

[root@k8s-master ~]# kubectl create configmap redis.config --from-file=redis.properties
configmap/redis.config created
[root@k8s-master ~]# kubectl get cm
NAME           DATA   AGE
redis.config   1      17s

~~~     查看它的详细信息

[root@k8s-master ~]# kubectl describe cm redis.config
Name:         redis.config
Namespace:    default
Labels:       <none>
Annotations:  <none>

Data
====
redis.properties:
----
redis.host=127.0.0.1
redis.port=6379
redis.password=123456

Events:  <none>

### --- 以volume的形式挂载到pod里面

[root@k8s-master ~]# vim cm.yaml
apiVersion: v1
kind: Pod
metadata:
  name: mypod
spec:
  containers:
    - name: busybox
      image: busybox
      command: [ "/bin/sh","-c","cat /etc/config/redis.properties" ]
      volumeMounts:
      - name: config-volume
        mountPath: /etc/config
  volumes:
    - name: config-volume
      configMap:
        name: redis-config                  # configmap的名字
  restartPolicy: Never

[root@k8s-master ~]# kubectl apply -f cm.yaml
pod/mypod created

[root@k8s-master ~]# kubectl get pods
mypod                    0/1     ContainerCreating   0          7s

~~~     查看挂载的值

[root@k8s-master ~]# kubectl logs mypod
redis.host=127.0.0.1
redis.port=6379
redis.password=123456

### --- 以变量形式挂载
~~~     删除历史创建

[root@k8s-master ~]# kubectl delete -f cm.yaml
pod "mypod" deleted
[root@k8s-master ~]# vim myconfig.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: myconfig
  namespace: default
data:
  special.level: info
  special.type: hello

[root@k8s-master ~]# kubectl apply -f myconfig.yaml
configmap/myconfig created

[root@k8s-master ~]# kubectl get cm
NAME           DATA   AGE
myconfig       2      12s
redis.config   1      15m

~~~     创建挂载文件

[root@k8s-master ~]# vim config-var.yaml
apiVersion: v1
kind: Pod
metadata:
  name: mypod
spec:
  containers:
    - name: busybox
      image: busybox
      command: [ "/bin/sh", "-c", "echo $(LEVEL) $(TYPE)" ]
      env:
        - name: LEVEL
          valueFrom:
            configMapKeyRef:
              name: myconfig
              key: special.level
        - name: TYPE
          valueFrom:
            configMapKeyRef:
              name: myconfig
              key: special.type
  restartPolicy: Never

[root@k8s-master ~]# kubectl apply -f config-var.yaml
pod/mypod created

[root@k8s-master ~]# kubectl get pods
mypod                   0/1     Completed   0          40s

~~~     查看挂载的值

[root@k8s-master ~]# kubectl logs mypod
info hello

---



















---
