AbapList/Smartforms To PDF保存本地

第一种：ABAPLIST_TO_PDF，需要用到假脱机。

list-processing的打印输出，很老旧的打印了，但是还是有些系统会用。

DATA:g_val        TYPE c,
       w_pripar     TYPE pri_params,
       w_arcpar     TYPE arc_params,
       input_length TYPE i.
  DATA:spool_no    LIKE sy-spono,
       src_spoolid LIKE tsp01-rqident.
  DATA:name      TYPE tbtcjob-jobname,
       jobnumber TYPE tbtcjob-jobcount,
       wa_tbtcp  TYPE tbtcp.

  CALL FUNCTION 'GET_PRINT_PARAMETERS'
    EXPORTING
      in_archive_parameters  = w_arcpar
      in_parameters          = w_pripar
      layout                 = 'X_65_132'
      line_count             = 65
      line_size              = 132
      no_dialog              = 'X'
    IMPORTING
      out_archive_parameters = w_arcpar
      out_parameters         = w_pripar
      valid                  = g_val.
  IF g_val  NE space AND sy-subrc = 0.
    w_pripar-prrel = space.
    w_pripar-primm = space.
    NEW-PAGE PRINT ON NEW-SECTION PARAMETERS w_pripar ARCHIVE PARAMETERS w_arcpar NO DIALOG.

    "Output which is gone to spool
    SUBMIT ztestc01
    WITH p_bukrs = wa_data-bukrs
    WITH p_hbkid = wa_data-hbkid
    WITH p_hktid = wa_data-hktid
    WITH p_hkont = wa_data-hkont
    WITH p_zdzqj = wa_data-zdzqj
    TO SAP-SPOOL SPOOL PARAMETERS w_pripar ARCHIVE PARAMETERS w_arcpar WITHOUT SPOOL DYNPRO
    AND RETURN.

    NEW-PAGE PRINT OFF.
    CALL FUNCTION 'ABAP4_COMMIT_WORK'.   "提交假脱机请求，sp01查看
  ENDIF.
*获取假脱机，会得到之前成功数据
*-- Find out what the spool number is that was just created
*  DATA:lc_rq2name LIKE tsp01-rq2name.
*  CONCATENATE sy-repid+0(9) '_' sy-uname+0(3) INTO lc_rq2name.
*  SELECT * FROM tsp01 WHERE rq2name = lc_rq2name ORDER BY rqcretime DESCENDING.
*    spool_no = tsp01-rqident.
*    EXIT.
*  ENDSELECT.
  CLEAR spool_no.
  IMPORT spool_no = spool_no FROM MEMORY ID 'ZFIE9170'.
  FREE MEMORY ID 'ZFIE9170'.
  IF spool_no IS INITIAL.
    MESSAGE '假脱机错误' TYPE 'E'.
  ENDIF.


*  后台job  start-of-selection后程序抛后台，遇到message不报错
*  name = |{ sy-repid }{ sy-datum }{ sy-uzeit }|.
*  CALL FUNCTION 'JOB_OPEN'
*    EXPORTING
*      jobname          = name
*    IMPORTING
*      jobcount         = jobnumber
*    EXCEPTIONS
*      cant_create_job  = 1
*      invalid_job_data = 2
*      jobname_missing  = 3
*      OTHERS           = 4.
*  IF sy-subrc = 0.
*    SUBMIT ztestc01
*       WITH p_bukrs = wa_data-bukrs
*       WITH p_hbkid = wa_data-hbkid
*       WITH p_hktid = wa_data-hktid
*       WITH p_hkont = wa_data-hkont
*       WITH p_zdzqj = wa_data-zdzqj
*       TO SAP-SPOOL SPOOL PARAMETERS w_pripar ARCHIVE PARAMETERS w_arcpar WITHOUT SPOOL DYNPRO
*       VIA JOB name NUMBER jobnumber AND RETURN.
*
*    CALL FUNCTION 'JOB_CLOSE'
*      EXPORTING
*        jobcount             = jobnumber
*        jobname              = name
*        strtimmed            = 'X'
*      EXCEPTIONS
*        cant_start_immediate = 1
*        invalid_startdate    = 2
*        jobname_missing      = 3
*        job_close_failed     = 4
*        job_nosteps          = 5
*        job_notex            = 6
*        lock_failed          = 7
*        OTHERS               = 8.
*
*    IF sy-subrc = 0.
*      CLEAR wa_tbtcp.
*      SELECT SINGLE *
*        FROM tbtcp
*        INTO wa_tbtcp
*       WHERE jobcount = jobnumber.
*      IF wa_tbtcp-listident IS NOT INITIAL.
*        spool_no = wa_tbtcp-listident.
*      ELSE.
*        MESSAGE '假脱机失败' TYPE 'E'.
*      ENDIF.
*    ENDIF.
*  ENDIF.
*--------------------------------------------------------------------*
*  JOB_2_PDF
*--------------------------------------------------------------------*
  REFRESH it_pdf .
  src_spoolid = spool_no.
  CALL FUNCTION 'CONVERT_ABAPSPOOLJOB_2_PDF'
    EXPORTING
      src_spoolid   = src_spoolid
      no_dialog     = space
    IMPORTING
      pdf_bytecount = bytecount
    TABLES
      pdf           = it_pdf.

  CALL FUNCTION 'SX_TABLE_LINE_WIDTH_CHANGE'
    EXPORTING
      line_width_src = 134
      line_width_dst = 255
    TABLES
      content_in     = it_pdf
      content_out    = file_tab.

  "Save the file
  CALL FUNCTION 'GUI_DOWNLOAD'
    EXPORTING
      bin_filesize = bytecount
      filename     = file_path
      filetype     = 'BIN'
    TABLES
      data_tab     = file_tab.



其中遇见问题：

1.如果我不用submit，而是直接在当前程序中write，程序中ztestc01的页码会缺失。

因为页码往往是打印完了后，最后替换上去的。比如

DATA:lv_page TYPE char10.
WRITE lv_page.

........"程序执行完

lv_page = ’第一页/共三页' .

MODIFY LINE ’1‘ OF PAGE ’1‘ FIELD VALUE lv_page FROM lv_page.

 在modify 之前，sy-spono已经生成。

然而sumbit就很好的解决了这种问题，假脱机中的内容是完整的（当只打印一页）。

但是之后的测试发现，write多页的时候，只有最后一页实现了页码的更改。

我也尝试了abaplist->ASCII->ITF->OTF->PDF等等，发现要想输出PDF，还是需要用到假脱机。



2.submit ztestc01，sy-spono传递问题

ztestc01中,write输出中，会生成假脱机号存在sy-spono，而跳出submit后，怎么取出spool number是个问题。

（1）可以从dbtab:tsp01中取，但是会有问题，不能准确取到当前spono.

（2）后台job可以解决,但是start-of-selection之后的程序直接抛后台，如果有message不报错，不提醒

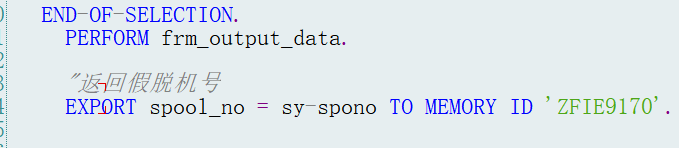

（3）传递abap memory，最实用哈哈





第一种：abaplist的另外尝试

SUBMIT ztestc01
    WITH p_bukrs = '4000'
EXPORTING LIST TO MEMORY AND RETURN.

DATA list_obj TYPE TABLE OF abaplist.
DATA list_asc TYPE TABLE OF char134.

CALL FUNCTION 'LIST_FROM_MEMORY'
  TABLES
    listobject = list_obj
  EXCEPTIONS
    not_found  = 1
    OTHERS     = 2.

CALL FUNCTION 'LIST_TO_ASCI'
  TABLES
    listasci           = list_asc
    listobject         = list_obj
  EXCEPTIONS
    empty_list         = 1
    list_index_invalid = 2
    OTHERS             = 3.

DATA: lt_tline  TYPE STANDARD TABLE OF tline.
CALL FUNCTION 'CONVERT_ASCII_TO_ITF'
  EXPORTING
    tabletype         = 'ASC'
    c_datatab         = list_asc
  TABLES
    itf_lines         = lt_tline
  EXCEPTIONS
    invalid_tabletype = 1  "internal error!!
    missing_size      = 2  "internal error!!
    OTHERS            = 3.



DATA:g_val        TYPE c,
     w_pripar     TYPE pri_params,
     w_arcpar     TYPE arc_params,
     input_length TYPE i.
CALL FUNCTION 'GET_PRINT_PARAMETERS'
  EXPORTING
    in_archive_parameters  = w_arcpar
    in_parameters          = w_pripar
    layout                 = 'X_65_132'
    line_count             = 65
    line_size              = 132
    no_dialog              = 'X'
  IMPORTING
    out_archive_parameters = w_arcpar
    out_parameters         = w_pripar
    valid                  = g_val.

DATA header LIKE thead.
DATA options LIKE itcpo.
DATA result LIKE itcpp.
DATA otf LIKE TABLE OF itcoo.

CALL FUNCTION 'PRINT_TEXT'
  EXPORTING
*   APPLICATION    = 'TX'
*   ARCHIVE_INDEX  = ' '
    archive_params = w_arcpar
*   DEVICE         = 'PRINTER'
*   DIALOG         = 'X'
    header         = header
*   OPTIONS        =
* IMPORTING
*   NEW_ARCHIVE_PARAMS             =
*   RESULT         =
  TABLES
    lines          = lt_tline
    otfdata        = otf
  .
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.

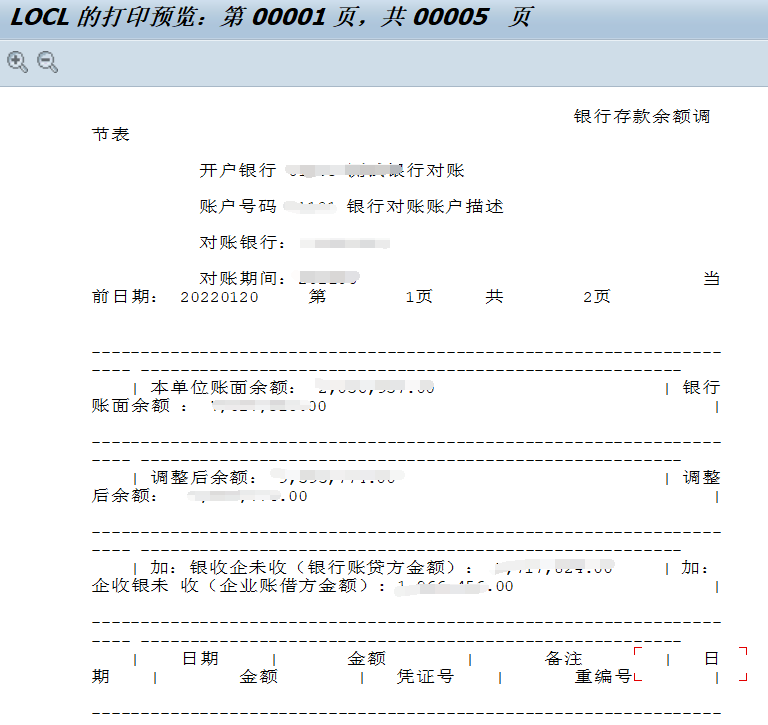

想要abaplist->ASCII->ITF->OTF,只能得到以下效果:





 可以看到，SAPscript（ITF）文本只有132位，将纯文本ASCII转换为ITF后会变形，再转换OTF就错乱了。

只有让abaplist作为假脱机，输出PDF才是正确选择。



如果只打印一页，第一种方法完全没有任何问题，如果多页打印，页码会丢失（只有最后一页有页码），下面介绍我改版后的程序：

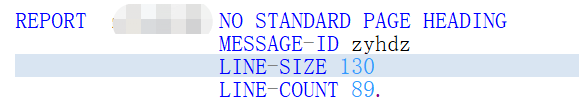

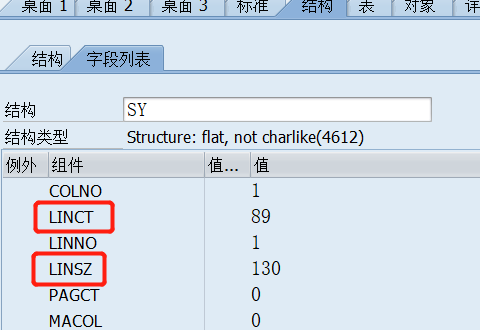

1.首先执行被调用程序，获取LINE_SIZE和LINE_COUNT（行宽和行数），后面初始化打印参数要用到



2.整体打印调用abaplist

DATA spoolid  LIKE TSP01_SP0R-RQID_CHAR.
DATA list_obj TYPE TABLE OF abaplist.
DATA:g_val        TYPE c,
     w_pripar     TYPE pri_params,
     w_arcpar     TYPE arc_params,
     input_length TYPE i.


SUBMIT ztestc01
    WITH p_bukrs = '4000'
EXPORTING LIST TO MEMORY AND RETURN.

CALL FUNCTION 'LIST_FROM_MEMORY'
  TABLES
    listobject = list_obj
  EXCEPTIONS
    not_found  = 1
    OTHERS     = 2.

CALL FUNCTION 'LIST_FREE_MEMORY'.
CALL FUNCTION 'GET_PRINT_PARAMETERS'
  EXPORTING
    layout                 = 'X_65_132'
    line_count             = 89
    line_size              = 130
    no_dialog              = 'X'
  IMPORTING
    out_archive_parameters = w_arcpar
    out_parameters         = w_pripar
    valid                  = g_val.


* Write lines of list to spool.
  IF g_val  NE space AND sy-subrc = 0.
    w_pripar-prrel = space.
    w_pripar-primm = space.
    NEW-PAGE PRINT ON PARAMETERS w_pripar ARCHIVE PARAMETERS w_arcpar NEW-SECTION NO DIALOG.
    CALL FUNCTION 'WRITE_LIST'
      TABLES
        listobject = list_obj
      EXCEPTIONS
        empty_list = 1
        OTHERS     = 2.
    MOVE sy-spono TO spoolid.
    NEW-PAGE PRINT OFF.
    CALL FUNCTION 'ABAP4_COMMIT_WORK'.   "提交假脱机请求，sp01查看
  ENDIF.

*--------------------------------------------------------------------*
*  JOB_2_PDF
*--------------------------------------------------------------------*
  REFRESH it_pdf .
  src_spoolid = spoolid.
  CALL FUNCTION 'CONVERT_ABAPSPOOLJOB_2_PDF'
    EXPORTING
      src_spoolid   = src_spoolid
      no_dialog     = space
    IMPORTING
      pdf_bytecount = bytecount
    TABLES
      pdf           = it_pdf.

  CALL FUNCTION 'SX_TABLE_LINE_WIDTH_CHANGE'
    EXPORTING
      line_width_src = 134
      line_width_dst = 255
    TABLES
      content_in     = it_pdf
      content_out    = file_tab.

*delete spool
  CALL FUNCTION 'RSPO_R_RDELETE_SPOOLREQ'
    EXPORTING
      spoolid = spoolid.







第二种：smartforms输出PDF，无需假脱机

DATA: g_name             TYPE rs38l_fnam.
      control_parameters TYPE ssfctrlop,
      output_options     TYPE ssfcompop,
      job_output_info    TYPE ssfcrescl.
DATA:content_x TYPE xstring,
     it_pdf    TYPE TABLE OF tline WITH HEADER LINE,
     wa_pdf    LIKE LINE OF it_pdf,
     file_tab  TYPE STANDARD TABLE OF solisti1,
     bytecount TYPE i.

CALL FUNCTION 'SSF_FUNCTION_MODULE_NAME'
    EXPORTING
      formname           = 'ZTESTC01'
    IMPORTING
      fm_name            = g_name
    EXCEPTIONS
      no_form            = 1
      no_function_module = 2
      OTHERS             = 3.
  IF sy-subrc <> 0.
*   error handling
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
            WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
    EXIT.
  ENDIF.
*----------------------------------------------------------------------*
  SELECT SINGLE spld INTO output_options-tddest
    FROM usr01
   WHERE bname = sy-uname.
  IF output_options-tddest EQ space.
    output_options-tddest = 'LP01'.
  ENDIF.
  control_parameters-no_dialog = 'X'.
  control_parameters-getotf    = 'X'.
  control_parameters-langu     = '1' .

  CALL FUNCTION g_name
    EXPORTING
      control_parameters = control_parameters
      output_options     = output_options
      user_settings      = ''
      is_head            = ls_head
*      TABLES
*     it_itab            = it_itab1
    IMPORTING
      job_output_info    = job_output_info
    EXCEPTIONS
      formatting_error   = 1
      internal_error     = 2
      send_error         = 3
      user_canceled      = 4
      OTHERS             = 5.

  IF sy-subrc <> 0.
*   error handling
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
            WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  ENDIF.

  REFRESH it_pdf .
  CALL FUNCTION 'CONVERT_OTF'
    EXPORTING
      format                = 'PDF'
    IMPORTING
*     bin_file              = lv_xstring  "pdf xstring
      bin_filesize          = bytecount
    TABLES
      otf                   = job_output_info-otfdata
      lines                 = it_pdf
    EXCEPTIONS
      err_max_linewidth     = 1
      err_format            = 2
      err_conv_not_possible = 3
      OTHERS                = 4.

  CALL FUNCTION 'SX_TABLE_LINE_WIDTH_CHANGE'
    EXPORTING
      line_width_src = 134
      line_width_dst = 255
    TABLES
      content_in     = it_pdf
      content_out    = file_tab.

  "Save the file
  CALL FUNCTION 'GUI_DOWNLOAD'
    EXPORTING
      bin_filesize = bytecount
      filename     = file_path
      filetype     = 'BIN'
    TABLES
      data_tab     = file_tab.
