Element前端框架的简介+基于springboot框架的CRUD

1 Element UI 简介

基于 Vue 的一套桌面端组件库，提前封装好的 UI 模板，方便开发者快速搭建一个网站前端界面。

官网：https://element.eleme.cn/

2 Element UI 安装

首先创建 Vue 项目，给项目安装 Element UI 插件。

1、电脑上已经安装了 Vue 环境。

2、执行命令 vue ui

进入项目管理器

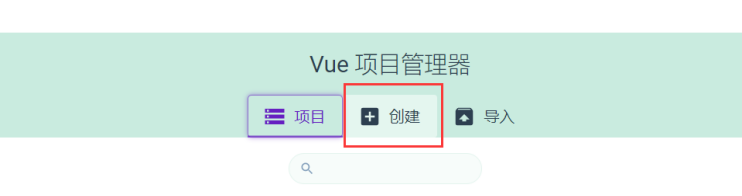

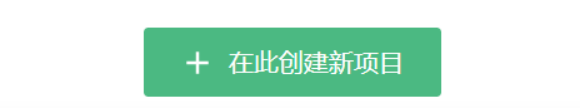

2、点击创建按钮

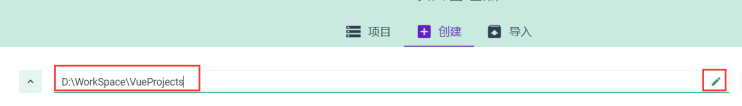

3、设置项目存放路径，点击回车

4、点击按钮

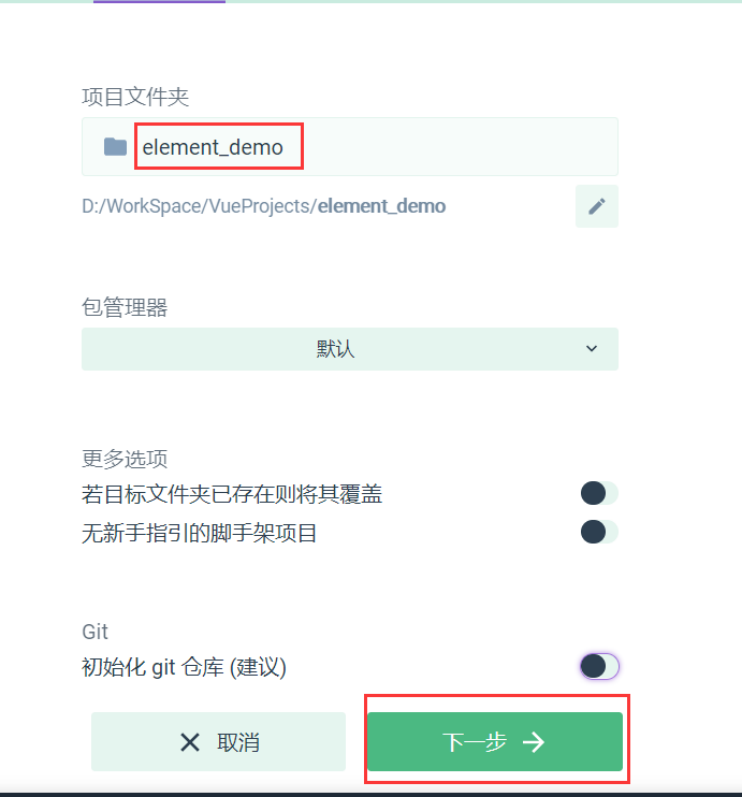

5、输入工程名称，点击下一步

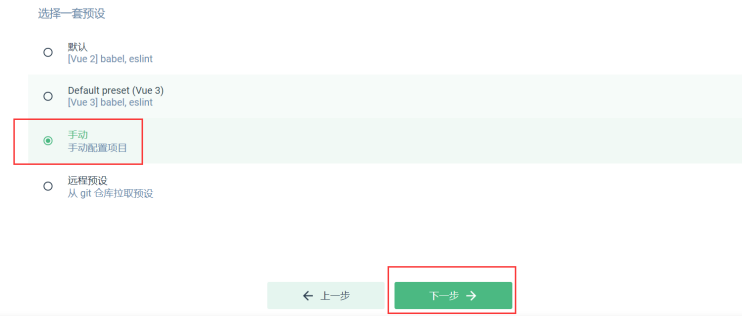

6、选择手动配置项目，点击下一步

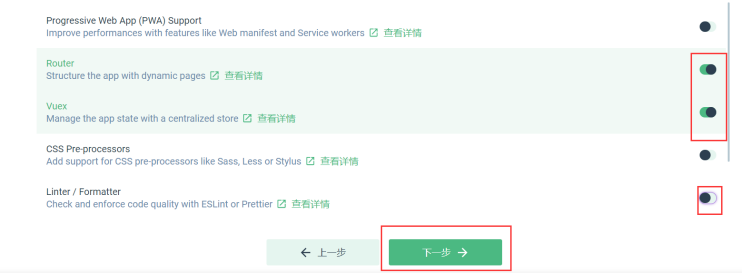

7、进行功能配置，点击下一步

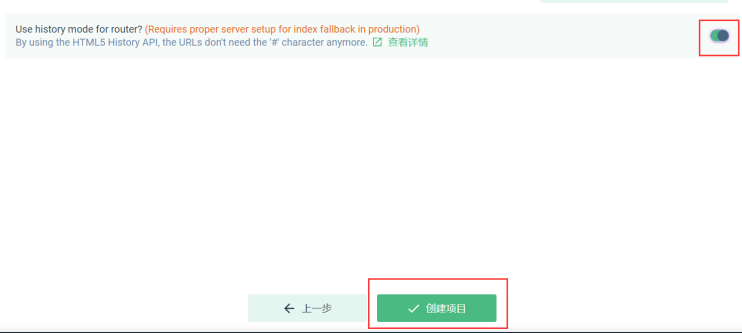

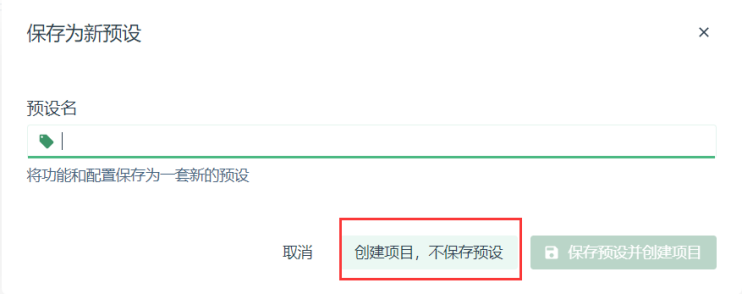

8、开启 history mode ，点击创建项目

9、创建项目

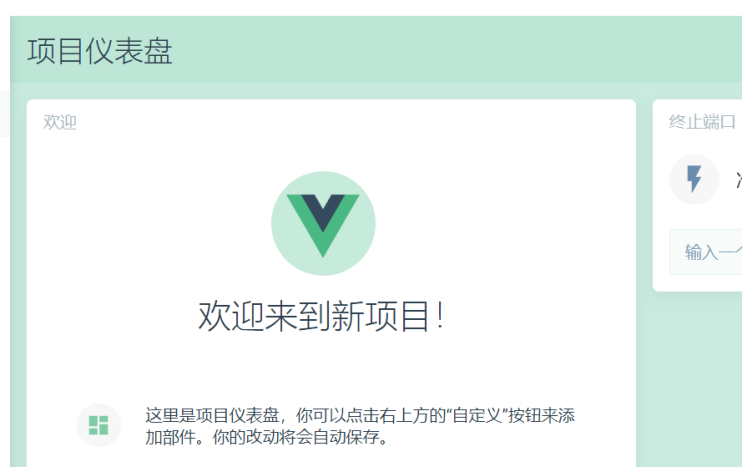

10、等待项目创建成功

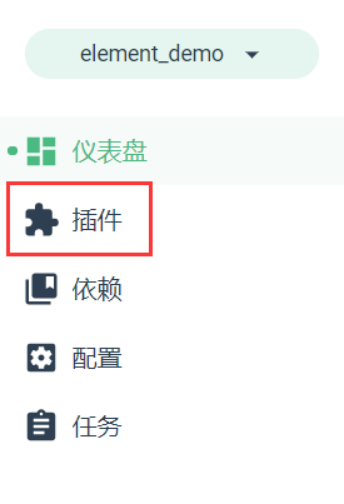

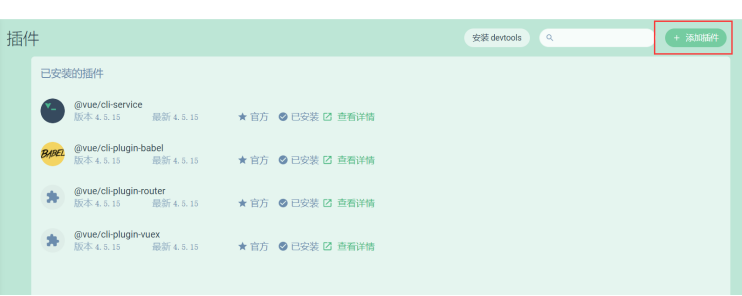

11、点击插件

12、点击添加插件

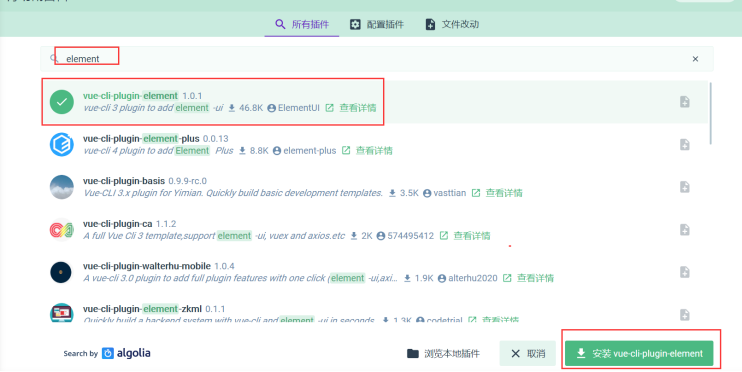

13、搜索框输入 element，选中第一项，点击安装

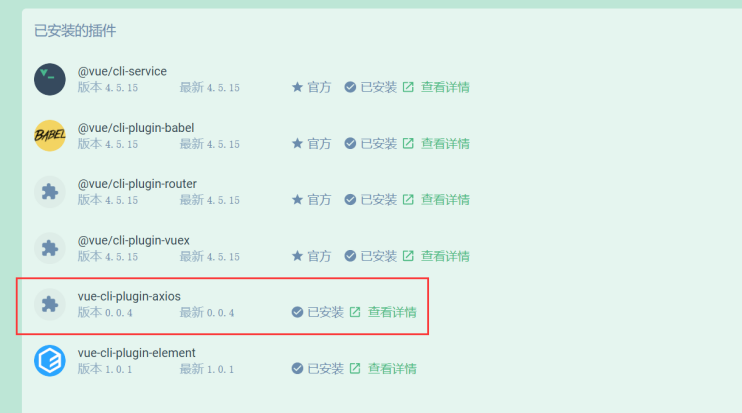

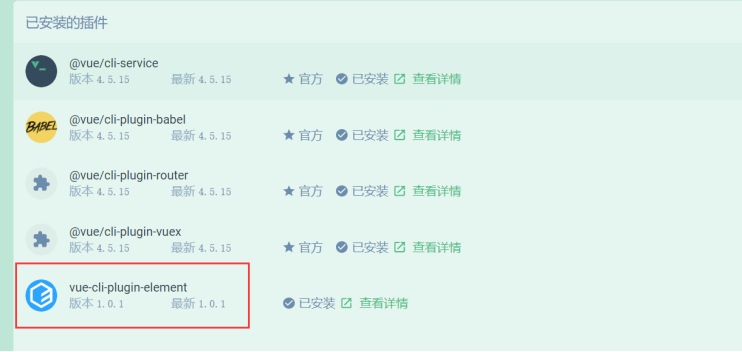

14、安装成功，界面如下所示

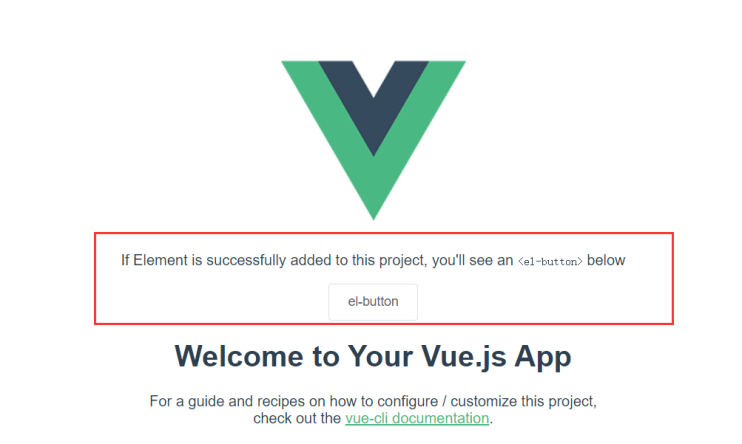

15、启动项目，如果安装成功，会看到如下界面

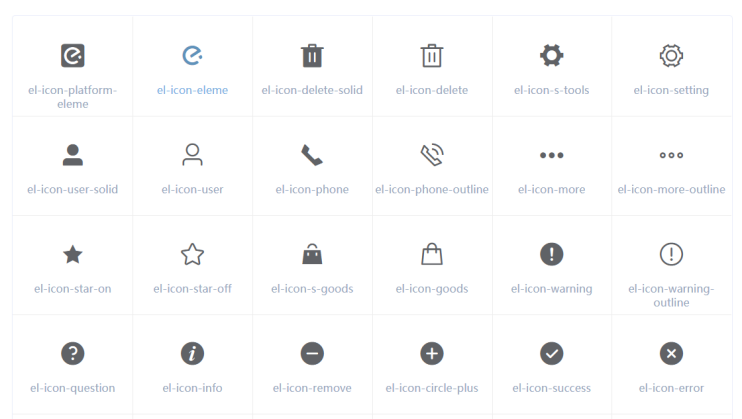

3 Icon 图标

提供了一套常用的图标集合，直接使用 i 标签结合 class 来使用：

<i class="el-icon-iconName"></i>

el-icon-iconName 为官网定义的图标名称，直接取官网查找对应的图标，修改 class 属性即可。

4 Button 按钮

是 Element UI 提供的一组常用的操作按钮组件，直接使用封装好的 el-button ,比如：

<el-button>按钮</el-button>

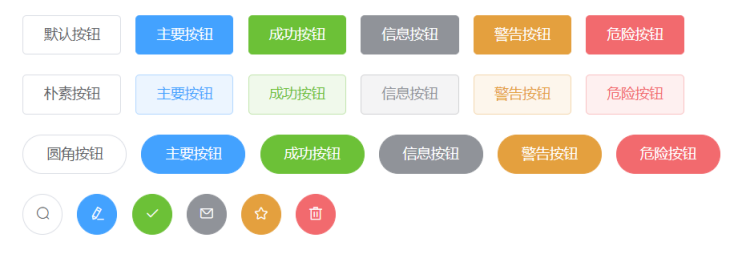

基于 el-button 按钮，可以使用 type、plain、round、 circle 属性对按钮进行修饰。

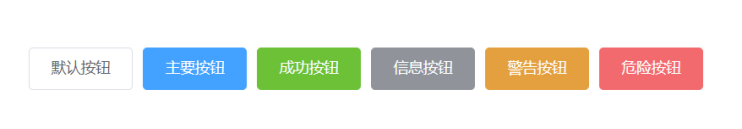

type 设置按钮的样式

<el-button>默认按钮</el-button>
<el-button type="primary">主要按钮</el-button>
<el-button type="success">成功按钮</el-button>
<el-button type="info">信息按钮</el-button>
<el-button type="warning">警告按钮</el-button>
<el-button type="danger">危险按钮</el-button>

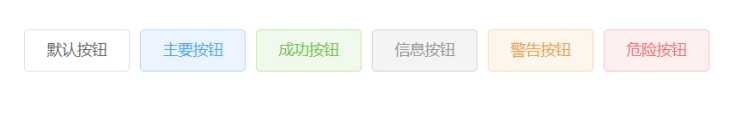

plain 可以减弱按钮的背景颜色效果

<el-button plain>默认按钮</el-button>
<el-button type="primary" plain>主要按钮</el-button>
<el-button type="success" plain>成功按钮</el-button>
<el-button type="info" plain>信息按钮</el-button>
<el-button type="warning" plain>警告按钮</el-button>
<el-button type="danger" plain>危险按钮</el-button>

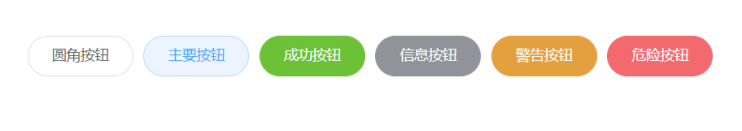

round 用来给按钮设置圆角

<el-button round>圆角按钮</el-button>
<el-button type="primary" round plain>主要按
钮</el-button>
<el-button type="success" round>成功按钮</el-button>
<el-button type="info" round>信息按钮</el-button>
<el-button type="warning" round>警告按钮</el-button>
<el-button type="danger" round>危险按钮</el-button>

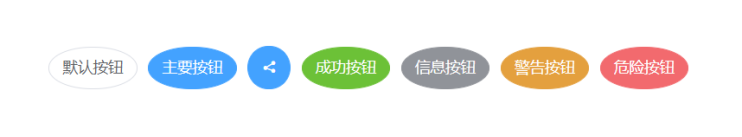

circle 将按钮设置为圆形

<el-button circle>默认按钮</el-button>
<el-button type="primary" circle>主要按钮
</el-button>
<el-button type="primary" circle icon="elicon-share"></el-button>
<el-button type="success" circle>成功按钮
</el-button>
<el-button type="info" circle>信息按钮</el-button>
<el-button type="warning" circle>警告按钮
</el-button>
<el-button type="danger" circle>危险按钮</el-button>

disabled 设置按钮的可用状态

<el-button type="primary" circle icon="elicon-share"></el-button>
<el-button type="primary" circle icon="elicon-share" disabled></el-button>

loading 属性可用给按钮设置"加载中"的效果

<template>
    <div>
        <el-button type="primary" circle
icon="el-icon-share" @click="test()"
:loading="loading"></el-button>
    </div>
</template>

<script>
    export default {
        name: "Test",
        methods:{
            test(){
                this.loading = true;
                setTimeout(()=>{
                    this.loading = false
                },3000)
            }
        },
        data(){
            return{
                loading:false
            }
        }
    }
</script>

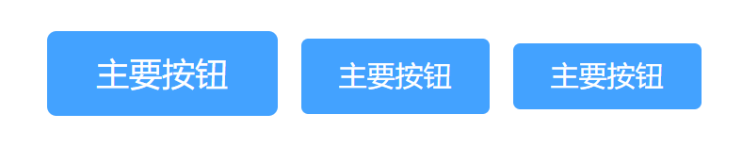

size 属性可用设置按钮的大小，medium，small，mini

<el-button type="primary" size="medium">主要
按钮</el-button>
<el-button type="primary" size="small">主要
按钮</el-button>
<el-button type="primary" size="mini">主要按
钮</el-button>

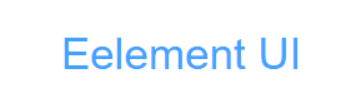

5 Link 超链接

文字超链接，使用 el-link 标签来实现

<el-link
href="https://element.eleme.cn/#/zhCN/component/button"
target="_blank">Eelement UI</el-link>

disabled 设置超链接不可用

<el-link disabled
href="https://element.eleme.cn/#/zh-CN/component/button"
target="_blank">Eelement UI</el-link>

underline 设置下划线

<el-link
         :underline="false"
         href="https://element.eleme.cn/#/zh-CN/component/button"
         target="_blank">Eelement UI</el-link>

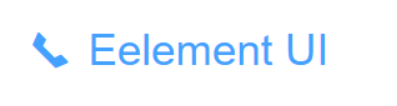

icon 给文字超链接设置图标

<el-link
         :underline="false"
         icon="el-icon-phone"
         href="https://element.eleme.cn/#/zh-CN/component/button"
         target="_blank">Eelement UI</el-link>

6 Radio 单选框

使用 el-radio 标签即可，通过 v-model 进行对象数据的绑定，label 表示该单选框的值，文本直接写入到标签内部即可。

<template>
    <el-radio v-model="radio" label="1">选项
1</el-radio>
    <el-radio v-model="radio" label="2">选项
2</el-radio>
</template>

<script>
    data(){
        return{
            underline:true,
            loading:false,
            radio:'2'
        }
    }
</script>

change 绑定切换事件

<el-radio v-model="radio" label="1"
@change="change">选项1</el-radio>
change(){
    console.log('当前radio的值：'+this.radio)
}

7 Checkbox 多选框

使用 el-checkbox 标签来完成

<template>
    <div>
        <el-checkbox
:indeterminate="isIndeterminate" vmodel="checkAll"
@change="handleCheckAllChange">全选</el-checkbox>
        <div style="margin: 15px 0;"></div>
        <el-checkbox-group vmodel="checkedCities"
@change="handleCheckedCitiesChange">
            <el-checkbox v-for="city in
cities" :label="city" :key="city">{{city}}
</el-checkbox>
        </el-checkbox-group>
    </div>
</template>

<script>
    const cityOptions = ['上海','北京','广州','深圳'];
    export default {
        name: "Test",
        methods:{
            test(){
                this.loading = true;
                setTimeout(()=>{
                    this.loading = false
                },3000)
            },
            change(){
                console.log('当前radio的值：'+this.radio)
            },
            handleCheckAllChange(val) {
                this.checkedCities = val ?
                    cityOptions : [];
                this.isIndeterminate =false;
            },

            handleCheckedCitiesChange(value) {
                let checkedCount =value.length;
                this.checkAll =
                    checkedCount === this.cities.length;
                this.isIndeterminate =
                    checkedCount > 0 && checkedCount <
                    this.cities.length;
            }
        },
        data(){
            return{
                underline:true,
                loading:false,
                radio:'2',
                checkAll: false,
                checkedCities: ['上海','北京'],
                cities: cityOptions,
                isIndeterminate: true
            }
        }
    }
</script>

8 Input 输入框

<template>
    <div>
        <el-input v-model="input"></el-input>
        <el-button type="primary"
@click="click">主要按钮</el-button>
    </div>
</template>
click(){
    this.input = 'abc'
}

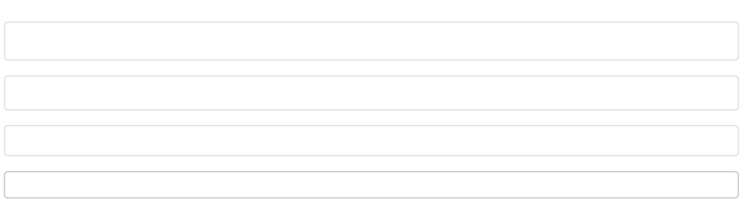

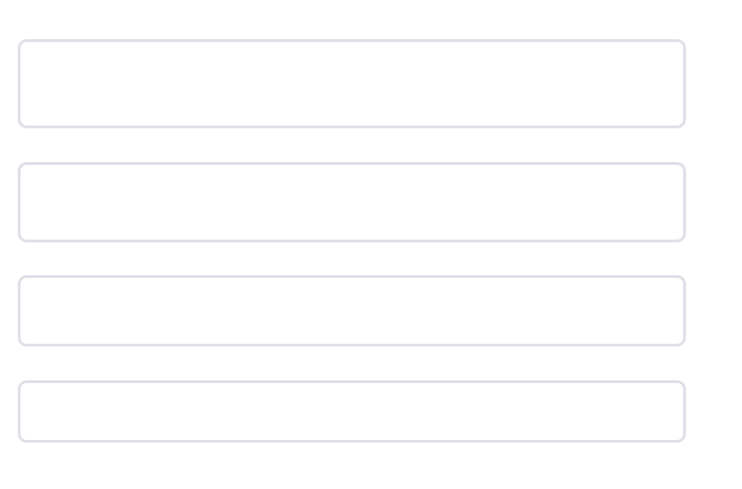

通过 size 属性修改输入框的尺寸， large/medium/small/mini，size 修改的是输入框的高度

<el-input v-model="input" size="large">
</el-input>
<div style="margin: 15px 0"></div>
<el-input v-model="input" size="medium">
</el-input>
<div style="margin: 15px 0"></div>
<el-input v-model="input" size="small">
</el-input>
<div style="margin: 15px 0"></div>
<el-input v-model="input" size="mini"></el-input>
<div style="margin: 15px 0"></div>

修改宽度可以在外层嵌套一个 div，通过修改 div 的宽度来实现输入框宽度的修改

<div style="width: 300px">
<el-input v-model="input" size="large">
</el-input>
<div style="margin: 15px 0"></div>
<el-input v-model="input"
size="medium"></el-input>
<div style="margin: 15px 0"></div>
<el-input v-model="input" size="small">
</el-input>
<div style="margin: 15px 0"></div>
<el-input v-model="input" size="mini">
</el-input>
<div style="margin: 15px 0"></div>
</div>

show-password 属性设置可以切换显示隐藏的密码框

<el-input v-model="input" size="large"
show-password></el-input>

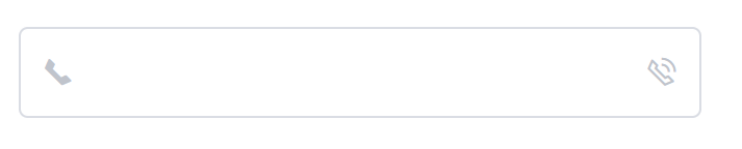

prefix-icon、suffix-icon 属性设置输入框首尾的图标

<el-input v-model="input" size="large"
show-password prefix-icon="el-icon-phone"
suffix-icon="el-icon-phone-outline
"></el-input>

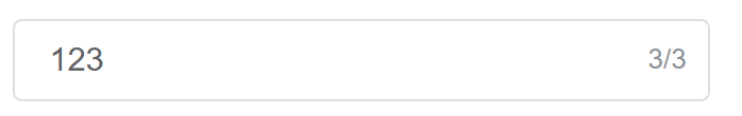

maxlength、minlength 限制输入框的字符长度

<el-input v-model="input" size="medium"
maxlength="3" show-word-limit></el-input>

9 Select 下拉框

el-select/el-option 标签进行操作，v-model 进行数据绑定，label 进行文本的展示，value 是当前选项的值。

<template>
    <div style="width: 300px">
        <el-select v-model="value"
placeholder="请选择">
            <el-option
                       v-for="item in options"
                       :key="item.value"
                       :label="item.label"
                       :value="item.value">
            </el-option>
        </el-select>
        <el-button @click="click">test</el-button>
    </div>
</template>

<script>
    export default {
        name: "Test",
        methods:{
            click(){
                console.log(this.value)
            }
        },
        data(){
            return{
                options: [{
                    value: '选项1',
                    label: '黄金糕'
                }, {
                    value: '选项2',
                    label: '双皮奶'
                }, {
                    value: '选项3',
                    label: '蚵仔煎'
                }, {
                    value: '选项4',
                    label: '龙须面'
                }, {
                    value: '选项5',
                    label: '北京烤鸭'
                }],
                value: '选项2'
            }
        }
    }
</script>

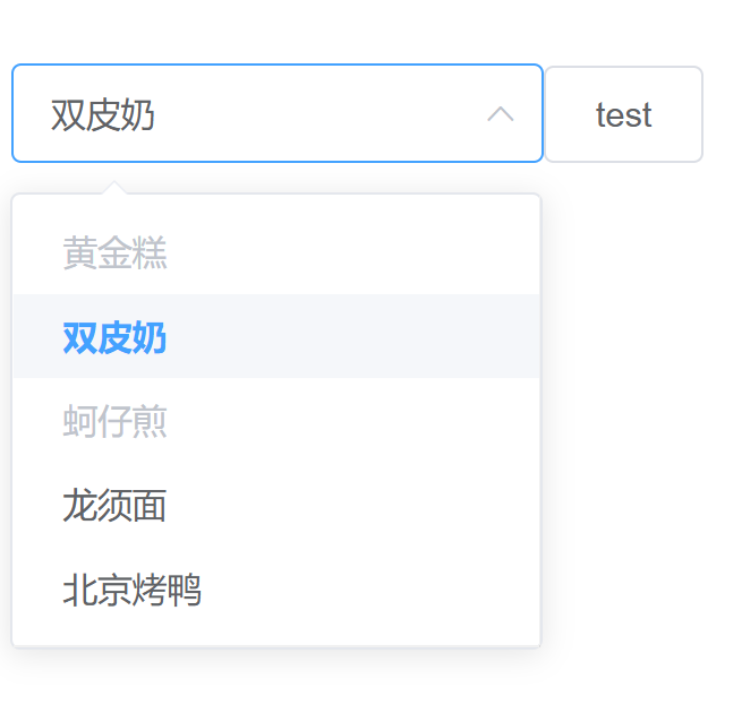

disabled = true，禁用某个选项

<template>
    <div style="width: 300px">
        <el-select v-model="value"
placeholder="请选择">
            <el-option
                       v-for="item in options"
                       :key="item.value"
                       :label="item.label"
                       :value="item.value"
                       :disabled="item.disabled">
            </el-option>
        </el-select>
        <el-button @click="click">test</el-button>
    </div>
</template>

<script>
    export default {
        name: "Test",
        methods:{
            click(){
                console.log(this.value)
            }
        },
        data(){
            return{
                options: [{
                    value: '选项1',
                    label: '黄金糕',
                    disabled:true
                }, {
                    value: '选项2',
                    label: '双皮奶'
                }, {
                    value: '选项3',
                    label: '蚵仔煎',
                    disabled:true
                }, {
                    value: '选项4',
                    label: '龙须面'
                }, {
                    value: '选项5',
                    label: '北京烤鸭'
                }],
                value: '选项2'
            }
        }
    }
</script>

change 下拉框进行修改之后会自动触发该事件

<template>
    <div style="width: 300px">
        <el-select v-model="value"
placeholder="请选择" @change="change">
            <el-option
                       v-for="item in options"
                       :key="item.value"
                       :label="item.label"
                       :value="item.value"
                       :disabled="item.disabled">
            </el-option>
        </el-select>
        <el-button @click="click">test</el-button>
    </div>
</template>

<script>
    export default {
        name: "Test",
        methods:{
            click(){
                console.log(this.value)
            },
            change(){
                console.log('当前选择的是：'+this.value)
            }
        },
        data(){
            return{
                options: [{
                    value: '选项1',
                    label: '黄金糕',
                    disabled:true
                }, {
                    value: '选项2',
                    label: '双皮奶'
                }, {
                    value: '选项3',
                    label: '蚵仔煎',
                    disabled:true
                }, {
                    value: '选项4',
                    label: '龙须面'
                }, {
                    value: '选项5',
                    label: '北京烤鸭'
                }],
                value: '选项2'
            }
        }
    }
</script>

10 Switch 开关

Switch 组件表示两种相互对立状态之间的切换，开关， el-switch 标签完成，v-model 进行数据绑定， boolean，表示开/关的状态，active-color 属性与 inactive-color 属性来设置开关的背景色。

<el-switch
           v-model="value"
           active-color="#13ce66"
           inactive-color="#ff4949">
</el-switch>
value: true

active-text 和 inactive-text 分别设置开/关对应的文本

<el-switch
           v-model="value"
           active-color="#13ce66"
           active-text="上架"
           inactive-color="#ff4949"
           inactive-text="下架">
</el-switch>
value: true

change 事件进行开/关操作时触发该方法。

<el-switch
           v-model="value"
           active-color="#13ce66"
           active-text="上架"
           inactive-color="#ff4949"
           inactive-text="下架"
           @change="change">
</el-switch>
change(){
console.log('当前开关的状态是：'+this.value)
}
value: true

11 Upload 上传文件

11.1 前端

使用 el-upload 组件完成，action 属性为后端请求的接口。

<el-upload
           class="upload-demo"
           drag
           action="https://jsonplaceholder.typicode.com/posts/"
           multiple>
    <i class="el-icon-upload"></i>
    <div class="el-upload__text">将文件拖到此处，或<em>点击上传</em></div>
    <div class="el-upload__tip" slot="tip">只能上传xlsx文件，且不超过500kb</div>
</el-upload>

11.2 后端

Spring Boot + EasyExcel 完成 Excel 数据的解析。

1、pom.xml 导入 EasyExcel 相关依赖

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>easyexcel</artifactId>
    <version>2.2.6</version>
</dependency>

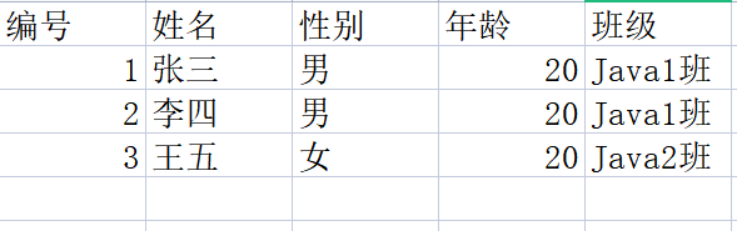

2、创建一个类，映射 Excel 文件。

package com.southwind.vo;

import
com.alibaba.excel.annotation.ExcelProperty;
import lombok.Data;

@Data
public class ExcelVO {
    @ExcelProperty("编号")
    private Integer id;
    @ExcelProperty("姓名")
    private String name;
    @ExcelProperty("性别")
    private String gender;
    @ExcelProperty("年龄")
    private Integer age;
    @ExcelProperty("班级")
    private String classes;
}

3、创建 ExcelService，实现 EasyExcel 的数据解析。

package com.southwind.service;

import com.southwind.vo.ExcelVO;

import java.io.InputStream;
import java.util.List;

public interface ExcelService {
    public List<ExcelVO> list(InputStream
inputStream);
}
package com.southwind.service.impl;

import com.alibaba.excel.EasyExcel;
import
com.alibaba.excel.context.AnalysisContext;
import
com.alibaba.excel.event.AnalysisEventListen
er;
import com.southwind.service.ExcelService;
import com.southwind.vo.ExcelVO;
import
org.springframework.stereotype.Service;

import java.io.InputStream;
import java.util.ArrayList;
import java.util.List;

@Service
public class ExcelServiceImpl implements
ExcelService {
    @Override
    public List<ExcelVO> list(InputStream
inputStream) {
        List<ExcelVO> list = new
ArrayList<>();
        EasyExcel.read(inputStream)
            .head(ExcelVO.class)
            .sheet()
            .registerReadListener(new AnalysisEventListener<ExcelVO>() {
                @Override
                public void
invoke(ExcelVO excelVO, AnalysisContext
analysisContext) {
                    list.add(excelVO);
                }
                @Override
                public void
doAfterAllAnalysed(AnalysisContext
analysisContext) {
                    System.out.println("数据解析完成");
                }
            }).doRead();
       return list;
    }
}

4、创建 ExcelController，接收前端请求，调用 ExcelService 进行数据解析。

package com.southwind.controller;

import com.southwind.service.ExcelService;
import com.southwind.vo.ExcelVO;
import
org.springframework.beans.factory.annotatio
n.Autowired;
import
org.springframework.web.bind.annotation.Pos
tMapping;
import
org.springframework.web.bind.annotation.Req
uestMapping;
import
org.springframework.web.bind.annotation.Req
uestParam;
import
org.springframework.web.bind.annotation.Res
tController;
import
org.springframework.web.multipart.Multipart
File;

import java.io.IOException;
import java.util.List;

@RestController
@RequestMapping("/excel")
public class ExcelController {

    @Autowired
    private ExcelService excelService;

    @PostMapping("/import")
    public String
importData(@RequestParam("file")MultipartFi
le file){
        try {
            List<ExcelVO> list =
this.excelService.list(file.getInputStream(
));
            for (ExcelVO excelVO : list) {

 System.out.println(excelVO);
            }
        } catch (IOException e) {
            return "fail";
        }
        return "success";
    }
}

12 Form 表单

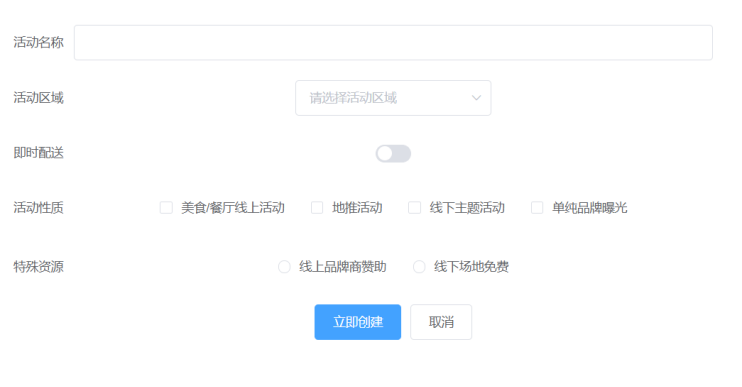

12.1 基本使用

Form 组件，每一个表单域由一个 form-item 组件构成的，表单域中可以放置各种类型的表单控件，Input、 Select、Checkbox、Radio、Switch，表单域的值直接跟 Vue 对象进行绑定。

<el-form ref="form" :model="form" label-width="80px">
    <el-form-item label="活动名称">
        <el-input v-model="form.name"></el-input>
    </el-form-item>
    <el-form-item label="活动区域">
        <el-select v-model="form.region"
placeholder="请选择活动区域">
            <el-option label="区域一"
value="shanghai"></el-option>
            <el-option label="区域二"
value="beijing"></el-option>
        </el-select>
    </el-form-item>
    <el-form-item label="即时配送">
        <el-switch v-model="form.delivery"></el-switch>
    </el-form-item>
    <el-form-item label="活动性质">
        <el-checkbox-group v-model="form.type">
            <el-checkbox label="美食/餐厅线上活动" name="type"></el-checkbox>
            <el-checkbox label="地推活动"
name="type"></el-checkbox>
            <el-checkbox label="线下主题活动"
name="type"></el-checkbox>
            <el-checkbox label="单纯品牌曝光"
name="type"></el-checkbox>
        </el-checkbox-group>
    </el-form-item>
    <el-form-item label="特殊资源">
        <el-radio-group v-model="form.resource">
            <el-radio label="线上品牌商赞助">
            </el-radio>
            <el-radio label="线下场地免费">
            </el-radio>
        </el-radio-group>
    </el-form-item>
    <el-form-item>
        <el-button type="primary"
@click="onSubmit">立即创建</el-button>
        <el-button>取消</el-button>
    </el-form-item>
</el-form>

12.2 数据校验

<el-form ref="form" :model="form"
:rules="rules" label-width="80px">
    <el-form-item label="活动名称"
prop="name">
        <el-input v-model="form.name"></el-input>
    </el-form-item>
    <el-form-item label="活动区域"
prop="region">
        <el-select v-model="form.region"
placeholder="请选择活动区域">
            <el-option label="区域一"
value="shanghai"></el-option>
            <el-option label="区域二"
value="beijing"></el-option>
        </el-select>
    </el-form-item>
    <el-form-item label="即时配送"
prop="delivery">
        <el-switch v-model="form.delivery">
        </el-switch>
    </el-form-item>
    <el-form-item label="活动性质"
prop="type">
        <el-checkbox-group v model="form.type">
            <el-checkbox label="美食/餐厅线上
活动" name="type"></el-checkbox>
            <el-checkbox label="地推活动"
name="type"></el-checkbox>
            <el-checkbox label="线下主题活动"
name="type"></el-checkbox>
            <el-checkbox label="单纯品牌曝光"
name="type"></el-checkbox>
        </el-checkbox-group>
    </el-form-item>
    <el-form-item label="特殊资源"
prop="resource">
        <el-radio-group v-model="form.resource">
            <el-radio label="线上品牌商赞助">
            </el-radio>
            <el-radio label="线下场地免费">
            </el-radio>
        </el-radio-group>
    </el-form-item>
    <el-form-item>
        <el-button type="primary"
@click="onSubmit('form')">立即创建</el-button>
        <el-button>取消</el-button>
    </el-form-item>
</el-form>

methods:{
    onSubmit(formName){

 this.$refs[formName].validate((valid) => {
            if (valid) {
                console.log(this.form);
            }
        });
    }
},
data(){
    return{
        form: {
            name: '',
            region: '',
            delivery: false,
            type: [],
            resource: ''
        },
        rules: {
            name: [
                { required: true, message:'请输入活动名称', trigger: 'blur' },
                { min: 3, max: 5, message:'长度在 3 到 5 个字符', trigger: 'blur' }
            ],
            region: [
                { required: true, message:'请选择活动区域', trigger: 'change' }
            ],
            type: [
                { type: 'array', required:true, message: '请至少选择一个活动性质',trigger: 'change' }
            ],
            resource: [
                { required: true, message:'请选择活动资源', trigger: 'change' }
            ]
        }
    }
}

12.3 自定义数据校验

邮箱：/^([a-zA-Z0-9-])+@([a-zA-Z0-9-])+(.[a-zA-Z0-9_-])+/

<el-form ref="form" :model="form"
:rules="rules" label-width="80px">
    <el-form-item label="邮箱" prop="email">
        <el-input v-model="form.email">
        </el-input>
    </el-form-item>
    <el-form-item>
        <el-button type="primary"
@click="onSubmit('form')">立即创建</el-button>
        <el-button>取消</el-button>
    </el-form-item>
</el-form>

methods:{
    onSubmit(formName){

 this.$refs[formName].validate((valid) => {
            if (valid) {
                console.log(this.form);
            }
        });
    }
},
data(){
    var checkEmail = (rule,value,callback)
=> {
        const mailReg = /^([a-zA-Z0-
9_-])+@([a-zA-Z0-9_-])+(.[a-zA-Z0-9_-])+/
            if(!value){
                return callback(new Error('邮箱不能为空'))
            }
        setTimeout(()=>{
            if(mailReg.test(value)){
                callback()
            }else{
                callback(new Error('请输入正确的邮箱格式'))
            }
        },100)
    };
    return{
        form: {
            email: ''
        },
        rules: {
            email: [
                { required: true,
                 validator:checkEmail, trigger: 'blur' },
            ]
        }
    }
}

12.4 数字类型校验

<el-form ref="form" :model="form" label-width="80px">
    <el-form-item label="年龄" prop="age"
                  :rules="[
                          { required: true, message: '年龄不能为空'},
                          { type:'number', message: '年龄
必须为数字值'}
                          ]">
        <el-input v-model.number="form.age"></el-input>
    </el-form-item>
    <el-form-item>
        <el-button type="primary"
@click="onSubmit('form')">立即创建</el-button>
        <el-button>取消</el-button>
    </el-form-item>
</el-form>

methods:{
    onSubmit(formName){

 this.$refs[formName].validate((valid) => {
            if (valid) {
                console.log(this.form);
            }
        });
    }
},
data(){
    var checkEmail = (rule,value,callback)
=> {
        const mailReg = /^([a-zA-Z0-9_-])+@([a-zA-Z0-9_-])+(.[a-zA-Z0-9_-])+/
            if(!value){
                return callback(new Error('邮箱不能为空'))
            }
        setTimeout(()=>{
            if(mailReg.test(value)){
                callback()
            }else{
                callback(new Error('请输入正确的邮箱格式'))
            }
        },100)
    };
    return{
        form: {
            age: ''
        }
    }
}

13 CRUD 小案例

13.1 后端

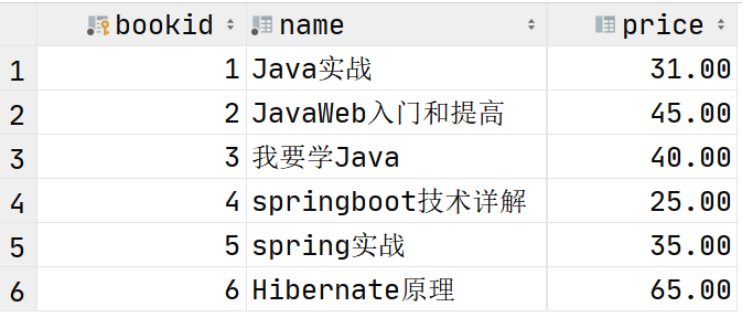

1、数据库

2、pom.xml 添加 MyBatis Plus 相关依赖

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.3.2</version>
</dependency>

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-generator</artifactId>
    <version>3.3.2</version>
</dependency>

<dependency>
    <groupId>org.apache.velocity</groupId>
    <artifactId>velocity</artifactId>
    <version>1.7</version>
</dependency>

3、通过 MyBatis Plus Generator 自动生成后端代码。

package com.southwind;

import
com.baomidou.mybatisplus.annotation.DbType;
import
com.baomidou.mybatisplus.generator.AutoGene
rator;
import
com.baomidou.mybatisplus.generator.config.D
ataSourceConfig;
import
com.baomidou.mybatisplus.generator.config.G
lobalConfig;
import
com.baomidou.mybatisplus.generator.config.P
ackageConfig;
import
com.baomidou.mybatisplus.generator.config.S
trategyConfig;
import
com.baomidou.mybatisplus.generator.config.r
ules.NamingStrategy;

public class Main {
public static void main(String[] args)
{
    //创建对象
    AutoGenerator autoGenerator = new AutoGenerator();
    //数据源
    DataSourceConfig dataSourceConfig =
new DataSourceConfig();

 dataSourceConfig.setDbType(DbType.MYSQL);

 dataSourceConfig.setDriverName("com.mysql.
cj.jdbc.Driver");

 dataSourceConfig.setUrl("jdbc:mysql://loca
lhost:3306/dbname");

 dataSourceConfig.setUsername("root");

 dataSourceConfig.setPassword("root");

 autoGenerator.setDataSource(dataSourceConfig);
    //全局配置
    GlobalConfig globalConfig = new GlobalConfig();

 globalConfig.setOutputDir(System.getProper
ty("user.dir")+"/src/main/java");
    globalConfig.setAuthor("admin");
    globalConfig.setOpen(false);
    //去掉Service的I
 globalConfig.setServiceName("%sService");

 autoGenerator.setGlobalConfig(globalConfig
);
    //包配置
    PackageConfig packageConfig = new PackageConfig();

 packageConfig.setParent("com.southwind");
    packageConfig.setEntity("entity");
    packageConfig.setMapper("mapper");
                          packageConfig.setService("service");
                          packageConfig.setServiceImpl("service.impl
");
                                                        packageConfig.setController("controller");
                                                        autoGenerator.setPackageInfo(packageConfig
);
    //策略配置
    StrategyConfig strategyConfig = new StrategyConfig();                                                               strategyConfig.setInclude("book");
                                                        strategyConfig.setNaming(NamingStrategy.un
derline_to_camel);
                                                        strategyConfig.setColumnNaming(NamingStrat
egy.underline_to_camel);
                                                        strategyConfig.setEntityLombokModel(true);
                                                        autoGenerator.setStrategy(strategyConfig);
    //启动
    autoGenerator.execute();
   }
}

4、Controller 中添加业务代码。

package com.southwind.controller;

import com.southwind.entity.Book;
import com.southwind.service.BookService;
import
org.springframework.beans.factory.annotatio
n.Autowired;
import
org.springframework.web.bind.annotation.*;

import
org.springframework.stereotype.Controller;

import java.util.List;

/**
* <p>
* 前端控制器
* </p>
*
* @author admin
* @since 2021-12-26
*/
@RestController
@RequestMapping("/book")
public class BookController {

    @Autowired
    private BookService bookService;

    @GetMapping("/list")
    public List<Book> list(){
        return this.bookService.list();
    }

    @GetMapping("/findById/{id}")
    public Book
findById(@PathVariable("id") Integer id){
        return
this.bookService.getById(id);
    }

    @DeleteMapping("/delete/{id}")
    public boolean
delete(@PathVariable("id") Integer id){
        return
this.bookService.removeById(id);
    }

    @PostMapping("/add")
    public boolean add(@RequestBody Book
book){
        return this.bookService.save(book);
    }

    @PutMapping("/update")
    public boolean update(@RequestBody Book
book){
        return
this.bookService.updateById(book);
    }
}

5、application.yml

spring:
  datasource:
    driver-class-name:
com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/dbname
    username: root
    password: root
mybatis:
  configuration:
    log-impl:
org.apache.ibatis.logging.stdout.StdOutImpl
  type-aliases-package:
com.southwind.entity
server:
  port: 8181

13.2 前端

1、安装 axios 插件，点击插件

2、点击添加插件

3、搜索框输入 axios ，选择第一项，点击安装按钮

4、安装成功，如下所示。

5、首页数据加载。

<template>
    <el-table
              :data="tableData"
              border
              style="width: 800px">
        <el-table-column
                         fixed
                         prop="bookid"
                         label="编号"
                         width="150">
        </el-table-column>
        <el-table-column
                         prop="name"
                         label="书名"
                         width="200">
        </el-table-column>
        <el-table-column
                         prop="price"
                         label="价格"
                         width="150">
        </el-table-column>
        <el-table-column
                         fixed="right"
                         label="操作"
                         width="200">
            <template slot-scope="scope">
                <el-button
                           size="mini"
                           @click="handleEdit(scope.$index,
scope.row)">编辑</el-button>
                <el-button
                           size="mini"
                           type="danger"
                           @click="handleDelete(scope.$index,
scope.row)">删除</el-button>
            </template>
        </el-table-column>
    </el-table>
</template>

<script>
    export default {
        name: "Index",
        created() {
            let _this = this
            axios.get('http://localhost:8181/book/list').then(function (resp) {
                _this.tableData = resp.data
            })
        },
        data() {
            return {
                tableData: ''
            }
        }
    }
</script>

6、删除数据。

<template>
    <el-table
              :data="tableData"
              border
              style="width: 800px">
        <el-table-column
                         fixed
                         prop="bookid"
                         label="编号"
                         width="150">
        </el-table-column>
        <el-table-column
                         prop="name"
                         label="书名"
                         width="200">
        </el-table-column>
        <el-table-column
                         prop="price"
                         label="价格"
                         width="150">
        </el-table-column>
        <el-table-column
                         fixed="right"
                         label="操作"
                         width="200">
            <template slot-scope="scope">
                <el-button
                           size="mini"
                           @click="handleEdit(scope.row)">编辑</el-button>
                <el-button
                           size="mini"
                           type="danger"
                           @click="handleDelete(scope.row)">删除</el button>
            </template>
        </el-table-column>
    </el-table>
</template>

<script>
    export default {
        name: "Index",
        methods:{
            handleDelete(row){
                let _this = this
                this.$confirm('是否确定删除《'+row.name+'》?','提示', {
                    confirmButtonText: '确定',
                    cancelButtonText: '取消',
                    type: 'warning'
                }).then(() => {
                    axios.delete('http://localhost:8181/book/delete/'+row.bookid).then(function (resp) {
                        if(resp.data){
                            _this.$alert('《'+row.name+'》删除成功','提示', {
                                confirmButtonText: '确定',
                                callback:
                                action => {
                                   location.reload()
                                }
                            });
                        }
                    })
                }).catch(() => {

                });
            }
        },
        created() {
            let _this = this
            axios.get('http://localhost:8181/book/list').then(function (resp) {
                _this.tableData = resp.data
            })
        },
        data() {
            return {
                tableData: ''
            }
        }
    }
</script>

7、修改数据。

Index

<template>
    <el-table
              :data="tableData"
              border
              style="width: 800px">
        <el-table-column
                         fixed
                         prop="bookid"
                         label="编号"
                         width="150">
        </el-table-column>
        <el-table-column
                         prop="name"
                         label="书名"
                         width="200">
        </el-table-column>
        <el-table-column
                         prop="price"
                         label="价格"
                         width="150">
        </el-table-column>
        <el-table-column
                         fixed="right"
                         label="操作"
                         width="200">
            <template slot-scope="scope">
                <el-button
                           size="mini"
                           @click="handleEdit(scope.row)">编辑</el-button>
                <el-button
                           size="mini"
                           type="danger"
                           @click="handleDelete(scope.row)">删除</el-button>
            </template>
        </el-table-column>
    </el-table>
</template>

<script>
    export default {
        name: "Index",
        methods:{
            handleEdit(row){
                this.$router.push('/update?id='+row.bookid)
            },
            handleDelete(row){
                let _this = this
                this.$confirm('是否确定删除《'+row.name+'》?','提示', {
                    confirmButtonText: '确定',
                    cancelButtonText: '取消',
                    type: 'warning'
                }).then(() => {
                    axios.delete('http://localhost:8181/book/delete/'+row.bookid).then(function (resp) {
                        if(resp.data){
                            _this.$alert('《'+row.name+'》删除成功','提示', {
                                confirmButtonText: '确定',
                                callback:
                                action => {
                                    location.reload()
                                }
                            });
                        }
                    })
                }).catch(() => {

                });
            }
        },
        created() {
            let _this = this
            axios.get('http://localhost:8181/book/list').then(function (resp) {
                _this.tableData = resp.data
            })
        },
        data() {
            return {
                tableData: ''
            }
        }
}
</script>

Update

<template>
    <div style="width: 300px">
        <el-form ref="form" :model="form":rules="rules" label-width="80px">
            <el-form-item label="编号"prop="bookid":rules="[
{required: true,message: '编号不能为空'},
{ type:'number',message: '编号必须为数字值'}                 ]">
                <el-input v-model.number="form.bookid" readonly></el-input>
            </el-form-item>
            <el-form-item label="书名"prop="name">
                <el-input v-model="form.name"></el-input>
            </el-form-item>
            <el-form-item label="价格"prop="price" :rules="[
{ required: true,message: '价格不能为空'},
{ type:'number',message: '价格必须为数字值'}
]">
                <el-input v-model.number="form.price"
                          </el-input>
            </el-form-item>
            <el-form-item>
                <el-button type="primary"
@click="onSubmit('form')">立即修改</el-button>
                <el-button>取消</el-button>
            </el-form-item>
        </el-form>
    </div>
</template>

<script>
    export default {
        name: "Update",
        created() {
            let _this = this
            axios.get('http://localhost:8181/book/findById/'+this.$route.query.id).then(function
(resp) {
                _this.form = resp.data
            })
        },
        data(){
            return{
                form: {
                    bookid: '',
                    name: '',
                    price: ''
                },
                rules: {
                    name: [
                        { required: true,message: '请输入图书名称', trigger: 'blur' },
                        { min: 3, max: 20,message: '长度在 3 到 20 个字符', trigger:'blur' }
                    ]
                }
            }
        },
        methods:{
            onSubmit(formName) {
                let _this = this
                this.$refs[formName].validate((valid) => {
                    if (valid) {
                        axios.put('http://localhost:8181/book/update',this.form).then(function (resp) {
                            if(resp.data){
                                _this.$alert('《'+_this.form.name+'》修改成功','', {
                                    confirmButtonText: '确定',
                                    callback: action => {
                                        _this.$router.push('/index')
                                    }
                                });
                            }
                        })
                    }
                });
            }
        }
    }
</script>

8、添加数据。

<template>
    <div style="width: 300px">
        <el-form ref="form" :model="form":rules="rules" label-width="80px">
            <el-form-item label="编号"prop="bookid" :rules="[
{ required: true,message: '编号不能为空'},                 { type:'number',message: '编号必须为数字值'}
]">
                <el-input v-model.number="form.bookid"></el-input>
            </el-form-item>
            <el-form-item label="书名"prop="name">
                <el-input v model="form.name"></el-input>
            </el-form-item>
            <el-form-item label="价格"
                          prop="price" :rules="[
{ required: true,message: '价格不能为空'},
{ type:'number',message: '价格必须为数字值'}
]">
                <el-input v-model.number="form.price"></el-input>
            </el-form-item>
            <el-form-item>
                <el-button type="primary"
@click="onSubmit('form')">立即修改</el-button>
                <el-button>取消</el-button>
            </el-form-item>
        </el-form>
    </div>
</template>

<script>
    export default {
        name: "Add",
        data(){
            return{
                form: {
                    bookid: '',
                    name: '',
                    price: ''
                },
                rules: {
                    name: [
                        { required: true,message: '请输入图书名称', trigger: 'blur' },
                        { min: 3, max: 20,message: '长度在 3 到 20 个字符', trigger:'blur' }
                    ]
                }
            }
        },
        methods:{
            onSubmit(formName) {
                let _this = this
                this.$refs[formName].validate((valid) => {
                    if (valid) {
                        axios.post('http://localhost:8181/book/add',this.form).then(function (resp) {
                            if(resp.data){
                                _this.$alert('《'+_this.form.name+'》添加成功','', {
                                    confirmButtonText: '确定',
                                    callback: action => {
                                        _this.$router.push('/index')
                                    }
                                });
                            }
                        })
                    }
                });
            }
        }
    }
</script>
