重新封装RTX4函数,以便适配RTX5 / FREERTOS / FREERTOS_NRF_RTC。
Keil RTX是为ARM和Cortex-M设备设计的免版税,确定性的实时操作系统。它允许您创建同时执行多个功能的程序,并帮助创建更好的结构和更容易维护的应用程序。
特征
- 具有源代码的免版权,确定性RTOS
- 灵活的调度:循环,抢占和协作
- 具有低中断延迟的高速实时操作
- 为资源有限的系统提供小封装
- 无限数量的任务每个具有254个优先级

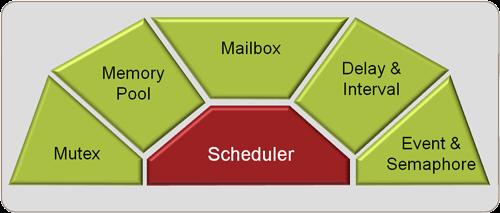

- 无限数量的邮箱,信号量,互斥量和计时器
- 支持多线程和线程安全操作

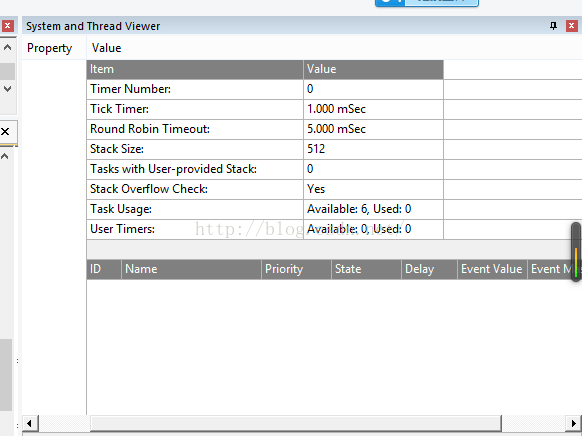

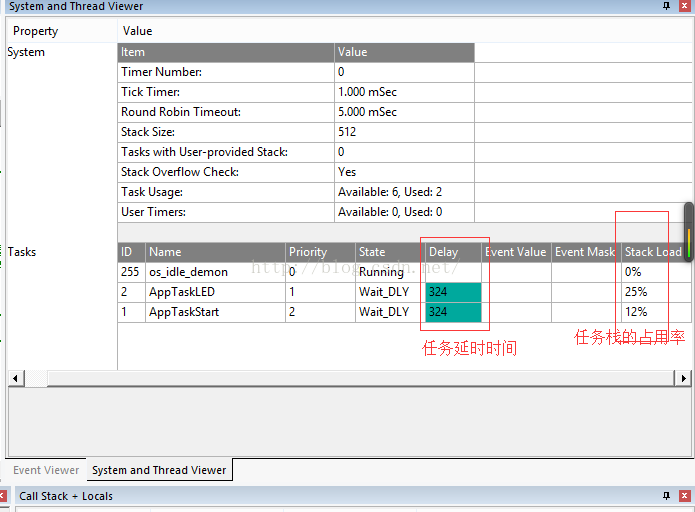

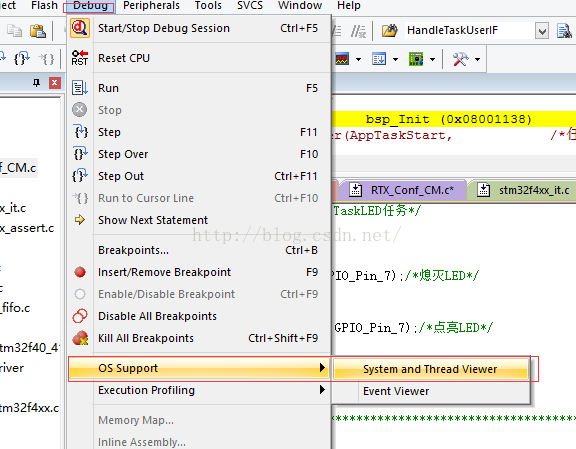

- 内核感知调试支持MDK-ARM
- 使用μVision配置向导的基于对话框的设置
优点
尽管无需实时操作系统(通过在超级循环中执行一个或多个功能)就可以创建实时程序,这个应该指的是裸机了,但KeilRTX为您解决的RTOS有许多调度,维护和计时问题。
注意事项
所有MDK-ARM版本都包含RTX源代码。
【RTX内核在新工程中的使用步骤】
- 在keil开发环境搭建好的情况下,设置在工程中使用RTX内核,选择 Project —> Options for Target,然后,为操作系统[ Operating system]选择 RTX kernel 并点击 OK;
- 从 \Keil\ARM\Boards\ST\STM32F10X_EVAL\RTX_Blinky\ 文件夹中为目标设备复制 RTX_Config.c 配置文件到 User/ 下;
// 如果没有针对独特设备的文件,那么就从Philips文件夹下面复制文件,并且依照目标设备进行修改。 - 在 stm32f10x_it.c中注释掉 SVC_Handler() PendSV_Handler() SysTick_Handler()三个函数,因为使用了RTX,为了避免函数名被重复定义,这三个函数必须注释掉,要不RTX就没法运行;
在RTX_Config.c 中的配置选项可以:
- 指定当前运行任务的数目;
- 指定使用用户自定堆栈任务的数目;
- 指定为每个任务分配堆栈的大小;
- 开启或是禁止堆栈校核;
- 指定CPU定时器作为系统定时器;
- 为选中的定时器指定输入的时钟频率;;
- 指定定时器节拍间隔;
- 开启或是禁止轮转任务调度;
- 为轮转任务调度指定时间片;
- 定义空闲任务操作;
- 指定用户定时器的数目;
- 为用户定时器回调函数指定代码;
/********************************************************************************
* @file os_api.c
* @author jianqiang.xue
* @Version V1.0.0
* @Date 2021-04-03
* @brief 大部分RTX系统函数在:**\Keil_v5\Arm\Packs\ARM\CMSIS\5.6.0\CMSIS\RTOS\RTX\SRC
********************************************************************************/
/* Includes ------------------------------------------------------------------*/
#include <stdio.h>
#include <string.h>
/* Private includes ----------------------------------------------------------*/
#include "cmsis_os.h"
#include "os_api.h"
/* Public function prototypes -----------------------------------------------*/
/*********************************OS_KERNEL***********************************/
os_status os_kernel_initialize(void)
{
return (os_status)osKernelInitialize();
}
os_status os_kernel_start(void)
{
return (os_status)osKernelStart();
}
os_status os_delay(uint32_t ms)
{
return (os_status)osDelay(ms);
}
uint32_t os_get_tick(void)
{
return osKernelSysTick();
}
extern void rt_tsk_lock(void);
os_status os_kernel_lock(void)
{
rt_tsk_lock();
return (os_status)0;
}
extern void rt_tsk_unlock(void);
os_status os_kernel_unlock(void)
{
rt_tsk_unlock();
return (os_status)0;
}
/************************************OS_THREAD************************************/
os_thread_id os_thread_create(const os_thread_def_t *thread_def, void *arg)
{
return (os_thread_id)osThreadCreate((const osThreadDef_t *)thread_def, NULL);
}
/************************************OS_TIMER************************************/
os_timer_id os_timer_create(const os_timer_def_t *timer_def, os_timer_t type, void *arg)
{
return osTimerCreate((const osTimerDef_t *)timer_def, (os_timer_type)type, arg);
}
os_status os_timer_start(os_timer_id timer_id, uint32_t millisec)
{
return (os_status)osTimerStart(timer_id, millisec);
}
os_status os_timer_stop(os_timer_id timer_id)
{
return (os_status)osTimerStop(timer_id);
}
/************************************OS_MAIL************************************/
os_mail_qid os_mail_create(const os_mailq_def_t *queue_def, os_thread_id thread_id)
{
return (os_mail_qid)osMailCreate((const osMailQDef_t *)queue_def, thread_id);
}
void *os_mail_alloc(os_mail_qid queue_id, uint32_t millisec)
{
return osMailAlloc((osMailQId)queue_id, millisec);
}
void *os_mail_clean_and_alloc(os_mail_qid queue_id, uint32_t millisec)
{
return osMailCAlloc((osMailQId)queue_id, millisec);
}
os_status os_mail_put(os_mail_qid queue_id, void *mail)
{
return (os_status)osMailPut((osMailQId)queue_id, mail);
}
os_event os_mail_get(os_mail_qid queue_id, uint32_t millisec, void *arg)
{
osEvent event;
os_event event_t;
event = osMailGet((osMailQId)queue_id, millisec);
memcpy(&event_t, &event, sizeof(osEvent));
return event_t;
}
os_status os_mail_free(os_mail_qid queue_id, void *mail)
{
return (os_status)osMailFree((osMailQId)queue_id, mail);
}
/************************************OS_POOL************************************/
os_pool_id os_pool_create(const os_pool_def_t *pool_def)
{
return (os_pool_id)osPoolCreate((const osPoolDef_t *)pool_def);
}
void *os_pool_alloc(os_pool_id pool_id)
{
return osPoolAlloc((osPoolId)pool_id);
}
void *os_pool_calloc(os_pool_id pool_id)
{
return osPoolCAlloc((osPoolId)pool_id);
}
os_status os_pool_free(os_pool_id pool_id, void *block)
{
return (os_status)osPoolFree((osPoolId)pool_id, block);
}
/************************************OS_MSG_QUEUE************************************/
/**
* @brief [消息队列] 创建消息队列空间
* @note NULL
* @param queue_def : 消息队列信息(大小)
* @param thread_id : 线程ID(可以无视不填)
* @retval None
*/
os_message_qid os_message_create(const os_messageq_def_t *queue_def, os_thread_id thread_id)
{
return (os_message_qid)osMessageCreate((const osMessageQDef_t *)queue_def, thread_id);
}
/**
* @brief [消息队列] 发送一组消息队列数据
* @note NULL
* @param queue_id: 消息队列ID
* @param info : 消息指针
* @param millisec: 超时时间 0xFFFFFFFF 无限等待
* @retval None
*/
os_status os_message_put(os_message_qid queue_id, uint32_t info, uint32_t millisec)
{
return (os_status)osMessagePut((osMessageQId)queue_id, info, millisec); // Send Message
}
/**
* @brief [消息队列] 得到一组消息队列数据
* @note NULL
* @param queue_id: 消息队列ID
* @param millisec: 等待时间 0xFFFFFFFF 无限等待
* @retval None
*/
os_event os_message_get(os_message_qid queue_id, uint32_t millisec)
{
osEvent event;
os_event event_t;
event = osMessageGet((osMessageQId)queue_id, millisec);
memcpy(&event_t, &event, sizeof(osEvent));
return event_t;
}
/************************************OS_SIGNAL************************************/
extern int32_t isrSignalSet(osThreadId thread_id, int32_t signals);
int32_t isr_signal_set(os_thread_id thread_id, int32_t signals)
{
return isrSignalSet(thread_id, signals);
}
int32_t os_signal_set(os_thread_id thread_id, int32_t signals)
{
return osSignalSet(thread_id, signals);
}
int32_t os_signal_clear(os_thread_id thread_id, int32_t signals)
{
return osSignalClear(thread_id, signals);
}
// signals = 0,则等待任意信号.
os_event os_signal_wait(int32_t signals, uint32_t millisec)
{
osEvent event;
os_event event_t;
event = osSignalWait(signals, millisec);
memcpy(&event_t, &event, sizeof(osEvent));
return event_t;
}
/********************************************************************************
* @file os_api.h
* @author jianqiang.xue
* @version V1.0.0
* @date 2021-04-03
* @brief NULL
********************************************************************************/
#include <stdint.h>
#include "cmsis_os.h"
/// Timeout value.
#define OS_WAIT_FOREVER 0xFFFFFFFFU ///< wait forever timeout value
/************************************OS_KERNEL************************************/
typedef enum {
OS_OK = 0, ///< function completed; no error or event occurred.
OS_EVENT_SIGNAL = 0x08, ///< function completed; signal event occurred.
OS_EVENT_MESSAGE = 0x10, ///< function completed; message event occurred.
OS_EVENT_MAIL = 0x20, ///< function completed; mail event occurred.
OS_EVENT_TIMEOUT = 0x40, ///< function completed; timeout occurred.
OS_ERROR_PARAMETER = 0x80, ///< parameter error: a mandatory parameter was missing or specified an incorrect object.
OS_ERROR_RESOURCE = 0x81, ///< resource not available: a specified resource was not available.
OS_ERROR_TIMEOUTRESOURCE = 0xC1, ///< resource not available within given time: a specified resource was not available within the timeout period.
OS_ERROR_ISR = 0x82, ///< not allowed in ISR context: the function cannot be called from interrupt service routines.
OS_ERROR_ISRRECURSIVE = 0x83, ///< function called multiple times from ISR with same object.
OS_ERROR_PRIORITY = 0x84, ///< system cannot determine priority or thread has illegal priority.
OS_ERROR_NOMEMORY = 0x85, ///< system is out of memory: it was impossible to allocate or reserve memory for the operation.
OS_ERROR_VALUE = 0x86, ///< value of a parameter is out of range.
OS_ERROR_OS = 0xFF, ///< unspecified RTOS error: run-time error but no other error message fits.
OS_STATUS_RESERVED = 0x7FFFFFFF ///< prevent from enum down-size compiler optimization.
} os_status;
os_status os_kernel_initialize (void);
os_status os_kernel_start(void);
os_status os_kernel_lock(void);
os_status os_kernel_unlock(void);
os_status os_delay(uint32_t ms);
uint32_t os_get_tick(void);
/************************************OS_EVENT************************************/
typedef struct os_mailq_cb *os_mail_qid;
typedef struct os_messageq_cb *os_message_qid;
typedef struct {
os_status status; ///< status code: event or error information
union {
uint32_t v; ///< message as 32-bit value
void *p; ///< message or mail as void pointer
int32_t signals; ///< signal flags
} value; ///< event value
union {
os_mail_qid mail_id; ///< mail id obtained by \ref osMailCreate
os_message_qid message_id; ///< message id obtained by \ref osMessageCreate
} def; ///< event definition
} os_event;
/************************************OS_THREAD************************************/
#ifndef FREERTOS
typedef enum {
OS_PRIORITY_IDLE = -3, ///< priority: idle (lowest)
OS_PRIORITY_LOW = -2, ///< priority: low
OS_PRIORITY_BELOWNORMAL = -1, ///< priority: below normal
OS_PRIORITY_NORMAL = 0, ///< priority: normal (default)
OS_PRIORITY_ABOVENORMAL = +1, ///< priority: above normal
OS_PRIORITY_HIGH = +2, ///< priority: high
OS_PRIORITY_REALTIME = +3, ///< priority: realtime (highest)
OS_PRIORITY_ERROR = 0x84 ///< system cannot determine priority or thread has illegal priority
} os_priority_t;
#else
typedef enum {
OS_PRIORITY_IDLE = 0, ///< priority: idle (lowest)
OS_PRIORITY_LOW = 1, ///< priority: low
OS_PRIORITY_BELOWNORMAL = 2, ///< priority: below normal
OS_PRIORITY_NORMAL = 3, ///< priority: normal (default)
OS_PRIORITY_ABOVENORMAL = 4, ///< priority: above normal
OS_PRIORITY_HIGH = 5, ///< priority: high
OS_PRIORITY_REALTIME = 6, ///< priority: realtime (highest)
OS_PRIORITY_ERROR = 0x84 ///< system cannot determine priority or thread has illegal priority
} os_priority_t;
#endif
typedef struct os_thread_cb *os_thread_id;
typedef void (*os_pthread) (void const *argument);
typedef struct {
os_pthread pthread; ///< start address of thread function
os_priority_t tpriority; ///< initial thread priority
uint32_t instances; ///< maximum number of instances of that thread function
uint32_t stacksize; ///< stack size requirements in bytes; 0 is default stack size
} os_thread_def_t;
#define os_thread(name) &os_thread_def_##name
#define os_thread_def(name, priority, instances, stacksz) \
const os_thread_def_t os_thread_def_##name = {(name), (priority), (instances), (stacksz)}
os_thread_id os_thread_create(const os_thread_def_t *thread_def, void *arg);
/************************************OS_TIMER************************************/
typedef struct os_timer_cb *os_timer_id;
typedef void (*os_ptimer) (void const *argument);
typedef struct
{
os_ptimer ptimer; ///< start address of a timer function
void *timer; ///< pointer to internal data
} os_timer_def_t;
typedef enum
{
OS_TIMER_ONCE = 0, ///< one-shot timer
OS_TIMER_PERIODIC = 1 ///< repeating timer
} os_timer_t;
#define os_timer(name) &os_timer_def_##name
#if (osCMSIS < 0x20000U)
#define os_timer_def(name, function) static uint8_t os_timer_cb_##name[40];\
static os_timer_def_t os_timer_def_##name = {(function), ((void *)os_timer_cb_##name)}
#else
#define os_timer_def(name, function) static const uint8_t os_timer_cb_##name[10];\
static const os_timer_def_t os_timer_def_##name = {(function), ((void *)os_timer_cb_##name)}
#endif
os_timer_id os_timer_create(const os_timer_def_t *timer_def, os_timer_t type, void *arg);
os_status os_timer_start(os_timer_id timer_id, uint32_t millisec);
os_status os_timer_stop(os_timer_id timer_id);
/************************************OS_MAIL************************************/
typedef struct os_mailq_cb *os_mail_qid;
#define os_mail_qdef(name, queue_sz, type) \
static const uint8_t os_mailq_q_##name[4 + (queue_sz)] = {0}; \
static const uint8_t os_mailq_m_##name[3 + ((sizeof(type) + 3) / 4) * (queue_sz)]; \
static void *os_mailq_p_##name[2] = {(os_mailq_q_##name), os_mailq_m_##name}; \
static const os_mailq_def_t os_mailq_def_##name = {(queue_sz), sizeof(type), (os_mailq_p_##name)} \
typedef struct os_mailq_def
{
uint16_t queue_sz; ///< number of elements in the queue
uint16_t item_sz; ///< size of an item
void *pool; ///< memory array for mail
} os_mailq_def_t;
#define os_mailq(name) &os_mailq_def_##name
os_mail_qid os_mail_create(const os_mailq_def_t *queue_def, os_thread_id thread_id);
void *os_mail_alloc(os_mail_qid queue_id, uint32_t millisec);
void *os_mail_clean_and_alloc(os_mail_qid queue_id, uint32_t millisec);
os_status os_mail_put(os_mail_qid queue_id, void *mail);
os_event os_mail_get(os_mail_qid queue_id, uint32_t millisec, void *arg);
os_status os_mail_free(os_mail_qid queue_id, void *mail);
/************************************OS_MSG_QUEUE************************************/
/// Message ID identifies the message queue (pointer to a message queue control block).
typedef struct os_messageq_cb *os_message_qid;
typedef struct os_messageq_def
{
uint32_t queue_sz; ///< number of elements in the queue
#if (osCMSIS < 0x20000U)
void *pool; ///< memory array for messages
#else
osMessageQueueAttr_t attr; ///< message queue attributes
#endif
} os_messageq_def_t;
#if (osCMSIS < 0x20000U)
#define os_message_qdef(name, queue_sz, type) \
static uint8_t os_messageq_q_##name[4 + (queue_sz)] = {0}; \
static const os_messageq_def_t os_messageq_def_##name = {(queue_sz), ((void *)os_messageq_q_##name)}
#else
#define os_message_qdef(name, queue_sz, type) \
static const os_messageq_def_t os_messageq_def_##name = {(queue_sz), { NULL, 0U, NULL, 0U, NULL, 0U }}
#endif
/// \brief Access a Message Queue Definition.
/// \param name name of the queue
#define os_messageq(name) &os_messageq_def_##name
os_message_qid os_message_create(const os_messageq_def_t *queue_def, os_thread_id thread_id);
os_status os_message_put(os_message_qid queue_id, uint32_t info, uint32_t millisec);
os_event os_message_get(os_message_qid queue_id, uint32_t millisec);
uint8_t os_message_get_space(os_message_qid queue_id);
uint8_t os_message_get_count(os_message_qid queue_id);
/************************************OS_POOL************************************/
/// Pool ID identifies the memory pool (pointer to a memory pool control block).
typedef struct os_pool_cb *os_pool_id;
typedef struct os_pool_deft
{
uint32_t pool_sz; ///< number of items (elements) in the pool
uint32_t item_sz; ///< size of an item
void *pool; ///< pointer to memory for pool
} os_pool_def_t;
#define os_pool_def(name, no, type) \
static const uint8_t os_pool_m_##name[3 + ((sizeof(type) + 3) / 4) * (no)]; \
static const os_pool_def_t os_pool_def_##name = {(no), sizeof(type), (void *)(os_pool_m_##name)}
#define os_pool(name) &os_pool_def_##name
os_pool_id os_pool_create(const os_pool_def_t *pool_def);
void *os_pool_alloc(os_pool_id pool_id);
void *os_pool_calloc(os_pool_id pool_id);
os_status os_pool_free(os_pool_id pool_id, void *block);
uint8_t os_pool_get_space(os_pool_id pool_id);
/************************************OS_SIGNAL************************************/
int32_t isr_signal_set(os_thread_id thread_id, int32_t signals);
int32_t os_signal_set(os_thread_id thread_id, int32_t signals);
int32_t os_signal_clear(os_thread_id thread_id, int32_t signals);
os_event os_signal_wait(int32_t signals, uint32_t millisec);
#ifdef FREERTOS
void get_task_info(void);
#endif
