3559A原生CAN总线调试
我使用的SDK的版本是Hi3559AV100_SDK_V2.0.3.0,海思官方没有can的驱动。从网上下载了一个PATCH,这个patch需要感谢此github https://github.com/benfounder/Hi3559AV100_CAN
diff --git a/arch/arm64/boot/dts/hisilicon/hi3559av100.dtsi b/arch/arm64/boot/dts/hisilicon/hi3559av100.dtsi
index 117937f..b0b7e58 100644
--- a/arch/arm64/boot/dts/hisilicon/hi3559av100.dtsi
+++ b/arch/arm64/boot/dts/hisilicon/hi3559av100.dtsi
@@ -1342,5 +1342,26 @@
interrupt-names = "hi-wdg";
};
+ can0: can@12070000 {
+ compatible = "hisilicon,hisi-can";
+ reg = <0x12070000 0x1000>;
+ interrupts = <0 107 4>;
+ interrupt-names = "hi-can0";
+ };
+
+ can1: can@12071000 {
+ compatible = "hisilicon,hisi-can";
+ reg = <0x12071000 0x1000>;
+ interrupts = <0 108 4>;
+ interrupt-names = "hi-can1";
+ };
+
+ can2: can@18040000 {
+ compatible = "hisilicon,hisi-can";
+ reg = <0x18040000 0x1000>;
+ interrupts = <0 201 4>;
+ interrupt-names = "hi-can2";
+ };
};
+
};
diff --git a/drivers/net/can/Kconfig b/drivers/net/can/Kconfig
index 22570ea..30a6e03 100644
--- a/drivers/net/can/Kconfig
+++ b/drivers/net/can/Kconfig
@@ -70,6 +70,12 @@ config CAN_AT91
This is a driver for the SoC CAN controller in Atmel's AT91SAM9263
and AT91SAM9X5 processors.

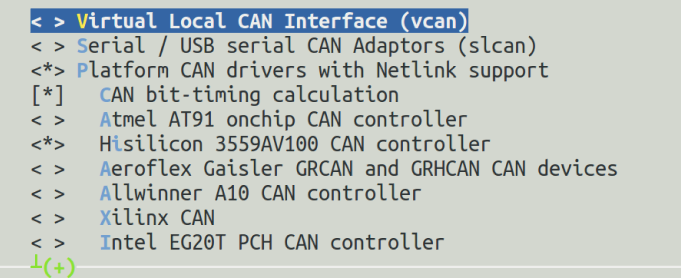

+config CAN_HISI
+ tristate "Hisilicon 3559AV100 CAN controller"
+ depends on ARCH_HI3559AV100
+ ---help---
+ This is the driver for the SoC CAN controller in Hisilicon 3559AV100 processor.
+
config CAN_BFIN
depends on BF534 || BF536 || BF537 || BF538 || BF539 || BF54x
tristate "Analog Devices Blackfin on-chip CAN"
diff --git a/drivers/net/can/Makefile b/drivers/net/can/Makefile
index 26ba4b7..171e316 100644
--- a/drivers/net/can/Makefile
+++ b/drivers/net/can/Makefile
@@ -30,6 +30,7 @@ obj-$(CONFIG_CAN_SUN4I) += sun4i_can.o
obj-$(CONFIG_CAN_TI_HECC) += ti_hecc.o
obj-$(CONFIG_CAN_XILINXCAN) += xilinx_can.o
obj-$(CONFIG_PCH_CAN) += pch_can.o
+obj-$(CONFIG_CAN_HISI) += hi3559av100_can.o
subdir-ccflags-y += -D__CHECK_ENDIAN__
subdir-ccflags-$(CONFIG_CAN_DEBUG_DEVICES) += -DDEBUG
diff --git a/drivers/net/can/hi3559av100_can.c b/drivers/net/can/hi3559av100_can.c
new file mode 100644
index 0000000..f53f56d
--- /dev/null
+++ b/drivers/net/can/hi3559av100_can.c
@@ -0,0 +1,691 @@
+/*
+ * hi3559av100_can.c - CAN network driver for Hisilicon 3559A Soc CAN controller
+ *
+ * (C) 2018 by Ben Wang <benfounder@gmail.com>
+ *
+ * This software may be distributed under the terms of GNU General
+ * Public License ("GPL") version 2 as distributed in the 'COPYING'
+ * file from the main directory of the linux kernel source.
+ *
+ */
+
+#include <linux/interrupt.h>
+#include <linux/kernel.h>
+#include <linux/module.h>
+#include <linux/netdevice.h>
+#include <linux/of.h>
+#include <linux/platform_device.h>
+#include <linux/rtnetlink.h>
+#include <linux/skbuff.h>
+#include <linux/string.h>
+#include <linux/types.h>
+#include <linux/printk.h>
+#include <linux/spinlock.h>
+
+#include <linux/can/dev.h>
+#include <linux/can/error.h>
+#include <linux/can/led.h>
+
+#define CAN_CONTROL 0x0000
+#define CAN_STATUS 0x0004
+#define CAN_ERROR_COUNTER 0x0008
+#define BIT_TIMING 0x000C
+#define CAN_INTERRUPT 0x0010
+#define CAN_TEST 0x0014
+#define BRP_EXTENSION 0x0018
+#define IF1_COMMAND_REQUEST 0x0020
+#define IF1_COMMAND_MASK 0x0024
+#define IF1_MASK1 0x0028
+#define IF1_MASK2 0x002C
+#define IF1_ARBITRATION1 0x0030
+#define IF1_ARBITRATION2 0x0034
+#define IF1_MESSAGE_CONTROL 0x0038
+#define IF1_DATAA1 0x003C
+#define IF1_DATAA2 0x0040
+#define IF1_DATAB1 0x0044
+#define IF1_DATAB2 0x0048
+#define IF2_COMMAND_REQUEST 0x0080
+#define IF2_COMMAND_MASK 0x0084
+#define IF2_MASK1 0x0088
+#define IF2_MASK2 0x008C
+#define IF2_ARBITRATION1 0x0090
+#define IF2_ARBITRATION2 0x0094
+#define IF2_MESSAGE_CONTROL 0x0098
+#define IF2_DATAA1 0x009C
+#define IF2_DATAA2 0x00A0
+#define IF2_DATAB1 0x00A4
+#define IF2_DATAB2 0x00A8
+#define TRANSMISSION_REQUEST1 0x0100
+#define TRANSMISSION_REQUEST2 0x0104
+#define NEW_DATA1 0x0120
+#define NEW_DATA2 0x0124
+#define INTERRUPT_PENDING1 0x0140
+#define INTERRUPT_PENDING2 0x0144
+#define MESSAGE_VALID1 0x0160
+#define MESSAGE_VALID2 0x0164
+
+struct hisi_can_priv {
+ struct can_priv can; /* must be the first member */
+ void __iomem *reg_base;
+ spinlock_t lock;
+ u32 free_mailbox;
+ u32 can_status;
+};
+
+static u32 std_recv_map = 0x00000FFF;
+static u32 ext_recv_map = 0x00FFF000;
+static u32 all_send_map = 0xFF000000;
+static u8 send_start_index = 24;
+
+static void hisi_can_init(struct hisi_can_priv *priv)
+{
+ u32 index, reg;
+ const struct can_bittiming *bt = &(priv->can.bittiming);
+
+ /* Step 1 */
+ writel(0x01, priv->reg_base+CAN_CONTROL);
+ /* Step 2 */
+ writel(0xF3, priv->reg_base+IF1_COMMAND_MASK);
+ for (index = 1; index <= 32; index++) {
+ /* Step 3 */
+ writel(index, priv->reg_base+IF1_COMMAND_REQUEST);
+ /* Step 4 */
+ do {
+ reg = readl(priv->reg_base+IF1_COMMAND_REQUEST);
+ } while (reg & 0x8000);
+ }
+ /* Step 5 */
+ writel(0x41, priv->reg_base+CAN_CONTROL);
+ /* Step 6 */
+ reg = 0;
+ reg |= (bt->phase_seg2 - 1) << 12;
+ reg |= (bt->phase_seg1 + bt->prop_seg - 1) << 8;
+ reg |= (bt->sjw - 1) << 6;
+ reg |= (bt->brp - 1);
+ writel(reg, priv->reg_base+BIT_TIMING);
+ /* Step 7 */
+ writel(0x0F, priv->reg_base+CAN_CONTROL);
+ /* Step 8 */
+ writel(0x0E, priv->reg_base+CAN_CONTROL);
+ return;
+}
+
+static void hisi_can_uninit(struct hisi_can_priv *priv)
+{
+ /* Step 1 */
+ writel(0x01, priv->reg_base+CAN_CONTROL);
+ return;
+}
+
+static int hisi_can_preread(struct hisi_can_priv *priv, u8 index)
+{
+ u32 reg;
+ u32 map = 1;
+ u8 end;
+
+ /* Step 1 */
+ map <<= index - 1;
+ if (0 != (map & std_recv_map)) {
+ writel(0x8000, priv->reg_base+IF2_ARBITRATION2);
+ writel(0x0000, priv->reg_base+IF2_ARBITRATION1);
+ map <<= 1;
+ if (0 == (map & std_recv_map))
+ end = 1;
+ else
+ end = 0;
+ } else if (0 != (map & ext_recv_map)) {
+ writel(0xC000, priv->reg_base+IF2_ARBITRATION2);
+ writel(0x0000, priv->reg_base+IF2_ARBITRATION1);
+ if (0 == (map & ext_recv_map))
+ end = 1;
+ else
+ end = 0;
+ }
+#if 0
+ else if (index <= 15) {
+ writel(0x9000, priv->reg_base+IF2_ARBITRATION2);
+ writel(0x0000, priv->reg_base+IF2_ARBITRATION1);
+ } else if (index <= 16) {
+ writel(0xE000, priv->reg_base+IF2_ARBITRATION2);
+ writel(0x0000, priv->reg_base+IF2_ARBITRATION1);
+ }
+#endif
+ else {
+ return -1;
+ }
+ /* Step 2 */
+ writel(0xD000, priv->reg_base+IF2_MASK2);
+ /* Step 3 */
+ writel(0xFFFF, priv->reg_base+IF2_MASK1);
+ /* Step 4 */
+ if (end) {
+ writel(0x1488, priv->reg_base+IF2_MESSAGE_CONTROL);
+ } else {
+ writel(0x1408, priv->reg_base+IF2_MESSAGE_CONTROL);
+ }
+ /* Step 5 */
+ writel(0x00F3, priv->reg_base+IF2_COMMAND_MASK);
+ /* Step 6 */
+ reg = index;
+ reg |= 0x8000;
+ reg &= 0x803F;
+ writel(reg, priv->reg_base+IF2_COMMAND_REQUEST);
+ return 0;
+}
+
+static void hisi_can_read(struct hisi_can_priv *priv, u8 index, struct can_frame *cf)
+{
+ u32 reg;
+
+ /* Step 1 */
+ writel(0x7F, priv->reg_base+IF2_COMMAND_MASK);
+ /* Step 2 */
+ reg = index;
+ reg |= 0x8000;
+ reg &= 0x803F;
+ writel(reg, priv->reg_base+IF2_COMMAND_REQUEST);
+ /* Step 3 */
+ do {
+ reg = readl(priv->reg_base+IF2_COMMAND_REQUEST);
+ } while (reg & 0x8000);
+ /* Step 4 */
+ reg = readl(priv->reg_base+IF2_ARBITRATION2);
+ if (reg & 0x4000) {
+ /* Extended Frame */
+ cf->can_id = readl(priv->reg_base+IF2_ARBITRATION1) & 0xFFFF;
+ reg &= 0x1FFF;
+ reg <<= 16;
+ cf->can_id |= reg;
+ } else {
+ /* Standard Frame */
+ reg = (reg >> 2) & 0x7FF;
+ cf->can_id = reg;
+ }
+ reg = readl(priv->reg_base+IF2_MESSAGE_CONTROL);
+ cf->can_dlc = (u8)(reg & 0xF);
+ reg = readl(priv->reg_base+IF2_DATAA1);
+ cf->data[0] = (u8)(reg & 0xFF);
+ cf->data[1] = (u8)((reg >> 8) & 0xFF);
+ reg = readl(priv->reg_base+IF2_DATAA2);
+ cf->data[2] = (u8)(reg & 0xFF);
+ cf->data[3] = (u8)((reg >> 8) & 0xFF);
+ reg = readl(priv->reg_base+IF2_DATAB1);
+ cf->data[4] = (u8)(reg & 0xFF);
+ cf->data[5] = (u8)((reg >> 8) & 0xFF);
+ reg = readl(priv->reg_base+IF2_DATAB2);
+ cf->data[6] = (u8)(reg & 0xFF);
+ cf->data[7] = (u8)((reg >> 8) & 0xFF);
+ return;
+}
+
+static void hisi_can_write_finish(struct hisi_can_priv *priv, u8 index)
+{
+ u32 reg;
+
+ /* Step 1 */
+ writel(0x7F, priv->reg_base + IF2_COMMAND_MASK);
+ /* Step 2 */
+ reg = index;
+ reg |= 0x8000;
+ reg &= 0x803F;
+ writel(reg, priv->reg_base + IF2_COMMAND_REQUEST);
+ /* Step 3 */
+ do {
+ reg = readl(priv->reg_base + IF2_COMMAND_REQUEST);
+ } while (reg & 0x8000);
+
+ return;
+}
+
+static void hisi_can_write(struct hisi_can_priv *priv, u8 index, struct can_frame *cf)
+{
+ u32 reg;
+
+ /* Step 1 */
+ if (cf->can_id & CAN_EFF_FLAG) {
+ if (cf->can_id & CAN_RTR_FLAG) {
+ /* Remote EFF */
+ reg = ((cf->can_id & CAN_EFF_MASK) >> 16) | 0xC000;
+ } else {
+ /* Data EFF */
+ reg = ((cf->can_id & CAN_EFF_MASK) >> 16) | 0xE000;
+ }
+ writel(reg, priv->reg_base + IF1_ARBITRATION2);
+ reg = (cf->can_id & CAN_EFF_MASK) & 0xFFFF;
+ writel(reg, priv->reg_base + IF1_ARBITRATION1);
+ } else {
+ if (cf->can_id & CAN_RTR_FLAG) {
+ /* Remote SFF */
+ reg = (cf->can_id & CAN_SFF_MASK) << 2 | 0x8000;
+ } else {
+ /* Data SFF */
+ reg = (cf->can_id & CAN_SFF_MASK) << 2 | 0xA000;
+ }
+ writel(reg, priv->reg_base + IF1_ARBITRATION2);
+ writel(0, priv->reg_base + IF1_ARBITRATION1);
+ }
+ /* Step 2 */
+ writel(0xDFFF, priv->reg_base + IF1_MASK2);
+ /* Step 3 */
+ writel(0xFFFF, priv->reg_base + IF1_MASK1);
+ /* Step 4 */
+ reg = 0x8980 | cf->can_dlc;
+ writel(reg, priv->reg_base + IF1_MESSAGE_CONTROL);
+ /* Step 5 */
+ reg = ((u32)cf->data[1]) << 8;
+ reg |= (u32)cf->data[0];
+ writel(reg, priv->reg_base + IF1_DATAA1);
+ reg = ((u32)cf->data[3]) << 8;
+ reg |= (u32)cf->data[2];
+ writel(reg, priv->reg_base + IF1_DATAA2);
+ reg = ((u32)cf->data[5]) << 8;
+ reg |= (u32)cf->data[4];
+ writel(reg, priv->reg_base + IF1_DATAB1);
+ reg = ((u32)cf->data[7]) << 8;
+ reg |= (u32)cf->data[6];
+ writel(reg, priv->reg_base + IF1_DATAB2);
+ /* Step 6 */
+ writel(0x00F3, priv->reg_base + IF1_COMMAND_MASK);
+ /* Step 7 */
+ reg = 0x8000 | index;
+ writel(reg, priv->reg_base + IF1_COMMAND_REQUEST);
+
+ return;
+}
+
+static irqreturn_t hisi_can_irq(int irq, void *dev_id)
+{
+ struct net_device *dev = dev_id;
+ struct hisi_can_priv *priv = netdev_priv(dev);
+ struct net_device_stats *stats = &(dev->stats);
+ irqreturn_t handled = IRQ_NONE;
+ struct sk_buff *skb;
+ struct can_frame *cf;
+ u32 reg_status, reg_interrupt, reg_tmp, reg_pending, index, tmp;
+ unsigned long flags;
+
+ reg_interrupt = readl(priv->reg_base + CAN_INTERRUPT);
+ handled = IRQ_HANDLED;
+ //printk(KERN_ERR "%s:%d reg_interrupt 0x%x\n", __FUNCTION__, __LINE__, reg_interrupt);
+ /* Check Error */
+ if (reg_interrupt == 0x8000) {
+ reg_status = readl(priv->reg_base + CAN_STATUS);
+ //printk(KERN_ERR "%s:%d reg_status 0x%x\n", __FUNCTION__, __LINE__, reg_status);
+ writel(0x7, priv->reg_base + CAN_STATUS);
+ reg_tmp = priv->can_status ^ reg_status;
+ if (reg_tmp & 0x80) {
+ /* Boff change */
+ if (reg_status & 0x80) {
+ /* bus-off */
+ netdev_dbg(dev, "bus-off\n");
+ netif_carrier_off(dev);
+ /* error msg */
+#if 0
+ skb = alloc_can_err_skb(dev, &cf);
+ if (unlikely(!skb))
+ goto exit;
+
+ cf->can_id |= CAN_ERR_CRTL;
+ cf->data[1] = CAN_ERR_CRTL
+
+ dev->stats.rx_packets++;
+ dev->stats.rx_bytes += cf->can_dlc;
+ netif_rx(skb);
+ hisi_can_error(cf);
+#endif
+ /* restart controller */
+ reg_tmp = readl(priv->reg_base + CAN_CONTROL);
+ reg_tmp |= 0x1;
+ writel(reg_tmp, priv->reg_base + CAN_CONTROL);
+ reg_tmp &= 0xFFFFFFFE;
+ writel(reg_tmp, priv->reg_base + CAN_CONTROL);
+ } else {
+ /* bus-on */
+ netdev_dbg(dev, "restarted\n");
+ netif_carrier_on(dev);
+ netif_wake_queue(dev);
+ }
+ }
+#if 0
+ if (reg_tmp & 0x20) {
+ /* Epass change */
+ if (reg_status & 0x20) {
+ /* Passive Error */
+ } else {
+
+ }
+ }
+ if (reg_tmp & 0x40) {
+ /* Ewarn change */
+ new_state = CAN_STATE_ERROR_WARNING;
+ }
+#endif
+ priv->can_status = reg_status;
+ } else if ((reg_interrupt <= 0x20) && (reg_interrupt > 0)) {
+ /* Clean Interrupt */
+ //readl(priv->reg_base + IF2_COMMAND_MASK);
+ //readl(priv->reg_base + IF2_COMMAND_REQUEST);
+ reg_tmp = readl(priv->reg_base + INTERRUPT_PENDING1);
+ reg_pending = reg_tmp;
+ reg_tmp = readl(priv->reg_base + INTERRUPT_PENDING2);
+ reg_pending |= reg_tmp << 16;
+
+ /* Check Transmit Complete */
+ reg_tmp = reg_pending & all_send_map;
+ //printk(KERN_ERR "%s:%d TX pending 0x%x\n", __FUNCTION__, __LINE__, reg_tmp);
+ if (reg_tmp) {
+ for (index = send_start_index; index < 32; index++) {
+ if (reg_tmp & (1UL << index)) {
+ hisi_can_write_finish(priv, index + 1);
+ can_get_echo_skb(dev, (index - send_start_index));
+ stats->tx_packets++;
+ can_led_event(dev, CAN_LED_EVENT_TX);
+ spin_lock_irqsave(&(priv->lock), flags);
+ tmp = priv->free_mailbox;
+ priv->free_mailbox |= 1UL << index;
+ if (0 == tmp)
+ netif_wake_queue(dev);
+ spin_unlock_irqrestore(&(priv->lock), flags);
+ }
+ }
+ }
+
+ /* Check Receive Complete */
+ reg_tmp = reg_pending & std_recv_map;
+ //printk(KERN_ERR "%s:%d RX pending 0x%x\n", __FUNCTION__, __LINE__, reg_tmp);
+ if (reg_tmp) {
+ for (index = 0; index < send_start_index; index++) {
+ if (reg_tmp & (1UL << index)) {
+ skb = alloc_can_skb(dev, &cf);
+ if (unlikely(!skb)) {
+ stats->rx_dropped++;
+ printk(KERN_ERR "%s:%d Should never happen\n", __FUNCTION__, __LINE__);
+ goto exit;
+ }
+ hisi_can_read(priv, index + 1, cf);
+ hisi_can_preread(priv, index + 1);
+ stats->rx_packets++;
+ stats->rx_bytes += cf->can_dlc;
+ netif_rx(skb);
+ can_led_event(dev, CAN_LED_EVENT_RX);
+ }
+ }
+ }
+ }
+
+exit:
+ return handled;
+}
+
+static int hisi_can_open(struct net_device *dev)
+{
+ struct hisi_can_priv *priv = netdev_priv(dev);
+ int err;
+ u8 index;
+
+ /* check or determing and set bittime */
+ err = open_candev(dev);
+ if (err)
+ goto out_close;
+
+ /* register interrupt handler */
+ if (request_irq(dev->irq, hisi_can_irq, IRQF_SHARED, dev->name, dev)) {
+ err = -EAGAIN;
+ goto out_close;
+ }
+
+ can_led_event(dev, CAN_LED_EVENT_OPEN);
+
+ /* start chip and queuing */
+ hisi_can_init(priv);
+ priv->free_mailbox = all_send_map;
+ spin_lock_init(&(priv->lock));
+ netif_start_queue(dev);
+
+ for (index = 0; index < 32; index ++) {
+ if (std_recv_map & (1UL << index)) {
+ //printk(KERN_ERR "Listen standard data packet on mailbox %u\n", index+1);
+ hisi_can_preread(priv, index+1);
+ } else
+ break;
+ }
+
+ return 0;
+
+out_close:
+ close_candev(dev);
+
+ return err;
+}
+
+static int hisi_can_close(struct net_device *dev)
+{
+ struct hisi_can_priv *priv = netdev_priv(dev);
+
+ netif_stop_queue(dev);
+ hisi_can_uninit(priv);
+
+ free_irq(dev->irq, dev);
+
+ close_candev(dev);
+
+ can_led_event(dev, CAN_LED_EVENT_STOP);
+
+ return 0;
+}
+
+static netdev_tx_t hisi_can_start_xmit(struct sk_buff *skb, struct net_device *dev)
+{
+ struct hisi_can_priv *priv = netdev_priv(dev);
+ struct net_device_stats *stats = &dev->stats;
+ struct can_frame *cf = (struct can_frame *)skb->data;
+ unsigned long flags;
+ u8 index;
+
+ if (can_dropped_invalid_skb(dev, skb))
+ return NETDEV_TX_OK;
+
+ spin_lock_irqsave(&(priv->lock), flags);
+ //printk(KERN_ERR "%s:%d free_mailbox 0x%08x\n", __FUNCTION__, __LINE__, priv->free_mailbox);
+ for (index = send_start_index; index < 32; index ++) {
+ if (priv->free_mailbox & (1UL << index)) {
+ priv->free_mailbox &= ~(1UL << index);
+ break;
+ }
+ }
+ spin_unlock_irqrestore(&(priv->lock), flags);
+
+ if (unlikely(index == 32)) {
+ netif_stop_queue(dev);
+ netdev_err(dev, "BUG! TX buffer full when queue awake (0x%08x)!\n", priv->free_mailbox);
+ return NETDEV_TX_BUSY;
+ }
+
+ can_put_echo_skb(skb, dev, (index - send_start_index));
+
+ hisi_can_write(priv, index+1, cf);
+
+ stats->tx_bytes += cf->can_dlc;
+
+ return NETDEV_TX_OK;
+}
+
+static int hisi_can_set_mode(struct net_device *dev, enum can_mode mode)
+{
+ struct hisi_can_priv *priv = netdev_priv(dev);
+
+ switch (mode) {
+ case CAN_MODE_START:
+ hisi_can_init(priv);
+ netif_wake_queue(dev);
+ break;
+ default:
+ return -EOPNOTSUPP;
+ }
+ return 0;
+}
+
+static int hisi_can_get_berr_counter(const struct net_device *dev,
+ struct can_berr_counter *bec)
+{
+ const struct hisi_can_priv *priv = netdev_priv(dev);
+ u32 reg;
+ reg = readl(priv->reg_base+CAN_ERROR_COUNTER) & 0x7FFF;
+ bec->rxerr = (u16)(reg >> 8);
+ bec->txerr = (u16)(reg & 0xFF);
+ return 0;
+}
+
+static const struct can_bittiming_const hisi_bittiming_const = {
+ .name = KBUILD_MODNAME,
+ .tseg1_min = 1,
+ .tseg1_max = 16,
+ .tseg2_min = 1,
+ .tseg2_max = 8,
+ .sjw_max = 4,
+ .brp_min = 1,
+ .brp_max = 64,
+ .brp_inc = 1,
+};
+
+static const struct net_device_ops hisi_can_netdev_ops = {
+ .ndo_open = hisi_can_open,
+ .ndo_stop = hisi_can_close,
+ .ndo_start_xmit = hisi_can_start_xmit,
+ .ndo_change_mtu = can_change_mtu,
+};
+
+static int hisi_can_set_bittiming(struct net_device *dev)
+{
+ struct hisi_can_priv *priv = netdev_priv(dev);
+
+ hisi_can_init(priv);
+ return 0;
+}
+
+static int hisi_can_probe(struct platform_device *pdev)
+{
+ struct net_device *dev;
+ struct hisi_can_priv *priv;
+ struct resource *res;
+ void __iomem *addr;
+ int err, irq;
+
+ res = platform_get_resource(pdev, IORESOURCE_MEM, 0);
+ irq = platform_get_irq(pdev, 0);
+ if (!res || irq <= 0) {
+ err = -ENODEV;
+ goto exit;
+ }
+
+ if (!request_mem_region(res->start,
+ resource_size(res),
+ pdev->name)) {
+ err = -EBUSY;
+ goto exit;
+ }
+
+ addr = ioremap_nocache(res->start, resource_size(res));
+ if (!addr) {
+ err = -ENOMEM;
+ goto exit_release;
+ }
+
+ dev = alloc_candev(sizeof(struct hisi_can_priv), 16);
+ if (!dev) {
+ err = -ENOMEM;
+ goto exit_iounmap;
+ }
+
+ dev->netdev_ops = &hisi_can_netdev_ops;
+ dev->irq = irq;
+ dev->flags |= IFF_ECHO;
+
+ priv = netdev_priv(dev);
+ priv->reg_base = addr;
+ priv->can.clock.freq = 50000000;
+ priv->can.bittiming_const = &hisi_bittiming_const;
+ priv->can.do_set_bittiming = &hisi_can_set_bittiming;
+ priv->can.do_set_mode = hisi_can_set_mode;
+ priv->can.do_get_berr_counter = hisi_can_get_berr_counter;
+ priv->can.ctrlmode_supported = CAN_CTRLMODE_BERR_REPORTING | CAN_CTRLMODE_3_SAMPLES | CAN_CTRLMODE_LISTENONLY;
+
+ platform_set_drvdata(pdev, dev);
+ SET_NETDEV_DEV(dev, &pdev->dev);
+
+ err = register_candev(dev);
+ if (err) {
+ dev_err(&pdev->dev, "registering netdev failed\n");
+ goto exit_free;
+ }
+
+ devm_can_led_init(dev);
+
+ dev_info(&pdev->dev, "device registered (reg_base=%p, irq=%d)\n",
+ priv->reg_base, dev->irq);
+
+ return 0;
+
+exit_free:
+ free_candev(dev);
+exit_iounmap:
+ iounmap(addr);
+exit_release:
+ release_mem_region(res->start, resource_size(res));
+exit:
+ return err;
+}
+
+static int hisi_can_remove(struct platform_device *pdev)
+{
+ struct net_device *dev = platform_get_drvdata(pdev);
+ struct hisi_can_priv *priv = netdev_priv(dev);
+ struct resource *res;
+
+ unregister_netdev(dev);
+
+ iounmap(priv->reg_base);
+
+ res = platform_get_resource(pdev, IORESOURCE_MEM, 0);
+ release_mem_region(res->start, resource_size(res));
+
+ free_candev(dev);
+
+ return 0;
+}
+
+#if defined(CONFIG_OF)
+static const struct of_device_id hisi_can_dt_ids[] = {
+ {
+ .compatible = "hisilicon,hisi-can",
+ }, {
+ /* sentinel */
+ }
+};
+MODULE_DEVICE_TABLE(of, hisi_can_dt_ids);
+#endif
+
+static const struct platform_device_id hisi_can_id_table[] = {
+ {
+ .name = "hisi_can",
+ }, {
+ /* sentinel */
+ }
+};
+MODULE_DEVICE_TABLE(platform, hisi_can_id_table);
+
+static struct platform_driver hisi_can_driver = {
+ .probe = hisi_can_probe,
+ .remove = hisi_can_remove,
+ .driver = {
+ .name = "hisi_can",
+ .of_match_table = of_match_ptr(hisi_can_dt_ids),
+ },
+ .id_table = hisi_can_id_table,
+};
+
+module_platform_driver(hisi_can_driver);
+
+MODULE_AUTHOR("Ben Wang <benfounder@gmail.com>");
+MODULE_LICENSE("GPL v2");
+MODULE_DESCRIPTION(KBUILD_MODNAME " Hi3559AV100 CAN driver");
然后 cp arch/arm64/configs/hi3559av100_arm64_big_little_emmc_defconfig .config
make ARCH=arm64 CROSS_COMPILE=aarch64-himix100-linux- menuconfig
之后重新编译 内核即可
配置CAN1,波特率100000
ip link set can1 down
ip link set can1 type can bitrate 100000
ip -details link show can1
ip link set can1 up
发送CAN信息
cansend can1 1f334455#1122334455667788_B
接受ID为123 的can标准帧
candump can1,123:7ff
接收到CAN信息
