SSM整合
9.SSM整合
环境配置
- 开发工具：IDEA
- 数据库 MySQL5.7
- 服务器Tomcat 9
- Maven 3.6
创建数据库环境
CREATE DATABASE `ssmbuild`;
USE `ssmbuild`;
DROP TABLE IF EXISTS `books`;
CREATE TABLE `books` (
`bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
`bookName` VARCHAR(100) NOT NULL COMMENT '书名',
`bookCounts` INT(11) NOT NULL COMMENT '数量',
`detail` VARCHAR(200) NOT NULL COMMENT '描述',
KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8
INSERT INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');
创建项目基本环境
使用IDEA创建新项目命名：ssmbuild
导入相关依赖pom.xml
<dependencies>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.49</version>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
</dependency>
<dependency>
<groupId>com.mchange</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.5.2</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.6</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.6</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.2.19.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.2.19.RELEASE</version>
</dependency>
</dependencies>
配置Maven资源过滤设置，防止文件导出失败：
<build>
<resources>
<resource>
<directory>src/main/java</directory>
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
<filtering>false</filtering>
</resource>
<resource>
<directory>src/main/resources</directory>
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
<filtering>false</filtering>
</resource>
</resources>
</build>

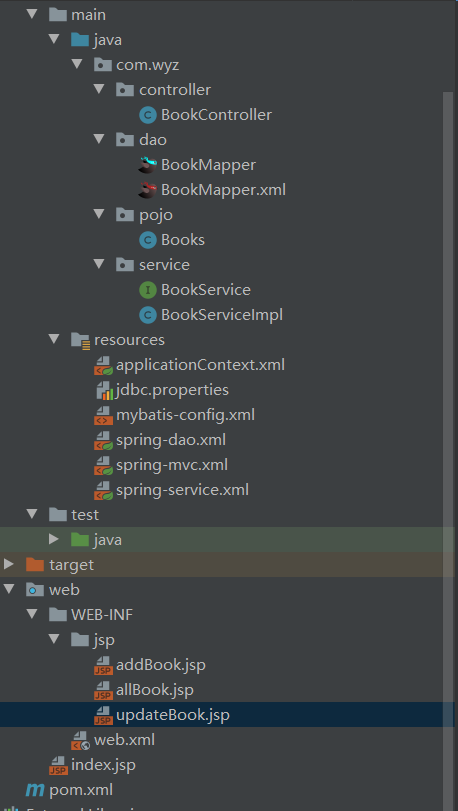

建立项目基本包结构
- com.wyz.pojo
- com.wyz.controller
- com.wyz.service
- com.wyz.dao
编写一个Spring总配置文件applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
</beans>
MyBatis层整合
建立一个数据库连接配置文件jdbc.properties
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=false&useUnicode=true&characterEncoding=utf8
jdbc.username=用户名
jdbc.password=密码
编写Mybatis核心配置文件，建立一个mybatis-config.xml文件
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
//pojo类别名设置
<typeAliases>
<package name="com.wyz.pojo"/>
</typeAliases>
//SQL文件注册
<mappers>
<mapper class="com.wyz.dao.BookMapper"/>
</mappers>
</configuration>
编写实体类Books
public class Books {
private int bookID;
private String bookName;
private int bookCounts;
private String detail;
public Books() {
}
public Books(int bookID, String bookName, int bookCounts, String detail) {
this.bookID = bookID;
this.bookName = bookName;
this.bookCounts = bookCounts;
this.detail = detail;
}
public int getBookID() {
return bookID;
}
public void setBookID(int bookID) {
this.bookID = bookID;
}
public String getBookName() {
return bookName;
}
public void setBookName(String bookName) {
this.bookName = bookName;
}
public int getBookCounts() {
return bookCounts;
}
public void setBookCounts(int bookCounts) {
this.bookCounts = bookCounts;
}
public String getDetail() {
return detail;
}
public void setDetail(String detail) {
this.detail = detail;
}
@Override
public String toString() {
return "Books{" +
"bookID=" + bookID +
", bookName='" + bookName + '\'' +
", bookCounts=" + bookCounts +
", detail='" + detail + '\'' +
'}';
}
}
编写BookMapper接口,编写增删改查有关方法
public interface BookMapper {
//增
int addBook(Books books);
//删
int deleteBook(@Param("bookId") int bookId);
//改
int updateBook(Books books);
//查
Books queryBookById(@Param("bookId") int bookId);
//查询所有
List<Books> queryAll();
}
编写实现类BookMapper.xml文件
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wyz.dao.BookMapper">
<insert id="addBook" parameterType="books">
insert into books(bookName,bookCounts,detail)
values (#{bookName},#{bookCounts},#{detail})
</insert>
<delete id="deleteBook">
delete from books where bookID = #{bookId}
</delete>
<update id="updateBook" parameterType="books">
update books set bookName = #{bookName},bookCounts = #{bookCounts},
detail = #{detail} where bookID = #{bookID}
</update>
<select id="queryBookById" resultType="books">
select bookID,bookName,bookCounts,detail from books where bookID = #{bookId}
</select>
<select id="queryAll" resultType="books">
select * from books
</select>
</mapper>
整合MyBatis到Spring中，编写一个spring-dao.xml配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<!--自动扫描jdbc配置文件 -->
<context:property-placeholder location="classpath:jdbc.properties"/>
<!-- 配置数据源 -->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="${jdbc.driver}"/>
<property name="jdbcUrl" value="${jdbc.url}"/>
<property name="user" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
<!-- c3p0连接池的私有属性 -->
<property name="maxPoolSize" value="30"/>
<property name="minPoolSize" value="10"/>
<!-- 关闭连接后不自动commit -->
<property name="autoCommitOnClose" value="false"/>
<!-- 获取连接超时时间 -->
<property name="checkoutTimeout" value="10000"/>
<!-- 当获取连接失败重试次数 -->
<property name="acquireRetryAttempts" value="2"/>
</bean>
<!--配置SqlSessionFactory -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="configLocation" value="classpath:mybatis-config.xml"/>
</bean>
<!--配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.wyz.dao"/>
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
</bean>
编写Service层
编写编写Service层的接口和实现类
public interface BookService {
//增
int addBook(Books books);
//删
int deleteBook(int bookId);
//改
int updateBook(Books books);
//查
Books queryBookById(int bookId);
//查询所有
List<Books> queryAll();
}
@Service
public class BookServiceImpl implements BookService {
@Autowired
private BookMapper bookMapper;
public void setBookMapper(BookMapper bookMapper) {
this.bookMapper = bookMapper;
}
@Override
public int addBook(Books books) {
return bookMapper.addBook(books);
}
@Override
public int deleteBook(int bookId) {
return bookMapper.deleteBook(bookId);
}
@Override
public int updateBook(Books books) {
return bookMapper.updateBook(books);
}
@Override
public Books queryBookById(int bookId) {
return bookMapper.queryBookById(bookId);
}
@Override
public List<Books> queryAll() {
return bookMapper.queryAll();
}
}
编写Service层Spring配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">
<!--自动扫描service包，交由IOC容器管理 -->
<context:component-scan base-package="com.wyz.service"/>
<!--一般我们使用注解开发，不需要手动配置-->
<bean id="booksService" class="com.wyz.service.BookServiceImpl">
<property name="bookMapper" ref="bookMapper"/>
</bean>
<!-- 配置事务 -->
<bean id="TransactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
</beans>
整合SpringMVC
在web.xml中SpringMVC核心分发器和乱码过滤器
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!-- 核心分发器 -->
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 乱码过滤器 -->
<filter>
<filter-name>encoding</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>utf-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encoding</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!--Session过期时间-->
<session-config>
<session-timeout>15</session-timeout>
</session-config>
</web-app>
编写Controller层Spring配置文件spring-mvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
https://www.springframework.org/schema/mvc/spring-mvc.xsd">
<!-- 开启springMVC注解开发 -->
<mvc:annotation-driven/>
<!-- 静态资源过滤 -->
<mvc:default-servlet-handler/>
<bean id="InternalResourceViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/jsp/"/>
<property name="suffix" value=".jsp"/>
</bean>
<context:component-scan base-package="com.wyz.controller"/>
</beans>
将dao、service、mvc层配置文件全部整合到总配置里面
<import resource="classpath:spring-dao.xml"/>
<import resource="classpath:spring-service.xml"/>
<import resource="classpath:spring-mvc.xml"/>
编写Controller和视图层
BookController 类编写 ， 方法一：查询全部书籍
@Controller
@RequestMapping("/book")
public class BookController {
@Autowired
@Qualifier("booksService")
private BookService bookService;
@RequestMapping("/allBook")
public String queryAll(Model model){
List<Books> list = bookService.queryAll();
//System.out.println(list);
model.addAttribute("list",list);
return "allBook";
}
}

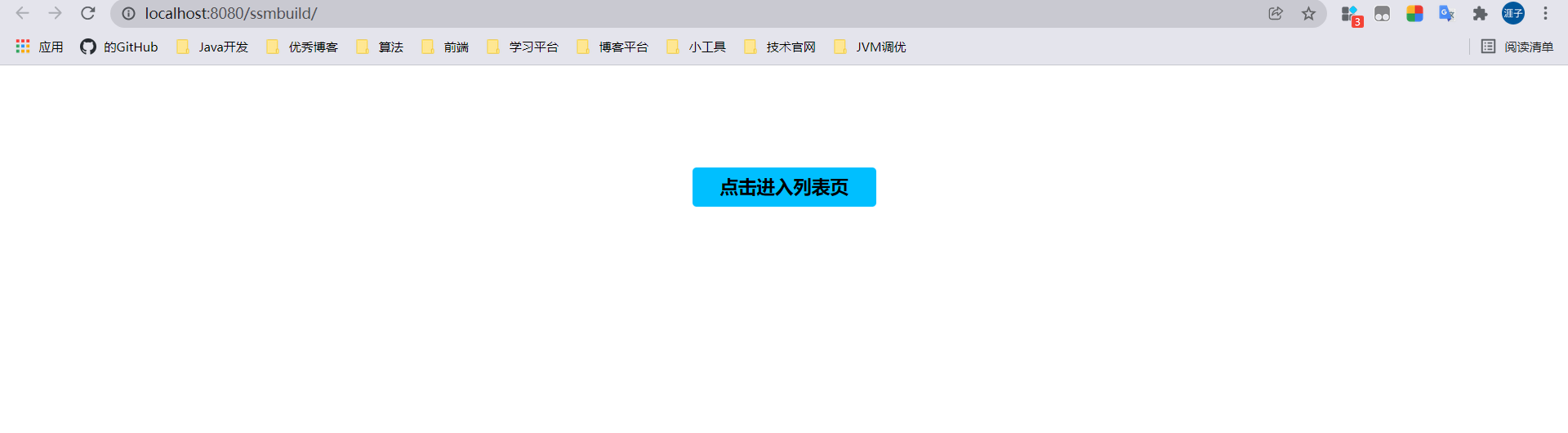

编写首页 index.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>首页</title>
<style type="text/css">
a {
text-decoration: none;
color: black;
font-size: 18px;
}
h3 {
width: 180px;
height: 38px;
margin: 100px auto;
text-align: center;
line-height: 38px;
background: deepskyblue;
border-radius: 4px;
}
</style>
</head>
<body>
<h3>
<a href="${pageContext.request.contextPath}/book/allBook">点击进入列表页</a>
</h3>
</body>
</html>
书籍列表页面 allbook.jsp
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>书籍列表</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引入 Bootstrap -->
<link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>书籍列表 —— 显示所有书籍</small>
</h1>
</div>
</div>
</div>
<div class="row clearfix">
<div class="col-md-12 column">
<table class="table table-hover table-striped">
<thead>
<tr>
<th>书籍编号</th>
<th>书籍名字</th>
<th>书籍数量</th>
<th>书籍详情</th>
<th>操作</th>
</tr>
</thead>
<tbody>
<c:forEach var="book" items="${requestScope.get('list')}">
<tr>
<td>${book.bookID}</td>
<td>${book.bookName}</td>
<td>${book.bookCounts}</td>
<td>${book.detail}</td>
</tr>
</c:forEach>
</tbody>
</table>
</div>
</div>
</div>
</body>
</html>

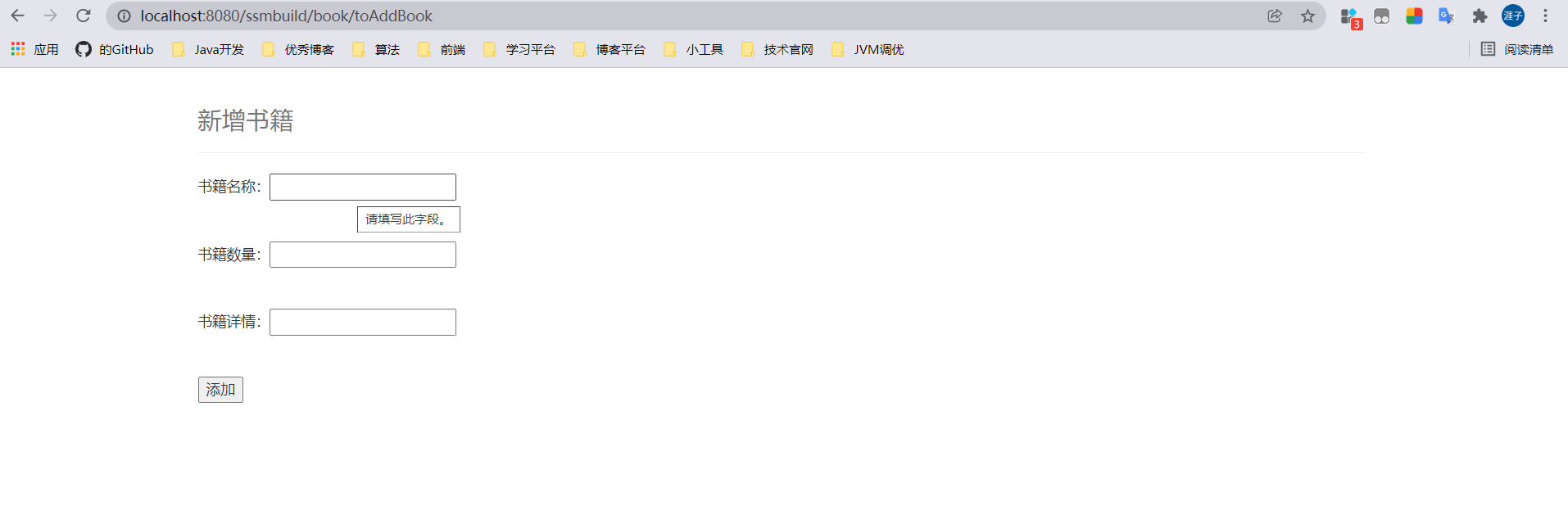

BookController 类编写 ， 方法二：添加书籍
//跳转到添加数据页面
@RequestMapping("toAddBook")
public String toAddPage(){
return "addBook";
}
//添加数据
@RequestMapping("/addBook")
public String addBook(Books books){
System.out.println("添加的书籍书籍：" + books);
bookService.addBook(books);
return "redirect:/book/allBook";//重定向查看所有数据
}
编写视图层
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>新增书籍</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引入 Bootstrap -->
<link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>新增书籍</small>
</h1>
</div>
</div>
</div>
<form action="${pageContext.request.contextPath}/book/addBook" method="post">
书籍名称：<input type="text" name="bookName" required><br><br><br>
书籍数量：<input type="text" name="bookCounts" required><br><br><br>
书籍详情：<input type="text" name="detail" required><br><br><br>
<input type="submit" value="添加">
</form>
</div>
</body>
</html>

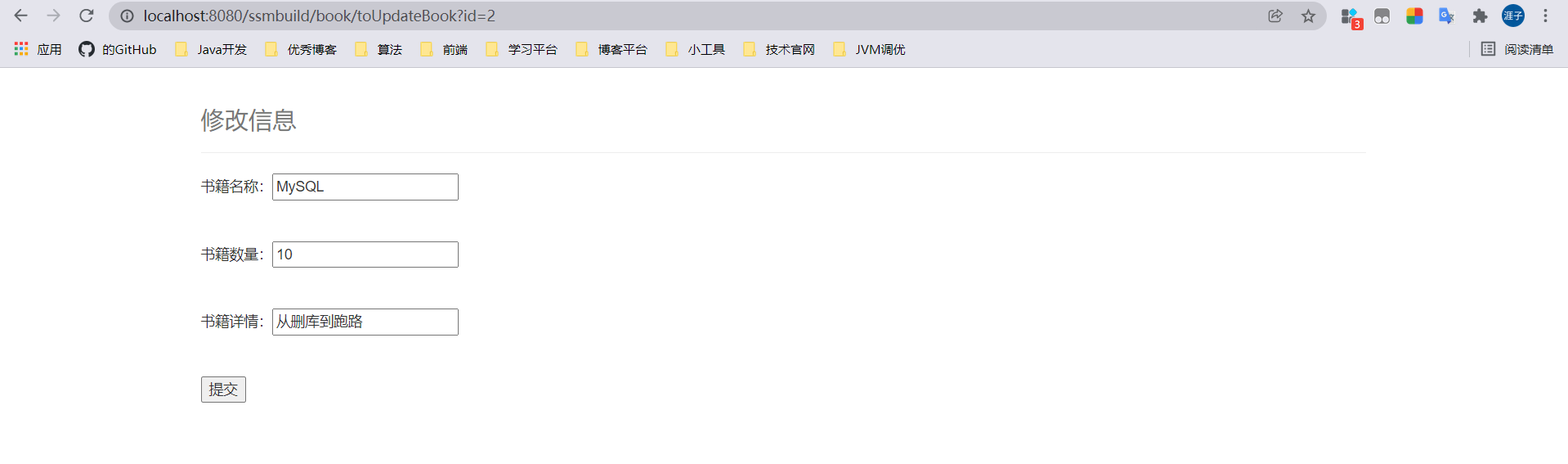

BookController 类编写 ， 方法三：修改书籍
//跳转到修改页面
@RequestMapping("/toUpdateBook")
public String toUpdatePage(int id,Model model){
Books books = bookService.queryBookById(id);
System.out.println("要修改的数据：" + books);
model.addAttribute("QBook",books);
return "updateBook";
}
//修改数据
@RequestMapping("/updateBook")
public String updateBook(Books books){
System.out.println(books);
int d = bookService.updateBook(books);
if(d > 0){
System.out.println("修改数据成功");
}
return "redirect:/book/allBook";
}
编写视图层
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>修改信息</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引入 Bootstrap -->
<link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>修改信息</small>
</h1>
</div>
</div>
</div>
<form action="${pageContext.request.contextPath}/book/updateBook" method="post">
<input type="hidden" name="bookID" value="${QBook.getBookID()}"/>
书籍名称：<input type="text" name="bookName" value="${QBook.getBookName()}"/><br><br><br>
书籍数量：<input type="text" name="bookCounts" value="${QBook.getBookCounts()}"/><br><br><br>
书籍详情：<input type="text" name="detail" value="${QBook.getDetail() }"/><br><br><br>
<input type="submit" value="提交"/>
</form>
</div>
</body>
</html>
BookController 类编写 ， 方法四：删除书籍
@RequestMapping("/del/{bookID}")
public String deleteBook(@PathVariable("bookID") int bookID){
bookService.deleteBook(bookID);
return "redirect:/book/allBook";
}

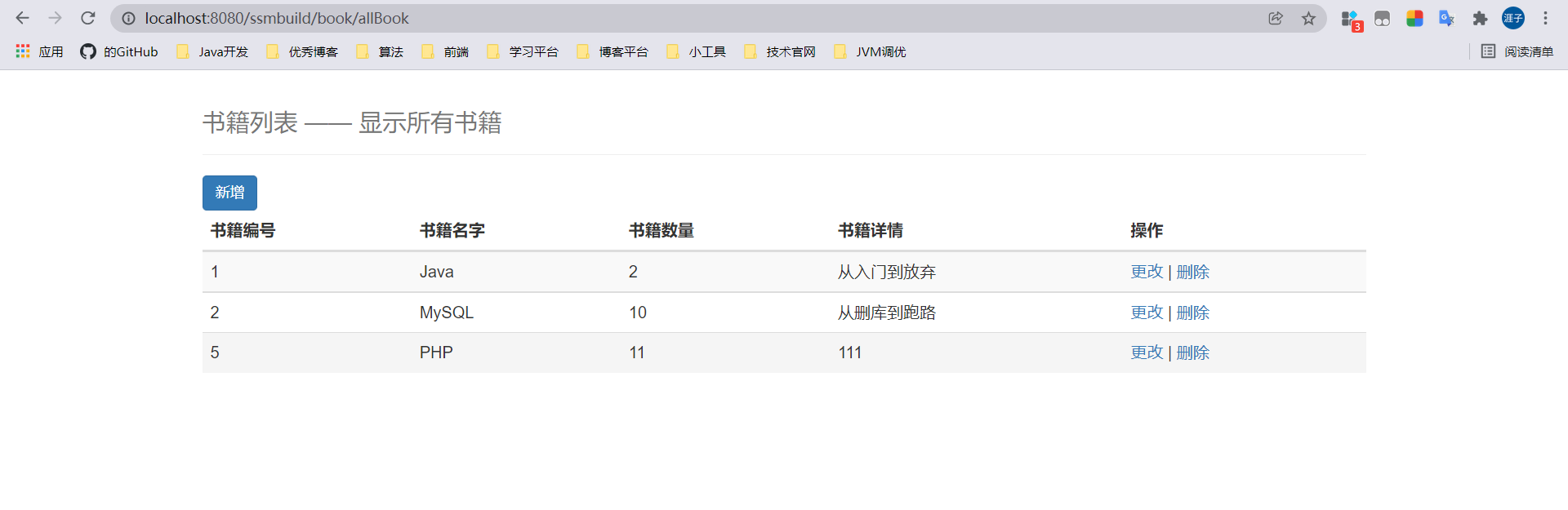

在allbook.jsp中添加增加，更新，删除功能
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>书籍列表</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引入 Bootstrap -->
<link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>书籍列表 —— 显示所有书籍</small>
</h1>
</div>
</div>
</div>
<div class="row">
<div class="col-md-4 column">
<a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增</a>
</div>
</div>
<div class="row clearfix">
<div class="col-md-12 column">
<table class="table table-hover table-striped">
<thead>
<tr>
<th>书籍编号</th>
<th>书籍名字</th>
<th>书籍数量</th>
<th>书籍详情</th>
<th>操作</th>
</tr>
</thead>
<tbody>
<c:forEach var="book" items="${requestScope.get('list')}">
<tr>
<td>${book.bookID}</td>
<td>${book.bookName}</td>
<td>${book.bookCounts}</td>
<td>${book.detail}</td>
<td>
<a href="${pageContext.request.contextPath}/book/toUpdateBook?id=${book.getBookID()}">更改</a> |
<a href="${pageContext.request.contextPath}/book/del/${book.getBookID()}">删除</a>
</td>
</tr>
</c:forEach>
</tbody>
</table>
</div>
</div>
</div>
</body>
</html>
配置Tomcat，进行运行！
到目前为止，这个SSM项目整合已经完全的OK了!
项目目录结构：

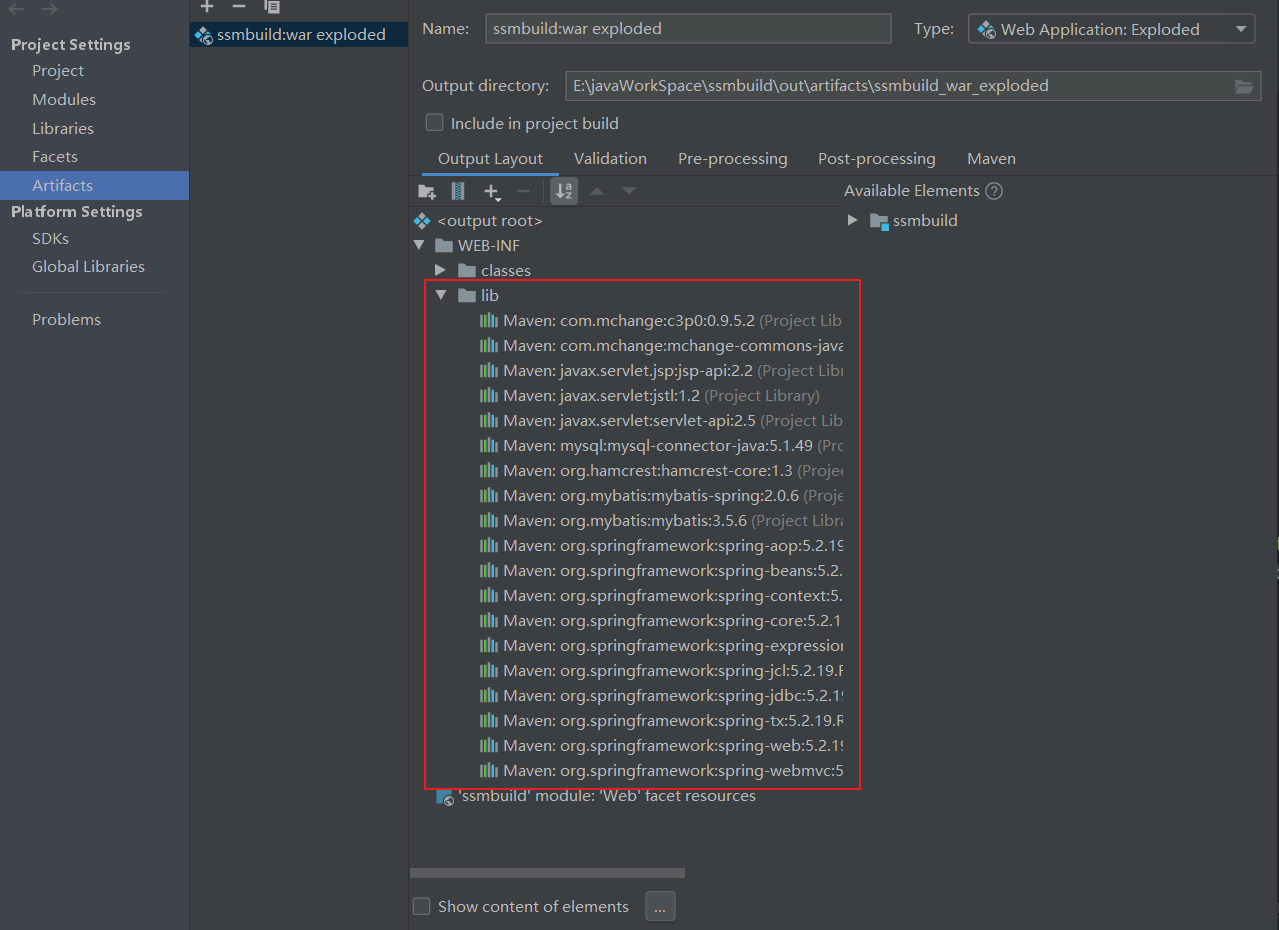

在IDEA中可能存在jar问题，可以通过手动添加解决：
【推荐】国内首个AI IDE，深度理解中文开发场景，立即下载体验Trae
【推荐】编程新体验，更懂你的AI，立即体验豆包MarsCode编程助手
【推荐】抖音旗下AI助手豆包，你的智能百科全书，全免费不限次数
【推荐】轻量又高性能的 SSH 工具 IShell：AI 加持，快人一步
· Manus重磅发布：全球首款通用AI代理技术深度解析与实战指南
· 被坑几百块钱后，我竟然真的恢复了删除的微信聊天记录！
· 没有Manus邀请码？试试免邀请码的MGX或者开源的OpenManus吧
· 园子的第一款AI主题卫衣上架——"HELLO! HOW CAN I ASSIST YOU TODAY
· 【自荐】一款简洁、开源的在线白板工具 Drawnix
