学习笔记：带你十天轻松完成 Go 微服务系列（五）- 订单服务

1、学习课程

我们继续接着昨天的步骤，进入服务工作区

 $ cd mall/service/order

2、生成 order model 模型

创建 sql 文件

 $ vim model/order.sql

编写 sql 文件

 CREATE TABLE `order` (
 `id` bigint unsigned NOT NULL AUTO_INCREMENT,
 `uid` bigint unsigned NOT NULL DEFAULT '0' COMMENT '用户ID',
 `pid` bigint unsigned NOT NULL DEFAULT '0' COMMENT '产品ID',
 `amount` int(10) unsigned NOT NULL DEFAULT '0'  COMMENT '订单金额',
 `status` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '订单状态',
 `create_time` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
 `update_time` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
 PRIMARY KEY (`id`),
 KEY `idx_uid` (`uid`),
 KEY `idx_pid` (`pid`)
) ENGINE=InnoDB  DEFAULT CHARSET=utf8mb4;

运行模板生成命令（注意在 golang 容器下运行）

参考：Linux下部署go-zero，运行goctl model运行模板生成命令报错解决方法

 $ goctl model mysql ddl -src ./model/order.sql -dir ./model -c

3、生成 order api 服务

创建 api 文件

 $ vim api/order.api

编写 api 文件

 type (
 // 订单创建
 CreateRequest {
  Uid    int64 `json:"uid"`
  Pid    int64 `json:"pid"`
  Amount int64 `json:"amount"`
  Status int64 `json:"status"`
 }
 CreateResponse {
  Id int64 `json:"id"`
 }
 // 订单创建

 // 订单修改
 UpdateRequest {
  Id     int64 `json:"id"`
  Uid    int64 `json:"uid,optional"`
  Pid    int64 `json:"pid,optional"`
  Amount int64 `json:"amount,optional"`
  Status int64 `json:"status,optional"`
 }
 UpdateResponse {
 }
 // 订单修改

 // 订单删除
 RemoveRequest {
  Id int64 `json:"id"`
 }
 RemoveResponse {
 }
 // 订单删除

 // 订单详情
 DetailRequest {
  Id int64 `json:"id"`
 }
 DetailResponse {
  Id     int64 `json:"id"`
  Uid    int64 `json:"uid"`
  Pid    int64 `json:"pid"`
  Amount int64 `json:"amount"`
  Status int64 `json:"status"`
 }
 // 订单详情

 // 订单列表
 ListRequest {
  Uid int64 `json:"uid"`
 }
 ListResponse {
  Id     int64 `json:"id"`
  Uid    int64 `json:"uid"`
  Pid    int64 `json:"pid"`
  Amount int64 `json:"amount"`
  Status int64 `json:"status"`
 }
 // 订单列表
)

@server(
 jwt: Auth
)
service Order {
 @handler Create
 post /api/order/create(CreateRequest) returns (CreateResponse)

 @handler Update
 post /api/order/update(UpdateRequest) returns (UpdateResponse)

 @handler Remove
 post /api/order/remove(RemoveRequest) returns (RemoveResponse)

 @handler Detail
 post /api/order/detail(DetailRequest) returns (DetailResponse)

 @handler List
 post /api/order/list(ListRequest) returns (ListResponse)
}

运行模板生成命令（注意在 golang 容器下运行）

 $ goctl api go -api ./api/order.api -dir ./api

4、生成 order rpc 服务

创建 proto 文件

 $ vim rpc/order.proto

编写 proto 文件

 syntax = "proto3";

package orderclient;

option go_package = "order";

// 订单创建
message CreateRequest {
    int64 Uid = 1;
    int64 Pid = 2;
    int64 Amount = 3;
    int64 Status = 4;
}
message CreateResponse {
	int64 id = 1;
}
// 订单创建

// 订单修改
message UpdateRequest {
    int64 id = 1;
    int64 Uid = 2;
    int64 Pid = 3;
    int64 Amount = 4;
    int64 Status = 5;
}
message UpdateResponse {
}
// 订单修改

// 订单删除
message RemoveRequest {
    int64 id = 1;
}
message RemoveResponse {
}
// 订单删除

// 订单详情
message DetailRequest {
    int64 id = 1;
}
message DetailResponse {
    int64 id = 1;
    int64 Uid = 2;
    int64 Pid = 3;
    int64 Amount = 4;
    int64 Status = 5;
}
// 订单详情

// 订单列表
message ListRequest {
    int64 uid = 1;
}
message ListResponse {
    repeated DetailResponse data = 1;
}
// 订单列表

// 订单支付
message PaidRequest {
    int64 id = 1;
}
message PaidResponse {
}
// 订单支付

service Order {
    rpc Create(CreateRequest) returns(CreateResponse);
    rpc Update(UpdateRequest) returns(UpdateResponse);
    rpc Remove(RemoveRequest) returns(RemoveResponse);
    rpc Detail(DetailRequest) returns(DetailResponse);
    rpc List(ListRequest) returns(ListResponse);
    rpc Paid(PaidRequest) returns(PaidResponse);
}

运行模板生成命令（注意在 golang 容器下运行）

 $ goctl rpc proto -src ./rpc/order.proto -dir ./rpc

5、编写 order rpc 服务

5.1 修改配置文件

修改 order.yaml 配置文件

 $ vim rpc/etc/order.yaml

修改服务监听地址，端口号为0.0.0.0:9002，Etcd 服务配置，Mysql 服务配置，CacheRedis 服务配置

 Name: order.rpc
ListenOn: 0.0.0.0:9002

Etcd:
  Hosts:
  - etcd:2379
  Key: order.rpc

Mysql:
  DataSource: root:123456@tcp(mysql:3306)/mall?charset=utf8mb4&parseTime=true&loc=Asia%2FShanghai

CacheRedis:
- Host: redis:6379
  Type: node
  Pass:

5.2 添加 order model 依赖

添加 Mysql 服务配置，CacheRedis 服务配置的实例化

 $ vim rpc/internal/config/config.go

 package config

import (
 "github.com/zeromicro/go-zero/core/stores/cache"
 "github.com/zeromicro/go-zero/zrpc"
)

type Config struct {
 zrpc.RpcServerConf

 Mysql struct {
  DataSource string
 }

 CacheRedis cache.CacheConf
}

注册服务上下文 order model 的依赖

 $ vim rpc/internal/svc/servicecontext.go

 package svc

import (
 "mall/service/order/model"
 "mall/service/order/rpc/internal/config"

 "github.com/zeromicro/go-zero/core/stores/sqlx"
)

type ServiceContext struct {
 Config config.Config

 OrderModel model.OrderModel
}

func NewServiceContext(c config.Config) *ServiceContext {
 conn := sqlx.NewMysql(c.Mysql.DataSource)
 return &ServiceContext{
  Config:     c,
  OrderModel: model.NewOrderModel(conn, c.CacheRedis),
 }
}

5.3 添加 user rpc，product rpc 依赖

添加 user rpc, product rpc 服务配置

 $ vim rpc/etc/order.yaml

 Name: order.rpc
ListenOn: 0.0.0.0:9002
Etcd:
  Hosts:
  - etcd:2379
  Key: order.rpc

......

UserRpc:
  Etcd:
    Hosts:
    - etcd:2379
    Key: user.rpc

ProductRpc:
  Etcd:
    Hosts:
    - etcd:2379
    Key: product.rpc

添加 user rpc, product rpc 服务配置的实例化

 $ vim rpc/internal/config/config.go

 package config

import (
 "github.com/zeromicro/go-zero/core/stores/cache"
 "github.com/zeromicro/go-zero/zrpc"
)

type Config struct {
 zrpc.RpcServerConf

 Mysql struct {
  DataSource string
 }

 CacheRedis cache.CacheConf

 UserRpc    zrpc.RpcClientConf
 ProductRpc zrpc.RpcClientConf
}

注册服务上下文 user rpc, product rpc 的依赖

 $ vim rpc/internal/svc/servicecontext.go

 package svc

import (
 "mall/service/order/model"
 "mall/service/order/rpc/internal/config"
 "mall/service/product/rpc/productclient"
 "mall/service/user/rpc/userclient"

 "github.com/zeromicro/go-zero/core/stores/sqlx"
 "github.com/zeromicro/go-zero/zrpc"
)

type ServiceContext struct {
 Config config.Config

 OrderModel model.OrderModel

 UserRpc    userclient.User
 ProductRpc productclient.Product
}

func NewServiceContext(c config.Config) *ServiceContext {
 conn := sqlx.NewMysql(c.Mysql.DataSource)
 return &ServiceContext{
  Config:     c,
  OrderModel: model.NewOrderModel(conn, c.CacheRedis),
  UserRpc:    userclient.NewUser(zrpc.MustNewClient(c.UserRpc)),
  ProductRpc: productclient.NewProduct(zrpc.MustNewClient(c.ProductRpc)),
 }
}

5.4 添加订单创建逻辑 Create

 $ vim rpc/internal/logic/createlogic.go

 package logic

import (
 "context"

 "mall/service/order/model"
 "mall/service/order/rpc/internal/svc"
 "mall/service/order/rpc/order"
 "mall/service/product/rpc/product"
 "mall/service/user/rpc/user"

 "github.com/zeromicro/go-zero/core/logx"
 "google.golang.org/grpc/status"
)

type CreateLogic struct {
 ctx    context.Context
 svcCtx *svc.ServiceContext
 logx.Logger
}

func NewCreateLogic(ctx context.Context, svcCtx *svc.ServiceContext) *CreateLogic {
 return &CreateLogic{
  ctx:    ctx,
  svcCtx: svcCtx,
  Logger: logx.WithContext(ctx),
 }
}

func (l *CreateLogic) Create(in *order.CreateRequest) (*order.CreateResponse, error) {
 // 查询用户是否存在
 _, err := l.svcCtx.UserRpc.UserInfo(l.ctx, &user.UserInfoRequest{
  Id: in.Uid,
 })
 if err != nil {
  return nil, err
 }

 // 查询产品是否存在
 productRes, err := l.svcCtx.ProductRpc.Detail(l.ctx, &product.DetailRequest{
  Id: in.Pid,
 })
 if err != nil {
  return nil, err
 }
 // 判断产品库存是否充足
 if productRes.Stock <= 0 {
  return nil, status.Error(500, "产品库存不足")
 }

 newOrder := model.Order{
  Uid:    in.Uid,
  Pid:    in.Pid,
  Amount: in.Amount,
  Status: 0,
 }
        // 创建订单
 res, err := l.svcCtx.OrderModel.Insert(&newOrder)
 if err != nil {
  return nil, status.Error(500, err.Error())
 }

 newOrder.Id, err = res.LastInsertId()
 if err != nil {
  return nil, status.Error(500, err.Error())
 }
        // 更新产品库存
 _, err = l.svcCtx.ProductRpc.Update(l.ctx, &product.UpdateRequest{
  Id:     productRes.Id,
  Name:   productRes.Name,
  Desc:   productRes.Desc,
                Stock:  productRes.Stock - 1,
  Amount: productRes.Amount,
  Status: productRes.Status,
 })
 if err != nil {
  return nil, err
 }

 return &order.CreateResponse{
  Id: newOrder.Id,
 }, nil
}

5.5 添加订单详情逻辑 Detail

 $ vim rpc/internal/logic/detaillogic.go

 package logic

import (
 "context"

 "mall/service/order/model"
 "mall/service/order/rpc/internal/svc"
 "mall/service/order/rpc/order"

 "github.com/zeromicro/go-zero/core/logx"
 "google.golang.org/grpc/status"
)

type DetailLogic struct {
 ctx    context.Context
 svcCtx *svc.ServiceContext
 logx.Logger
}

func NewDetailLogic(ctx context.Context, svcCtx *svc.ServiceContext) *DetailLogic {
 return &DetailLogic{
  ctx:    ctx,
  svcCtx: svcCtx,
  Logger: logx.WithContext(ctx),
 }
}

func (l *DetailLogic) Detail(in *order.DetailRequest) (*order.DetailResponse, error) {
 // 查询订单是否存在
 res, err := l.svcCtx.OrderModel.FindOne(in.Id)
 if err != nil {
  if err == model.ErrNotFound {
   return nil, status.Error(100, "订单不存在")
  }
  return nil, status.Error(500, err.Error())
 }

 return &order.DetailResponse{
  Id:     res.Id,
  Uid:    res.Uid,
  Pid:    res.Pid,
  Amount: res.Amount,
  Status: res.Status,
 }, nil
}

5.6 添加订单更新逻辑 Update

 $ vim rpc/internal/logic/updatelogic.go

 package logic

import (
 "context"

 "mall/service/order/model"
 "mall/service/order/rpc/internal/svc"
 "mall/service/order/rpc/order"

 "github.com/zeromicro/go-zero/core/logx"
 "google.golang.org/grpc/status"
)

type UpdateLogic struct {
 ctx    context.Context
 svcCtx *svc.ServiceContext
 logx.Logger
}

func NewUpdateLogic(ctx context.Context, svcCtx *svc.ServiceContext) *UpdateLogic {
 return &UpdateLogic{
  ctx:    ctx,
  svcCtx: svcCtx,
  Logger: logx.WithContext(ctx),
 }
}

func (l *UpdateLogic) Update(in *order.UpdateRequest) (*order.UpdateResponse, error) {
 // 查询订单是否存在
 res, err := l.svcCtx.OrderModel.FindOne(in.Id)
 if err != nil {
  if err == model.ErrNotFound {
   return nil, status.Error(100, "订单不存在")
  }
  return nil, status.Error(500, err.Error())
 }

 if in.Uid != 0 {
  res.Uid = in.Uid
 }
 if in.Pid != 0 {
  res.Pid = in.Pid
 }
 if in.Amount != 0 {
  res.Amount = in.Amount
 }
 if in.Status != 0 {
  res.Status = in.Status
 }

 err = l.svcCtx.OrderModel.Update(res)
 if err != nil {
  return nil, status.Error(500, err.Error())
 }

 return &order.UpdateResponse{}, nil
}

5.7 添加订单删除逻辑 Remove

 $ vim rpc/internal/logic/removelogic.go

 package logic

import (
 "context"

 "mall/service/order/model"
 "mall/service/order/rpc/internal/svc"
 "mall/service/order/rpc/order"

 "github.com/zeromicro/go-zero/core/logx"
 "google.golang.org/grpc/status"
)

type RemoveLogic struct {
 ctx    context.Context
 svcCtx *svc.ServiceContext
 logx.Logger
}

func NewRemoveLogic(ctx context.Context, svcCtx *svc.ServiceContext) *RemoveLogic {
 return &RemoveLogic{
  ctx:    ctx,
  svcCtx: svcCtx,
  Logger: logx.WithContext(ctx),
 }
}

func (l *RemoveLogic) Remove(in *order.RemoveRequest) (*order.RemoveResponse, error) {
 // 查询订单是否存在
 res, err := l.svcCtx.OrderModel.FindOne(in.Id)
 if err != nil {
  if err == model.ErrNotFound {
   return nil, status.Error(100, "订单不存在")
  }
  return nil, status.Error(500, err.Error())
 }

 err = l.svcCtx.OrderModel.Delete(res.Id)
 if err != nil {
  return nil, status.Error(500, err.Error())
 }

 return &order.RemoveResponse{}, nil
}

5.8 添加订单列表逻辑 List

添加根据 uid 查询用户所有订单的 OrderModel 方法 FindAllByUid

 $ vim model/ordermodel.go

 package model

......

type (
 OrderModel interface {
  Insert(data *Order) (sql.Result, error)
  FindOne(id int64) (*Order, error)
  FindAllByUid(uid int64) ([]*Order, error)
  Update(data *Order) error
  Delete(id int64) error
 }

 ......
)

......

func (m *defaultOrderModel) FindAllByUid(uid int64) ([]*Order, error) {
 var resp []*Order

 query := fmt.Sprintf("select %s from %s where `uid` = ?", orderRows, m.table)
 err := m.QueryRowsNoCache(&resp, query, uid)

 switch err {
 case nil:
  return resp, nil
 case sqlc.ErrNotFound:
  return nil, ErrNotFound
 default:
  return nil, err
 }
}

......

添加订单列表逻辑

 $ vim rpc/internal/logic/listlogic.go

 package logic

import (
 "context"

 "mall/service/order/model"
 "mall/service/order/rpc/internal/svc"
 "mall/service/order/rpc/order"
 "mall/service/user/rpc/user"

 "github.com/zeromicro/go-zero/core/logx"
 "google.golang.org/grpc/status"
)

type ListLogic struct {
 ctx    context.Context
 svcCtx *svc.ServiceContext
 logx.Logger
}

func NewListLogic(ctx context.Context, svcCtx *svc.ServiceContext) *ListLogic {
 return &ListLogic{
  ctx:    ctx,
  svcCtx: svcCtx,
  Logger: logx.WithContext(ctx),
 }
}

func (l *ListLogic) List(in *order.ListRequest) (*order.ListResponse, error) {
 // 查询用户是否存在
 _, err := l.svcCtx.UserRpc.UserInfo(l.ctx, &user.UserInfoRequest{
  Id: in.Uid,
 })
 if err != nil {
  return nil, err
 }

 // 查询订单是否存在
 list, err := l.svcCtx.OrderModel.FindAllByUid(in.Uid)
 if err != nil {
  if err == model.ErrNotFound {
   return nil, status.Error(100, "订单不存在")
  }
  return nil, status.Error(500, err.Error())
 }

 orderList := make([]*order.DetailResponse, 0)
 for _, item := range list {
  orderList = append(orderList, &order.DetailResponse{
   Id:     item.Id,
   Uid:    item.Uid,
   Pid:    item.Pid,
   Amount: item.Amount,
   Status: item.Status,
  })
 }

 return &order.ListResponse{
  Data: orderList,
 }, nil
}

5.9 添加订单支付逻辑 Paid

 $ vim rpc/internal/logic/paidlogic.go

 package logic

import (
 "context"

 "mall/service/order/model"
 "mall/service/order/rpc/internal/svc"
 "mall/service/order/rpc/order"

 "github.com/zeromicro/go-zero/core/logx"
 "google.golang.org/grpc/status"
)

type PaidLogic struct {
 ctx    context.Context
 svcCtx *svc.ServiceContext
 logx.Logger
}

func NewPaidLogic(ctx context.Context, svcCtx *svc.ServiceContext) *PaidLogic {
 return &PaidLogic{
  ctx:    ctx,
  svcCtx: svcCtx,
  Logger: logx.WithContext(ctx),
 }
}

func (l *PaidLogic) Paid(in *order.PaidRequest) (*order.PaidResponse, error) {
 // 查询订单是否存在
 res, err := l.svcCtx.OrderModel.FindOne(in.Id)
 if err != nil {
  if err == model.ErrNotFound {
   return nil, status.Error(100, "订单不存在")
  }
  return nil, status.Error(500, err.Error())
 }

 res.Status = 1

 err = l.svcCtx.OrderModel.Update(res)
 if err != nil {
  return nil, status.Error(500, err.Error())
 }

 return &order.PaidResponse{}, nil
}

6、编写 order api 服务

6.1 修改配置文件

修改 order.yaml 配置文件

 $ vim api/etc/order.yaml

修改服务地址，端口号为0.0.0.0:8002，Mysql 服务配置，CacheRedis 服务配置，Auth 验证配置

 Name: Order
Host: 0.0.0.0
Port: 8002

Mysql:
  DataSource: root:123456@tcp(mysql:3306)/mall?charset=utf8mb4&parseTime=true&loc=Asia%2FShanghai

CacheRedis:
- Host: redis:6379
  Type: node
  Pass:

Auth:
  AccessSecret: uOvKLmVfztaXGpNYd4Z0I1SiT7MweJhl
  AccessExpire: 86400

6.2 添加 order rpc 依赖

添加 order rpc 服务配置

 $ vim api/etc/order.yaml

 Name: Order
Host: 0.0.0.0
Port: 8002

......

OrderRpc:
  Etcd:
    Hosts:
    - etcd:2379
    Key: order.rpc

添加 order rpc 服务配置的实例化

 $ vim api/internal/config/config.go

 package config

import (
 "github.com/zeromicro/go-zero/rest"
 "github.com/zeromicro/go-zero/zrpc"
)

type Config struct {
 rest.RestConf

 Auth struct {
  AccessSecret string
  AccessExpire int64
 }

 OrderRpc zrpc.RpcClientConf
}

注册服务上下文 user rpc 的依赖

 $ vim api/internal/svc/servicecontext.go

 package svc

import (
 "mall/service/order/api/internal/config"
 "mall/service/order/rpc/orderclient"

 "github.com/zeromicro/go-zero/zrpc"
)

type ServiceContext struct {
 Config config.Config

 OrderRpc orderclient.Order
}

func NewServiceContext(c config.Config) *ServiceContext {
 return &ServiceContext{
  Config:   c,
  OrderRpc: orderclient.NewOrder(zrpc.MustNewClient(c.OrderRpc)),
 }
}

6.3 添加订单创建逻辑 Create

 $ vim api/internal/logic/createlogic.go

 package logic

import (
 "context"

 "mall/service/order/api/internal/svc"
 "mall/service/order/api/internal/types"
 "mall/service/order/rpc/orderclient"

 "github.com/zeromicro/go-zero/core/logx"
)

type CreateLogic struct {
 logx.Logger
 ctx    context.Context
 svcCtx *svc.ServiceContext
}

func NewCreateLogic(ctx context.Context, svcCtx *svc.ServiceContext) CreateLogic {
 return CreateLogic{
  Logger: logx.WithContext(ctx),
  ctx:    ctx,
  svcCtx: svcCtx,
 }
}

func (l *CreateLogic) Create(req types.CreateRequest) (resp *types.CreateResponse, err error) {
 res, err := l.svcCtx.OrderRpc.Create(l.ctx, &orderclient.CreateRequest{
  Uid:    req.Uid,
  Pid:    req.Pid,
  Amount: req.Amount,
  Status: req.Status,
 })
 if err != nil {
  return nil, err
 }

 return &types.CreateResponse{
  Id: res.Id,
 }, nil
}

6.4 添加订单详情逻辑 Detail

 $ vim api/internal/logic/detaillogic.go

 package logic

import (
 "context"

 "mall/service/order/api/internal/svc"
 "mall/service/order/api/internal/types"
 "mall/service/order/rpc/orderclient"

 "github.com/zeromicro/go-zero/core/logx"
)

type DetailLogic struct {
 logx.Logger
 ctx    context.Context
 svcCtx *svc.ServiceContext
}

func NewDetailLogic(ctx context.Context, svcCtx *svc.ServiceContext) DetailLogic {
 return DetailLogic{
  Logger: logx.WithContext(ctx),
  ctx:    ctx,
  svcCtx: svcCtx,
 }
}

func (l *DetailLogic) Detail(req types.DetailRequest) (resp *types.DetailResponse, err error) {
 res, err := l.svcCtx.OrderRpc.Detail(l.ctx, &orderclient.DetailRequest{
  Id: req.Id,
 })
 if err != nil {
  return nil, err
 }

 return &types.DetailResponse{
  Id:     res.Id,
  Uid:    res.Uid,
  Pid:    res.Pid,
  Amount: res.Amount,
  Status: res.Status,
 }, nil
}

6.5 添加订单更新逻辑 Update

 $ vim api/internal/logic/updatelogic.go

 package logic

import (
 "context"

 "mall/service/order/api/internal/svc"
 "mall/service/order/api/internal/types"
 "mall/service/order/rpc/orderclient"

 "github.com/zeromicro/go-zero/core/logx"
)

type UpdateLogic struct {
 logx.Logger
 ctx    context.Context
 svcCtx *svc.ServiceContext
}

func NewUpdateLogic(ctx context.Context, svcCtx *svc.ServiceContext) UpdateLogic {
 return UpdateLogic{
  Logger: logx.WithContext(ctx),
  ctx:    ctx,
  svcCtx: svcCtx,
 }
}

func (l *UpdateLogic) Update(req types.UpdateRequest) (resp *types.UpdateResponse, err error) {
 _, err = l.svcCtx.OrderRpc.Update(l.ctx, &orderclient.UpdateRequest{
  Id:     req.Id,
  Uid:    req.Uid,
  Pid:    req.Pid,
  Amount: req.Amount,
  Status: req.Status,
 })
 if err != nil {
  return nil, err
 }

 return &types.UpdateResponse{}, nil
}

6.6 添加订单删除逻辑 Remove

 $ vim api/internal/logic/removelogic.go

 package logic

import (
 "context"

 "mall/service/order/api/internal/svc"
 "mall/service/order/api/internal/types"
 "mall/service/order/rpc/orderclient"

 "github.com/zeromicro/go-zero/core/logx"
)

type RemoveLogic struct {
 logx.Logger
 ctx    context.Context
 svcCtx *svc.ServiceContext
}

func NewRemoveLogic(ctx context.Context, svcCtx *svc.ServiceContext) RemoveLogic {
 return RemoveLogic{
  Logger: logx.WithContext(ctx),
  ctx:    ctx,
  svcCtx: svcCtx,
 }
}

func (l *RemoveLogic) Remove(req types.RemoveRequest) (resp *types.RemoveResponse, err error) {
 _, err = l.svcCtx.OrderRpc.Remove(l.ctx, &orderclient.RemoveRequest{
  Id: req.Id,
 })
 if err != nil {
  return nil, err
 }

 return &types.RemoveResponse{}, nil
}

6.7 添加订单列表逻辑 List

 $ vim api/internal/logic/listlogic.go

 package logic

import (
 "context"

 "mall/service/order/api/internal/svc"
 "mall/service/order/api/internal/types"
 "mall/service/order/rpc/orderclient"

 "github.com/zeromicro/go-zero/core/logx"
)

type ListLogic struct {
 logx.Logger
 ctx    context.Context
 svcCtx *svc.ServiceContext
}

func NewListLogic(ctx context.Context, svcCtx *svc.ServiceContext) ListLogic {
 return ListLogic{
  Logger: logx.WithContext(ctx),
  ctx:    ctx,
  svcCtx: svcCtx,
 }
}

func (l *ListLogic) List(req types.ListRequest) (resp []*types.ListResponse, err error) {
 res, err := l.svcCtx.OrderRpc.List(l.ctx, &orderclient.ListRequest{
  Uid: req.Uid,
 })
 if err != nil {
  return nil, err
 }

 orderList := make([]*types.ListResponse, 0)
 for _, item := range res.Data {
  orderList = append(orderList, &types.ListResponse{
   Id:     item.Id,
   Uid:    item.Uid,
   Pid:    item.Pid,
   Amount: item.Amount,
   Status: item.Status,
  })
 }

 return orderList, nil
}

7、启动 order rpc 服务

提示：启动服务需要在 golang 容器中启动

 $ cd mall/service/order/rpc
$ go run order.go -f etc/order.yaml

有的人会报错

 root@13258ded6d62:/usr/src/code/mall/service/order/rpc# go run order.go -f etc/order.yaml
2022/03/09 20:55:40 {"@timestamp":"2022-03-09T20:55:40.315+08:00","level":"error","content":"discovbuilder.go:33 bad resolver state"}
2022/03/09 20:55:43 rpc dial: discov://etcd:2379/user.rpc, error: context deadline exceeded, make sure rpc service "user.rpc" is already started
exit status 1

在这里插入图片描述

这是要求我们开启 user.rpc 的服务（参考：学习笔记：带你十天轻松搞定 Go 微服务系列（三）- 用户服务）

接着报错

 2022/03/09 20:58:56 {"@timestamp":"2022-03-09T20:58:56.499+08:00","level":"error","content":"discovbuilder.go:33 bad resolver state"}
2022/03/09 20:58:59 rpc dial: discov://etcd:2379/product.rpc, error: context deadline exceeded, make sure rpc service "product.rpc" is already started
exit status 1

这是要求我们开启 product.rpc 的服务（参考：学习笔记：带你十天轻松完搞定 Go 微服务系列（四）- 产品服务）

再运行，出现 Starting rpc server at 127.0.0.1:9002…就证明没问题了，如下图：

在这里插入图片描述

8、启动 order api 服务

提示：启动服务需要在 golang 容器中启动

 $ cd mall/service/order/api
$ go run order.go -f etc/order.yaml

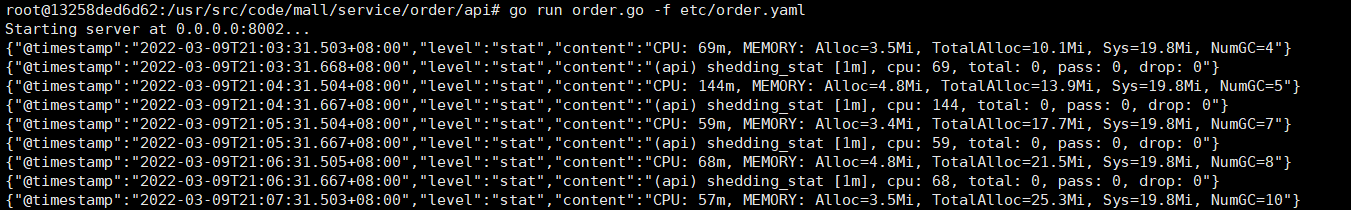

出现 Starting server at 0.0.0.0:8002…就证明没问题了，如下图：

在这里插入图片描述

9、系列

上一篇Linux下部署go-zero，运行goctl model运行模板生成命令报错解决方法

下一篇[Golang]力扣Leetcode—剑指Offer—数组—21.调整数组顺序使奇数位于偶数前面

本文作者：Dancing-Pierre

本文链接：https://www.cnblogs.com/wyc-1009/p/17548113.html

posted @ 2022-03-10 00:04 Dancing-Pierre 阅读(17) 评论(0) 编辑收藏举报来源

刷新页面返回顶部

登录后才能查看或发表评论，立即登录或者逛逛博客园首页

皮埃尔的撒哈拉

学习笔记：带你十天轻松完成 Go 微服务系列（五）- 订单服务

带你十天轻松搞定 Go 微服务系列（五）- 订单服务

1、学习课程

2、生成 order model 模型

3、生成 order api 服务

4、生成 order rpc 服务

5、编写 order rpc 服务

5.1 修改配置文件

5.2 添加 order model 依赖

5.3 添加 user rpc，product rpc 依赖

5.4 添加订单创建逻辑 Create

5.5 添加订单详情逻辑 Detail

5.6 添加订单更新逻辑 Update

5.7 添加订单删除逻辑 Remove

5.8 添加订单列表逻辑 List

5.9 添加订单支付逻辑 Paid

6、编写 order api 服务

6.1 修改配置文件

6.2 添加 order rpc 依赖

6.3 添加订单创建逻辑 Create

6.4 添加订单详情逻辑 Detail

6.5 添加订单更新逻辑 Update

6.6 添加订单删除逻辑 Remove

6.7 添加订单列表逻辑 List

7、启动 order rpc 服务

8、启动 order api 服务

9、系列

公告

常用链接

我的标签

随笔分类

随笔档案

阅读排行榜

推荐排行榜

	CREATE TABLE `order` (
	`id` bigint unsigned NOT NULL AUTO_INCREMENT,
	`uid` bigint unsigned NOT NULL DEFAULT '0' COMMENT '用户ID',
	`pid` bigint unsigned NOT NULL DEFAULT '0' COMMENT '产品ID',
	`amount` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '订单金额',
	`status` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '订单状态',
	`create_time` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
	`update_time` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
	PRIMARY KEY (`id`),
	KEY `idx_uid` (`uid`),
	KEY `idx_pid` (`pid`)
	) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

	type (
	// 订单创建
	CreateRequest {
	Uid int64 `json:"uid"`
	Pid int64 `json:"pid"`
	Amount int64 `json:"amount"`
	Status int64 `json:"status"`
	}
	CreateResponse {
	Id int64 `json:"id"`
	}
	// 订单创建

	// 订单修改
	UpdateRequest {
	Id int64 `json:"id"`
	Uid int64 `json:"uid,optional"`
	Pid int64 `json:"pid,optional"`
	Amount int64 `json:"amount,optional"`
	Status int64 `json:"status,optional"`
	}
	UpdateResponse {
	}
	// 订单修改

	// 订单删除
	RemoveRequest {
	Id int64 `json:"id"`
	}
	RemoveResponse {
	}
	// 订单删除

	// 订单详情
	DetailRequest {
	Id int64 `json:"id"`
	}
	DetailResponse {
	Id int64 `json:"id"`
	Uid int64 `json:"uid"`
	Pid int64 `json:"pid"`
	Amount int64 `json:"amount"`
	Status int64 `json:"status"`
	}
	// 订单详情

	// 订单列表
	ListRequest {
	Uid int64 `json:"uid"`
	}
	ListResponse {
	Id int64 `json:"id"`
	Uid int64 `json:"uid"`
	Pid int64 `json:"pid"`
	Amount int64 `json:"amount"`
	Status int64 `json:"status"`
	}
	// 订单列表
	)

	@server(
	jwt: Auth
	)
	service Order {
	@handler Create
	post /api/order/create(CreateRequest) returns (CreateResponse)

	@handler Update
	post /api/order/update(UpdateRequest) returns (UpdateResponse)

	@handler Remove
	post /api/order/remove(RemoveRequest) returns (RemoveResponse)

	@handler Detail
	post /api/order/detail(DetailRequest) returns (DetailResponse)

	@handler List
	post /api/order/list(ListRequest) returns (ListResponse)
	}

	syntax = "proto3";

	package orderclient;

	option go_package = "order";

	// 订单创建
	message CreateRequest {
	int64 Uid = 1;
	int64 Pid = 2;
	int64 Amount = 3;
	int64 Status = 4;
	}
	message CreateResponse {
	int64 id = 1;
	}
	// 订单创建

	// 订单修改
	message UpdateRequest {
	int64 id = 1;
	int64 Uid = 2;
	int64 Pid = 3;
	int64 Amount = 4;
	int64 Status = 5;
	}
	message UpdateResponse {
	}
	// 订单修改

	// 订单删除
	message RemoveRequest {
	int64 id = 1;
	}
	message RemoveResponse {
	}
	// 订单删除

	// 订单详情
	message DetailRequest {
	int64 id = 1;
	}
	message DetailResponse {
	int64 id = 1;
	int64 Uid = 2;
	int64 Pid = 3;
	int64 Amount = 4;
	int64 Status = 5;
	}
	// 订单详情

	// 订单列表
	message ListRequest {
	int64 uid = 1;
	}
	message ListResponse {
	repeated DetailResponse data = 1;
	}
	// 订单列表

	// 订单支付
	message PaidRequest {
	int64 id = 1;
	}
	message PaidResponse {
	}
	// 订单支付

	service Order {
	rpc Create(CreateRequest) returns(CreateResponse);
	rpc Update(UpdateRequest) returns(UpdateResponse);
	rpc Remove(RemoveRequest) returns(RemoveResponse);
	rpc Detail(DetailRequest) returns(DetailResponse);
	rpc List(ListRequest) returns(ListResponse);
	rpc Paid(PaidRequest) returns(PaidResponse);
	}

	Name: order.rpc
	ListenOn: 0.0.0.0:9002

	Etcd:
	Hosts:
	- etcd:2379
	Key: order.rpc

	Mysql:
	DataSource: root:123456@tcp(mysql:3306)/mall?charset=utf8mb4&parseTime=true&loc=Asia%2FShanghai

	CacheRedis:
	- Host: redis:6379
	Type: node
	Pass:

	package config

	import (
	"github.com/zeromicro/go-zero/core/stores/cache"
	"github.com/zeromicro/go-zero/zrpc"
	)

	type Config struct {
	zrpc.RpcServerConf

	Mysql struct {
	DataSource string
	}

	CacheRedis cache.CacheConf
	}

	package svc

	import (
	"mall/service/order/model"
	"mall/service/order/rpc/internal/config"

	"github.com/zeromicro/go-zero/core/stores/sqlx"
	)

	type ServiceContext struct {
	Config config.Config

	OrderModel model.OrderModel
	}

	func NewServiceContext(c config.Config) *ServiceContext {
	conn := sqlx.NewMysql(c.Mysql.DataSource)
	return &ServiceContext{
	Config: c,
	OrderModel: model.NewOrderModel(conn, c.CacheRedis),
	}
	}

	package logic

	import (
	"context"

	"mall/service/order/model"
	"mall/service/order/rpc/internal/svc"
	"mall/service/order/rpc/order"
	"mall/service/product/rpc/product"
	"mall/service/user/rpc/user"

	"github.com/zeromicro/go-zero/core/logx"
	"google.golang.org/grpc/status"
	)

	type CreateLogic struct {
	ctx context.Context
	svcCtx *svc.ServiceContext
	logx.Logger
	}

	func NewCreateLogic(ctx context.Context, svcCtx svc.ServiceContext) CreateLogic {
	return &CreateLogic{
	ctx: ctx,
	svcCtx: svcCtx,
	Logger: logx.WithContext(ctx),
	}
	}

	func (l CreateLogic) Create(in order.CreateRequest) (*order.CreateResponse, error) {
	// 查询用户是否存在
	_, err := l.svcCtx.UserRpc.UserInfo(l.ctx, &user.UserInfoRequest{
	Id: in.Uid,
	})
	if err != nil {
	return nil, err
	}

	// 查询产品是否存在
	productRes, err := l.svcCtx.ProductRpc.Detail(l.ctx, &product.DetailRequest{
	Id: in.Pid,
	})
	if err != nil {
	return nil, err
	}
	// 判断产品库存是否充足
	if productRes.Stock <= 0 {
	return nil, status.Error(500, "产品库存不足")
	}

	newOrder := model.Order{
	Uid: in.Uid,
	Pid: in.Pid,
	Amount: in.Amount,
	Status: 0,
	}
	// 创建订单
	res, err := l.svcCtx.OrderModel.Insert(&newOrder)
	if err != nil {
	return nil, status.Error(500, err.Error())
	}

	newOrder.Id, err = res.LastInsertId()
	if err != nil {
	return nil, status.Error(500, err.Error())
	}
	// 更新产品库存
	_, err = l.svcCtx.ProductRpc.Update(l.ctx, &product.UpdateRequest{
	Id: productRes.Id,
	Name: productRes.Name,
	Desc: productRes.Desc,
	Stock: productRes.Stock - 1,
	Amount: productRes.Amount,
	Status: productRes.Status,
	})
	if err != nil {
	return nil, err
	}

	return &order.CreateResponse{
	Id: newOrder.Id,
	}, nil
	}

	package model

	......

	type (
	OrderModel interface {
	Insert(data *Order) (sql.Result, error)
	FindOne(id int64) (*Order, error)
	FindAllByUid(uid int64) ([]*Order, error)
	Update(data *Order) error
	Delete(id int64) error
	}

	......
	)

	......

	func (m defaultOrderModel) FindAllByUid(uid int64) ([]Order, error) {
	var resp []*Order

	query := fmt.Sprintf("select %s from %s where `uid` = ?", orderRows, m.table)
	err := m.QueryRowsNoCache(&resp, query, uid)

	switch err {
	case nil:
	return resp, nil
	case sqlc.ErrNotFound:
	return nil, ErrNotFound
	default:
	return nil, err
	}
	}

	......

	Name: Order
	Host: 0.0.0.0
	Port: 8002

	Mysql:
	DataSource: root:123456@tcp(mysql:3306)/mall?charset=utf8mb4&parseTime=true&loc=Asia%2FShanghai

	CacheRedis:
	- Host: redis:6379
	Type: node
	Pass:

	Auth:
	AccessSecret: uOvKLmVfztaXGpNYd4Z0I1SiT7MweJhl
	AccessExpire: 86400

	package config

	import (
	"github.com/zeromicro/go-zero/rest"
	"github.com/zeromicro/go-zero/zrpc"
	)

	type Config struct {
	rest.RestConf

	Auth struct {
	AccessSecret string
	AccessExpire int64
	}

	OrderRpc zrpc.RpcClientConf
	}

	package svc

	import (
	"mall/service/order/api/internal/config"
	"mall/service/order/rpc/orderclient"

	"github.com/zeromicro/go-zero/zrpc"
	)

	type ServiceContext struct {
	Config config.Config

	OrderRpc orderclient.Order
	}

	func NewServiceContext(c config.Config) *ServiceContext {
	return &ServiceContext{
	Config: c,
	OrderRpc: orderclient.NewOrder(zrpc.MustNewClient(c.OrderRpc)),
	}
	}

	$ cd mall/service/order/rpc
	$ go run order.go -f etc/order.yaml

	root@13258ded6d62:/usr/src/code/mall/service/order/rpc# go run order.go -f etc/order.yaml
	2022/03/09 20:55:40 {"@timestamp":"2022-03-09T20:55:40.315+08:00","level":"error","content":"discovbuilder.go:33 bad resolver state"}
	2022/03/09 20:55:43 rpc dial: discov://etcd:2379/user.rpc, error: context deadline exceeded, make sure rpc service "user.rpc" is already started
	exit status 1

	2022/03/09 20:58:56 {"@timestamp":"2022-03-09T20:58:56.499+08:00","level":"error","content":"discovbuilder.go:33 bad resolver state"}
	2022/03/09 20:58:59 rpc dial: discov://etcd:2379/product.rpc, error: context deadline exceeded, make sure rpc service "product.rpc" is already started
	exit status 1

	$ cd mall/service/order/api
	$ go run order.go -f etc/order.yaml

皮埃尔的撒哈拉

学习笔记：带你十天轻松完成 Go 微服务系列（五）- 订单服务

带你十天轻松搞定 Go 微服务系列（五）- 订单服务

1、学习课程

2、 生成 order model 模型

3、 生成 order api 服务

4、 生成 order rpc 服务

5、 编写 order rpc 服务

5.1 修改配置文件

5.2 添加 order model 依赖

5.3 添加 user rpc，product rpc 依赖

5.4 添加订单创建逻辑 Create

5.5 添加订单详情逻辑 Detail

5.6 添加订单更新逻辑 Update

5.7 添加订单删除逻辑 Remove

5.8 添加订单列表逻辑 List

5.9 添加订单支付逻辑 Paid

6、 编写 order api 服务

6.1 修改配置文件

6.2 添加 order rpc 依赖

6.3 添加订单创建逻辑 Create

6.4 添加订单详情逻辑 Detail

6.5 添加订单更新逻辑 Update

6.6 添加订单删除逻辑 Remove

6.7 添加订单列表逻辑 List

7、 启动 order rpc 服务

8、 启动 order api 服务

9、系列

公告

常用链接

我的标签

随笔分类

随笔档案

阅读排行榜

推荐排行榜

2、生成 order model 模型

3、生成 order api 服务

4、生成 order rpc 服务

5、编写 order rpc 服务

6、编写 order api 服务

7、启动 order rpc 服务

8、启动 order api 服务
