Inertia.js实现吸附效果

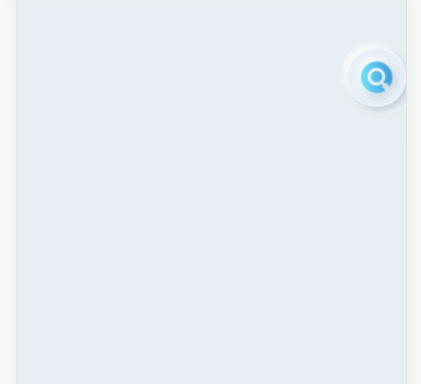

效果





如果使用

//以vue中使用为例
mounted() {
    const btn = this.$refs['fixed-group'].querySelector('.fixed-link')
    new Inertia(btn)
  },



Inertia.js源码

/**
 * 吸附按钮
 */
var Inertia = function(ele) {
  var defaults = {
    // 是否吸附边缘
    edge: true
  }

  var data = {
    distanceX: 0,
    distanceY: 0
  }

  var win = window

  // 浏览器窗体尺寸
  var winWidth = win.innerWidth
  var winHeight = win.innerHeight

  if (!ele) {
    return
  }

  // 设置transform坐标等方法
  var fnTranslate = function(x, y) {
    x = Math.round(1000 * x) / 1000
    y = Math.round(1000 * y) / 1000

    ele.style.webkitTransform = 'translate(' + [x + 'px', y + 'px'].join(',') + ')'
    ele.style.transform = 'translate3d(' + [x + 'px', y + 'px', 0].join(',') + ')'
  }

  // var strStoreDistance = ''
  // 居然有android机子不支持localStorage
  // if (ele.id && win.localStorage && (strStoreDistance = localStorage['Inertia_' + ele.id])) {
  //   var arrStoreDistance = strStoreDistance.split(',')
  //   ele.distanceX = +arrStoreDistance[0]
  //   ele.distanceY = +arrStoreDistance[1]
  //   fnTranslate(ele.distanceX, ele.distanceY)
  // }

  // 显示拖拽元素
  ele.style.visibility = 'visible'

  // 如果元素在屏幕之外，位置使用初始值
  var initBound = ele.getBoundingClientRect()

  if (
    initBound.left < -0.5 * initBound.width ||
    initBound.top < -0.5 * initBound.height ||
    initBound.right > winWidth + 0.5 * initBound.width ||
    initBound.bottom > winHeight + 0.5 * initBound.height
  ) {
    ele.distanceX = 0
    ele.distanceY = 0
    fnTranslate(0, 0)
  }

  ele.addEventListener('touchstart', function(event) {
    // if (data.inertiaing) {
    //   return;
    // }

    var events = event.touches[0] || event

    data.posX = events.pageX
    data.posY = events.pageY

    data.touching = true

    if (ele.distanceX) {
      data.distanceX = ele.distanceX
    }
    if (ele.distanceY) {
      data.distanceY = ele.distanceY
    }

    // 元素的位置数据
    data.bound = ele.getBoundingClientRect()

    data.timerready = true
  })

  // easeOutBounce算法
  /*
   * t: current time（当前时间）；
   * b: beginning value（初始值）；
   * c: change in value（变化量）；
   * d: duration（持续时间）。
   **/
  var easeOutBounce = function(t, b, c, d) {
    if ((t /= d) < 1 / 2.75) {
      return c * (7.5625 * t * t) + b
    } else if (t < 2 / 2.75) {
      return c * (7.5625 * (t -= 1.5 / 2.75) * t + 0.75) + b
    } else if (t < 2.5 / 2.75) {
      return c * (7.5625 * (t -= 2.25 / 2.75) * t + 0.9375) + b
    } else {
      return c * (7.5625 * (t -= 2.625 / 2.75) * t + 0.984375) + b
    }
  }

  document.addEventListener(
    'touchmove',
    function(event) {
      if (data.touching !== true) {
        return
      }

      // 当移动开始的时候开始记录时间
      if (data.timerready == true) {
        data.timerstart = +new Date()
        data.timerready = false
      }

      event.preventDefault()

      var events = event.touches[0] || event

      data.nowX = events.pageX
      data.nowY = events.pageY

      var distanceX = data.nowX - data.posX,
        distanceY = data.nowY - data.posY

      // 此时元素的位置
      var absLeft = data.bound.left + distanceX,
        absTop = data.bound.top + distanceY,
        absRight = absLeft + data.bound.width,
        absBottom = absTop + data.bound.height

      // 边缘检测
      if (absLeft < 0) {
        distanceX = distanceX - absLeft
      }
      if (absTop < 0) {
        distanceY = distanceY - absTop
      }
      if (absRight > winWidth) {
        distanceX = distanceX - (absRight - winWidth)
      }
      if (absBottom > winHeight) {
        distanceY = distanceY - (absBottom - winHeight)
      }

      // 元素位置跟随
      var x = data.distanceX + distanceX,
        y = data.distanceY + distanceY
      fnTranslate(x, y)

      // 缓存移动位置
      ele.distanceX = x
      ele.distanceY = y
    },
    {
      // fix #3 #5
      passive: false
    }
  )

  document.addEventListener('touchend', function() {
    if (data.touching === false) {
      // fix iOS fixed bug
      return
    }
    data.touching = false

    // 计算速度
    data.timerend = +new Date()

    if (!data.nowX || !data.nowY) {
      return
    }

    // 移动的水平和垂直距离
    var distanceX = data.nowX - data.posX,
      distanceY = data.nowY - data.posY

    if (Math.abs(distanceX) < 5 && Math.abs(distanceY) < 5) {
      return
    }

    // 距离和时间
    var distance = Math.sqrt(distanceX * distanceX + distanceY * distanceY),
      time = data.timerend - data.timerstart

    // 速度，每一个自然刷新此时移动的距离
    var speed = (distance / time) * 16.666

    // 经测试，2~60多px不等
    // 设置衰减速率
    // 数值越小，衰减越快
    var rate = Math.min(10, speed)

    // 开始惯性缓动
    data.inertiaing = true

    // 反弹的参数
    var reverseX = 1,
      reverseY = 1

    // 速度计算法
    var step = function() {
      if (data.touching == true) {
        data.inertiaing = false
        return
      }
      speed = speed - speed / rate

      // 根据运动角度，分配给x, y方向
      var moveX = (reverseX * speed * distanceX) / distance,
        moveY = (reverseY * speed * distanceY) / distance

      // 此时元素的各个数值
      var bound = ele.getBoundingClientRect()

      if (moveX < 0 && bound.left + moveX < 0) {
        moveX = 0 - bound.left
        // 碰触边缘方向反转
        reverseX = reverseX * -1
      } else if (moveX > 0 && bound.right + moveX > winWidth) {
        moveX = winWidth - bound.right
        reverseX = reverseX * -1
      }

      if (moveY < 0 && bound.top + moveY < 0) {
        moveY = -1 * bound.top
        reverseY = -1 * reverseY
      } else if (moveY > 0 && bound.bottom + moveY > winHeight) {
        moveY = winHeight - bound.bottom
        reverseY = -1 * reverseY
      }

      var x = ele.distanceX + moveX,
        y = ele.distanceY + moveY
      // 位置变化
      fnTranslate(x, y)

      ele.distanceX = x
      ele.distanceY = y

      if (speed < 0.1) {
        speed = 0
        if (defaults.edge == false) {
          data.inertiaing = false

          // if (win.localStorage) {
          //   localStorage['Inertia_' + ele.id] = [x, y].join()
          // }
        } else {
          // 边缘吸附
          edge()
        }
      } else {
        requestAnimationFrame(step)
      }
    }

    var edge = function() {
      // 时间
      var start = 0,
        during = 25
      // 初始值和变化量
      var init = ele.distanceX,
        y = ele.distanceY,
        change = 0
      // 判断元素现在在哪个半区
      var bound = ele.getBoundingClientRect()
      if (bound.left + bound.width / 2 < winWidth / 2) {
        change = -1 * bound.left
      } else {
        change = winWidth - bound.right
      }

      var run = function() {
        // 如果用户触摸元素，停止继续动画
        if (data.touching == true) {
          data.inertiaing = false
          return
        }

        start++
        var x = easeOutBounce(start, init, change, during)
        fnTranslate(x, y)

        if (start < during) {
          requestAnimationFrame(run)
        } else {
          ele.distanceX = x
          ele.distanceY = y

          data.inertiaing = false
          // if (win.localStorage) {
          //   localStorage['Inertia_' + ele.id] = [x, y].join()
          // }
        }
      }
      run()
    }

    step()
  })
}

export default Inertia
