(转)Inno Setup入门（二十一）——Inno Setup类参考（7）

本文转载自：http://blog.csdn.net/yushanddddfenghailin/article/details/17268435

复选框

复选框（CheckBox）用于多个并不互斥的几个选项中作出一个或者多选择，例如字体可以有粗体、斜体和下划线，这三种状态可以任意组合，像这样的选项可以采用复选框实现。Pascal脚本中对应的类是TcheckBox，其定义如下：< xmlnamespace prefix ="o" ns ="urn:schemas-microsoft-com:office:office" />

TCheckBox = class(TCustomCheckBox)

property Alignment: TAlignment; read write;

property AllowGrayed: Boolean; read write;

property Caption: String; read write;

property Checked: Boolean; read write;

property Color: TColor; read write;

property Font: TFont; read write;

< xmlnamespace prefix ="st1" ns ="urn:schemas-microsoft-com:office:smarttags" />property State: TCheckBoxState; read write;

property OnClick: TNotifyEvent; read write;

end;

其层次模型如下：



该类比RadioBox多继承了一个TcustomCheckBox，这样就有了更多的功能。下面的代码将演示复选框的使用：

[setup]

AppName=Test

AppVerName=TEST

DefaultDirName="E:\TEST"

AppVersion=1.0



[files]

Source:zzz.iss;Flags:dontcopy



[code]

var

myPage:TWizardPage;

lbl:TLabel;

chk1,chk2,chk3:TCheckBox;

procedure ClickCHK1(Sender:TObject);

begin

if chk1.Checked then

lbl.Font.Style:=lbl.Font.Style+[fsBold]

else

lbl.Font.Style:=lbl.Font.Style-[fsBold];

end;

procedure ClickCHK2(Sender:TObject);

begin

if chk2.Checked then

lbl.Font.Style:=lbl.Font.Style+[fsItalic]

else

lbl.Font.Style:=lbl.Font.Style-[fsItalic];

end;

procedure ClickCHK3(Sender:TObject);

begin

if chk3.Checked then

lbl.Font.Style:=lbl.Font.Style+[fsUnderline]

else

lbl.Font.Style:=lbl.Font.Style-[fsUnderline];

end;

procedure InitializeWizard();

begin

myPage:=CreateCustomPage(wpWelcome, '标题：自定义页面', '描述：这是我的自定义页面');

lbl:=TLabel.Create(myPage);

lbl.Parent:=myPage.Surface;

lbl.Caption:='请选择复选框，并注意文字的变化';

chk1:=TCheckBox.Create(myPage);

chk1.Parent:=myPage.Surface;

chk1.Caption:='粗体';

chk1.top:=lbl.Top+20;

chk1.OnClick:=@ClickCHK1;

chk2:=TCheckBox.Create(myPage);

chk2.Parent:=myPage.Surface;

chk2.Caption:='斜体';

chk2.top:=chk1.Top+20;

chk2.OnClick:=@ClickCHK2;

chk3:=TCheckBox.Create(myPage);

chk3.Parent:=myPage.Surface;

chk3.Caption:='下划线';

chk3.top:=chk2.Top+20;

chk3.OnClick:=@ClickCHK3;

end;

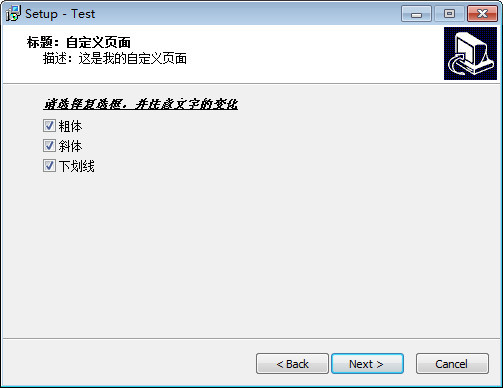

程序运行效果如下：

另外复选框还有一个重要的属性就是State，该属性指定了复选框的外观，可以有三个值，分别是cbUnchecked、cbChecked和cbGrayed，即未选择、选择和未定，可以使用如下代码设定：

chk1.State:=cbUnchecked;

chk2.State:=cbChecked;

chk3.State:=cbGrayed;

效果如下：
