每天一点基础K8S--K8S中的service



四层代理service



# 功能：为一组pods上的应用程序公开网络服务的抽象方法，并为这一组pod提供相同的DNS名字，从而实现负载均衡。



# 产生背景：

     正常的K8S环境都是集群部署，运行在pod中的某个服务可以在集群内通过POD IP访问

[root@master-worker-node-1 service]# kubectl get pods -o wide

NAME   READY   STATUS    RESTARTS   AGE   IP             NODE                 NOMINATED NODE   READINESS GATES

test   1/1     Running   0          20s   10.244.31.42   only-worker-node-3   <none>           <none>

[root@master-worker-node-1 service]# curl 10.244.31.42

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.31.42/32



    能够访问的原因是现场集群部署过程中使用了ipip类型的calico网络，etcd会记录每个node上的pod subnet信息，主机上的tunl0网卡直接将流量发送给pod。

[root@master-worker-node-1 service]# ip add show tunl0

5: tunl0@NONE: <NOARP,UP,LOWER_UP> mtu 1480 qdisc noqueue state UNKNOWN group default qlen 1000

    link/ipip 0.0.0.0 brd 0.0.0.0

    inet 10.244.123.128/32 scope global tunl0

       valid_lft forever preferred_lft forever

[root@master-worker-node-1 service]# tcpdump -i tunl0 -p icmp -nnvvv

dropped privs to tcpdump

tcpdump: listening on tunl0, link-type RAW (Raw IP), capture size 262144 bytes

21:30:57.712908 IP (tos 0x0, ttl 64, id 8740, offset 0, flags [DF], proto ICMP (1), length 84)

    10.244.123.128 > 10.244.31.42: ICMP echo request, id 5, seq 117, length 64

21:30:57.714115 IP (tos 0x0, ttl 63, id 19327, offset 0, flags [none], proto ICMP (1), length 84)

    10.244.31.42 > 10.244.123.128: ICMP echo reply, id 5, seq 117, length 64



     但是这类通常我们不会使用这类自主式pod运行业务pod，因为主机关机或者误删除pod，都将导致业务不可访问。哪怕是通过控制器控制pod数量，但pod的删除、重建将导致的ip地址变化同样是服务不可访问。

     因此，将pod上的应用程序公开网络服务需要解决两个问题：1、即使pod地址发生变化，业务仍不受影响；2、多个pod提供相同应用服务时，如何进行四成负载。



# K8S集群中的三个IP

# 1、node IP：集群节点的物理网络

[root@master-worker-node-1 service]# ip add show ens3

2: ens3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000

    link/ether 52:54:00:53:50:5f brd ff:ff:ff:ff:ff:ff

    inet 192.168.122.89/24 brd 192.168.122.255 scope global noprefixroute ens3

       valid_lft forever preferred_lft forever

    inet 192.168.122.253/24 scope global secondary ens3

       valid_lft forever preferred_lft forever

    inet6 fe80::df8:5c2e:6181:c92b/64 scope link noprefixroute

       valid_lft forever preferred_lft forever



# 2、pod IP：pod地址

[root@master-worker-node-1 service]# kubectl get pods -o wide

NAME   READY   STATUS    RESTARTS   AGE   IP             NODE                 NOMINATED NODE   READINESS GATES

test   1/1     Running   0          17m   10.244.31.42   only-worker-node-3   <none>           <none>



# 3、cluster IP：集群IP，或者叫service IP，仅存在iptables或者ipvs规则中

[root@master-worker-node-1 service]# kubectl get service -o wide

NAME                   TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE   SELECTOR

gray-release-service   ClusterIP   10.105.60.46   <none>        30080/TCP   30h   version=gray-release

kubernetes             ClusterIP   10.96.0.1      <none>        443/TCP     16d   <none>



Service type: NodePort、Cluster IP，集群内集群外的区别，语法区别不大



# service基本语法

[root@master-worker-node-1 service]# cat first-service.yaml

kind: Service

apiVersion: v1

metadata:

  name: test-service

spec:

  selector:

    func: test-service

  type: NodePort     # ClusterIP、ExternalName、NodePort、LoadBalancer

  ports:

  - name: test

    port: 31111      # port that will be exposed by this service.

    protocol: TCP    # TCP UDP SCTP

    nodePort: 32333  # The port on each node on which this service is exposed when type is NodePort or LoadBalancer. Usually assigned by the system.

    targetPort: 80   # Number or name of the port to access on the pods targeted by the service.



# 通过deployment创建pod

[root@master-worker-node-1 service]# kubectl get deployment -o wide

NAME           READY   UP-TO-DATE   AVAILABLE   AGE     CONTAINERS   IMAGES                     SELECTOR

nginx-deploy   3/3     3            3           5m24s   nginx-test   nginx:stable-alpine-perl   func=test-service



[root@master-worker-node-1 service]# kubectl get pods --show-labels -o wide

NAME                          READY   STATUS    RESTARTS   AGE     IP             NODE                 NOMINATED NODE   READINESS GATES   LABELS

nginx-deploy-76cc5c5b-kjwxn   1/1     Running   0          3m51s   10.244.31.44   only-worker-node-3   <none>           <none>            func=test-service,pod-template-hash=76cc5c5b

nginx-deploy-76cc5c5b-q6dt7   1/1     Running   0          3m51s   10.244.31.46   only-worker-node-3   <none>           <none>            func=test-service,pod-template-hash=76cc5c5b

nginx-deploy-76cc5c5b-rzj96   1/1     Running   0          3m51s   10.244.54.50   only-worker-node-4   <none>           <none>            func=test-service,pod-template-hash=76cc5c5b





# 创建service

[root@master-worker-node-1 service]# kubectl get service test-service -o wide

NAME           TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)           AGE     SELECTOR

test-service   NodePort   10.105.161.8   <none>        31111:31123/TCP   2m54s   func=test-service



# 创建service的时候会同步创建一个同名的endpoints资源

[root@master-worker-node-1 service]# kubectl get endpoints  test-service

NAME           ENDPOINTS                                         AGE

test-service   10.244.31.44:80,10.244.31.46:80,10.244.54.50:80   3h26m



# service和pod自动关联

[root@master-worker-node-1 service]# kubectl describe service test-service

Name:                     test-service

Namespace:                default

Labels:                   <none>

Annotations:              <none>

Selector:                 func=test-service

Type:                     NodePort                # 通过访问每个节点的物理网络都可以访问到pod内的应用资源

IP Family Policy:         SingleStack

IP Families:              IPv4

IP:                       10.105.161.8            # service的地址

IPs:                      10.105.161.8

Port:                     test  31111/TCP        # 将service的31111端口映射到内部pod的80端口

TargetPort:               80/TCP                # 表示内部pod暴露的端口

NodePort:                 test  31123/TCP        # 将service的31111端口和每个集群中的物理节点31123端口绑定

Endpoints:                10.244.31.44:80,10.244.31.46:80,10.244.54.50:80        # 标签选择器对应上的pod ip

Session Affinity:         None

External Traffic Policy:  Cluster

Events:                   <none>





# 访问service IP的地址+端口可以访问内部资源

[root@master-worker-node-1 service]# curl  10.105.161.8:31111

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.54.50/32

[root@master-worker-node-1 service]# curl  10.105.161.8:31111

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.31.46/32

[root@master-worker-node-1 service]# curl  10.105.161.8:31111

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.31.44/32



# 在集群中任意一个节点上，访问其物理网络的31123端口也能访问到pod内部资源

[root@master-worker-node-2 ~]# ip add show ens3 |  grep 192

    inet 192.168.122.106/24 brd 192.168.122.255 scope global noprefixroute ens3

[root@master-worker-node-2 ~]# curl 192.168.122.106:31123

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.54.50/32





[root@master-worker-node-1 service]# ip add show ens3 |  grep 192

    inet 192.168.122.89/24 brd 192.168.122.255 scope global noprefixroute ens3

    inet 192.168.122.253/24 scope global secondary ens3

[root@master-worker-node-1 service]# curl 192.168.122.89:31123

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.31.46/32



# 上述环境中，能访问的原因与ipvs规则有关



[root@master-worker-node-1 manifests]# kubectl get configmaps -n kube-system -o yaml |  grep -E "ipvs|Proxy"

      ipvs:

      kind: KubeProxyConfiguration

      mode: ipvs



# 每一个节点上都有ipvs规则

[root@master-worker-node-1 manifests]# ipvsadm -Ln |  grep 31123 -A 3

TCP  172.17.0.1:31123 rr

  -> 10.244.31.44:80              Masq    1      0          0         # rr表示轮询

  -> 10.244.31.46:80              Masq    1      0          0

  -> 10.244.54.50:80              Masq    1      0          0

TCP  192.168.122.89:31123 rr

  -> 10.244.31.44:80              Masq    1      0          0

  -> 10.244.31.46:80              Masq    1      0          0

  -> 10.244.54.50:80              Masq    1      0          0

TCP  192.168.122.253:31123 rr

  -> 10.244.31.44:80              Masq    1      0          0

  -> 10.244.31.46:80              Masq    1      0          0

  -> 10.244.54.50:80              Masq    1      0          0

--

TCP  10.244.123.128:31123 rr

  -> 10.244.31.44:80              Masq    1      0          0

  -> 10.244.31.46:80              Masq    1      0          0

  -> 10.244.54.50:80              Masq    1      0          0



Service type: ExternalName



# 背景：默认情况下，访问同名空间下的service仅需要访问service-name就行，而一个命名空间下的pod想要其他命名空间下的service，需要使用完整域名才行。

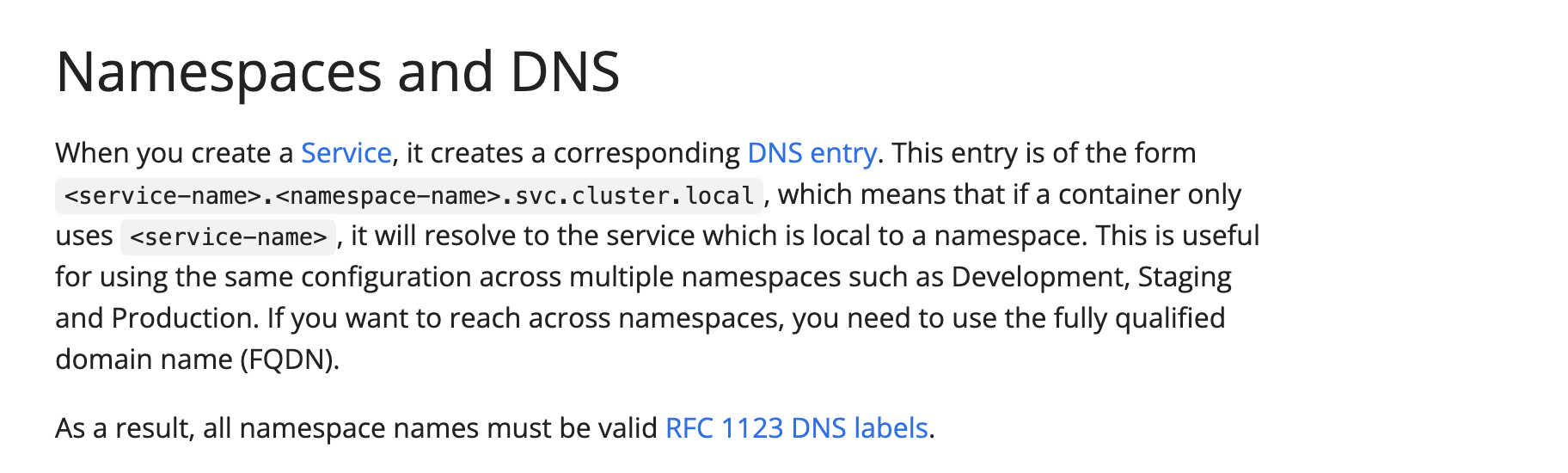

# 完整域名: service-name.namespace-name.svc.cluster.local



[root@master-worker-node-1 ~]# kubectl get svc -o wide -A |  grep -E "NAME|service"

NAMESPACE     NAME              TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                  AGE     SELECTOR

default       service-default   ClusterIP   10.109.121.131   <none>        30000/TCP                7h36m   func=test-service

ns-1          service-ns-1      ClusterIP   10.103.47.187    <none>        30000/TCP                7h25m   func=test-service

ns-2          service-ns-2      ClusterIP   10.103.149.111   <none>        30000/TCP                7h24m   func=test-service



[root@master-worker-node-1 ~]# kubectl exec -it -n ns-1 centos -- bash

[root@centos /]# cat /etc/resolv.conf

search ns-1.svc.cluster.local svc.cluster.local cluster.local    # 域名

nameserver 10.96.0.10

options ndots:5



[root@centos /]# curl service-ns-1:30000

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.31.55/32

[root@centos /]# curl service-ns-2:30000

curl: (6) Could not resolve host: service-ns-2



[root@centos /]# curl service-ns-2.ns-2.svc.cluster.local:30000

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.54.57/32



[root@centos /]# host service-ns-1

service-ns-1.ns-1.svc.cluster.local has address 10.103.47.187

[root@centos /]# host service-ns-2

Host service-ns-2 not found: 3(NXDOMAIN)





[root@centos /]# curl 10.103.109.121.131:30000

curl: (6) Could not resolve host: 10.103.109.121.131



[root@centos /]# curl 10.109.121.131:30000

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.31.52/32



# 上面的例子看到，虽然访问短域名不行，但是可以通过完整域名和clusterip进行访问，那为什么还需要external name呢？

# 我理解这就是因为1、service IP可能因为集群环境的重启的发生变化，而且地址记忆没有域名清晰；2、带service-name和namespace-name的域名不好记忆，可以通过命名别名一样完成配置。方便维护



# 在上面的例子中，ns-1中的POD想要访问ns-2中的service，就可以将ns-2的完整域名配置一个软连接，external Name



# externalName配置文件

[root@master-worker-node-1 service]# cat external-name.yaml

apiVersion: v1

kind: Service

metadata:

  name: test-external-name

  namespace: ns-1

spec:

  type: ExternalName

  externalName: service-ns-2.ns-2.svc.cluster.local





[root@master-worker-node-1 service]# kubectl apply -f external-name.yaml

service/test-external-name created





[root@master-worker-node-1 service]# kubectl get service -o wide -A  |  grep service

default       service-default      ClusterIP      10.109.121.131   <none>                                30000/TCP                8h      func=test-service

ns-1          service-ns-1         ClusterIP      10.103.47.187    <none>                                30000/TCP                7h49m   func=test-service

ns-1          test-external-name   ExternalName   <none>           service-ns-2.ns-2.svc.cluster.local   <none>                   6m10s   <none>

ns-2          service-ns-2         ClusterIP      10.103.149.111   <none>                                30000/TCP                7h49m   func=test-service





[root@master-worker-node-1 service]# kubectl exec -it centos -n ns-1 -- bash

[root@centos /]# host test-external-name

test-external-name.ns-1.svc.cluster.local is an alias for service-ns-2.ns-2.svc.cluster.local.

service-ns-2.ns-2.svc.cluster.local has address 10.103.149.111



[root@centos /]# ping test-external-name -c 2

PING service-ns-2.ns-2.svc.cluster.local (10.103.149.111) 56(84) bytes of data.

64 bytes from service-ns-2.ns-2.svc.cluster.local (10.103.149.111): icmp_seq=1 ttl=64 time=0.129 ms

64 bytes from service-ns-2.ns-2.svc.cluster.local (10.103.149.111): icmp_seq=2 ttl=64 time=0.201 ms





--- service-ns-2.ns-2.svc.cluster.local ping statistics ---

2 packets transmitted, 2 received, 0% packet loss, time 1002ms

rtt min/avg/max/mdev = 0.129/0.165/0.201/0.036 ms



[root@centos /]# curl test-external-name:30000

the version is 1.1.0, this is a nginx server in container, and the ip is 10.244.31.56/32



# 感觉像是访问自己命名空间下的资源一样。





小结





1、k8s中有三种ip，node IP、Pod IP和Cluster IP；



2、service的类型有四种：

    cluster ip：只能在集群内访问；means a service will only be accessible inside the cluster, via the cluster IP

    nodePort: 可以在集群外访问，也可以在集群内访问。means a service will be exposed on one port of every node, in addition to 'ClusterIP' type.

    ExternalName：means a service consists of only a reference to an external name that kubedns or equivalent will return as a CNAME record, with no exposing or proxying of any pods involved.

    LoadBalancer: means a service will be exposed via an external load balancer (if the cloud provider supports it), in addition to 'NodePort' type.



3、k8s中的namespace没有网络隔离功能，不能的ns只能算是不同的项目，不是内核态的namespace。因此，不同ns下的pod默认是互通的，pod也能访问其他ns下的资源。但是访问需要使用IP地址或者完整域名。此时为了方便，可以创建externalName的链接来实现跨namespace的互访。
