Windows虚拟机安装ubuntu server，网络配置和性能增强

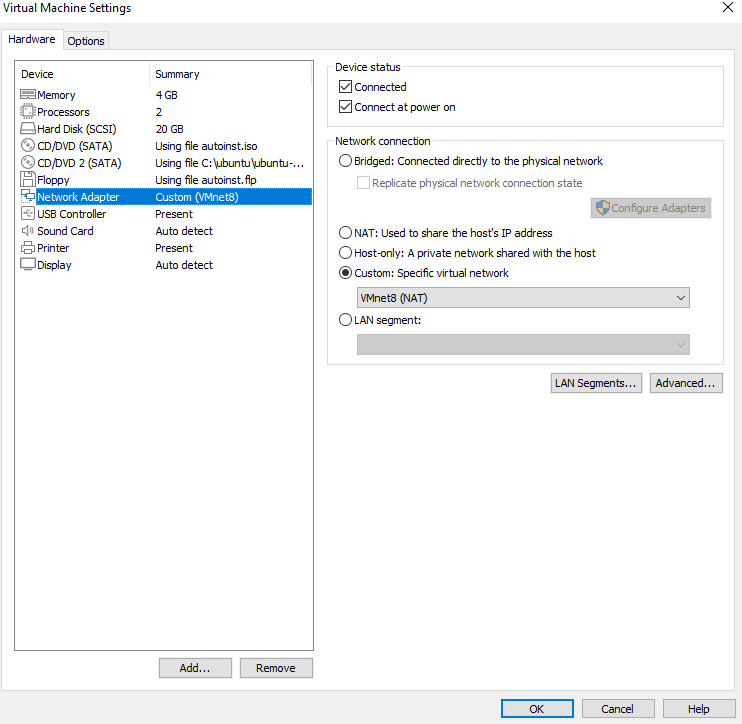

虚拟机网络配置

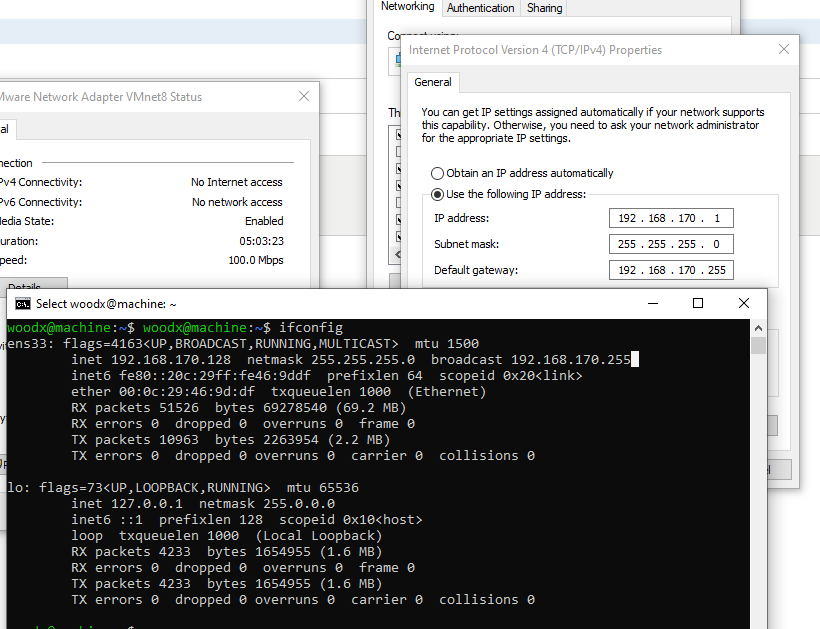

在setting里搜network设置，修改vmnet8（NAT）配置。根据虚拟机ip来改。





再来一点增强虚拟机性能的技巧







Edit Group Policy

• Edit group policy (gpedit)
• Go to Local Computer Policy > Computer Configuration > Administrative Templates > System
• Double Click on Device Guard on the right hand side to open.
• Double Click on Turn On Virtualization Security to open a new window
• It would be Not Configured, Select Disable and click Ok
• Close the Group Policy Editor
• Restart the system

Edit Registry Entry

• Open Registry Editor
• Go to HKEY_LOCAL_MACHINE > SYSTEM > CurrentControlSet > Control > DeviceGuard
• Check for key EnableVirtualizationBasedSecurity
  • The value of the registry should be 0
• If the key is not present, on the right-hand side, write a new key
  • Right Click > New > DWORD (32-bit) Value
  • Name this Value EnableVirtualizationBasedSecurity
  • By default, it should be 0, Double click, and confirm the value
• Go to HKEY_LOCAL_MACHINE > SYSTEM > CurrentControlSet > Control > Lsa
• Check for key LsaCfgFlags
  • The value of the registry should be 0
• If the key is not present, on the right-hand side, write a new key
  • Right Click > New > DWORD (32-bit) Value
  • Name this Value LsaCfgFlags
  • By default, it should be 0, Double click, and confirm the value
• Restart the system

Toggle Hyper-V

• Open Turn Windows Features On or Off
• Enable Hyper-V
• Restart the system
• Open Turn Windows Features On or Off after restart
• Disable Hyper-V
• run cmd as admin: bcdedit /set hypervisorlaunchtype off
• Restart the system again

Steps for VMware Workstation Pro

Switch to VMware Workstation Pro and Full Resource Allocation

• Both applications are of same price now in software center
• Remove VMware player from software center
• Install VMware workstation pro instead
• This allows you to have full control over virtual machine resources
• In VMware workstation pro open Edit > Preferences > Memory
• Set additional memory setting to: Fit all virtual machine memory into reserved host RAM
• Restart VMware workstation pro
• Restart virtual machine

Disable Memory Integrity

• Windows Security -> Device Security -> Core Isolation details
• Switch off feature
• Make a restart

Reducing System Stress due to Disk Performance

• Set NtfsMemoryUsage = 2 in the registry key:
  • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem
• Make a restart
