Linux下配置VNC
环境: REDHAT 5
1. 检查是否安装了VNC:
rpm -qa vnc-server
yum install vnc-server
2. 配置vncserver登录密码:
[root@Redhat ~]# vncserver
You will require a password to access your desktops.
Password:
Verify:
xauth: creating new authority file /root/.Xauthority
New 'Redhat:1 (root)' desktop is Redhat:1
Creating default startup script /root/.vnc/xstartup
Starting applications specified in /root/.vnc/xstartup
Log file is /root/.vnc/Redhat:1.log
3. 配置vncserver启动文件:
vi ~/.vnc/xstartup
# Uncomment the following two lines for normal desktop:
unset SESSION_MANAGER
exec /etc/X11/xinit/xinitrc
[ -x /etc/vnc/xstartup ] && exec /etc/vnc/xstartup
[ -r $HOME/.Xresources ] && xrdb $HOME/.Xresources
xsetroot -solid grey
vncconfig -iconic &
xterm -geometry 80x24+10+10 -ls -title "$VNCDESKTOP Desktop" &
# twm &
gnome-session &
4. 配置vncservers文件
vi /etc/sysconfig/vncservers
修改后文件:
# The VNCSERVERS variable is a list of display:user pairs.
#
# Uncomment the lines below to start a VNC server on display :2
# as my 'myusername' (adjust this to your own). You will also
# need to set a VNC password; run 'man vncpasswd' to see how
# to do that.
#
# DO NOT RUN THIS SERVICE if your local area network is
# untrusted! For a secure way of using VNC, see
# <URL:http://www.uk.research.att.com/archive/vnc/sshvnc.html>.
# Use "-nolisten tcp" to prevent X connections to your VNC server via TCP.
# Use "-nohttpd" to prevent web-based VNC clients connecting.
# Use "-localhost" to prevent remote VNC clients connecting except when
# doing so through a secure tunnel. See the "-via" option in the
# `man vncviewer' manual page.
# VNCSERVERS="2:myusername"
# VNCSERVERARGS[2]="-geometry 800x600 -nolisten tcp -nohttpd -localhost"
VNCSERVERS="1:root"
VNCSERVERARGS[1]="-geometry 1024x768 -nolisten tcp -nohttpd -localhost"
5. 关闭防火墙
service iptables stop
或者开放VNC端口:
/sbin/iptables -I INPUT -p tcp --dport 5801 -j ACCEPT
/sbin/iptables -I INPUT -p tcp --dport 5900:5903 -j ACCEPT
/etc/rc.d/init.d/iptables save
/etc/init.d/iptables restart
6. 杀掉当前进程:
vncserver -kill :1
vncserver -kill :2
...
7. 启动vncserver
[root@Redhat ~]# vncserver
New 'Redhat:1 (root)' desktop is Redhat:1
Starting applications specified in /root/.vnc/xstartup
Log file is /root/.vnc/Redhat:1.log
8. 通过浏览器(JAVA)连接:
http://192.168.65.131:5801/

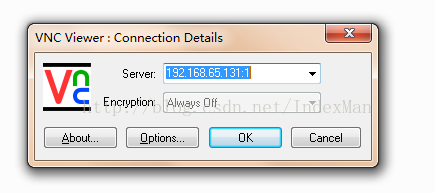

9. 通过VNC Viewer客户端连接:
192.168.65.131:1
![](https://img-blog.csdn.net/20140629221250093?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvSW5kZXhNYW4=/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/Center)

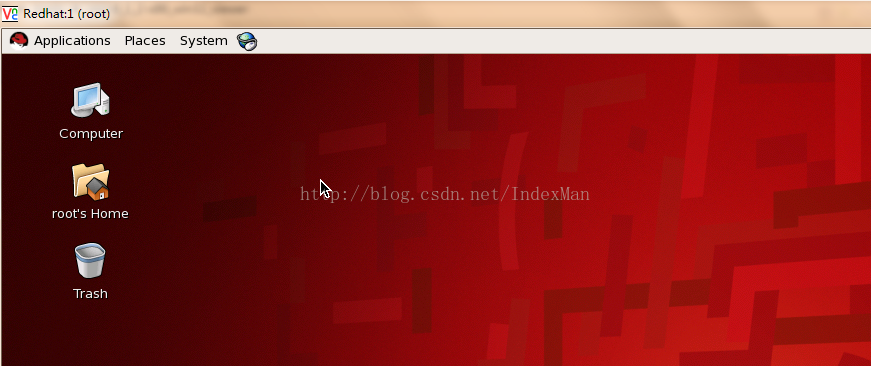

根据提示输入前面配置的登录密码即可打开!
![](https://img-blog.csdn.net/20140629221308078?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvSW5kZXhNYW4=/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/Center)
1. 检查是否安装了VNC:
rpm -qa vnc-server
vnc-server-4.1.2-9.el5
yum install vnc-server
2. 配置vncserver登录密码:
[root@Redhat ~]# vncserver
You will require a password to access your desktops.
Password:
Verify:
xauth: creating new authority file /root/.Xauthority
New 'Redhat:1 (root)' desktop is Redhat:1
Creating default startup script /root/.vnc/xstartup
Starting applications specified in /root/.vnc/xstartup
Log file is /root/.vnc/Redhat:1.log
3. 配置vncserver启动文件:
vi ~/.vnc/xstartup
修改后文件:
# Uncomment the following two lines for normal desktop:
unset SESSION_MANAGER
exec /etc/X11/xinit/xinitrc
[ -x /etc/vnc/xstartup ] && exec /etc/vnc/xstartup
[ -r $HOME/.Xresources ] && xrdb $HOME/.Xresources
xsetroot -solid grey
vncconfig -iconic &
xterm -geometry 80x24+10+10 -ls -title "$VNCDESKTOP Desktop" &
# twm &
gnome-session &
4. 配置vncservers文件
vi /etc/sysconfig/vncservers
修改后文件:
# The VNCSERVERS variable is a list of display:user pairs.
#
# Uncomment the lines below to start a VNC server on display :2
# as my 'myusername' (adjust this to your own). You will also
# need to set a VNC password; run 'man vncpasswd' to see how
# to do that.
#
# DO NOT RUN THIS SERVICE if your local area network is
# untrusted! For a secure way of using VNC, see
# <URL:http://www.uk.research.att.com/archive/vnc/sshvnc.html>.
# Use "-nolisten tcp" to prevent X connections to your VNC server via TCP.
# Use "-nohttpd" to prevent web-based VNC clients connecting.
# Use "-localhost" to prevent remote VNC clients connecting except when
# doing so through a secure tunnel. See the "-via" option in the
# `man vncviewer' manual page.
# VNCSERVERS="2:myusername"
# VNCSERVERARGS[2]="-geometry 800x600 -nolisten tcp -nohttpd -localhost"
VNCSERVERS="1:root"
VNCSERVERARGS[1]="-geometry 1024x768 -nolisten tcp -nohttpd -localhost"
5. 关闭防火墙
service iptables stop
或者开放VNC端口:
/sbin/iptables -I INPUT -p tcp --dport 5801 -j ACCEPT
/sbin/iptables -I INPUT -p tcp --dport 5900:5903 -j ACCEPT
/etc/rc.d/init.d/iptables save
/etc/init.d/iptables restart
6. 杀掉当前进程:
vncserver -kill :1
vncserver -kill :2
...
7. 启动vncserver
[root@Redhat ~]# vncserver
New 'Redhat:1 (root)' desktop is Redhat:1
Starting applications specified in /root/.vnc/xstartup
Log file is /root/.vnc/Redhat:1.log
8. 通过浏览器(JAVA)连接:
http://192.168.65.131:5801/
9. 通过VNC Viewer客户端连接:
192.168.65.131:1
根据提示输入前面配置的登录密码即可打开!
PS:可能出现的问题:
a、黑屏
在Linux里安装配置完VNC服务端,发现多用户登陆会出现黑屏的情况,具体的现象为:
客户端可以通过IP与会话号登陆进入系统,但登陆进去是漆黑一片,除了一个叉形的鼠标以外,伸手不见五指。
原因:用户的VNC的启动文件权限未设置正确。
解决方法:将黑屏用户的xstartup(一般为:/home/用户名称/.vnc/xstartup)文件的属性修改为755(rwxr-xr-x)。
b、vnc 能输入数字,但不能输入字母
原因:vnc server这边会要求vnc viewer这边OS的输入法要和vnc server那边OS的语言要一致。
解决方法:一般我们装的Linux OS都是E文的,所以使用vnc viewer连入的时候,请关闭本地OS的中文输入法,切换到英语就可以了。
--------------------------------
