Hive与MySQL、Oracle、SqlServer的简单交换

前言

Hive与Mysql

hive到mysql

mysql到hive

前言

在https://blog.csdn.net/lw18751836671/article/details/119794613?spm=1001.2014.3001.5501中写了关于hive到hive之间的交换，现在就将xml的数据变动一下实现hive和三种数据库简单交换。

这里只是做一个简单模型，复杂的都是从里面延伸出来，复杂的也懒得写，太多了。

Hive与Mysql

hive到mysql

mysql中建表，建立一个目标表


CREATE TABLE `user_info_dest` (
  `id` varchar(36) DEFAULT NULL,
  `name` varchar(36) DEFAULT NULL
);

修改代码中关于目标表的连接，由之前的hive，修改为mysql

//目标数据库连接
		String dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>dest</name>" +
				"<server>192.168.10.64</server>" +
				"<type>MYSQL</type>" +
				"<access>Native</access>" +
				"<database>test</database>" +
				"<port>3306</port>" +
				"<username>root</username>" +
				"<password>root</password>" +
				"</connection>";

OK,其他不用改变。

mysql到hive

在mysql中建立源表，并插入一条数据。

CREATE TABLE `user_info_src` (
  `id` varchar(36) DEFAULT NULL,
  `name` varchar(36) DEFAULT NULL
)

然后将代码中源数据库连接的xml改为mysql的，还是上面那个mysql,

//源数据库连接
		String mysqL_src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>mysqL_src</name>" +
				"<server>192.168.10.64</server>" +
				"<type>MYSQL</type>" +
				"<access>Native</access>" +
				"<database>test</database>" +
				"<port>3306</port>" +
				"<username>root</username>" +
				"<password>root</password>" +
				"</connection>";

其他不用变，直接运行即可交换成功。

HIve与Oracle

hive到oracle

oracle中建立目标表，注意此处的字段名是大写了，因为oracle是大小写敏感，同时也是为了说明一个其他问题。

CREATE TABLE USER_INFO_DEST (
  ID varchar2(36) ,
  NAME varchar2(36)
);

然后目标数据库连接改为oracle的，

//目标数据库连接
		String dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>dest</name>" +
				"<server>192.168.1.172</server>" +
				"<type>ORACLE</type>" +
				"<access>Native</access>" +
				"<database>fableorcl</database>" +
				"<port>1521</port>" +
				"<username>fable</username>" +
				"<password>fable</password>" +
				"</connection>";

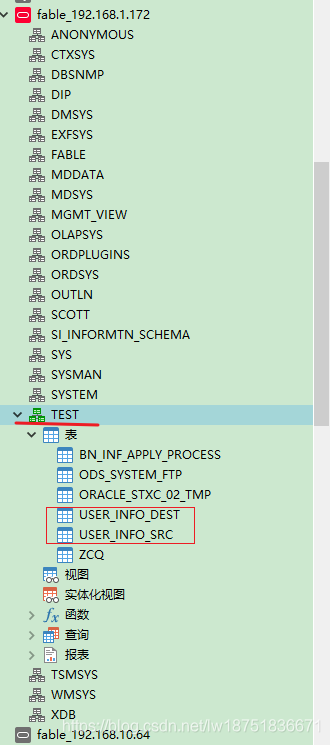

因为oracle是有schema的概念的，所以需要在代码中tableoutput添加schema，之前是设置为空的，

//设置目标表的 schema和表名
		tableOutputMeta.setSchemaName("TEST");

然后交换就成功了。

oracle到hive

在oracle中建立一个源表，并插入数据，

CREATE TABLE USER_INFO_SRC (
  ID varchar2(36) ,
  NAME varchar2(36)
);

然后把源库连接改为oracle，目标库连接的xml改为hive。

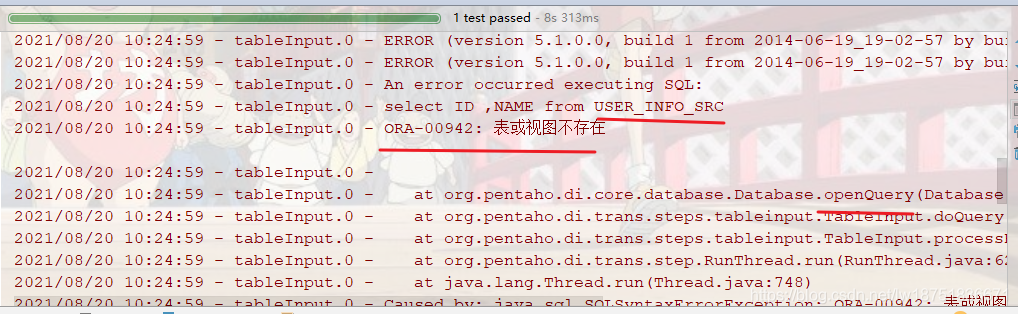

如果这样运行交换会报错，如下图所示，

所以需要在 tableInputMeta.setSQL(selectSql); 设置SQL时指定schema，所以selectSQL要改为如下，

String selectSql = "select ID ,NAME from TEST.USER_INFO_SRC";

继续报错，这里是说ID，NAME无法插入执行，

这里贴一下报错信息，当然是简化版，看我加粗的就知道是hive报错了，

2021/08/20 10:27:15 - tableInput.0 - 完成处理 (I=1, O=0, R=0, W=1, U=0, E=0

2021/08/20 10:27:15 - tableOutput.0 - ERROR (version 5.1.0.0, build 1 from 2014-06-19_19-02-57 by buildguy) : Because of an error, this step can't continue:

2021/08/20 10:27:15 - tableOutput.0 - ERROR (version 5.1.0.0, build 1 from 2014-06-19_19-02-57 by buildguy) : org.pentaho.di.core.exception.KettleException:

2021/08/20 10:27:15 - tableOutput.0 - Error inserting row into table [user_info_dest] with values: [oracle], [oracle]

2021/08/20 10:27:15 - tableOutput.0 -

2021/08/20 10:27:15 - tableOutput.0 - Error inserting/updating row

2021/08/20 10:27:15 - tableOutput.0 - Error while compiling statement: FAILED: SemanticException 1:28 '[ID, NAME]' in insert schema specification are not found among regular columns of ntzw_dev_64.user_info_dest nor dynamic partition columns.. Error encountered near token 'NAME'

2021/08/20 10:27:15 - tableOutput.0 -

2021/08/20 10:27:15 - tableOutput.0 -

2021/08/20 10:27:15 - tableOutput.0 - at org.pentaho.di.trans.steps.tableoutput.TableOutput.writeToTable(TableOutput.java:377)

2021/08/20 10:27:15 - tableOutput.0 - at org.pentaho.di.trans.steps.tableoutput.TableOutput.processRow(TableOutput.java:118)

2021/08/20 10:27:15 - tableOutput.0 - at org.pentaho.di.trans.step.RunThread.run(RunThread.java:62)

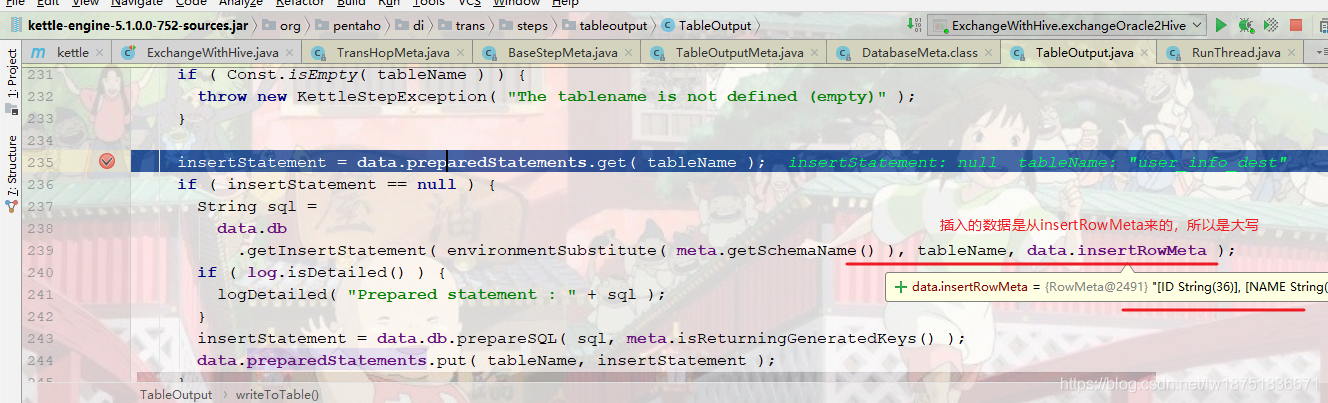

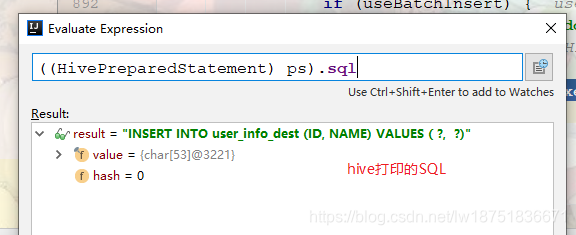

在运行中打印了一下hive的插入SQL语句，如下图，

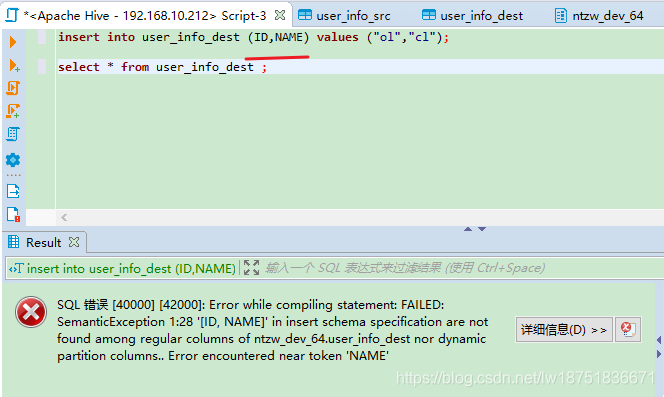

把这个SQL语句放入hive中执行一下，如下图所示报错，

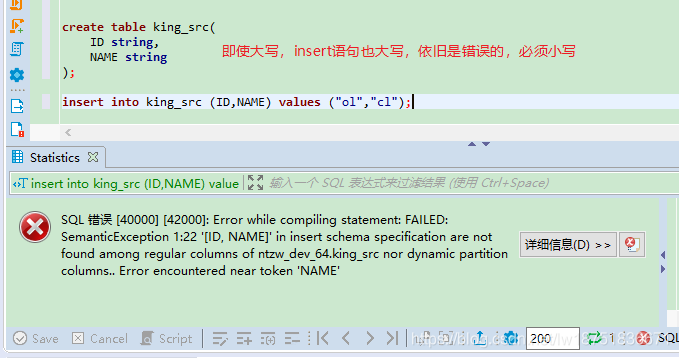

如果id,name是小写，那么是可以成功的，因为Hive的表字段是小写。

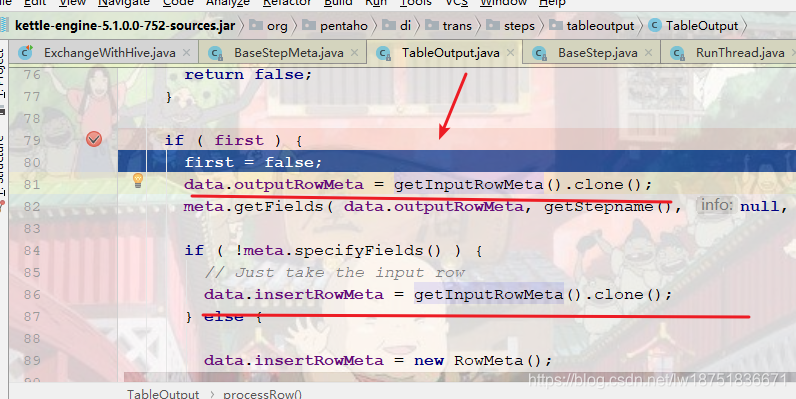

那就是看这个SQL是在哪拼接的，看代码发现是如下图处，获取InputRowMeta，这不就是select语句的列么？

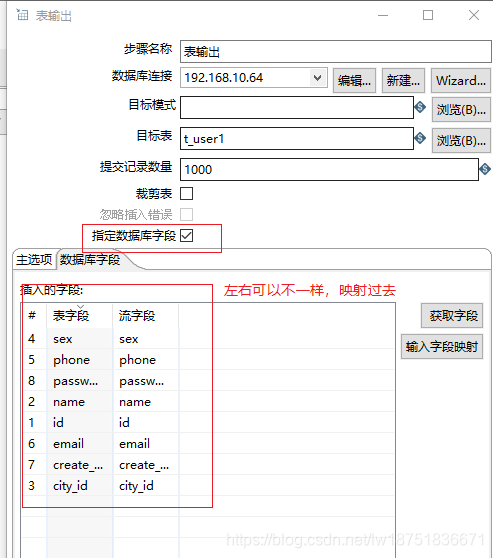

然后那就要做个映射了，和spoon工具一样，

所以那就要用一个SelectValuesMeta，OK，新增的代码如下，

//将ID,NAME列的值映射到列id,name
		SelectValuesMeta selectValuesTime = new SelectValuesMeta();
		String selectValuesPluginIdTime = registry.getPluginId(StepPluginType.class, selectValuesTime);

		selectValuesTime.allocate(2,0,0);
		String[] srcColNames = new String[]{"ID","NAME"};
		selectValuesTime.setSelectName(srcColNames);
		String[] destColNames = new String[]{"id","name"};
		selectValuesTime.setSelectRename(destColNames);

		StepMeta selectValuesStep = new StepMeta(selectValuesPluginIdTime, "selectValuesTime", (StepMetaInterface)selectValuesTime);
		transMeta.addStep(selectValuesStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, selectValuesStep));

现在TableInput关联到SelectValues，那么TableOutput的数据当然是从SelectValues中获取了，

//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(selectValuesStep, tableOutputStep));

运行OK，交换成功。

HIVE与SQLserver

hive到sqlserver

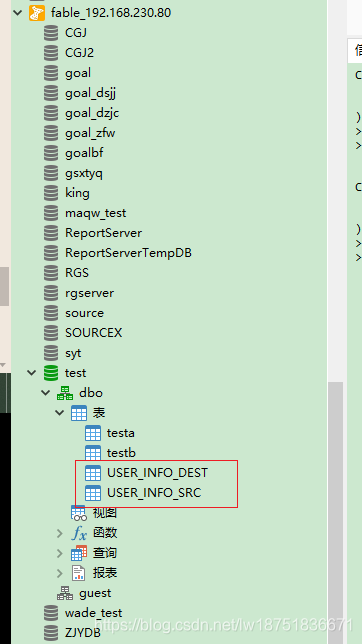

sqlserver中建表，

CREATE TABLE USER_INFO_DEST (
  ID varchar(36) ,
  NAME varchar(36)
);

修改目标库的xml为SQLserver,

//目标数据库连接
		String dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>dest</name>" +
				"<server>192.168.230.80</server>" +
				"<type>MSSQL</type>" +
				"<access>Native</access>" +
				"<database>test</database>" +
				"<port>1433</port>" +
				"<username>sa</username>" +
				"<password>123456</password>" +
				"</connection>";

运行报错，连不上数据库？明明Pom里面引入了sqlserver的jdbc包。

<dependency>
            <groupId>com.microsoft.sqlserver</groupId>
            <artifactId>sqljdbc4</artifactId>
            <version>4.0</version>
        </dependency>

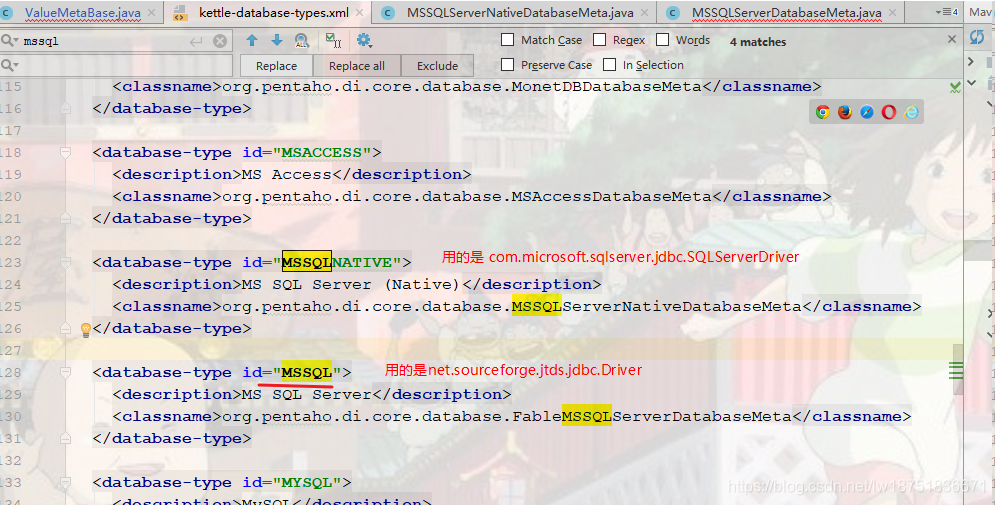

但搜了一下，确实没有报错所说的Driver，然后去看5.1的源码，要么就是xml中的type节点改为MSSQLNATIVE，要么就是引包。

FableMSSQLServerDatabaseMeta继承了MSSQLServerDatabaseMeta，是我改写的一个类。

引入如下包，OK，交换成功。

<dependency>
			<groupId>net.sourceforge.jtds</groupId>
			<artifactId>jtds</artifactId>
			<version>1.3.1</version>
		</dependency>

sqlserver到hive

和前面大致一样，源的xml改为sqlserver，目标是hive即可。

完整代码

package com.lw.kettle;

import org.junit.Before;
import org.junit.Test;
import org.pentaho.di.core.KettleEnvironment;
import org.pentaho.di.core.database.DatabaseMeta;
import org.pentaho.di.core.exception.KettleException;
import org.pentaho.di.core.exception.KettleXMLException;
import org.pentaho.di.core.logging.LogLevel;
import org.pentaho.di.core.plugins.PluginRegistry;
import org.pentaho.di.core.plugins.StepPluginType;
import org.pentaho.di.core.row.RowMetaInterface;
import org.pentaho.di.core.util.EnvUtil;
import org.pentaho.di.trans.Trans;
import org.pentaho.di.trans.TransHopMeta;
import org.pentaho.di.trans.TransMeta;
import org.pentaho.di.trans.step.StepMeta;
import org.pentaho.di.trans.step.StepMetaInterface;
import org.pentaho.di.trans.steps.selectvalues.SelectMetadataChange;
import org.pentaho.di.trans.steps.selectvalues.SelectValuesMeta;
import org.pentaho.di.trans.steps.tableinput.TableInputMeta;
import org.pentaho.di.trans.steps.tableoutput.TableOutputData;
import org.pentaho.di.trans.steps.tableoutput.TableOutputMeta;

import java.util.ArrayList;
import java.util.List;

/**
 * 关联hive相关的交换
 * @author Administrator
 *
 */
public class ExchangeWithHive {

	@Before
	public void before() {
		try {
			// 初始化Kettle环境
			KettleEnvironment.init();
			EnvUtil.environmentInit();
		} catch (KettleException e) {
			e.printStackTrace();
		}
	}


	/**
	 * hive之间的交换
	 * @throws KettleException
	 */
	@Test
	public void exchangeHive2Hive() throws KettleException{
		//源数据库连接
		String hive_src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
                "<connection>" +
                "<name>hive_src</name>" +
                "<server>192.168.10.212</server>" +
                "<type>HIVE2</type>" +
                "<access>Native</access>" +
                "<database>ntzw_dev_64</database>" +
                "<port>10000</port>" +
                "<username>hadoop</username>" +
                "<password>hadoop</password>" +
                "</connection>";

		//目标数据库连接
        String hive_dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
                "<connection>" +
                "<name>hive_dest</name>" +
                "<server>192.168.10.212</server>" +
                "<type>HIVE2</type>" +
                "<access>Native</access>" +
                "<database>ntzw_dev_64</database>" +
                "<port>10000</port>" +
                "<username>hadoop</username>" +
                "<password>hadoop</password>" +
                "</connection>";

        DatabaseMeta srcDatabaseMeta = new DatabaseMeta(hive_src);
        DatabaseMeta destDatabaseMeta = new DatabaseMeta(hive_dest);

        //创建转换元信息
        TransMeta transMeta = new TransMeta();
		transMeta.setName("hive之间的交换");

		//设置源和目标
		transMeta.addDatabase(srcDatabaseMeta);
		transMeta.addDatabase(destDatabaseMeta);

		/*
		 * 创建  表输入->表输出
		 * 同时将两个步骤连接起来
		 */
		PluginRegistry registry = PluginRegistry.getInstance();
		TableInputMeta tableInputMeta = new TableInputMeta();
		String tableInputPluginId = registry.getPluginId(StepPluginType.class,
				tableInputMeta);

		tableInputMeta.setDatabaseMeta(srcDatabaseMeta);
		//设置查询条件
		String selectSql = "select id ,name from user_info_src";
		tableInputMeta.setSQL(selectSql);

		StepMeta tableInputStepMeta = new StepMeta(tableInputPluginId,
				"tableInput", (StepMetaInterface) tableInputMeta);
		transMeta.addStep(tableInputStepMeta);

		TableOutputMeta tableOutputMeta = new TableOutputMeta();
		tableOutputMeta.setDatabaseMeta(destDatabaseMeta);

		//设置目标表的 schema和表名
		tableOutputMeta.setSchemaName(null);
		tableOutputMeta.setTablename("user_info_dest");

		String tableOutputPluginId = registry.getPluginId(StepPluginType.class, tableOutputMeta);
		StepMeta tableOutputStep = new StepMeta(tableOutputPluginId, "tableOutput" , (StepMetaInterface) tableOutputMeta);

		//将步骤添加进去
		transMeta.addStep(tableOutputStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, tableOutputStep));

		Trans trans = new Trans(transMeta);

		//执行转换
		trans.execute(null);

		//等待完成
		trans.waitUntilFinished();
		if (trans.getErrors() > 0) {
			System.out.println("交换出错.");
			return;
		}

	}

	/**
	 * mysql到hive之间的交换
	 * @throws KettleException
	 */
	@Test
	public void exchangeMySQL2Hive() throws KettleException{
		//源数据库连接
		String mysqL_src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>mysqL_src</name>" +
				"<server>192.168.10.64</server>" +
				"<type>MYSQL</type>" +
				"<access>Native</access>" +
				"<database>test</database>" +
				"<port>3306</port>" +
				"<username>root</username>" +
				"<password>root</password>" +
				"</connection>";

		//目标数据库连接
		String hive_dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>hive_dest</name>" +
				"<server>192.168.10.212</server>" +
				"<type>HIVE2</type>" +
				"<access>Native</access>" +
				"<database>ntzw_dev_64</database>" +
				"<port>10000</port>" +
				"<username>hadoop</username>" +
				"<password>hadoop</password>" +
				"</connection>";

		DatabaseMeta srcDatabaseMeta = new DatabaseMeta(mysqL_src);
		DatabaseMeta destDatabaseMeta = new DatabaseMeta(hive_dest);

		//创建转换元信息
		TransMeta transMeta = new TransMeta();
		transMeta.setName("mysql到hive之间的交换");

		//设置源和目标
		transMeta.addDatabase(srcDatabaseMeta);
		transMeta.addDatabase(destDatabaseMeta);

		/*
		 * 创建  表输入->表输出
		 * 同时将两个步骤连接起来
		 */
		PluginRegistry registry = PluginRegistry.getInstance();
		TableInputMeta tableInputMeta = new TableInputMeta();
		String tableInputPluginId = registry.getPluginId(StepPluginType.class,
				tableInputMeta);

		tableInputMeta.setDatabaseMeta(srcDatabaseMeta);
		//设置查询条件
		String selectSql = "select id ,name from user_info_src";
		tableInputMeta.setSQL(selectSql);

		StepMeta tableInputStepMeta = new StepMeta(tableInputPluginId,
				"tableInput", (StepMetaInterface) tableInputMeta);
		transMeta.addStep(tableInputStepMeta);

		TableOutputMeta tableOutputMeta = new TableOutputMeta();
		tableOutputMeta.setDatabaseMeta(destDatabaseMeta);

		//设置目标表的 schema和表名
		tableOutputMeta.setSchemaName(null);
		tableOutputMeta.setTablename("user_info_dest");

		String tableOutputPluginId = registry.getPluginId(StepPluginType.class, tableOutputMeta);
		StepMeta tableOutputStep = new StepMeta(tableOutputPluginId, "tableOutput" , (StepMetaInterface) tableOutputMeta);

		//将步骤添加进去
		transMeta.addStep(tableOutputStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, tableOutputStep));

		Trans trans = new Trans(transMeta);

		//执行转换
		trans.execute(null);

		//等待完成
		trans.waitUntilFinished();
		if (trans.getErrors() > 0) {
			System.out.println("交换出错.");
			return;
		}

	}

	/**
	 * hive 到 mysql 之间的交换
	 * @throws KettleException
	 */
	@Test
	public void exchangeHive2MySQL() throws KettleException{
		//源数据库连接
		String src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>src</name>" +
				"<server>192.168.10.212</server>" +
				"<type>HIVE2</type>" +
				"<access>Native</access>" +
				"<database>ntzw_dev_64</database>" +
				"<port>10000</port>" +
				"<username>hadoop</username>" +
				"<password>hadoop</password>" +
				"</connection>";

		//目标数据库连接
		String dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>dest</name>" +
				"<server>192.168.10.64</server>" +
				"<type>MYSQL</type>" +
				"<access>Native</access>" +
				"<database>test</database>" +
				"<port>3306</port>" +
				"<username>root</username>" +
				"<password>root</password>" +
				"</connection>";

		DatabaseMeta srcDatabaseMeta = new DatabaseMeta(src);
		DatabaseMeta destDatabaseMeta = new DatabaseMeta(dest);

		//创建转换元信息
		TransMeta transMeta = new TransMeta();
		transMeta.setName("hive 到 mysql 之间的交换");

		//设置源和目标
		transMeta.addDatabase(srcDatabaseMeta);
		transMeta.addDatabase(destDatabaseMeta);

		/*
		 * 创建  表输入->表输出
		 * 同时将两个步骤连接起来
		 */
		PluginRegistry registry = PluginRegistry.getInstance();
		TableInputMeta tableInputMeta = new TableInputMeta();
		String tableInputPluginId = registry.getPluginId(StepPluginType.class,
				tableInputMeta);

		tableInputMeta.setDatabaseMeta(srcDatabaseMeta);
		//设置查询条件
		String selectSql = "select id ,name from user_info_src";
		tableInputMeta.setSQL(selectSql);

		StepMeta tableInputStepMeta = new StepMeta(tableInputPluginId,
				"tableInput", (StepMetaInterface) tableInputMeta);
		transMeta.addStep(tableInputStepMeta);

		TableOutputMeta tableOutputMeta = new TableOutputMeta();
		tableOutputMeta.setDatabaseMeta(destDatabaseMeta);

		//设置目标表的 schema和表名
		tableOutputMeta.setSchemaName(null);
		tableOutputMeta.setTablename("user_info_dest");

		String tableOutputPluginId = registry.getPluginId(StepPluginType.class, tableOutputMeta);
		StepMeta tableOutputStep = new StepMeta(tableOutputPluginId, "tableOutput" , (StepMetaInterface) tableOutputMeta);

		//将步骤添加进去
		transMeta.addStep(tableOutputStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, tableOutputStep));

		Trans trans = new Trans(transMeta);

		//执行转换
		trans.execute(null);

		//等待完成
		trans.waitUntilFinished();
		if (trans.getErrors() > 0) {
			System.out.println("交换出错.");
			return;
		}

	}

	/**
	 * hive 到 oracle 之间的交换
	 * @throws KettleException
	 */
	@Test
	public void exchangeHive2Oracle()throws KettleException{
		//源数据库连接
		String src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>src</name>" +
				"<server>192.168.10.212</server>" +
				"<type>HIVE2</type>" +
				"<access>Native</access>" +
				"<database>ntzw_dev_64</database>" +
				"<port>10000</port>" +
				"<username>hadoop</username>" +
				"<password>hadoop</password>" +
				"</connection>";

		//目标数据库连接
		String dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>dest</name>" +
				"<server>192.168.1.172</server>" +
				"<type>ORACLE</type>" +
				"<access>Native</access>" +
				"<database>fableorcl</database>" +
				"<port>1521</port>" +
				"<username>fable</username>" +
				"<password>fable</password>" +
				"</connection>";

		DatabaseMeta srcDatabaseMeta = new DatabaseMeta(src);
		DatabaseMeta destDatabaseMeta = new DatabaseMeta(dest);

		//创建转换元信息
		TransMeta transMeta = new TransMeta();
		transMeta.setName("hive 到 oracle 之间的交换");

		//设置源和目标
		transMeta.addDatabase(srcDatabaseMeta);
		transMeta.addDatabase(destDatabaseMeta);

		/*
		 * 创建  表输入->表输出
		 * 同时将两个步骤连接起来
		 */
		PluginRegistry registry = PluginRegistry.getInstance();
		TableInputMeta tableInputMeta = new TableInputMeta();
		String tableInputPluginId = registry.getPluginId(StepPluginType.class,
				tableInputMeta);

		tableInputMeta.setDatabaseMeta(srcDatabaseMeta);
		//设置查询条件
		String selectSql = "select id ,name from user_info_src";
		tableInputMeta.setSQL(selectSql);

		StepMeta tableInputStepMeta = new StepMeta(tableInputPluginId,
				"tableInput", (StepMetaInterface) tableInputMeta);
		transMeta.addStep(tableInputStepMeta);

		TableOutputMeta tableOutputMeta = new TableOutputMeta();
		tableOutputMeta.setDatabaseMeta(destDatabaseMeta);

		//设置目标表的 schema和表名
		tableOutputMeta.setSchemaName("TEST");
		tableOutputMeta.setTablename("user_info_dest");

		String tableOutputPluginId = registry.getPluginId(StepPluginType.class, tableOutputMeta);
		StepMeta tableOutputStep = new StepMeta(tableOutputPluginId, "tableOutput" , (StepMetaInterface) tableOutputMeta);

		//将步骤添加进去
		transMeta.addStep(tableOutputStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, tableOutputStep));

		Trans trans = new Trans(transMeta);

		//执行转换
		trans.execute(null);

		//等待完成
		trans.waitUntilFinished();
		if (trans.getErrors() > 0) {
			System.out.println("交换出错.");
			return;
		}
	}

	/**
	 * oracle 到 hive 之间的交换
	 * @throws KettleException
	 */
	@Test
	public void exchangeOracle2Hive()throws KettleException{
		//源数据库连接
		String src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>src</name>" +
				"<server>192.168.1.172</server>" +
				"<type>ORACLE</type>" +
				"<access>Native</access>" +
				"<database>fableorcl</database>" +
				"<port>1521</port>" +
				"<username>fable</username>" +
				"<password>fable</password>" +
				"</connection>";

		//目标数据库连接
		String dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>dest</name>" +
				"<server>192.168.10.212</server>" +
				"<type>HIVE2</type>" +
				"<access>Native</access>" +
				"<database>ntzw_dev_64</database>" +
				"<port>10000</port>" +
				"<username>hadoop</username>" +
				"<password>hadoop</password>" +
				"</connection>";

		DatabaseMeta srcDatabaseMeta = new DatabaseMeta(src);
		DatabaseMeta destDatabaseMeta = new DatabaseMeta(dest);

		//创建转换元信息
		TransMeta transMeta = new TransMeta();
		transMeta.setName("oracle 到 hive 之间的交换");

		//设置源和目标
		transMeta.addDatabase(srcDatabaseMeta);
		transMeta.addDatabase(destDatabaseMeta);

		/*
		 * 创建  表输入->表输出
		 * 同时将两个步骤连接起来
		 */
		PluginRegistry registry = PluginRegistry.getInstance();
		TableInputMeta tableInputMeta = new TableInputMeta();
		String tableInputPluginId = registry.getPluginId(StepPluginType.class,
				tableInputMeta);

		tableInputMeta.setDatabaseMeta(srcDatabaseMeta);
		//设置查询条件
		String selectSql = "select ID,NAME from TEST.USER_INFO_SRC";
		tableInputMeta.setSQL(selectSql);

		StepMeta tableInputStepMeta = new StepMeta(tableInputPluginId,
				"tableInput", (StepMetaInterface) tableInputMeta);
		transMeta.addStep(tableInputStepMeta);

		//将ID,NAME列的值映射到列id,name
		SelectValuesMeta selectValuesTime = new SelectValuesMeta();
		String selectValuesPluginIdTime = registry.getPluginId(StepPluginType.class, selectValuesTime);

		selectValuesTime.allocate(2,0,0);
		String[] srcColNames = new String[]{"ID","NAME"};
		selectValuesTime.setSelectName(srcColNames);
		String[] destColNames = new String[]{"id","name"};
		selectValuesTime.setSelectRename(destColNames);

		StepMeta selectValuesStep = new StepMeta(selectValuesPluginIdTime, "selectValuesTime", (StepMetaInterface)selectValuesTime);
		transMeta.addStep(selectValuesStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, selectValuesStep));


		TableOutputMeta tableOutputMeta = new TableOutputMeta();
		tableOutputMeta.setDatabaseMeta(destDatabaseMeta);

		//设置目标表的 schema和表名
		tableOutputMeta.setSchemaName(null);
		tableOutputMeta.setTablename("user_info_dest");

		String tableOutputPluginId = registry.getPluginId(StepPluginType.class, tableOutputMeta);
		StepMeta tableOutputStep = new StepMeta(tableOutputPluginId, "tableOutput" , (StepMetaInterface) tableOutputMeta);

		//将步骤添加进去
		transMeta.addStep(tableOutputStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(selectValuesStep, tableOutputStep));

		Trans trans = new Trans(transMeta);

		//执行转换
		trans.execute(null);

		//等待完成
		trans.waitUntilFinished();
		if (trans.getErrors() > 0) {
			System.out.println("交换出错.");
			return;
		}
	}

	/**
	 * hive 到 sqlserver 之间的交换
	 * @throws KettleException
	 */
	@Test
	public void exchangeHive2MSSQL()throws KettleException{
		//源数据库连接
		String src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>src</name>" +
				"<server>192.168.10.212</server>" +
				"<type>HIVE2</type>" +
				"<access>Native</access>" +
				"<database>ntzw_dev_64</database>" +
				"<port>10000</port>" +
				"<username>hadoop</username>" +
				"<password>hadoop</password>" +
				"</connection>";

		//目标数据库连接
		String dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>dest</name>" +
				"<server>192.168.230.80</server>" +
				"<type>MSSQL</type>" +
				"<access>Native</access>" +
				"<database>test</database>" +
				"<port>1433</port>" +
				"<username>sa</username>" +
				"<password>123456</password>" +
				"</connection>";

		DatabaseMeta srcDatabaseMeta = new DatabaseMeta(src);
		DatabaseMeta destDatabaseMeta = new DatabaseMeta(dest);

		//创建转换元信息
		TransMeta transMeta = new TransMeta();
		transMeta.setName("hive 到 sqlserver 之间的交换");

		//设置源和目标
		transMeta.addDatabase(srcDatabaseMeta);
		transMeta.addDatabase(destDatabaseMeta);

		/*
		 * 创建  表输入->表输出
		 * 同时将两个步骤连接起来
		 */
		PluginRegistry registry = PluginRegistry.getInstance();
		TableInputMeta tableInputMeta = new TableInputMeta();
		String tableInputPluginId = registry.getPluginId(StepPluginType.class,
				tableInputMeta);

		tableInputMeta.setDatabaseMeta(srcDatabaseMeta);
		//设置查询条件
		String selectSql = "select id ,name from user_info_src";
		tableInputMeta.setSQL(selectSql);

		StepMeta tableInputStepMeta = new StepMeta(tableInputPluginId,
				"tableInput", (StepMetaInterface) tableInputMeta);
		transMeta.addStep(tableInputStepMeta);

		TableOutputMeta tableOutputMeta = new TableOutputMeta();
		tableOutputMeta.setDatabaseMeta(destDatabaseMeta);

		//设置目标表的 schema和表名
		tableOutputMeta.setSchemaName(null);
		tableOutputMeta.setTablename("user_info_dest");

		String tableOutputPluginId = registry.getPluginId(StepPluginType.class, tableOutputMeta);
		StepMeta tableOutputStep = new StepMeta(tableOutputPluginId, "tableOutput" , (StepMetaInterface) tableOutputMeta);

		//将步骤添加进去
		transMeta.addStep(tableOutputStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, tableOutputStep));

		Trans trans = new Trans(transMeta);

		//执行转换
		trans.execute(null);

		//等待完成
		trans.waitUntilFinished();
		if (trans.getErrors() > 0) {
			System.out.println("交换出错.");
			return;
		}
	}

	/**
	 * sqlserver 到 hive 之间的交换
	 * @throws KettleException
	 */
	@Test
	public void exchangeMSSQL2Hive()throws KettleException{
		//源数据库连接
		String src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>src</name>" +
				"<server>192.168.230.80</server>" +
				"<type>MSSQL</type>" +
				"<access>Native</access>" +
				"<database>test</database>" +
				"<port>1433</port>" +
				"<username>sa</username>" +
				"<password>123456</password>" +
				"</connection>";

		//目标数据库连接
		String dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
				"<connection>" +
				"<name>dest</name>" +
				"<server>192.168.10.212</server>" +
				"<type>HIVE2</type>" +
				"<access>Native</access>" +
				"<database>ntzw_dev_64</database>" +
				"<port>10000</port>" +
				"<username>hadoop</username>" +
				"<password>hadoop</password>" +
				"</connection>";

		DatabaseMeta srcDatabaseMeta = new DatabaseMeta(src);
		DatabaseMeta destDatabaseMeta = new DatabaseMeta(dest);

		//创建转换元信息
		TransMeta transMeta = new TransMeta();
		transMeta.setName("sqlserver 到 hive 之间的交换");

		//设置源和目标
		transMeta.addDatabase(srcDatabaseMeta);
		transMeta.addDatabase(destDatabaseMeta);

		/*
		 * 创建  表输入->表输出
		 * 同时将两个步骤连接起来
		 */
		PluginRegistry registry = PluginRegistry.getInstance();
		TableInputMeta tableInputMeta = new TableInputMeta();
		String tableInputPluginId = registry.getPluginId(StepPluginType.class,
				tableInputMeta);

		tableInputMeta.setDatabaseMeta(srcDatabaseMeta);
		//设置查询条件
		String selectSql = "select id ,name from user_info_src";
		tableInputMeta.setSQL(selectSql);

		StepMeta tableInputStepMeta = new StepMeta(tableInputPluginId,
				"tableInput", (StepMetaInterface) tableInputMeta);
		transMeta.addStep(tableInputStepMeta);

		TableOutputMeta tableOutputMeta = new TableOutputMeta();
		tableOutputMeta.setDatabaseMeta(destDatabaseMeta);

		//设置目标表的 schema和表名
		tableOutputMeta.setSchemaName(null);
		tableOutputMeta.setTablename("user_info_dest");

		String tableOutputPluginId = registry.getPluginId(StepPluginType.class, tableOutputMeta);
		StepMeta tableOutputStep = new StepMeta(tableOutputPluginId, "tableOutput" , (StepMetaInterface) tableOutputMeta);

		//将步骤添加进去
		transMeta.addStep(tableOutputStep);

		//将步骤和上一步关联起来
		transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, tableOutputStep));

		Trans trans = new Trans(transMeta);

		//执行转换
		trans.execute(null);

		//等待完成
		trans.waitUntilFinished();
		if (trans.getErrors() > 0) {
			System.out.println("交换出错.");
			return;
		}
	}
}

posted @ 2021-08-20 17:56 伟衙内阅读(205) 评论(0) 编辑收藏举报

刷新页面返回顶部

weiyanei

Hive与MySQL、Oracle、SqlServer的简单交换

前言

Hive与Mysql

hive到mysql

mysql到hive

HIve与Oracle

hive到oracle

oracle到hive

HIVE与SQLserver

hive到sqlserver

sqlserver到hive

完整代码
