代码生成ktr
从之前的一个Kettle交换代码来看，应该可以生成ktr文件，在spoon页面上展示。
代码如下：
/**
* hive之间的交换
* @throws KettleException
*/
@Test
public void exchangeMysql2Mysql() throws KettleException{
//源数据库连接
String mysql_src = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
"<connection>" +
"<name>mysql_src</name>" +
"<server>192.168.10.92</server>" +
"<type>MySQL</type>" +
"<access>Native</access>" +
"<database>test</database>" +
"<port>3306</port>" +
"<username>root</username>" +
"<password>123456</password>" +
"</connection>";
//目标数据库连接
String mysql_dest = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
"<connection>" +
"<name>mysql_dest</name>" +
"<server>192.168.10.92</server>" +
"<type>MySQL</type>" +
"<access>Native</access>" +
"<database>test</database>" +
"<port>3306</port>" +
"<username>root</username>" +
"<password>123456</password>" +
"</connection>";
DatabaseMeta srcDatabaseMeta = new DatabaseMeta(mysql_src);
DatabaseMeta destDatabaseMeta = new DatabaseMeta(mysql_dest);
//创建转换元信息
TransMeta transMeta = new TransMeta();
transMeta.setName("mysql8之间的交换");
//设置源和目标
transMeta.addDatabase(srcDatabaseMeta);
transMeta.addDatabase(destDatabaseMeta);
/*
* 创建 表输入->表输出
* 同时将两个步骤连接起来
*/
PluginRegistry registry = PluginRegistry.getInstance();
TableInputMeta tableInputMeta = new TableInputMeta();
String tableInputPluginId = registry.getPluginId(StepPluginType.class,
tableInputMeta);
tableInputMeta.setDatabaseMeta(srcDatabaseMeta);
//设置查询条件
String selectSql = "select id ,name from user_info_src";
tableInputMeta.setSQL(selectSql);
StepMeta tableInputStepMeta = new StepMeta(tableInputPluginId,
"tableInput", (StepMetaInterface) tableInputMeta);
//给步骤添加在spoon工具中的显示位置
tableInputStepMeta.setDraw(true);
tableInputStepMeta.setLocation(100, 100);
transMeta.addStep(tableInputStepMeta);
TableOutputMeta tableOutputMeta = new TableOutputMeta();
tableOutputMeta.setDatabaseMeta(destDatabaseMeta);
//设置目标表的 schema和表名
tableOutputMeta.setSchemaName(null);
tableOutputMeta.setTablename("user_info_dest");
String tableOutputPluginId = registry.getPluginId(StepPluginType.class, tableOutputMeta);
StepMeta tableOutputStep = new StepMeta(tableOutputPluginId, "tableOutput" , (StepMetaInterface) tableOutputMeta);
//给步骤添加在spoon工具中的显示位置
tableOutputStep.setDraw(true);
tableOutputStep.setLocation(200, 200);
//将步骤添加进去
transMeta.addStep(tableOutputStep);
//将步骤和上一步关联起来
transMeta.addTransHop(new TransHopMeta(tableInputStepMeta, tableOutputStep));
String xml = transMeta.getXML();
System.out.println(xml);
}上述代码是完整版，但其实只需要在之前的交换代码中添加指定StepMeta节点的位置即可，
//给步骤添加在spoon工具中的显示位置
tableInputStepMeta.setDraw(true);
tableInputStepMeta.setLocation(100, 100);
//给步骤添加在spoon工具中的显示位置
tableOutputStep.setDraw(true);
tableOutputStep.setLocation(200, 200);
当我们看ktr文件时，发现是一个xml内容，所以试着在TransMeta中获取XML内容，
String xml = transMeta.getXML();
System.out.println(xml);输出的XML如下，这个就是ktr的内容，只不过和spoon界面生成的少了一个头部，
<?xml version="1.0" encoding="UTF-8"?>
<transformation>
<info>
<name>mysql8之间的交换</name>
<description/>
<extended_description/>
<trans_version/>
<trans_type>Normal</trans_type>
<directory>/</directory>
<parameters>
</parameters>
<log>
<trans-log-table><connection/>
<schema/>
<table/>
<size_limit_lines/>
<interval/>
<timeout_days/>
<field><id>ID_BATCH</id><enabled>Y</enabled><name>ID_BATCH</name></field><field><id>CHANNEL_ID</id><enabled>Y</enabled><name>CHANNEL_ID</name></field><field><id>TRANSNAME</id><enabled>Y</enabled><name>TRANSNAME</name></field><field><id>STATUS</id><enabled>Y</enabled><name>STATUS</name></field><field><id>LINES_READ</id><enabled>Y</enabled><name>LINES_READ</name><subject/></field><field><id>LINES_WRITTEN</id><enabled>Y</enabled><name>LINES_WRITTEN</name><subject/></field><field><id>LINES_UPDATED</id><enabled>Y</enabled><name>LINES_UPDATED</name><subject/></field><field><id>LINES_INPUT</id><enabled>Y</enabled><name>LINES_INPUT</name><subject/></field><field><id>LINES_OUTPUT</id><enabled>Y</enabled><name>LINES_OUTPUT</name><subject/></field><field><id>LINES_REJECTED</id><enabled>Y</enabled><name>LINES_REJECTED</name><subject/></field><field><id>ERRORS</id><enabled>Y</enabled><name>ERRORS</name></field><field><id>STARTDATE</id><enabled>Y</enabled><name>STARTDATE</name></field><field><id>ENDDATE</id><enabled>Y</enabled><name>ENDDATE</name></field><field><id>LOGDATE</id><enabled>Y</enabled><name>LOGDATE</name></field><field><id>DEPDATE</id><enabled>Y</enabled><name>DEPDATE</name></field><field><id>REPLAYDATE</id><enabled>Y</enabled><name>REPLAYDATE</name></field><field><id>LOG_FIELD</id><enabled>Y</enabled><name>LOG_FIELD</name></field><field><id>EXECUTING_SERVER</id><enabled>N</enabled><name>EXECUTING_SERVER</name></field><field><id>EXECUTING_USER</id><enabled>N</enabled><name>EXECUTING_USER</name></field><field><id>CLIENT</id><enabled>N</enabled><name>CLIENT</name></field></trans-log-table>
<perf-log-table><connection/>
<schema/>
<table/>
<interval/>
<timeout_days/>
<field><id>ID_BATCH</id><enabled>Y</enabled><name>ID_BATCH</name></field><field><id>SEQ_NR</id><enabled>Y</enabled><name>SEQ_NR</name></field><field><id>LOGDATE</id><enabled>Y</enabled><name>LOGDATE</name></field><field><id>TRANSNAME</id><enabled>Y</enabled><name>TRANSNAME</name></field><field><id>STEPNAME</id><enabled>Y</enabled><name>STEPNAME</name></field><field><id>STEP_COPY</id><enabled>Y</enabled><name>STEP_COPY</name></field><field><id>LINES_READ</id><enabled>Y</enabled><name>LINES_READ</name></field><field><id>LINES_WRITTEN</id><enabled>Y</enabled><name>LINES_WRITTEN</name></field><field><id>LINES_UPDATED</id><enabled>Y</enabled><name>LINES_UPDATED</name></field><field><id>LINES_INPUT</id><enabled>Y</enabled><name>LINES_INPUT</name></field><field><id>LINES_OUTPUT</id><enabled>Y</enabled><name>LINES_OUTPUT</name></field><field><id>LINES_REJECTED</id><enabled>Y</enabled><name>LINES_REJECTED</name></field><field><id>ERRORS</id><enabled>Y</enabled><name>ERRORS</name></field><field><id>INPUT_BUFFER_ROWS</id><enabled>Y</enabled><name>INPUT_BUFFER_ROWS</name></field><field><id>OUTPUT_BUFFER_ROWS</id><enabled>Y</enabled><name>OUTPUT_BUFFER_ROWS</name></field></perf-log-table>
<channel-log-table><connection/>
<schema/>
<table/>
<timeout_days/>
<field><id>ID_BATCH</id><enabled>Y</enabled><name>ID_BATCH</name></field><field><id>CHANNEL_ID</id><enabled>Y</enabled><name>CHANNEL_ID</name></field><field><id>LOG_DATE</id><enabled>Y</enabled><name>LOG_DATE</name></field><field><id>LOGGING_OBJECT_TYPE</id><enabled>Y</enabled><name>LOGGING_OBJECT_TYPE</name></field><field><id>OBJECT_NAME</id><enabled>Y</enabled><name>OBJECT_NAME</name></field><field><id>OBJECT_COPY</id><enabled>Y</enabled><name>OBJECT_COPY</name></field><field><id>REPOSITORY_DIRECTORY</id><enabled>Y</enabled><name>REPOSITORY_DIRECTORY</name></field><field><id>FILENAME</id><enabled>Y</enabled><name>FILENAME</name></field><field><id>OBJECT_ID</id><enabled>Y</enabled><name>OBJECT_ID</name></field><field><id>OBJECT_REVISION</id><enabled>Y</enabled><name>OBJECT_REVISION</name></field><field><id>PARENT_CHANNEL_ID</id><enabled>Y</enabled><name>PARENT_CHANNEL_ID</name></field><field><id>ROOT_CHANNEL_ID</id><enabled>Y</enabled><name>ROOT_CHANNEL_ID</name></field></channel-log-table>
<step-log-table><connection/>
<schema/>
<table/>
<timeout_days/>
<field><id>ID_BATCH</id><enabled>Y</enabled><name>ID_BATCH</name></field><field><id>CHANNEL_ID</id><enabled>Y</enabled><name>CHANNEL_ID</name></field><field><id>LOG_DATE</id><enabled>Y</enabled><name>LOG_DATE</name></field><field><id>TRANSNAME</id><enabled>Y</enabled><name>TRANSNAME</name></field><field><id>STEPNAME</id><enabled>Y</enabled><name>STEPNAME</name></field><field><id>STEP_COPY</id><enabled>Y</enabled><name>STEP_COPY</name></field><field><id>LINES_READ</id><enabled>Y</enabled><name>LINES_READ</name></field><field><id>LINES_WRITTEN</id><enabled>Y</enabled><name>LINES_WRITTEN</name></field><field><id>LINES_UPDATED</id><enabled>Y</enabled><name>LINES_UPDATED</name></field><field><id>LINES_INPUT</id><enabled>Y</enabled><name>LINES_INPUT</name></field><field><id>LINES_OUTPUT</id><enabled>Y</enabled><name>LINES_OUTPUT</name></field><field><id>LINES_REJECTED</id><enabled>Y</enabled><name>LINES_REJECTED</name></field><field><id>ERRORS</id><enabled>Y</enabled><name>ERRORS</name></field><field><id>LOG_FIELD</id><enabled>N</enabled><name>LOG_FIELD</name></field></step-log-table>
<metrics-log-table><connection/>
<schema/>
<table/>
<timeout_days/>
<field><id>ID_BATCH</id><enabled>Y</enabled><name>ID_BATCH</name></field><field><id>CHANNEL_ID</id><enabled>Y</enabled><name>CHANNEL_ID</name></field><field><id>LOG_DATE</id><enabled>Y</enabled><name>LOG_DATE</name></field><field><id>METRICS_DATE</id><enabled>Y</enabled><name>METRICS_DATE</name></field><field><id>METRICS_CODE</id><enabled>Y</enabled><name>METRICS_CODE</name></field><field><id>METRICS_DESCRIPTION</id><enabled>Y</enabled><name>METRICS_DESCRIPTION</name></field><field><id>METRICS_SUBJECT</id><enabled>Y</enabled><name>METRICS_SUBJECT</name></field><field><id>METRICS_TYPE</id><enabled>Y</enabled><name>METRICS_TYPE</name></field><field><id>METRICS_VALUE</id><enabled>Y</enabled><name>METRICS_VALUE</name></field></metrics-log-table>
</log>
<maxdate>
<connection/>
<table/>
<field/>
<offset>0.0</offset>
<maxdiff>0.0</maxdiff>
</maxdate>
<size_rowset>10000</size_rowset>
<sleep_time_empty>50</sleep_time_empty>
<sleep_time_full>50</sleep_time_full>
<unique_connections>N</unique_connections>
<feedback_shown>Y</feedback_shown>
<feedback_size>50000</feedback_size>
<using_thread_priorities>Y</using_thread_priorities>
<shared_objects_file/>
<capture_step_performance>N</capture_step_performance>
<step_performance_capturing_delay>1000</step_performance_capturing_delay>
<step_performance_capturing_size_limit>100</step_performance_capturing_size_limit>
<dependencies>
</dependencies>
<partitionschemas>
</partitionschemas>
<slaveservers>
</slaveservers>
<clusterschemas>
</clusterschemas>
<created_user>-</created_user>
<created_date>2021/11/12 11:38:37.820</created_date>
<modified_user>-</modified_user>
<modified_date>2021/11/12 11:38:37.820</modified_date>
</info>
<notepads>
</notepads>
<connection>
<name>mysql_dest</name>
<server>192.168.10.92</server>
<type>MYSQL</type>
<access>Native</access>
<database>test</database>
<port>3306</port>
<username>root</username>
<password>Encrypted 2be98afc86aa7f2e4cb79ff228dc6fa8c</password>
<servername/>
<data_tablespace/>
<index_tablespace/>
<attributes>
<attribute><code>PORT_NUMBER</code><attribute>3306</attribute></attribute>
</attributes>
</connection>
<connection>
<name>mysql_src</name>
<server>192.168.10.92</server>
<type>MYSQL</type>
<access>Native</access>
<database>test</database>
<port>3306</port>
<username>root</username>
<password>Encrypted 2be98afc86aa7f2e4cb79ff228dc6fa8c</password>
<servername/>
<data_tablespace/>
<index_tablespace/>
<attributes>
<attribute><code>PORT_NUMBER</code><attribute>3306</attribute></attribute>
</attributes>
</connection>
<order>
<hop> <from>tableInput</from><to>tableOutput</to><enabled>Y</enabled> </hop>
</order>
<step>
<name>tableInput</name>
<type>TableInput</type>
<description/>
<distribute>Y</distribute>
<custom_distribution/>
<copies>1</copies>
<partitioning>
<method>none</method>
<schema_name/>
</partitioning>
<connection>mysql_src</connection>
<sql>select id ,name from user_info_src</sql>
<limit/>
<lookup/>
<execute_each_row>N</execute_each_row>
<variables_active>N</variables_active>
<lazy_conversion_active>N</lazy_conversion_active>
<cluster_schema/>
<remotesteps> <input> </input> <output> </output> </remotesteps> <GUI>
<xloc>100</xloc>
<yloc>100</yloc>
<draw>Y</draw>
</GUI>
</step>
<step>
<name>tableOutput</name>
<type>TableOutput</type>
<description/>
<distribute>Y</distribute>
<custom_distribution/>
<copies>1</copies>
<partitioning>
<method>none</method>
<schema_name/>
</partitioning>
<connection>mysql_dest</connection>
<schema/>
<table>user_info_dest</table>
<commit>1000</commit>
<truncate>N</truncate>
<ignore_errors>N</ignore_errors>
<use_batch>Y</use_batch>
<specify_fields>N</specify_fields>
<partitioning_enabled>N</partitioning_enabled>
<partitioning_field/>
<partitioning_daily>N</partitioning_daily>
<partitioning_monthly>N</partitioning_monthly>
<tablename_in_field>N</tablename_in_field>
<tablename_field/>
<tablename_in_table>N</tablename_in_table>
<return_keys>N</return_keys>
<return_field/>
<fields>
</fields>
<cluster_schema/>
<remotesteps> <input> </input> <output> </output> </remotesteps> <GUI>
<xloc>200</xloc>
<yloc>200</yloc>
<draw>Y</draw>
</GUI>
</step>
<step_error_handling>
</step_error_handling>
<slave-step-copy-partition-distribution>
</slave-step-copy-partition-distribution>
<slave_transformation>N</slave_transformation>
</transformation>这里没有写到文件中，直接输出到控制台，然后拷贝到txt文件中，加上<?xml version="1.0" encoding="UTF-8"?>这个头部，最后把文件后缀名改为ktr。
spoon界面查看

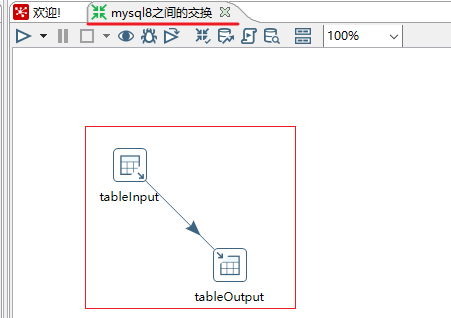

可以看到在spoon工具中是能展示的，

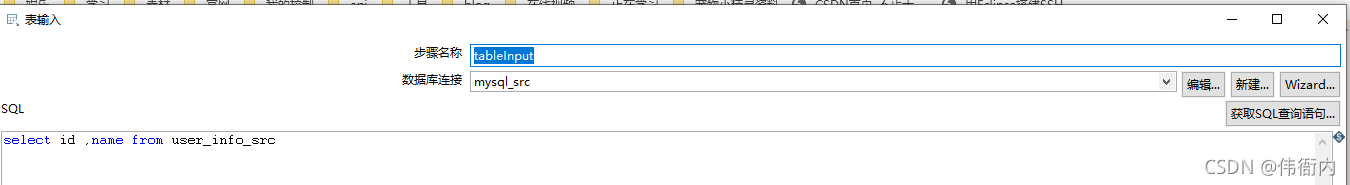

表输入就是在代码中写的SQL，

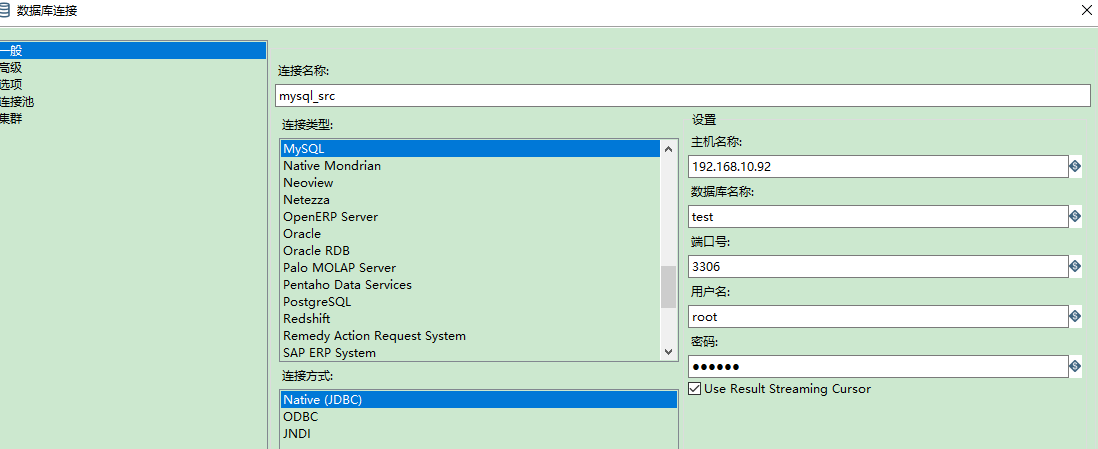

数据库连接也是在代码XML 中写的，

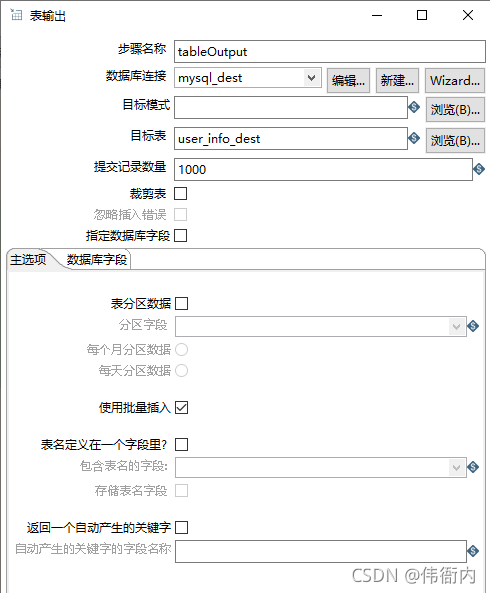

表输出也正常，
所以在代码中生成一个ktr文件就完成，这样就能很直观的看到代码生成和界面的区别，也能很快的找到错误。
