csv交换到excel
目录
问题、没有设置ExcelOutputMeta的ExcelField
一、准备工作

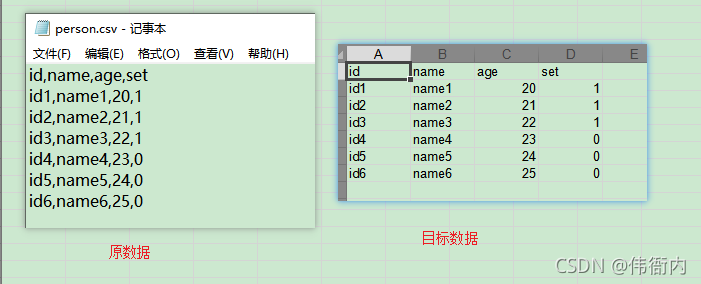

准备一个csv文件，内容如下，

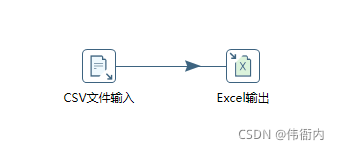

在spoon工具中配置如下交换，并保存为ktr文件，并实验交换是正常的。
二、 分析ktr
通过上一篇得知应该看哪些元素，那么此处就忽略重复的了，简略描述下。 通过ktr文件写交换代码_lw18751836671的专栏-CSDN博客目录一、ktr文件生成二、分析ktr文件解析类文件路径文件字段图形化信息输出节点三、交换代码初始化环境 输入节点 输入字段列设置 输出节点输出节点列设置设置Trans将步骤添加到Trans步骤关联交换执行四、问题点问题、no class found 没有jxl包和poi包问题、 没有设置includeSubFolders属性问题、没有设置fileMask和excludeFileMask 问题、没有设...https://blog.csdn.net/lw18751836671/article/details/121406210?spm=1001.2014.3001.5501 首先确定 CsvInputMeta和ExcelOutputMeta两个对象，
然后确定CsvInputMeta中需要设置fileName,separator,enclosure,header,buffer_size等属性值。
<filename>F:\kette_test\input\person.csv</filename>
<filename_field/>
<rownum_field/>
<include_filename>N</include_filename>
<separator>,</separator>
<enclosure>"</enclosure>
<header>Y</header>
<buffer_size>50000</buffer_size>再设置CsvInputMeta的fields，为了篇幅问题，就省略一些field的xml了。
<fields>
<field>
<name>id</name>
<type>String</type>
<format/>
<currency>￥</currency>
<decimal>.</decimal>
<group>,</group>
<length>3</length>
<precision>-1</precision>
<trim_type>none</trim_type>
</field>
<field>
<name>set</name>
<type>Integer</type>
<format>#</format>
<currency>￥</currency>
<decimal>.</decimal>
<group>,</group>
<length>15</length>
<precision>0</precision>
<trim_type>none</trim_type>
</field>
</fields>注意项：

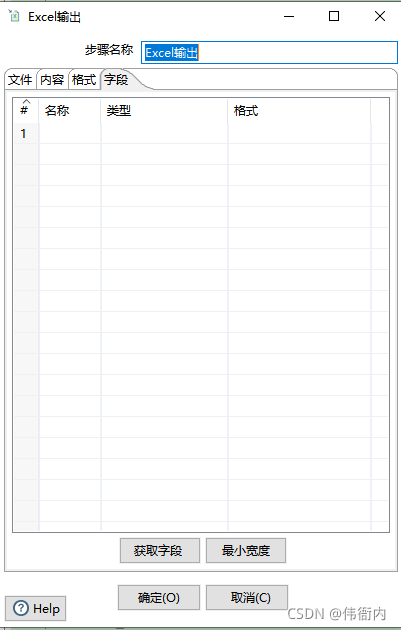

如下图所示，输出我并没有定义字段，在spoon是可以正常，但是后面代码中没有设置ExcelField就报空指针。
在ktr中的xml也是没有内容的，
<fields>
</fields>三、代码分析
定义一个CsvInputMeta对象，
/*
1.输入
*/
CsvInputMeta inputMeta = new CsvInputMeta();下面要开始设置属性，
String filePath = "F:\\kette_test\\input\\person.csv";
inputMeta.setFilename(filePath);
//设置列分割符
inputMeta.setDelimiter(",");
//设置封闭符
inputMeta.setEnclosure("\"");
//表头
inputMeta.setHeaderPresent(true);
inputMeta.setBufferSize("50000");关于分割符，也就是xml中的separator节点，在CsvInputMeta中并没有separator这个属性，但是通过搜索separator找到一个getSeparator方法，返回delimiter。
public String getSeparator() {
return delimiter;
}这个封闭符enclosure设置为了什么我也不知道，我随便设置了一个“\\”也可以运行交换。
下面是字段列的设置，为了篇幅问题，就列举一个，
//字段列
String[] fieldsName = new String[]{"id","name","age","set"};
TextFileInputField[] inputFields = new TextFileInputField[fieldsName.length];
inputFields[0] = new TextFileInputField(fieldsName[0],-1,3);
inputFields[0].setType(ValueMetaInterface.TYPE_STRING);
inputFields[0].setDecimalSymbol(".");
inputFields[0].setGroupSymbol(",");至此，关于输入CsvInputMeta的代码就完成了，其他的就不再赘述。
四、 问题项
问题、没有设置bufferSize
解决方式：
inputMeta.setBufferSize("50000");问题、没有设置ExcelOutputMeta的ExcelField

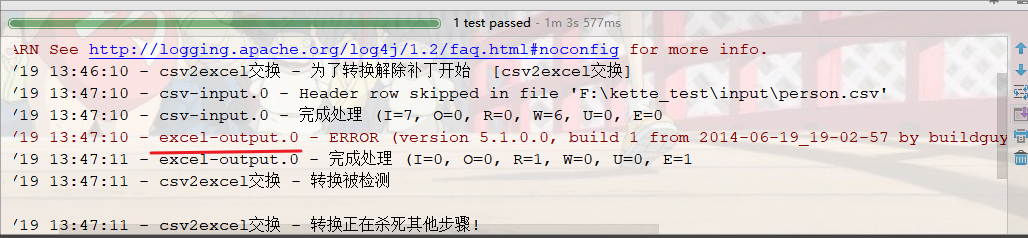

这个问题也是我之前说的，在spoon中并没有设置字段，但是在代码中不设置字段就报错了，
ERROR (version 5.1.0.0, build 1 from 2014-06-19_19-02-57 by buildguy) : Error writing line :java.lang.NullPointerException
解决方式：这里用了allocate方法，和上一篇不一样，但效果相同，
outputMeta.allocate(fieldsName.length);
ExcelField[] excelFields = outputMeta.getOutputFields();
excelFields[0] = new ExcelField();
excelFields[0].setName(fieldsName[0]);
excelFields[0].setType(ValueMetaInterface.TYPE_STRING);
excelFields[1] = new ExcelField();
excelFields[1].setName(fieldsName[1]);
excelFields[1].setType(ValueMetaInterface.TYPE_STRING);
excelFields[2] = new ExcelField();
excelFields[2].setName(fieldsName[2]);
excelFields[2].setType(ValueMetaInterface.TYPE_INTEGER);
excelFields[2].setFormat("0");
excelFields[3] = new ExcelField();
excelFields[3].setName(fieldsName[3]);
excelFields[3].setType(ValueMetaInterface.TYPE_INTEGER);
excelFields[3].setFormat("0");

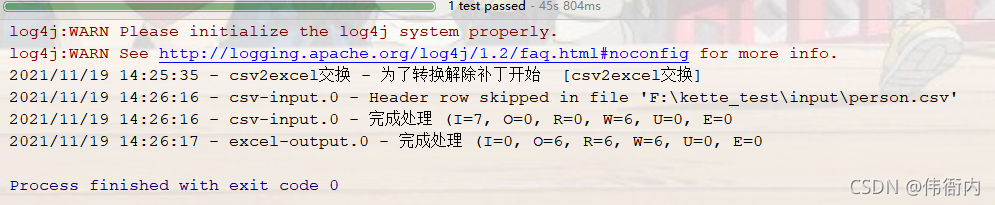

outputMeta.setOutputFields(excelFields);五、运行
备注：
使用的spoon工具是 pdi-ce-8.2.0.0-342 这个版本的。
完整代码
/**
* csv 到excel交换
* @throws KettleException
*/
@Test
public void exchangeCsv2Excel() throws KettleException{
/*
1.输入
*/
CsvInputMeta inputMeta = new CsvInputMeta();
/**
* 文件内容：
* id,name,age,set
id1,name1,20,1
id2,name2,21,1
id3,name3,22,1
id4,name4,23,0
id5,name5,24,0
id6,name6,25,0
*/
String filePath = "F:\\kette_test\\input\\person.csv";
inputMeta.setFilename(filePath);
//设置列分割符
inputMeta.setDelimiter(",");
//设置封闭符
inputMeta.setEnclosure("\"");
//表头
inputMeta.setHeaderPresent(true);
inputMeta.setBufferSize("50000");
//字段列
String[] fieldsName = new String[]{"id","name","age","set"};
TextFileInputField[] inputFields = new TextFileInputField[fieldsName.length];
inputFields[0] = new TextFileInputField(fieldsName[0],-1,3);
inputFields[0].setType(ValueMetaInterface.TYPE_STRING);
inputFields[0].setDecimalSymbol(".");
inputFields[0].setGroupSymbol(",");
inputFields[1] = new TextFileInputField(fieldsName[1],-1,5);
inputFields[1].setType(ValueMetaInterface.TYPE_STRING);
inputFields[1].setDecimalSymbol(".");
inputFields[1].setGroupSymbol(",");
inputFields[2] = new TextFileInputField(fieldsName[2],-1,15);
inputFields[2].setType(ValueMetaInterface.TYPE_INTEGER);
inputFields[2].setFormat("#");
inputFields[2].setDecimalSymbol(".");
inputFields[2].setGroupSymbol(",");
inputFields[2].setPrecision(0);
inputFields[3] = new TextFileInputField(fieldsName[3],-1,15);
inputFields[3].setType(ValueMetaInterface.TYPE_INTEGER);
inputFields[3].setFormat("#");
inputFields[3].setDecimalSymbol(".");
inputFields[3].setGroupSymbol(",");
inputFields[3].setPrecision(0);
inputMeta.setInputFields(inputFields);
/*
2.输出
*/
ExcelOutputMeta outputMeta = new ExcelOutputMeta();
outputMeta.setAppend(false);
outputMeta.setHeaderEnabled(true);
outputMeta.setFooterEnabled(false);
outputMeta.setFileName("F:\\kette_test\\output\\person_2");
//设置扩展名
outputMeta.setExtension("xls");
outputMeta.setDoNotOpenNewFileInit(false);
outputMeta.setCreateParentFolder(false);
outputMeta.allocate(fieldsName.length);
ExcelField[] excelFields = outputMeta.getOutputFields();
excelFields[0] = new ExcelField();
excelFields[0].setName(fieldsName[0]);
excelFields[0].setType(ValueMetaInterface.TYPE_STRING);
excelFields[1] = new ExcelField();
excelFields[1].setName(fieldsName[1]);
excelFields[1].setType(ValueMetaInterface.TYPE_STRING);
excelFields[2] = new ExcelField();
excelFields[2].setName(fieldsName[2]);
excelFields[2].setType(ValueMetaInterface.TYPE_INTEGER);
excelFields[2].setFormat("0");
excelFields[3] = new ExcelField();
excelFields[3].setName(fieldsName[3]);
excelFields[3].setType(ValueMetaInterface.TYPE_INTEGER);
excelFields[3].setFormat("0");
outputMeta.setOutputFields(excelFields);
/*
3. 步骤添加
*/
TransMeta transMeta = new TransMeta();
transMeta.setName("csv2excel交换");
PluginRegistry registry = PluginRegistry.getInstance();
String inputPluginId = registry.getPluginId(StepPluginType.class, inputMeta);
StepMeta inputStep = new StepMeta(inputPluginId, "csv-input", (StepMetaInterface) inputMeta);
//给步骤添加在spoon工具中的显示位置
inputStep.setDraw(true);
inputStep.setLocation(200, 200);
//将步骤添加进去
transMeta.addStep(inputStep);
String outPluginId = registry.getPluginId(StepPluginType.class, outputMeta);
StepMeta outputStep = new StepMeta(outPluginId, "excel-output", (StepMetaInterface) outputMeta);
//给步骤添加在spoon工具中的显示位置
outputStep.setDraw(true);
outputStep.setLocation(300, 200);
transMeta.addStep(outputStep);
/*
4.步骤关联
*/
transMeta.addTransHop(new TransHopMeta(inputStep, outputStep));
/*
5.执行交换
*/
Trans trans = new Trans(transMeta);
//执行转换
trans.execute(null);
//等待完成
trans.waitUntilFinished();
if (trans.getErrors() > 0) {
System.out.println("交换出错.");
return;
}
}完整ktr
